Description:

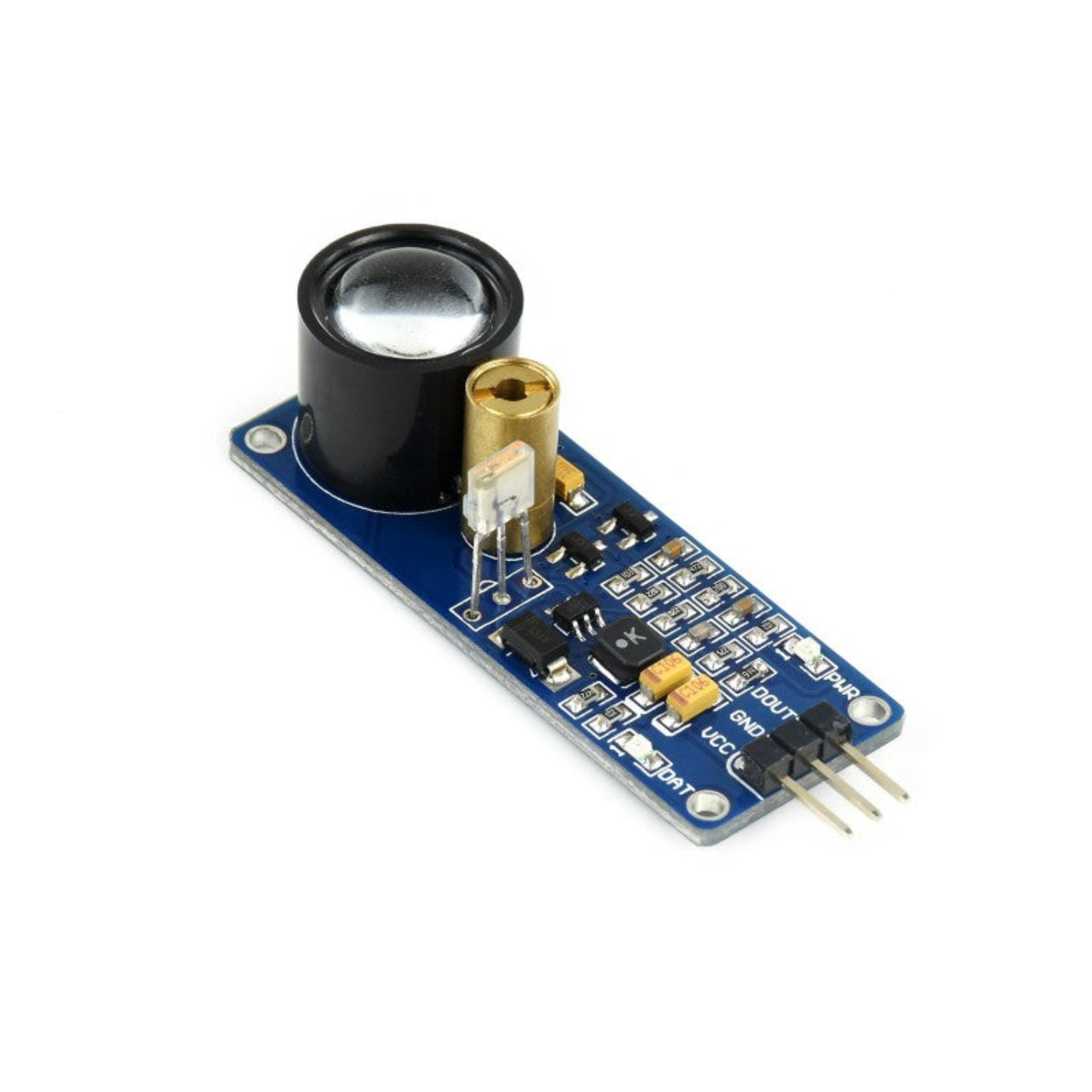

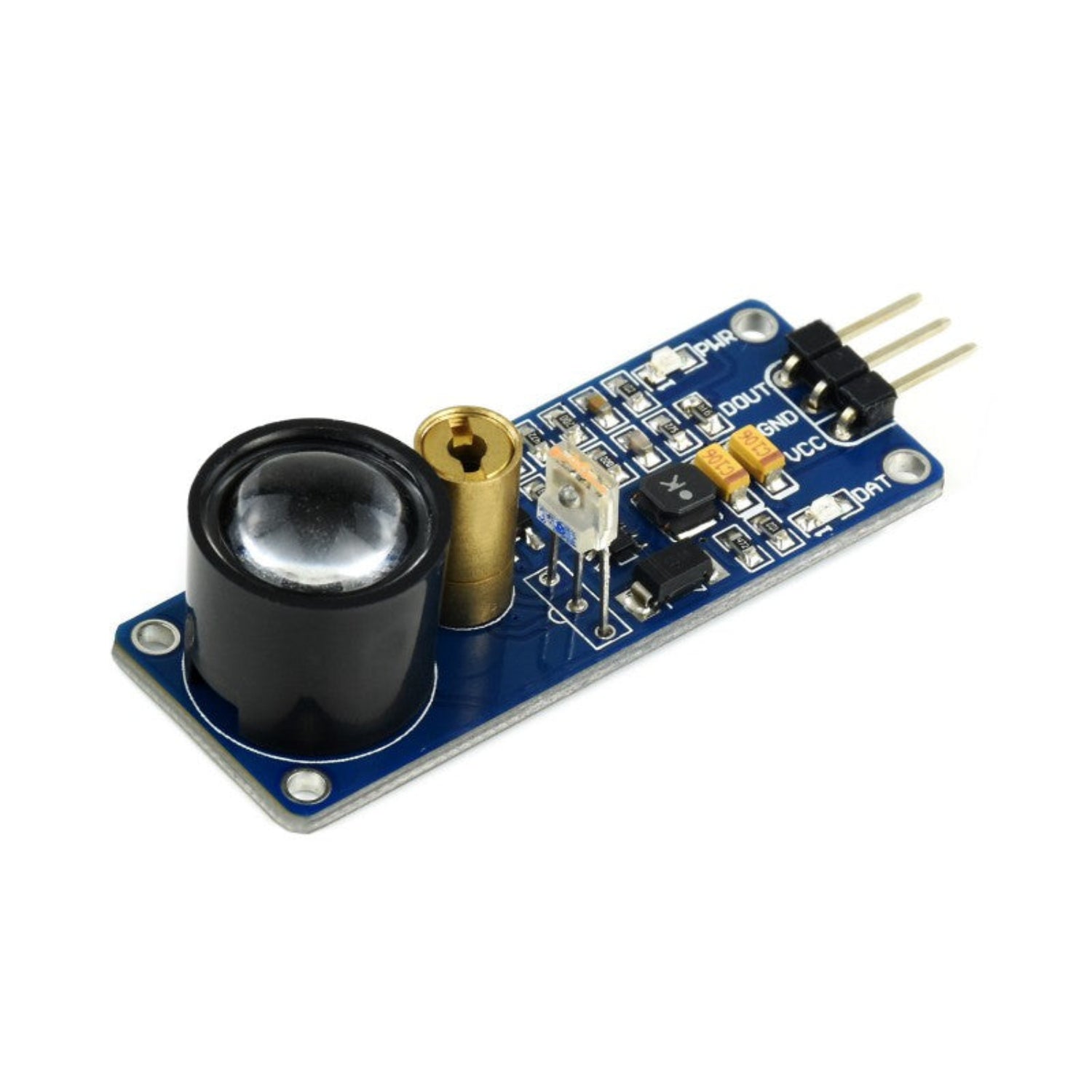

This Waveshare Laser Sensor module employs diffuse reflection for obstacle detection and laser ranging. It integrates a 180KHz oscillating transmitter to excite the laser diode, and a matching receiver tuned to the same frequency.
The modulation processing ensures robust detection by significantly reducing interference from ambient visible light. An onboard boost circuit and signal output indicator enhance its usability in smart robots, obstacle-avoiding vehicles, and pipeline counting systems.
Specifications:
- Boost chip: PT1301
- Effective distance: 0.01-0.8m(typ), 1.5m(max)
- Power: 2.5V ~ 5.0V
- Dimension: 53.0mm*18.0mm
- Mounting holes size: 2.0mm
Applications:
- Obstacle detection
- Pipeline counter
- Smart robot
- Obstacle-avoiding car

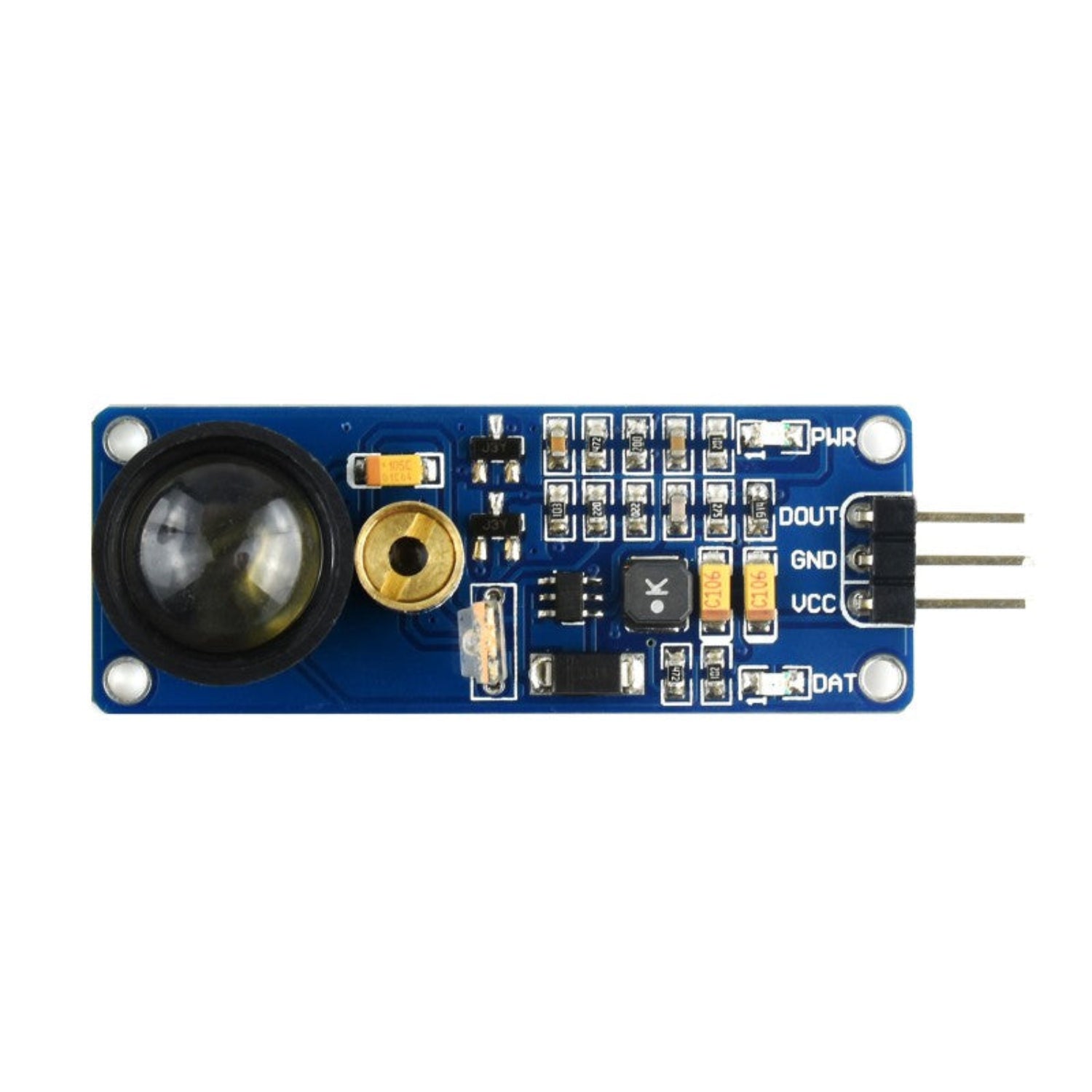

Pin Description:
In the case of working with a MCU:
- VCC ↔ 2.5V ~ 5.0V
- GND ↔ power supply ground
- DOUT ↔ MCU.IO (digital output)
Useful Link:
Package Included:
1 x Waveshare Laser Sensor Module
