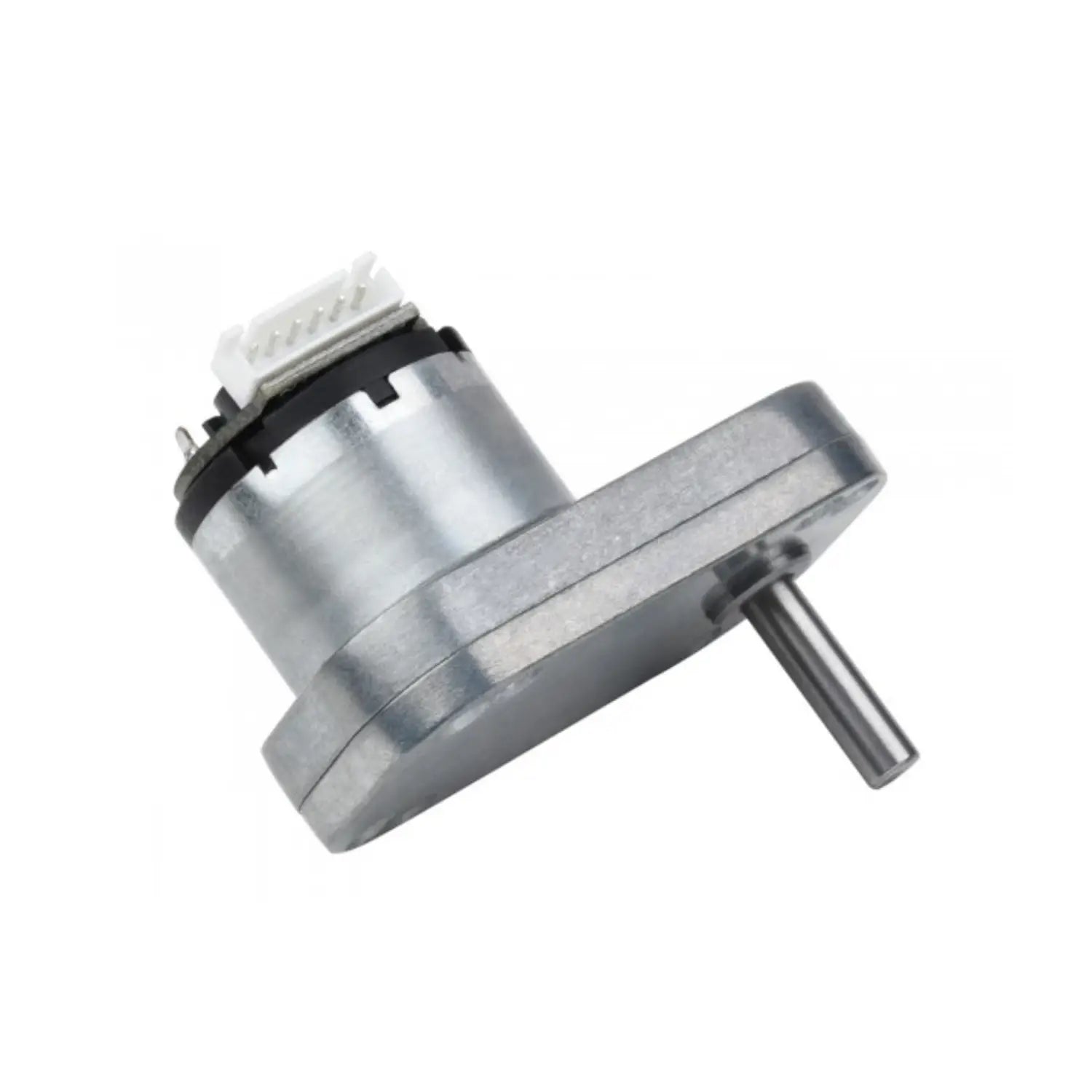

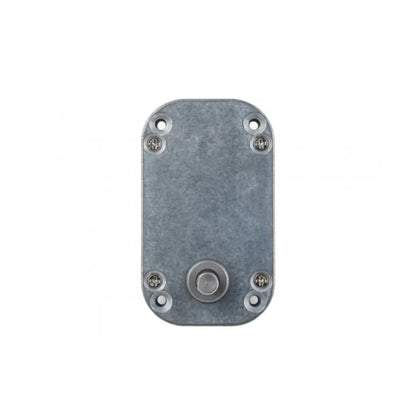

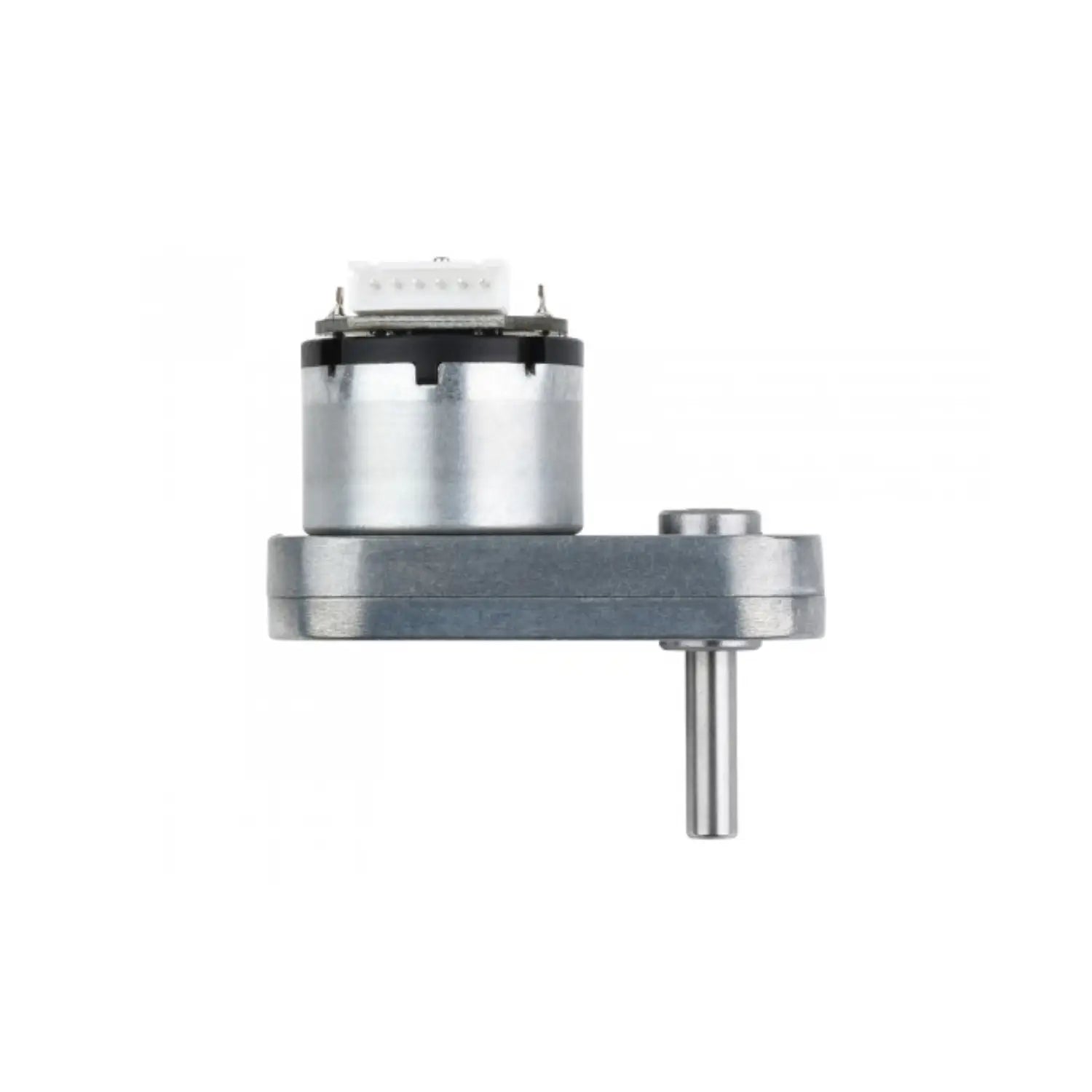

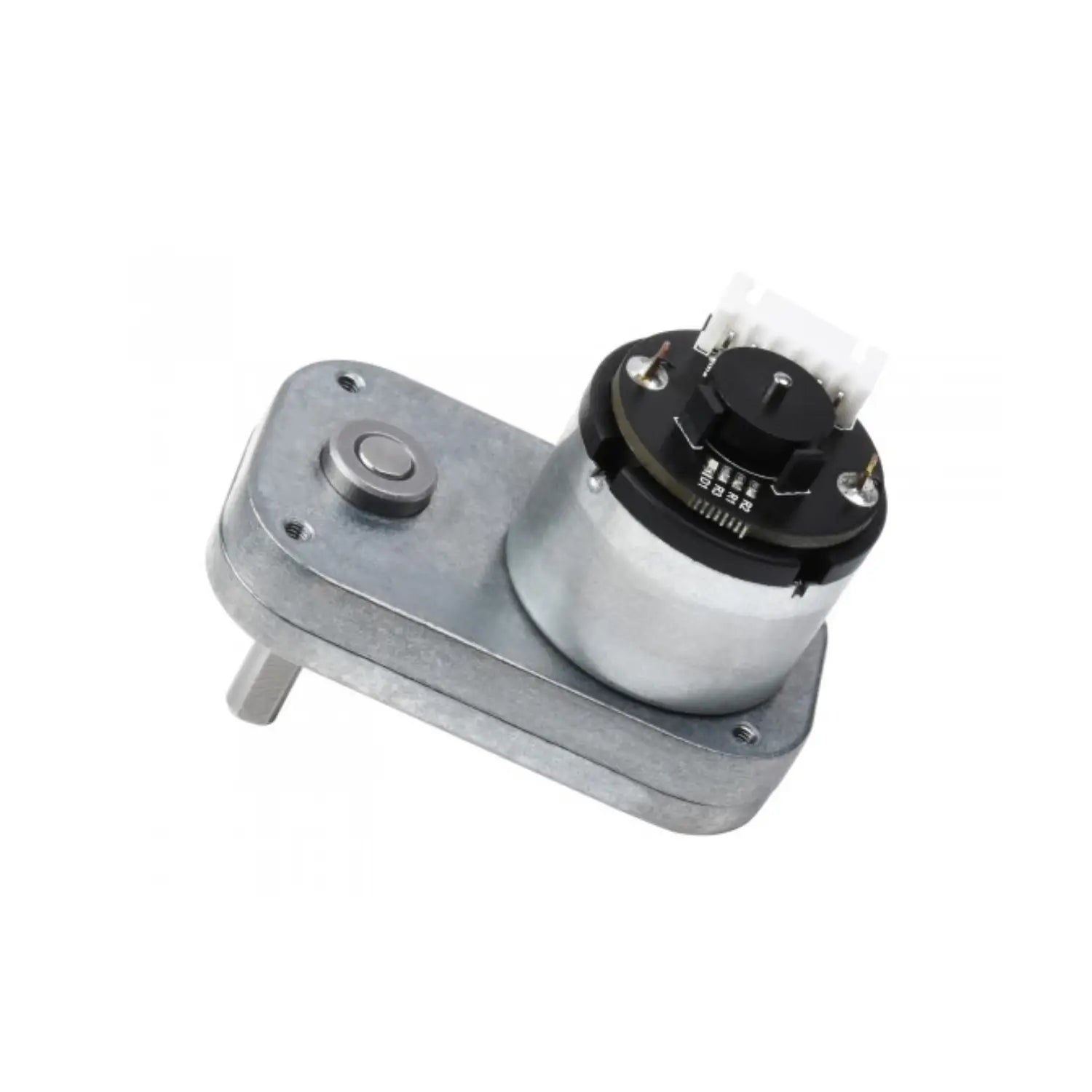

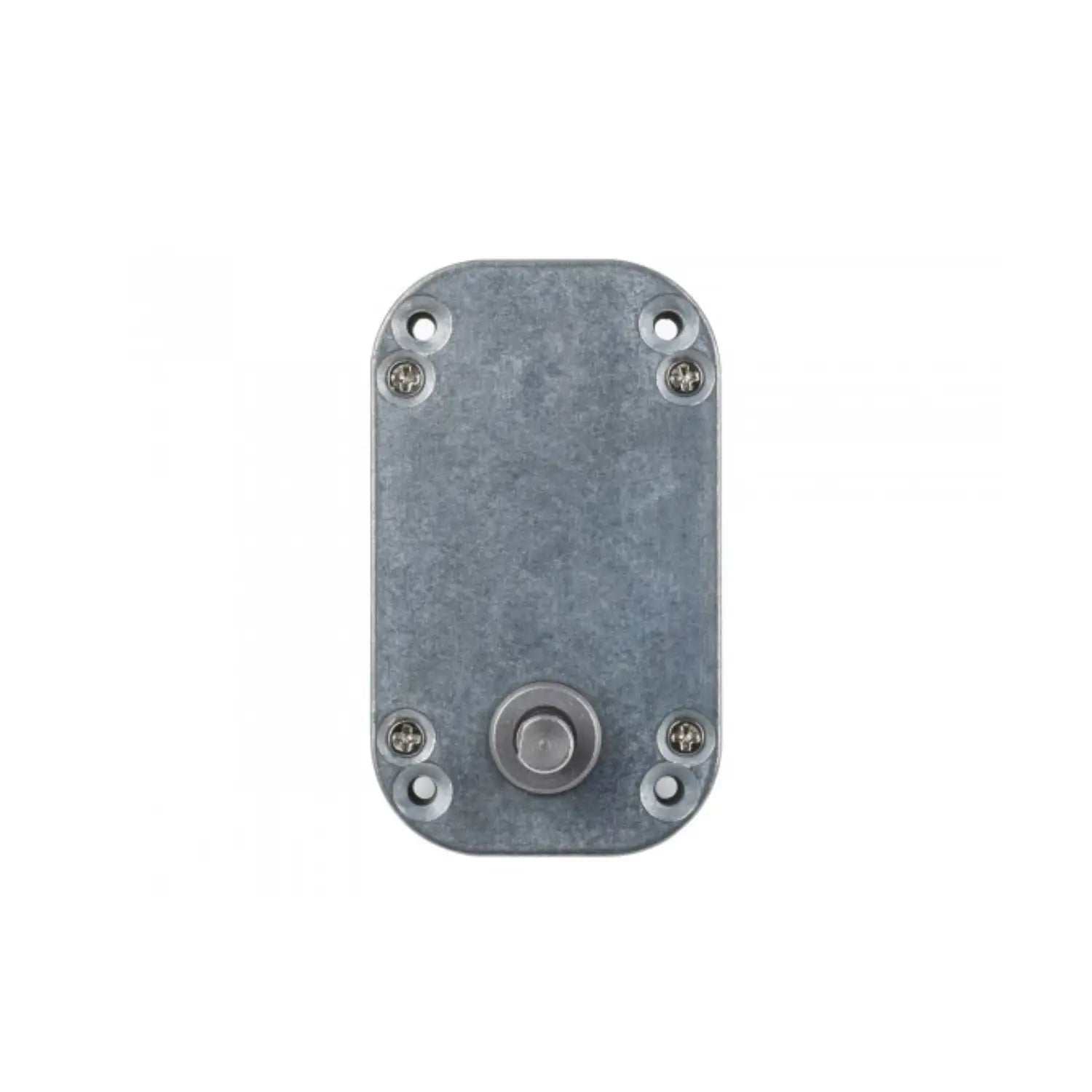

Waveshare L-Shaped DC Gear Motor with Hall Encoder Compact Right Angle Worm Gear Motor For Robotics, DIY, Smart Home & Automation

Waveshare L-Shaped DC Gear Motor with Hall Encoder Compact Right Angle Worm Gear Motor For Robotics, DIY, Smart Home & Automation

SKU:

In stock

Regular price Rs. 1,000.00
Regular price Sale price Rs. 1,000.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This Waveshare L-shaped permanent magnet DC geared motor is engineered for precision and durability in compact applications. It features an all-metal gear reduction group, ensuring robust performance and a longer lifespan.

Primarily designed for robots with small wheelbases, its unique L-type structure makes it ideal for projects with high space constraints. The motor's reducer does not have a self-locking function, allowing the output shaft to be rotated manually. 6mm output shaft diameter, it offers broad compatibility with various couplings, providing flexibility for your mechanical designs.

Specification:

  • Operating Voltage: 12 VDC
  • No Load speed: 240 RPM
  • No Load Current: 0.15mA
  • Rated Current: 1.0 Max
  • Rated Speed: 125 RPM
  • Gear Reduction: 42K
  • Power Rating: 5.2W

Applications:

Features:

  • L-shaped, suitable for robots with small wheelbases.
  • 11-wire Hall effect encoder.
  • No-load speed is up to 240rpm.
  • The locked-rotor torque can reach 8.5kg. cm.
  • Rated load is 4kg cm.
  • The terminal type is PH2.0-6PIN.

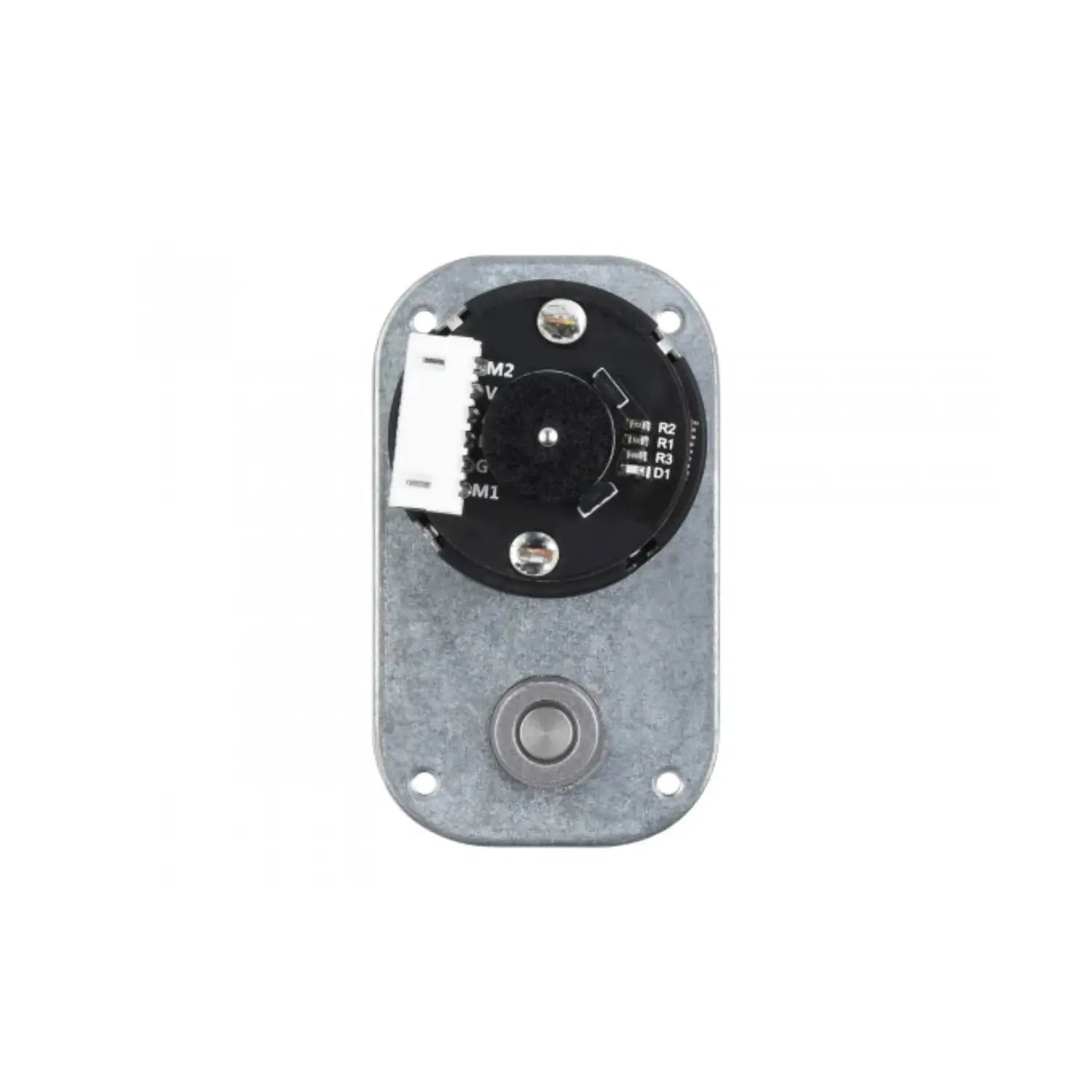

Pin Description:

Useful Links:

Waveshare L-Shaped DC Gear Motor with Hall Encoder

 Package Included:

1 x DCGM-3865-12V-EN-240RPM
