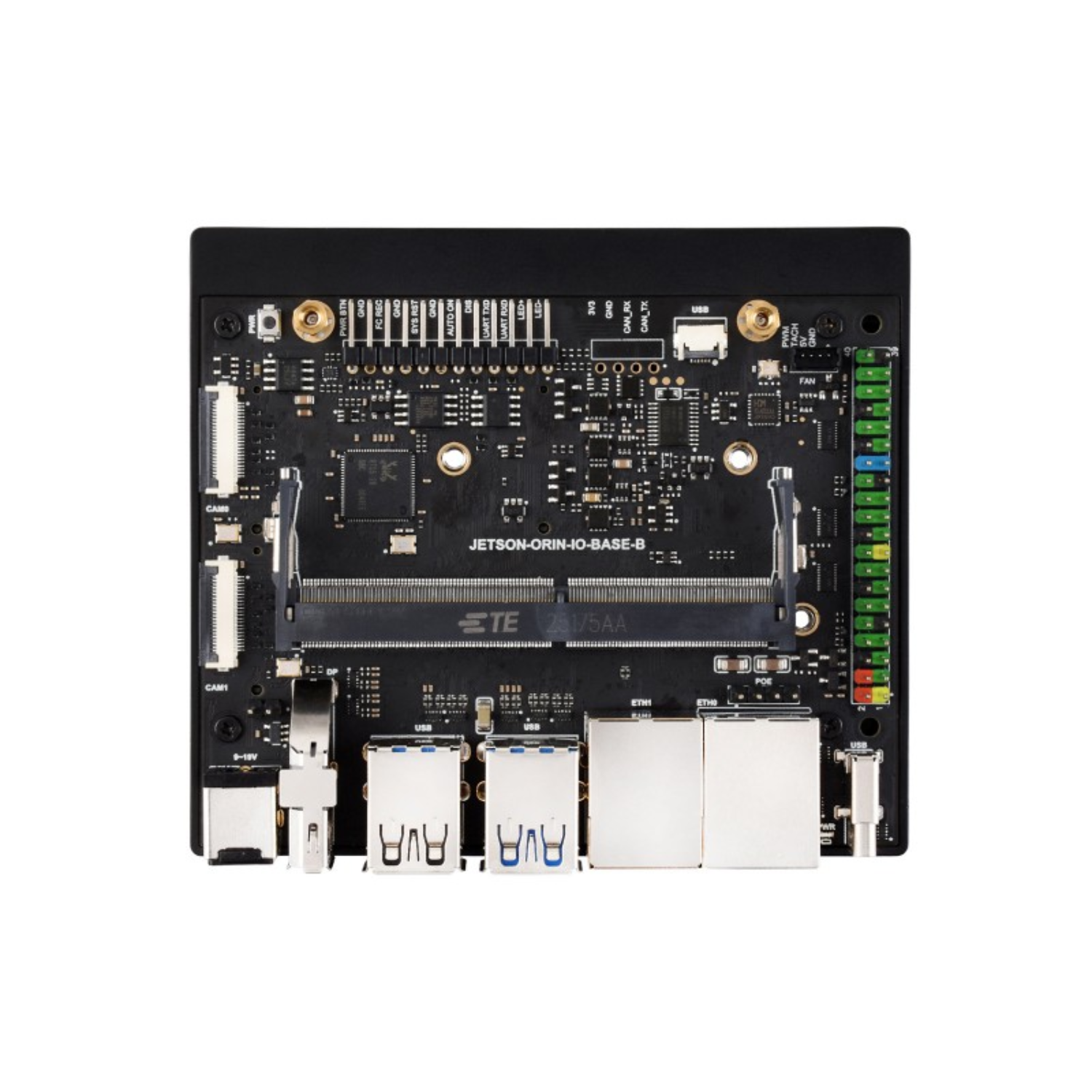

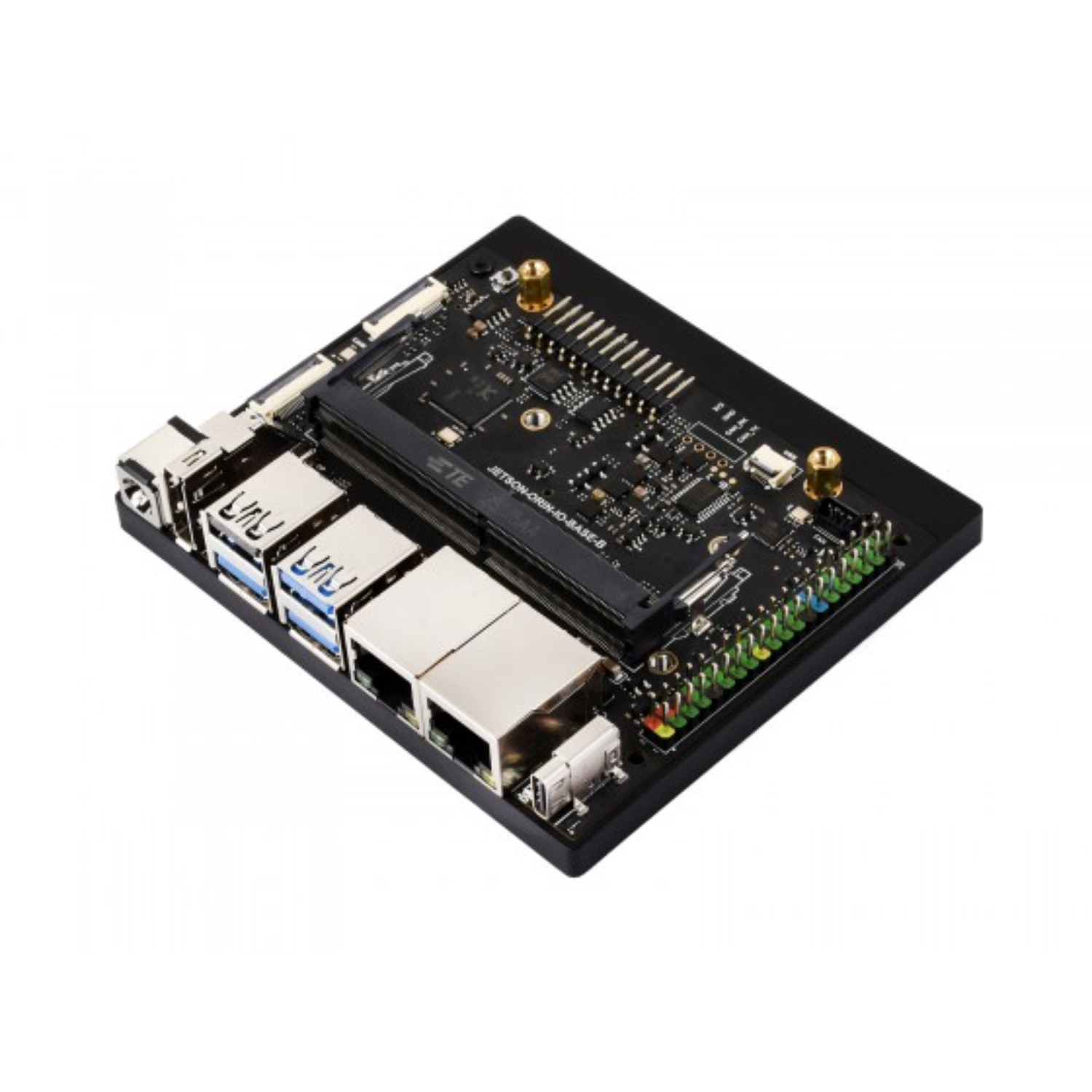

• Jetson Orin Nano/NX AI Development Base Board
  • Board for Jetson

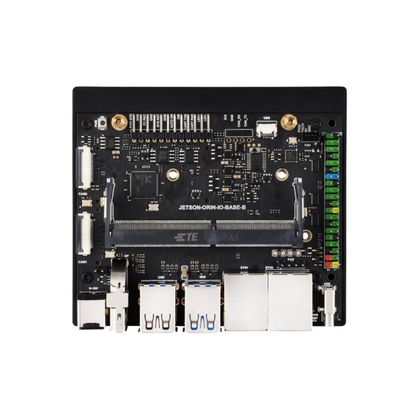

  • Jetson Orin Nano AI Development Base Board

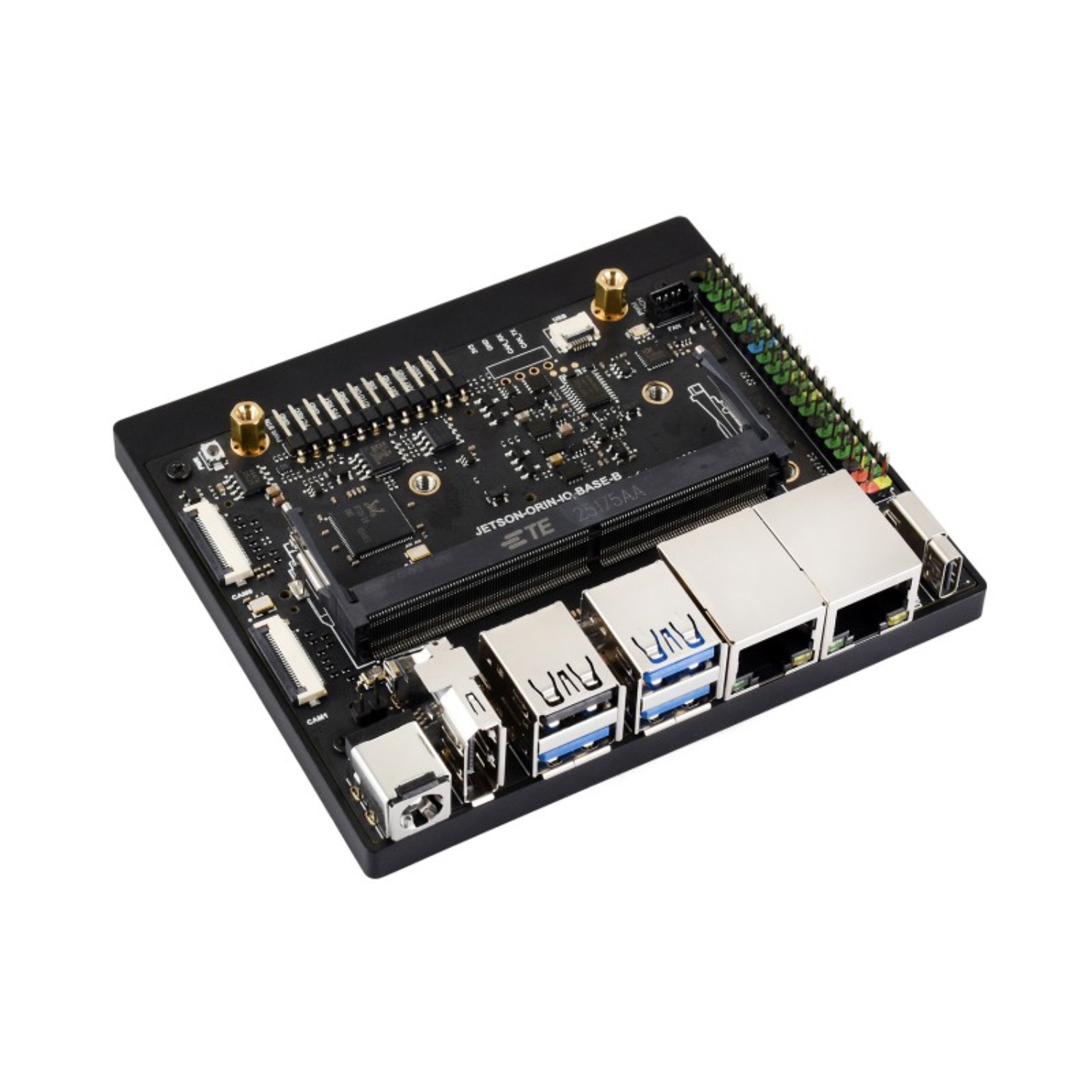

  • Jetson Orin Nano/NX Super Carrier Board
1 4

Waveshare

Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board for Jetson Orin Nano & Orin NX Modules - RS9962

Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board for Jetson Orin Nano & Orin NX Modules - RS9962

RS9962

In stock

Rs. 8,080.00
Rs. 8,080.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The NVIDIA Jetson Orin™ NX module delivers up to 100 TOPS and 5x the performance of the last generation for multiple concurrent AI inference pipelines, with high-speed interface support for multiple sensors, it is an ideal solution for a new age of robotics.

The Jetson Orin NX module delivers up to 70/100 TOPS of AI performance in a compact and small form factor, with power configurable between 10W and 25W, up to 3x the performance of Jetson AGX Xavier and 5x the performance of Jetson Xavier NX. There are currently 8GB and 16GB versions for users to choose from, and their parameters are slightly different, so please pay attention to the parameters before purchasing.

Specifications:

  • Item Type: Base Board
  • Model: Jetson Orin Nano
  • Compatibility: NVIDIA Jetson Orin Nano Module, NVIDIA Jetson Orin NX Module
  • Material: PCB (Printed Circuit Board), Electronic Components
  • Length: 103
  • Width: 90.5

Features:

  • Supports NVIDIA Jetson Orin Nano & Orin NX modules
  • Dual Ethernet ports with 2.5G + Gigabit LAN support
  • 7 USB interfaces for expanded connectivity
  • Supports dual CSI cameras for AI vision projects
  • 4K DisplayPort output for ultra-HD display
  • 40-pin GPIO header for easy hardware interfacing
  • M.2 Key M & Key E expansion slots
  • Compatible with SSDs and wireless modules
  • Wide 9V–19V DC power input support
  • Integrated onboard power management system
  • Ideal for AI, robotics & edge computing applications
  • Compact and high-performance carrier board design

Board Interface:

Jetson Orin Nano / NX Super Dual Ethernet Base Board type B， Onboard resource (the back)

  1. 260PIN DO-DIMM socket
    for connecting Jetson Orin Nano/NX module
  2. 12PIN header
    Adapting pins for power supply button, reset button, debug serial port, force recovery setting, auto power-up enable and power indicator functions
  3. Power button
  4. 2 × 22PIN CSI camera interfaces
    2 × MIPI CSI 4-lane camera interfaces
  5. DC Power jack
    Supports wide range 9V ~ 19V power supply, compatible with 5.5 × 2.5mm male plug
  6. DisplayPort port
    Supports 4K display
  7. 4 × USB Type-A ports
    3 × USB 3.2 Gen2 ports, up to 10Gbps data transmission,
    1 × USB 2.0 port, supports 480Mbps data transmission
  8. RJ45 2.5G Ethernet port
  9. RJ45 Gigabit Ethernet port
  10. USB Type-C port
    for system burning and data communication
  11. 40PIN header
  12. 4PIN PWM fan header
  13. 2 × USB 2.0 connectors
    FFC 0.5mm 6PIN connectors
  14. M.2 Key E
    for connecting wireless NIC
  15. 2 x M.2 Key M
    for connecting NVME solid state drives
  16. RTC backup battery header
    PH1.25 2P

Useful Link:

Wiki

Package Included:

  • 1 x Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board
  • 1 x Screw Pack
