Waveshare Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control -RS2047
Waveshare Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control -RS2047
SKU:RS2047
Low stock: 3 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Serial port expansion chip: SC16IS752
- RS485 transceiver： SP3485
- RS232 transceiver： SP3232
- Communication Interface： SPI
- Communication rate： 300~921600 bps
- Operating Voltage： 3.3/5V
- Dimension： 65mm × 56.5mm
- Via diameter： 3.0mm
Product Description

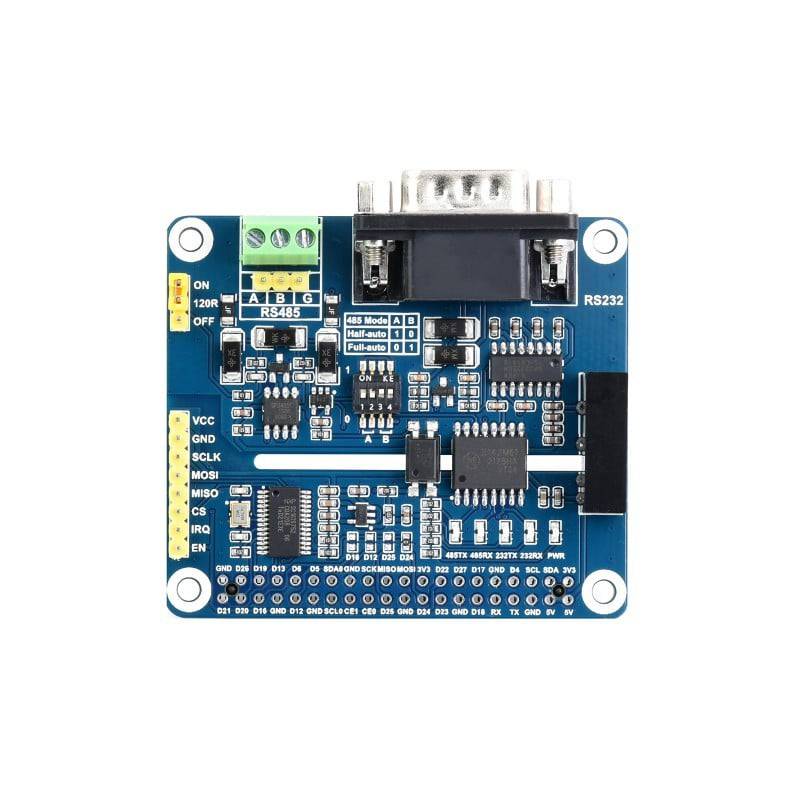

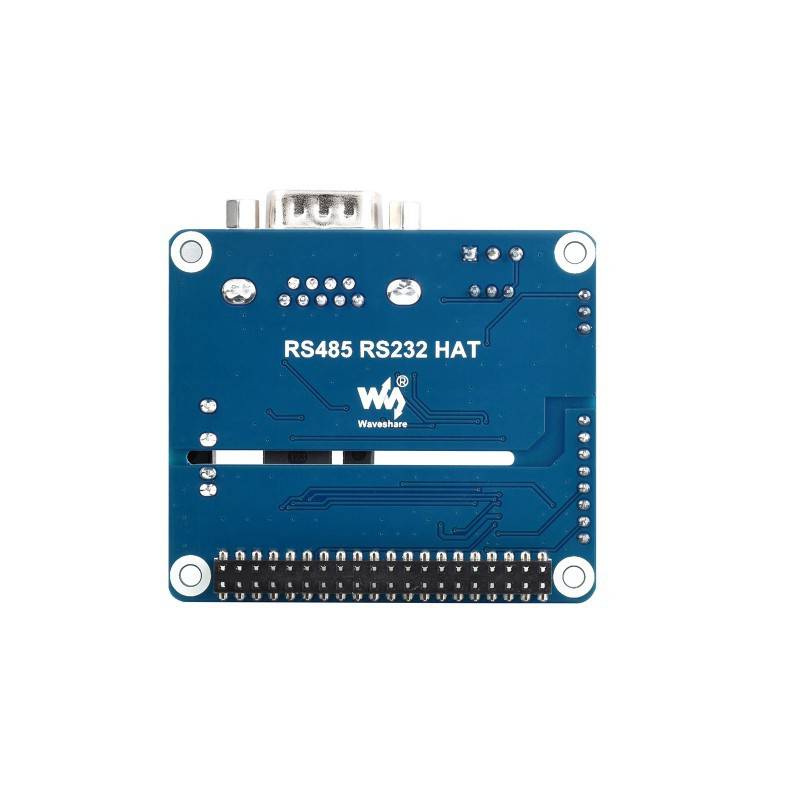

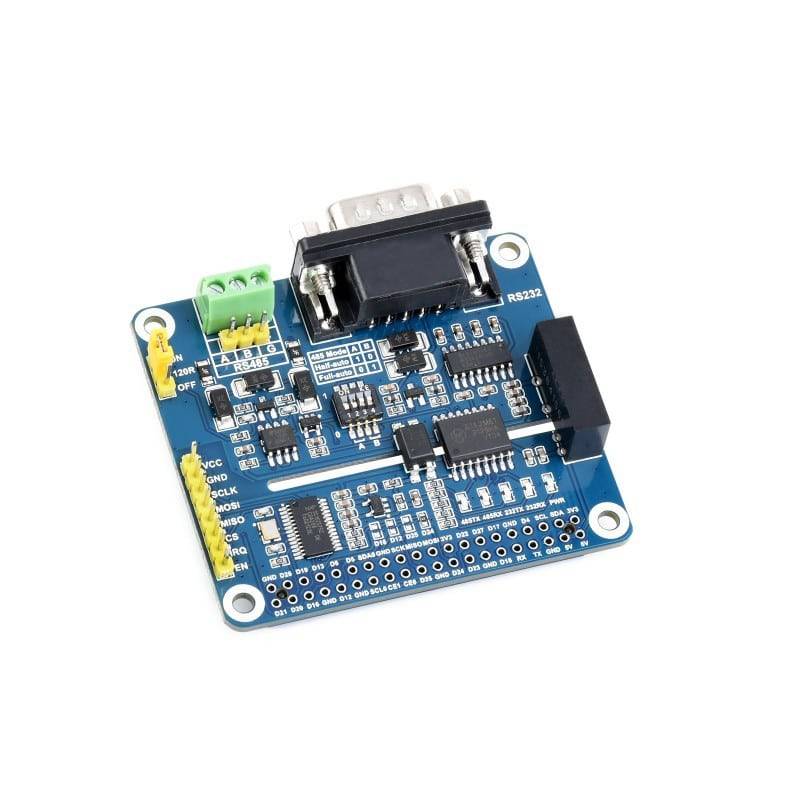

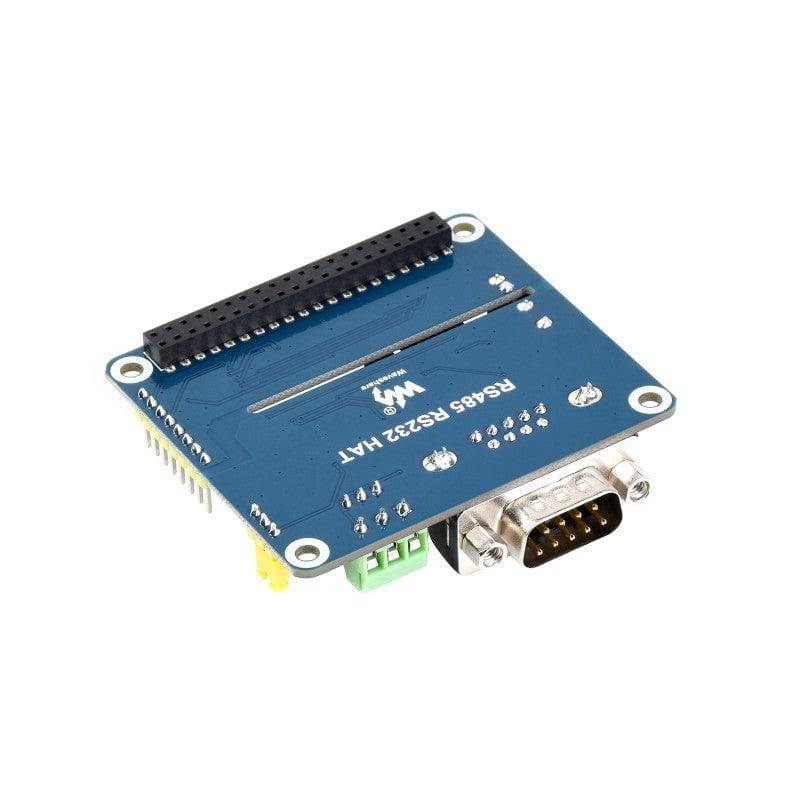

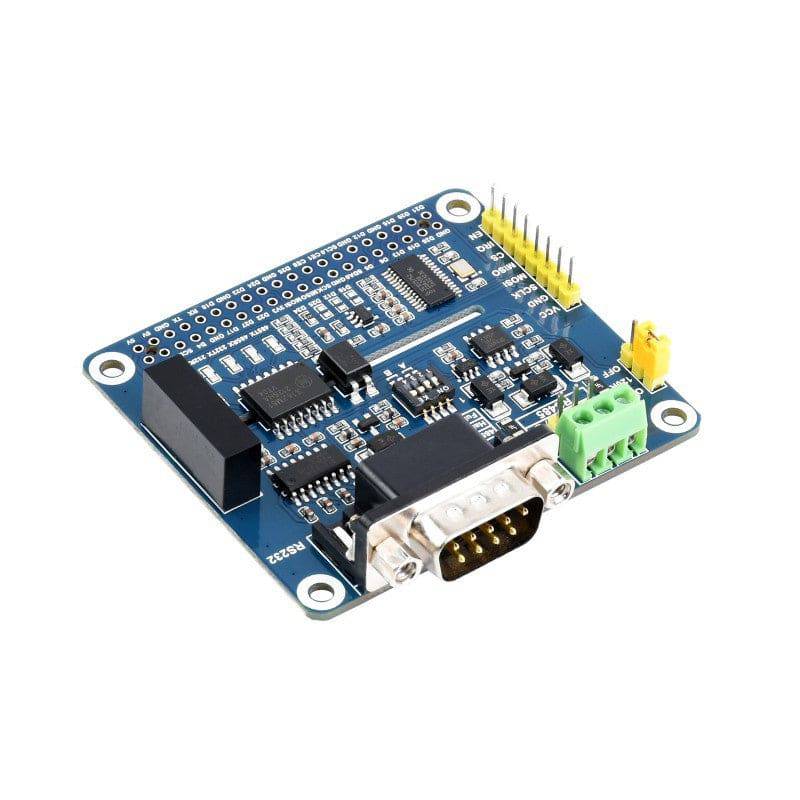

RS485 RS232 HAT is an isolated RS485 and RS232 expansion board specially designed by Waveshare for Raspberry Pi. It adopts SC16IS752+SP3485, SP3232 scheme, built-in power isolation, ADI magnetic coupling isolation and TVS and other protection circuits.
Feature :
- Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series boards.
- Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps.
- RS485 supports manual or automatic sending and receiving of data, which can be set by DIP switch.
- RS485 onboard resettable fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance.
- Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity.
- Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status.
- Lead out the SPI control interface for easy access to main control boards such as Arduino.
- Provide complete supporting information manuals (C and python sample programs and user manuals, etc.).
Product parameters
- Serial port expansion chip: SC16IS752
- RS485 transceiver： SP3485
- RS232 transceiver： SP3232
- Communication Interface： SPI
- Communication rate： 300~921600 bps
- Operating Voltage： 3.3/5V
- Dimension： 65mm × 56.5mm
- Via diameter： 3.0mm
Interface Description
- Pin function
| Pin Number | Identification | Pin Description |
| 1 | VCC | 3.3V/5V Power |
| 2 | GND | GND |
| 3 | SCLK | SPI clock input |
| 4 | MOSI | SPI data input |
| 5 | MISO | SPI data output |
| 6 | CS | SPI Chip select signal |
| 7 | IRQ | interrupt output |
| 8 | EN | RS485 output enable |
Package Included :
1 X Isolated RS485 RS232 Expansion HAT
