Description:

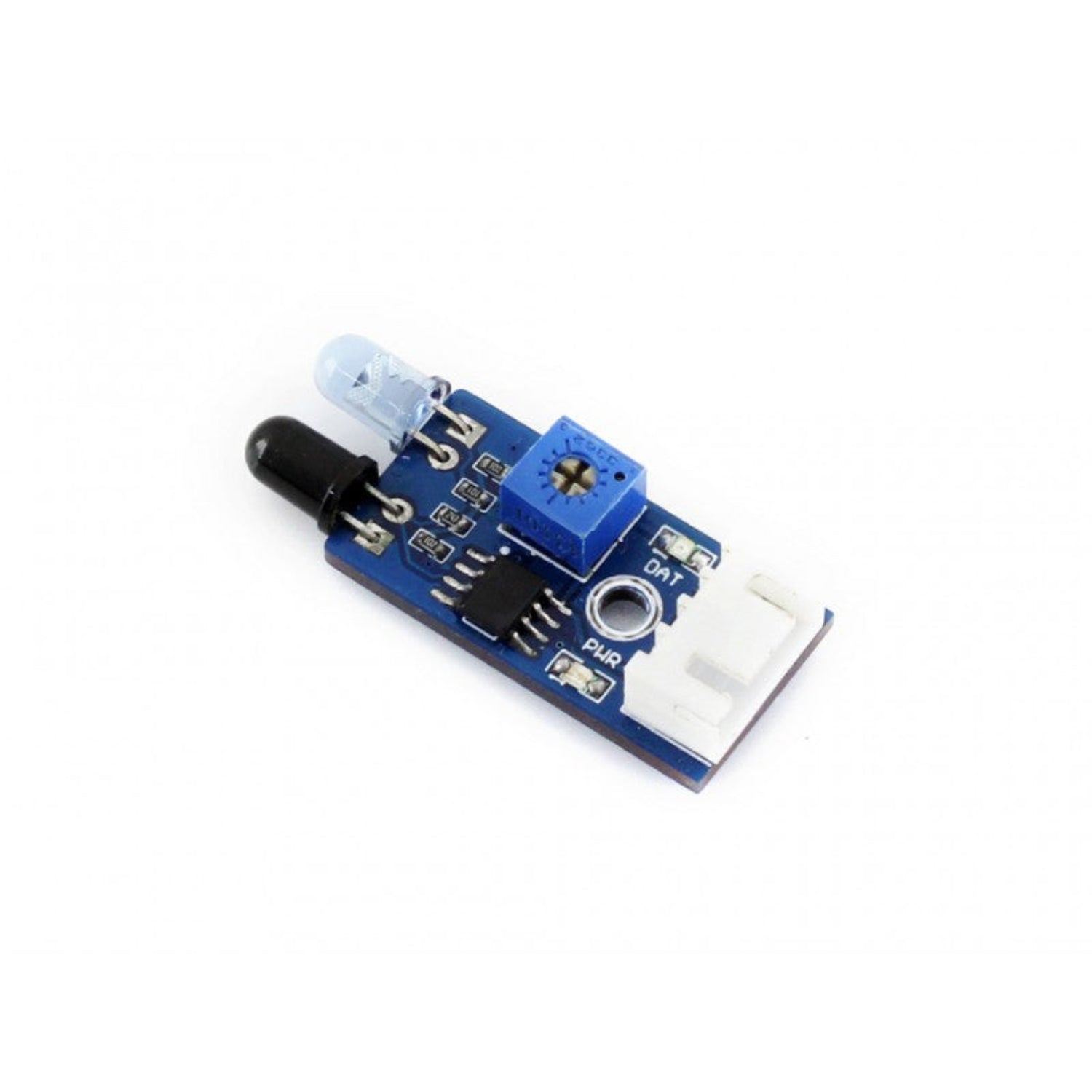

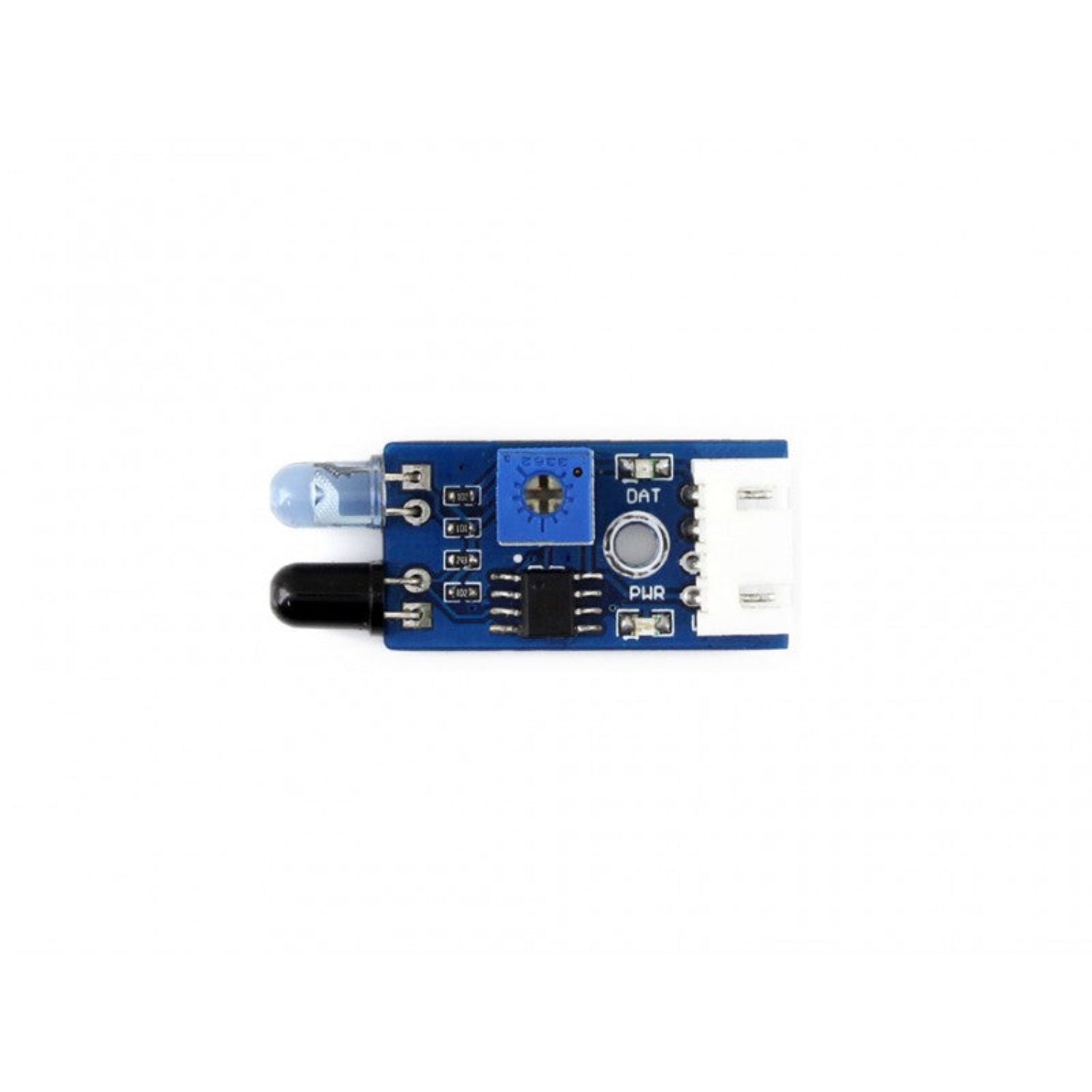

The Waveshare High-Accuracy Infrared Proximity Sensor is a reliable and easy-to-integrate solution for obstacle detection and avoidance in a variety of applications. This sensor module utilizes an infrared transmitter and receiver pair; when emitted IR waves encounter an obstacle and are reflected back, they are detected by the receiver.
The onboard LM393 voltage comparator intelligently processes this information, activating a green indicator LED to visually signal detection. Featuring a simple 4-wire interface (Vcc, GND, DOUT, AOUT) and broad 3.3V to 5V operating voltage compatibility, this sensor is readily adaptable to various microcontroller platforms.
Upon detecting an obstacle, the DOUT pin outputs a clear digital low-level signal, making it straightforward to implement obstacle avoidance logic. The integrated preset potentiometer allows for precise adjustment of the effective detection range, which spans from 2cm to 30cm, providing flexibility for different sensing requirements.
Specifications:
- Power: 3.3V ~ 5V
- Dimension: 39mm × 15.5mm (include the IR LED)
- Mounting holes size: 3mm
- Detection range: 2cm ~ 30cm (depending on the obstacle's color, farthest for white)
- Detection angle: 35°
- Recommended environment: in door, to avoid the sunshine effect
Features:
- Emitting a beam of infrared, and receive the reflected beam
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Applications:

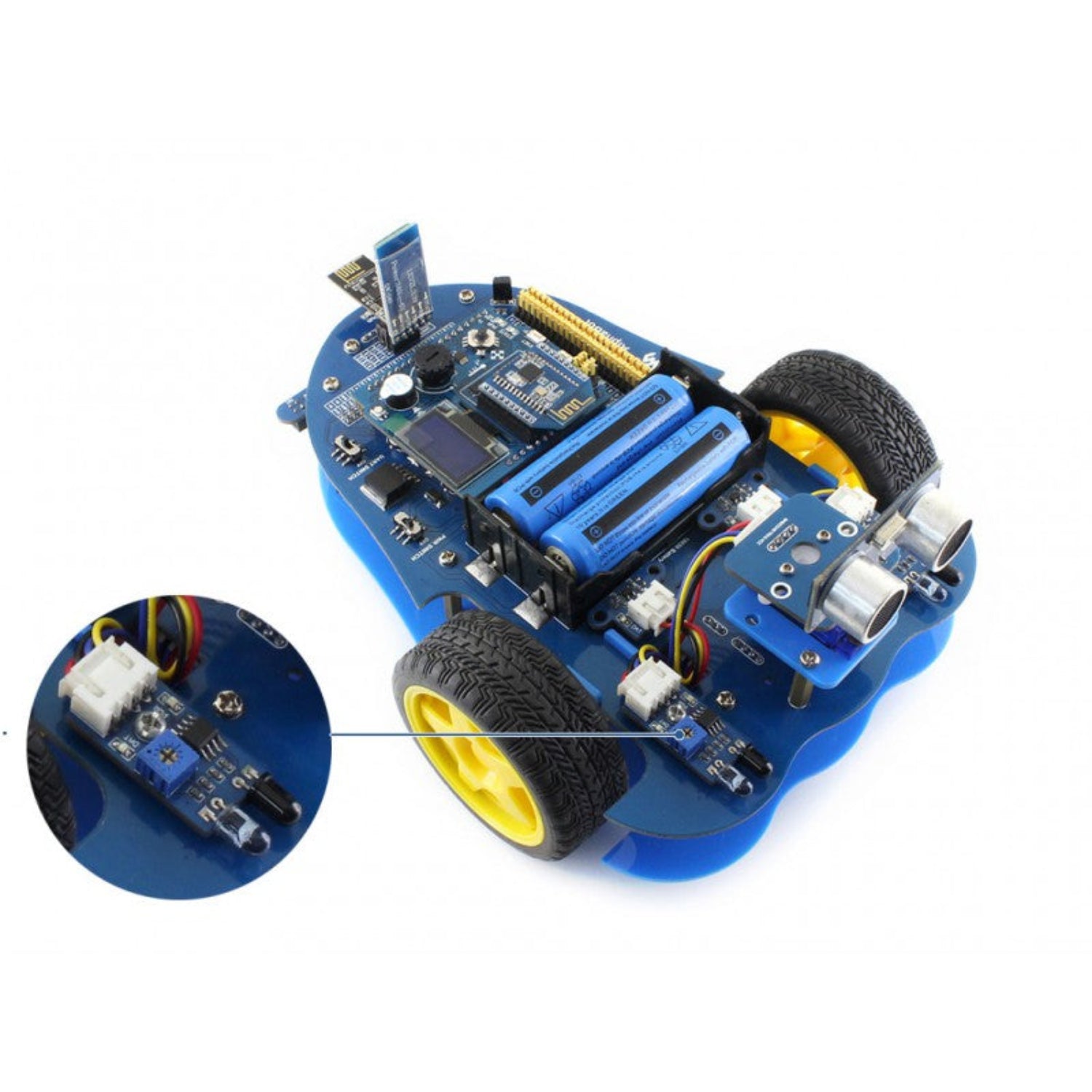

- Robot path tracking
- Obstacle-avoiding car
- Pipeline counter
How To Use
In the case of working with an MCU:

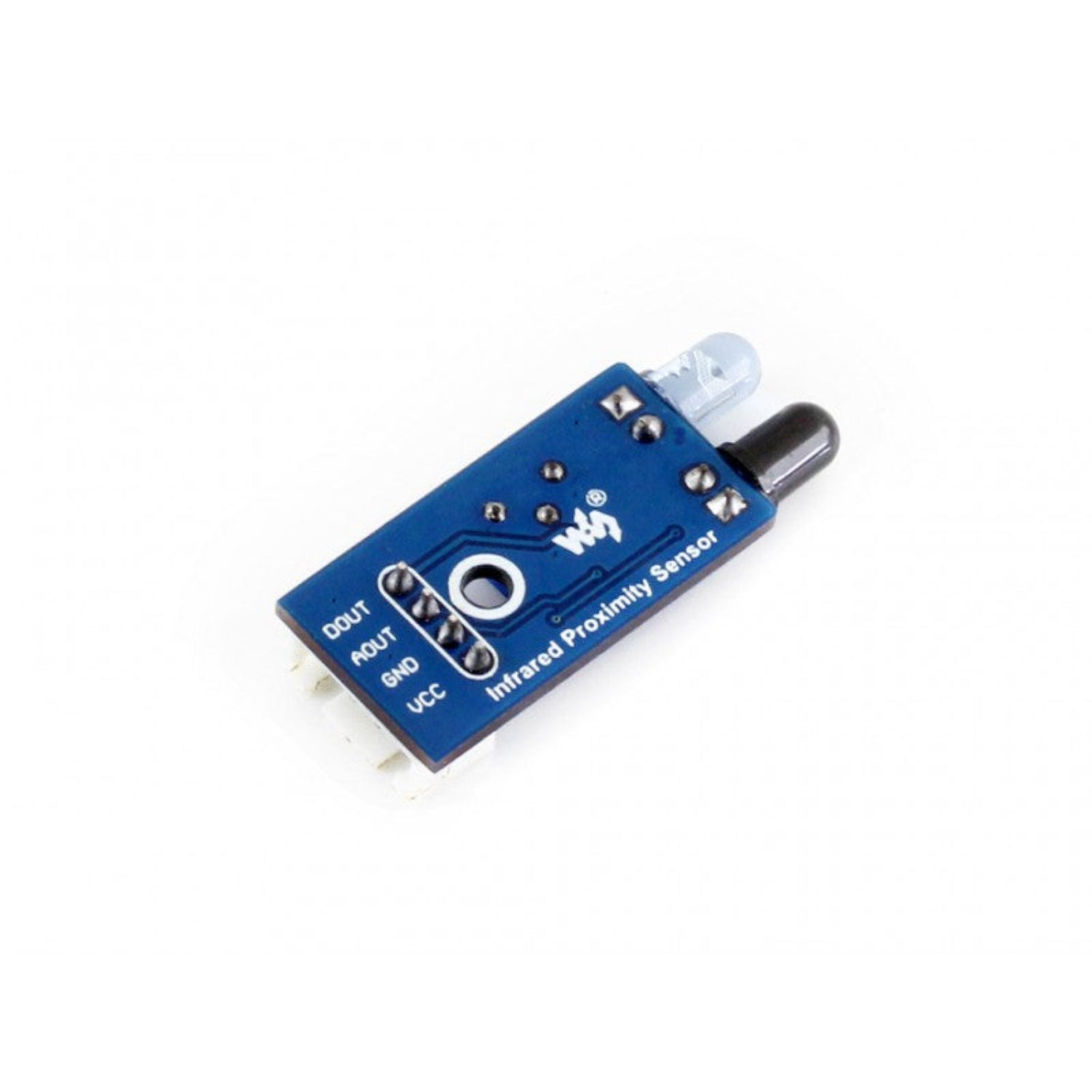

- VCC ↔ 3.3V ~ 5V
- GND ↔ GND
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Useful Link:
Waveshare Infrared Proximity Sensor
Package Included:
- 1 x Infrared Proximity Sensor
- 1 x XH2.54 4PIN wire
