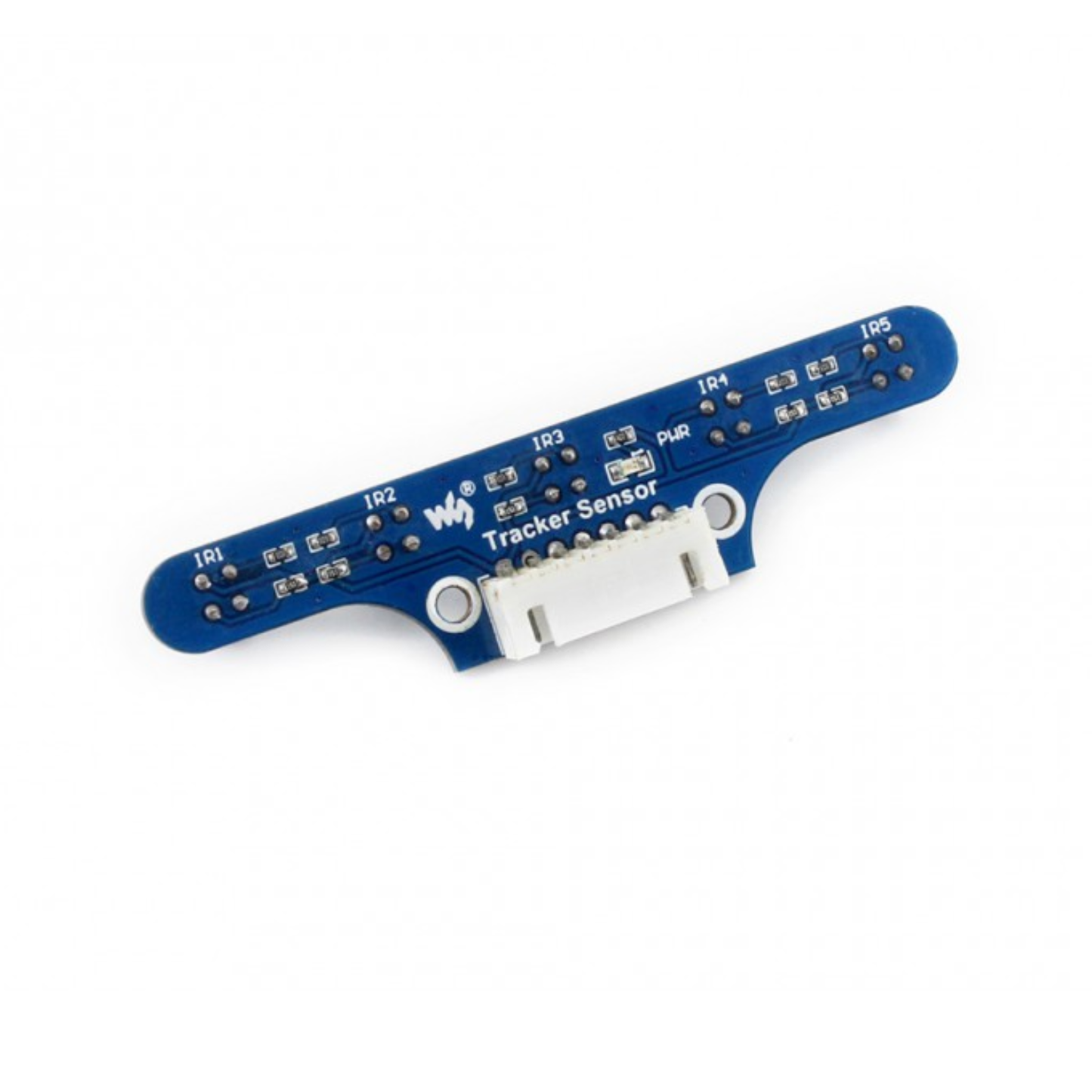

Waveshare Infrared Line Tracking Sensor Module High-Sensitivity Infrared Line Tracker Module With Adjustable Gain And Digital Output - RS8517

Waveshare Infrared Line Tracking Sensor Module High-Sensitivity Infrared Line Tracker Module With Adjustable Gain And Digital Output - RS8517

RS8517

In stock

Rs. 329.00
Rs. 329.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Advanced 5-Channel Line Tracker with ITR20001/T Detectors. This sensor ensures your robot tracks lines with exceptional stability. Featuring high-sensitivity infrared detectors and anti-jamming capabilities, its precision analog output integrates perfectly with PID control.

Specifications:

  • Power: 3.3V ~ 5V
  • Interface: Analog
  • Detection range: 1cm ~ 5cm
  • Communication Protocol: Without

Features:

  • 5 high-sensitivity ITR20001/T IR detectors for accurate robot navigation.
  • Integrated PID control ensures smooth and reliable line following.
  • High-sensitivity detectors minimize errors and improve tracking accuracy.
  •  Robust design resists interference for stable operation in various environments.

Applications

How to Use

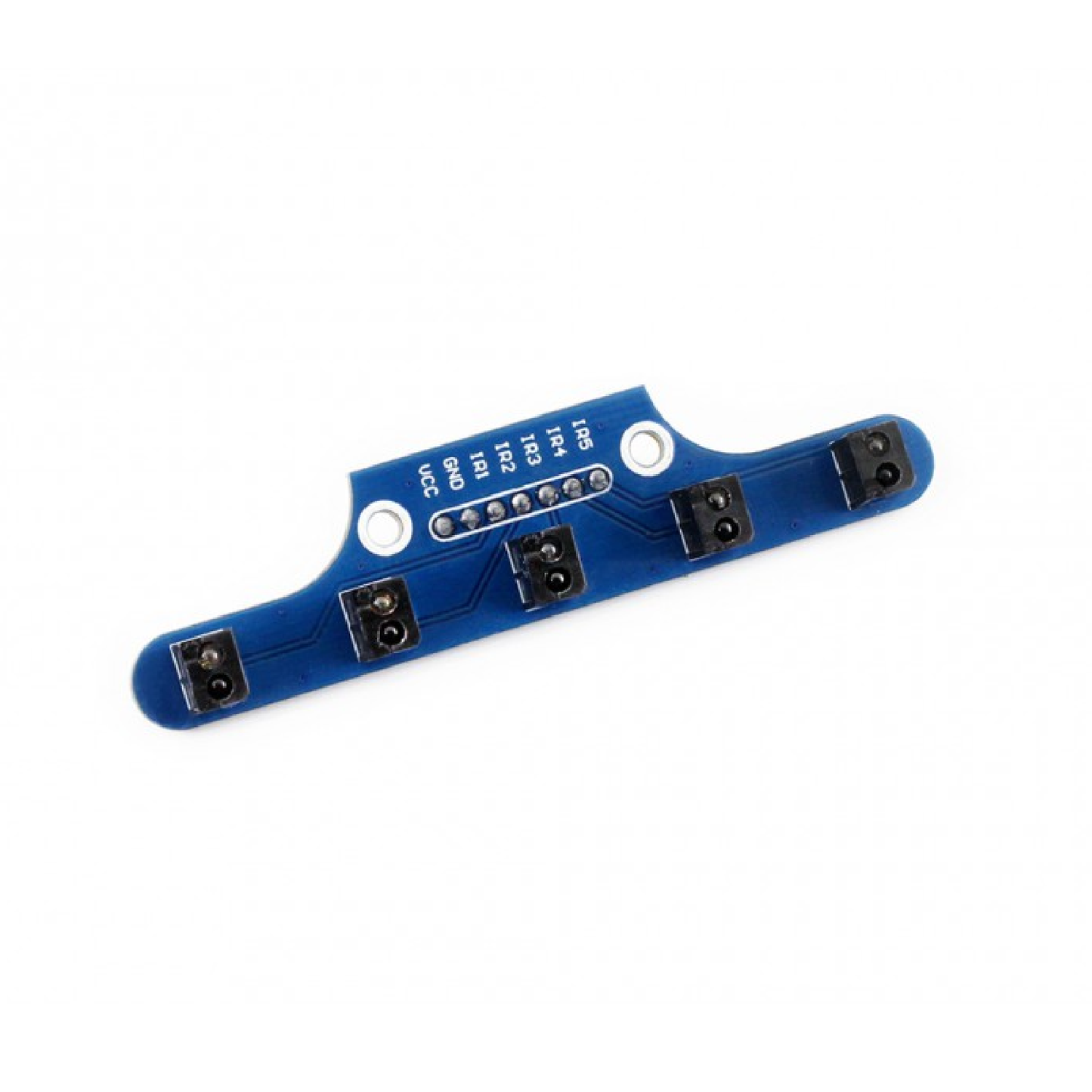

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5V
  • GND ↔ GND
  • IR1 ↔ MCU.IO (ch1, analog output)
  • IR2 ↔ MCU.IO (ch2, analog output)
  • IR3 ↔ MCU.IO (ch3, analog output)
  • IR4 ↔ MCU.IO (ch4, analog output)
  • IR5 ↔ MCU.IO (ch5, analog output)

Package Included:

1 x Waveshare Infrared Line Tracking Sensor Module
