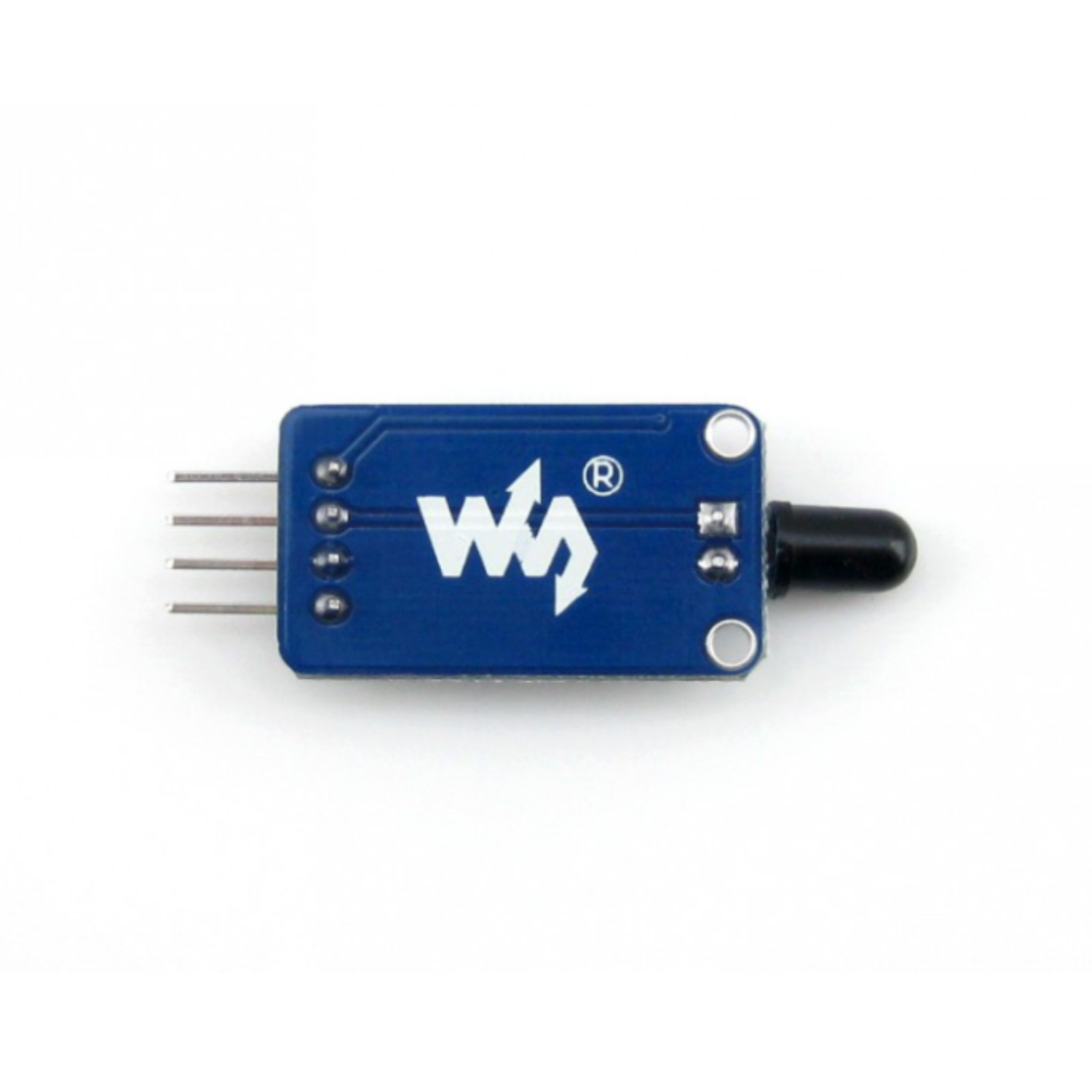

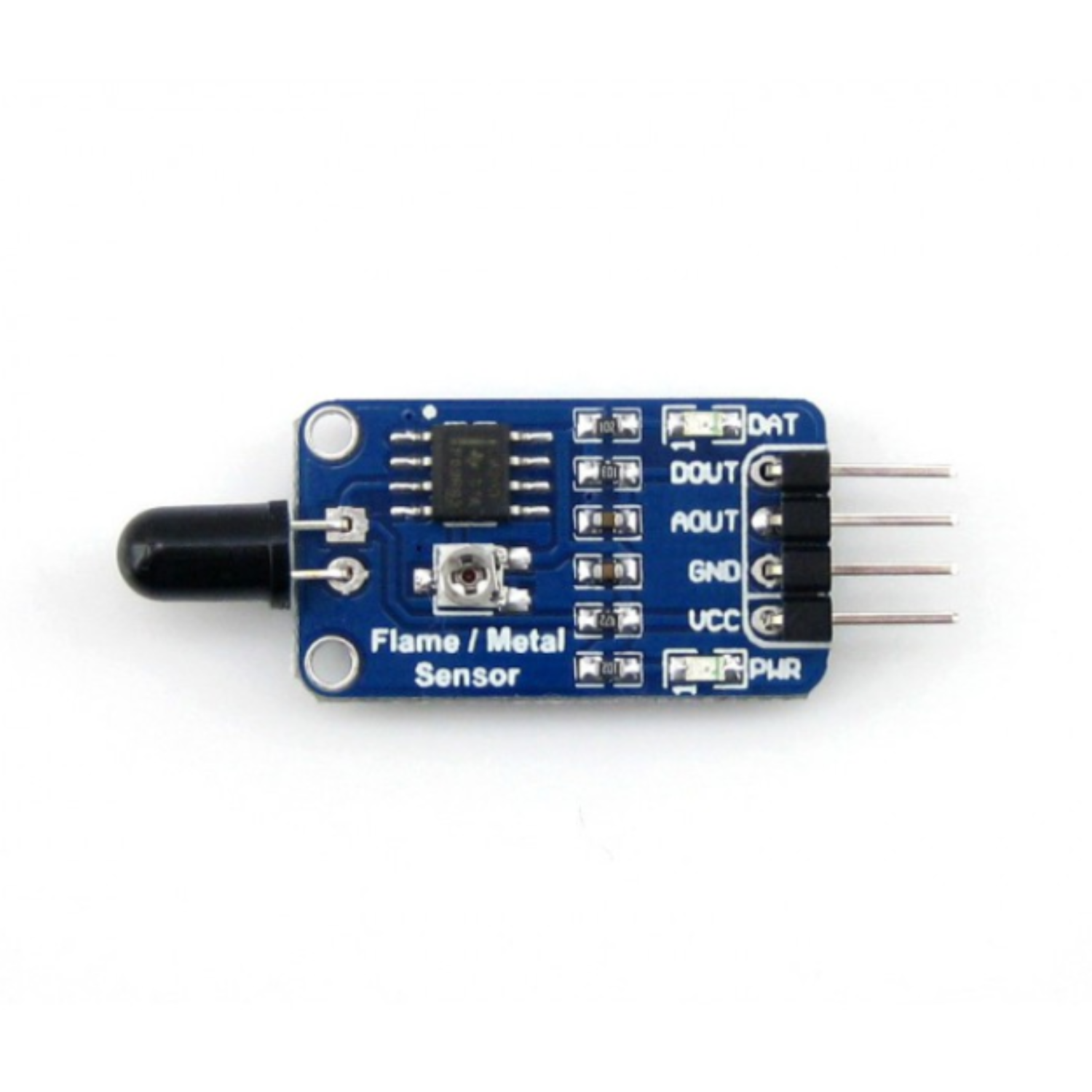

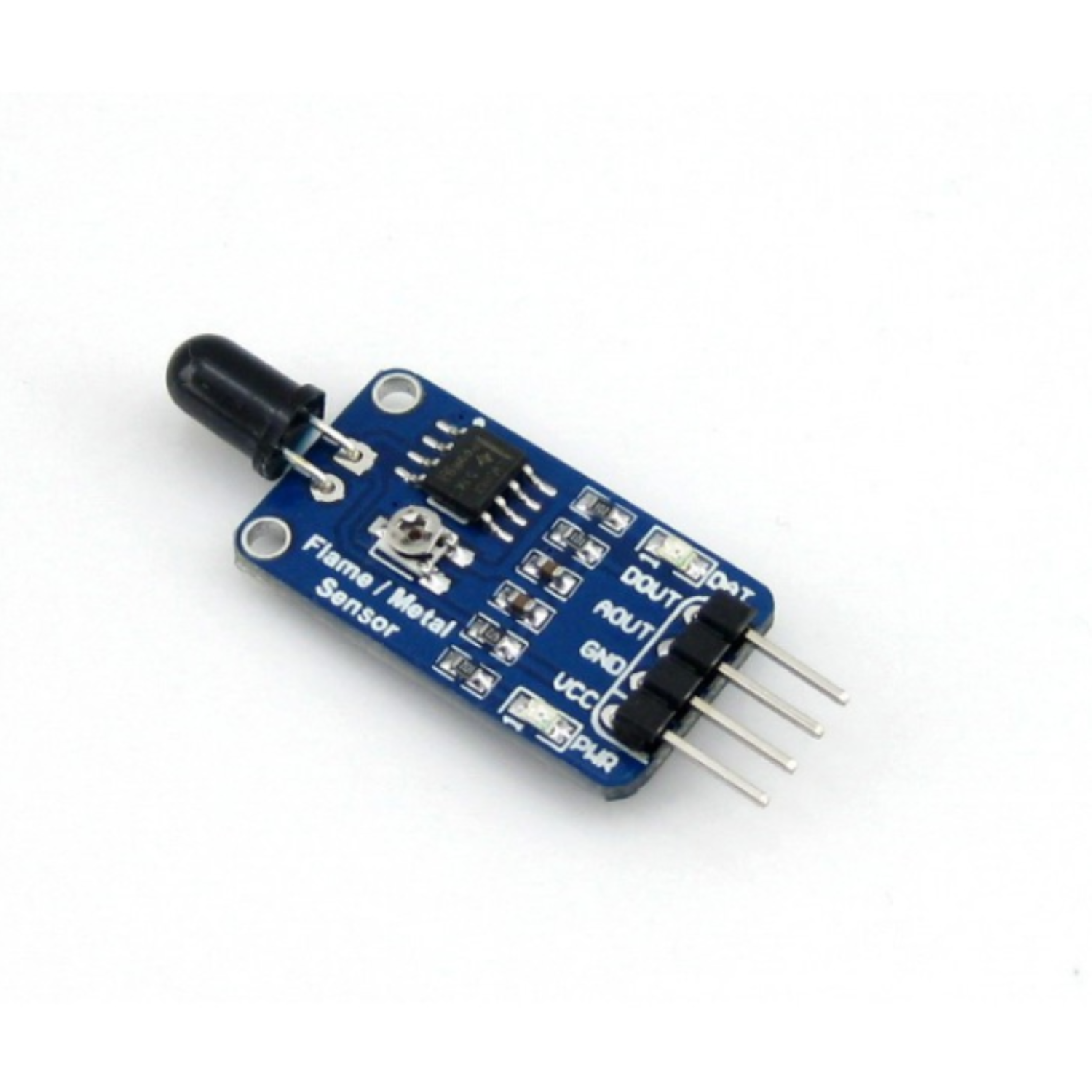

Waveshare Infrared Flame Sensor Module High-Precision Waveshare IR Flame Sensor Compatible With Arduino, STM32, and Raspberry Pi For Safety Monitoring
Waveshare Infrared Flame Sensor Module High-Precision Waveshare IR Flame Sensor Compatible With Arduino, STM32, and Raspberry Pi For Safety Monitoring
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The Waveshare Flame Sensor is designed to detect the presence of fire or flame sources within a specific range by sensing light in the infrared spectrum, typically between 760 nm and 1100 nm. Ideal for fire detection systems in robotics, automation, and safety projects.
This module uses a high-sensitivity infrared receiver paired with the LM393 voltage comparator to deliver reliable and responsive flame detection. Both analog and digital signal outputs are supported, allowing for flexible integration with microcontrollers like Arduino, Raspberry Pi, or STM32.
Specifications:
- Model Type: Flame Sensor
- Operating Voltage (VDC): 3.3V to 5V
- Interface: Analog, Digital
- Communication Protocol: Without
- Spectrum Range: 760nm ~ 1100nm
- Detection Angle: 0 - 60 degrees
- Operating Temperature: -25℃ ~ 85℃
Features:
- Features a wide-range voltage comparator LM393.
- Sensitive to flame spectrum.
- Signal output indicator.
- Adjustable sensitivity.
Application:
- Fire-fighting robot.
- Fire detection.
- Fire alarm.
Useful Link:
Waveshare Infrared Flame Sensor
Package Included:
1 x Waveshare Infrared Flame Sensor Module
