Description:

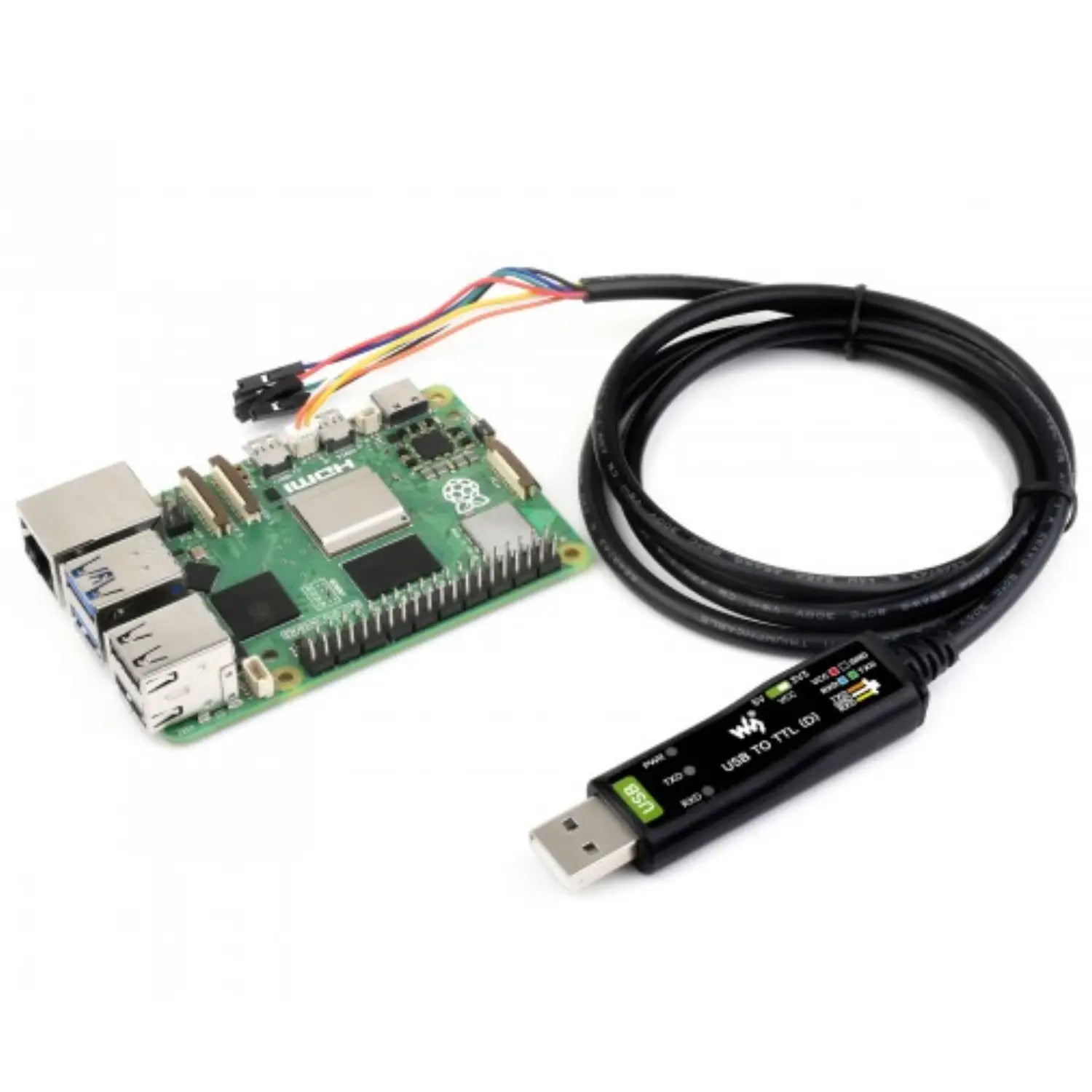

The USB TO TTL (D) is a high-performance USB to TTL serial converter featuring the original FT232RNL chip. It allows seamless communication between a computer’s USB port and devices operating at TTL logic levels—such as microcontrollers, sensors, and embedded systems. Ideal for serial debugging, firmware uploading, or data exchange with Raspberry Pi 5 and other platforms. Built-in multi-protection circuits ensure stable, reliable operation across multiple systems and environments.
Specification:
| Product category | Industrial USB TO TTL serial cable |
|---|---|
| Chip scheme | FTDI original FT232RNL |
| Host port | USB |
| Data rate | 300bps ~ 3Mbps |
| Device Port | UART |
| USB port | Connector: USB-A |
| Protection: self-recovery fuse, ESD protection | |

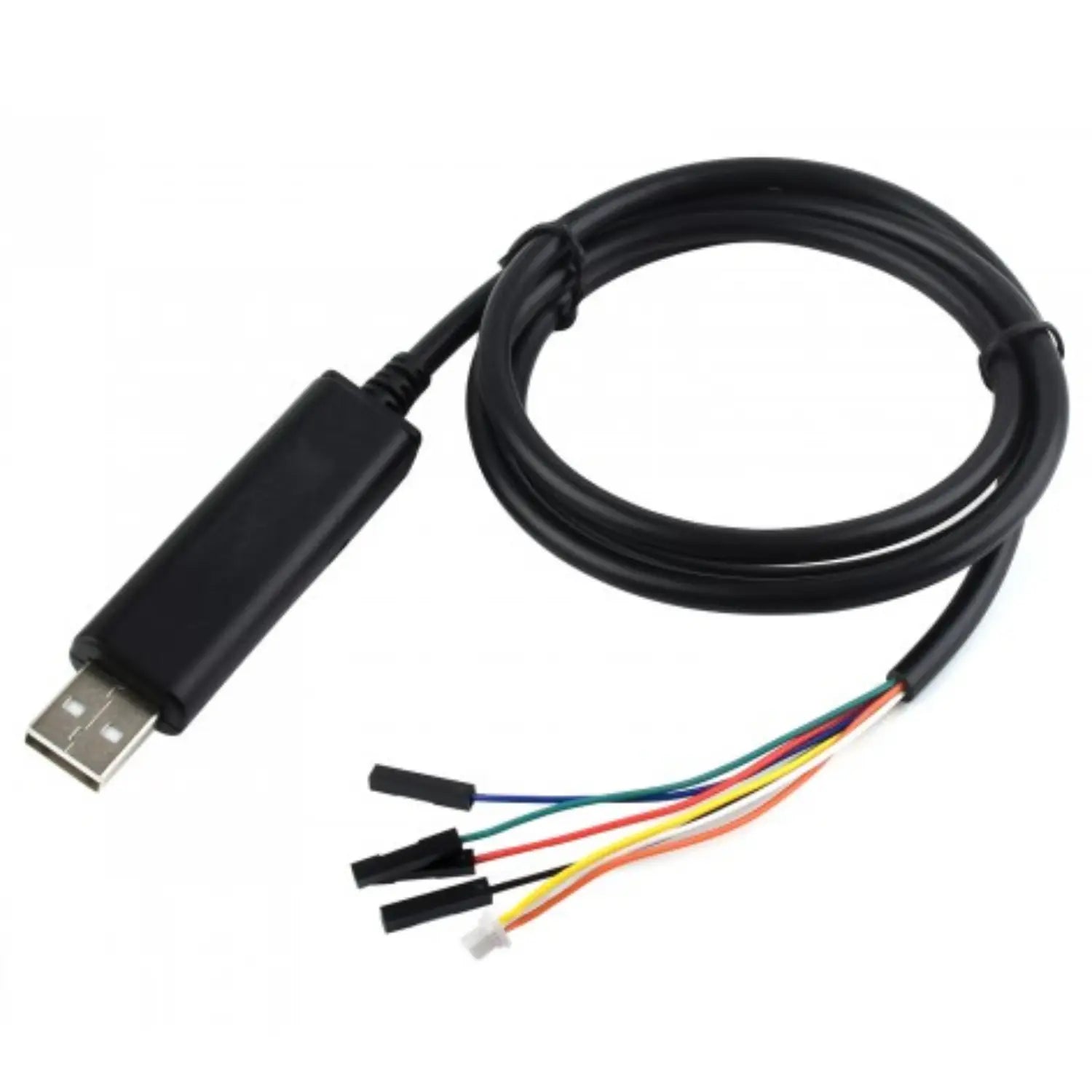

| UART port | Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector |
| Protection: IO protection diode | |

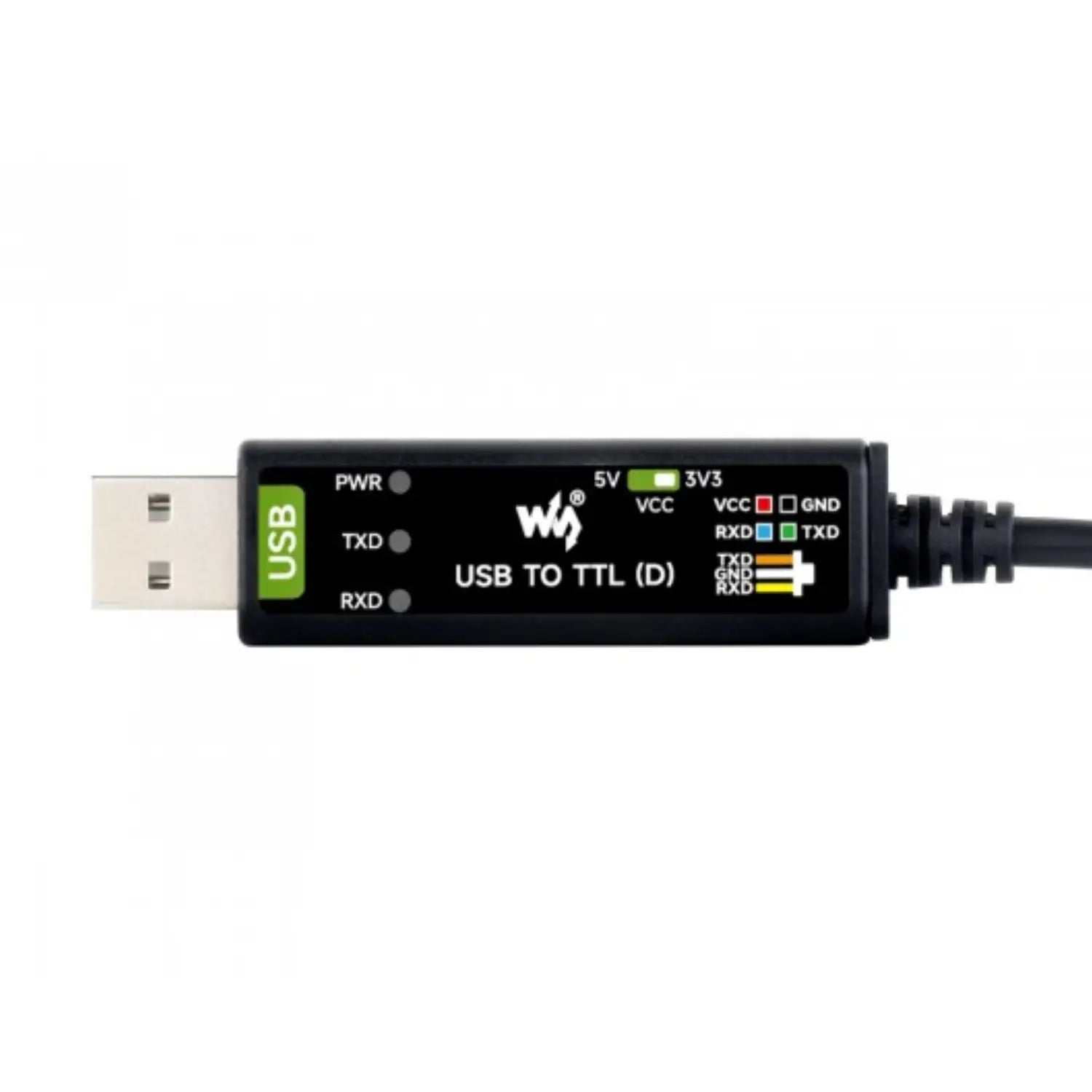

| Indicator | PWR: power indicator, turns on when there is USB connection and voltage is detected |
| TXD: TX indicator, turns on while the USB port is sending data | |
| RXD: RX indicator, turns on while the device port is sending data back | |
| Cable | Black, PVC sheath, total length 1m |
Product Interface:
Features:
- Adopts original FT232RNL chip, with stable high-speed communication, reliability, and better compatibility.
- Built-in self-recovery fuse and ESD for over-current/over-voltage protection, counter-current proof, improving shock resistance.
- Onboard IO protection, anti-surge design, with stable communication and safety.
- Onboard TTL serial port 3.3V/5V level transilation circuit, for switching TTL communication level.
- Onboard 3 x LED indicator, for checking power and signal transmitting status.

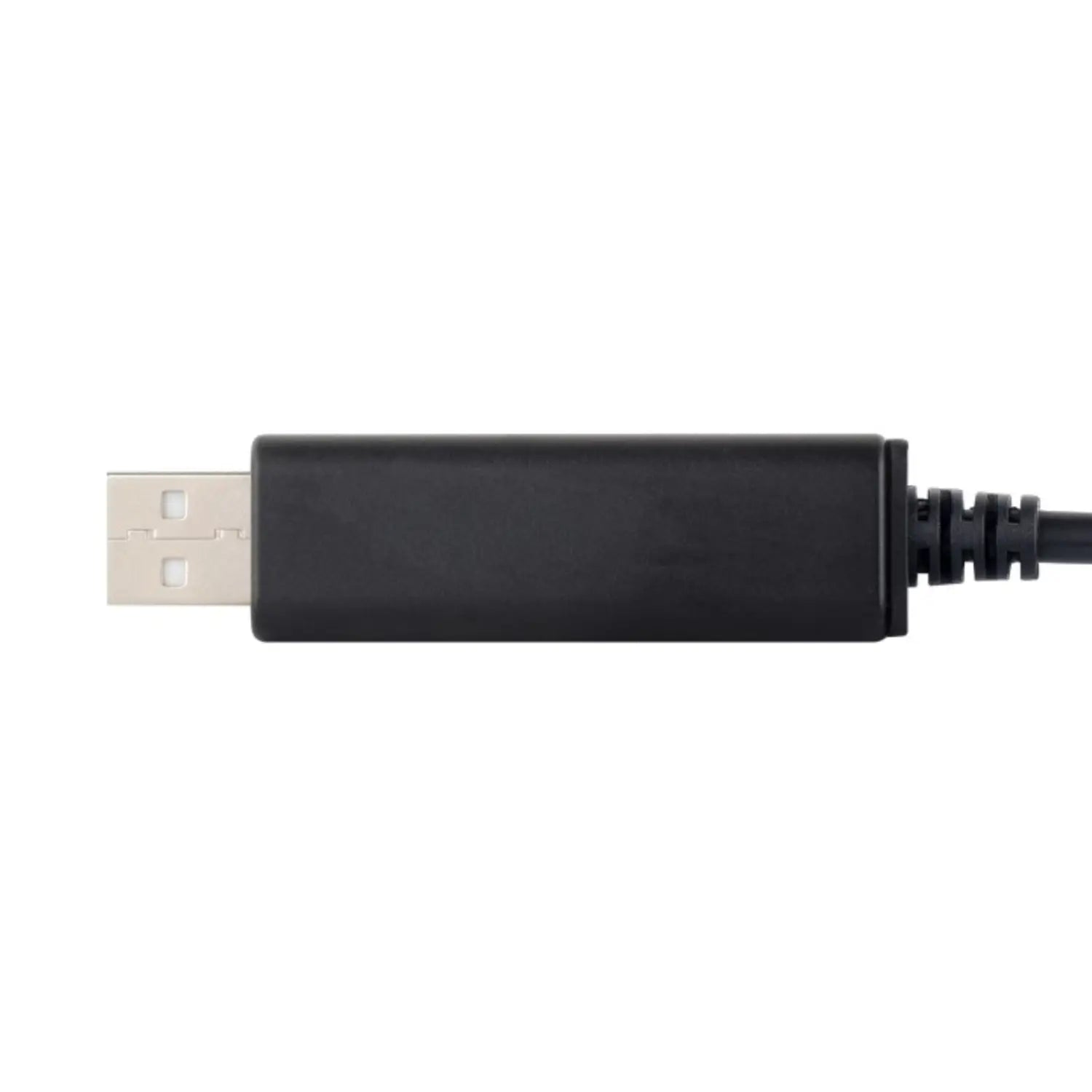

- Plastic case, sandblasting process, nice-looking and compact.
Pin Description:
- VCC: 3.3V or 5V output, configured by switch
- GND: Ground
- TXD: Connecting to MCU.RXD (signal direction: MCU.RX FT232 PC.TX)
- RXD: Connecting to MCU.TXD (signal direction: MCU.TX FT232 PC.RX)
Interface Descriprion:

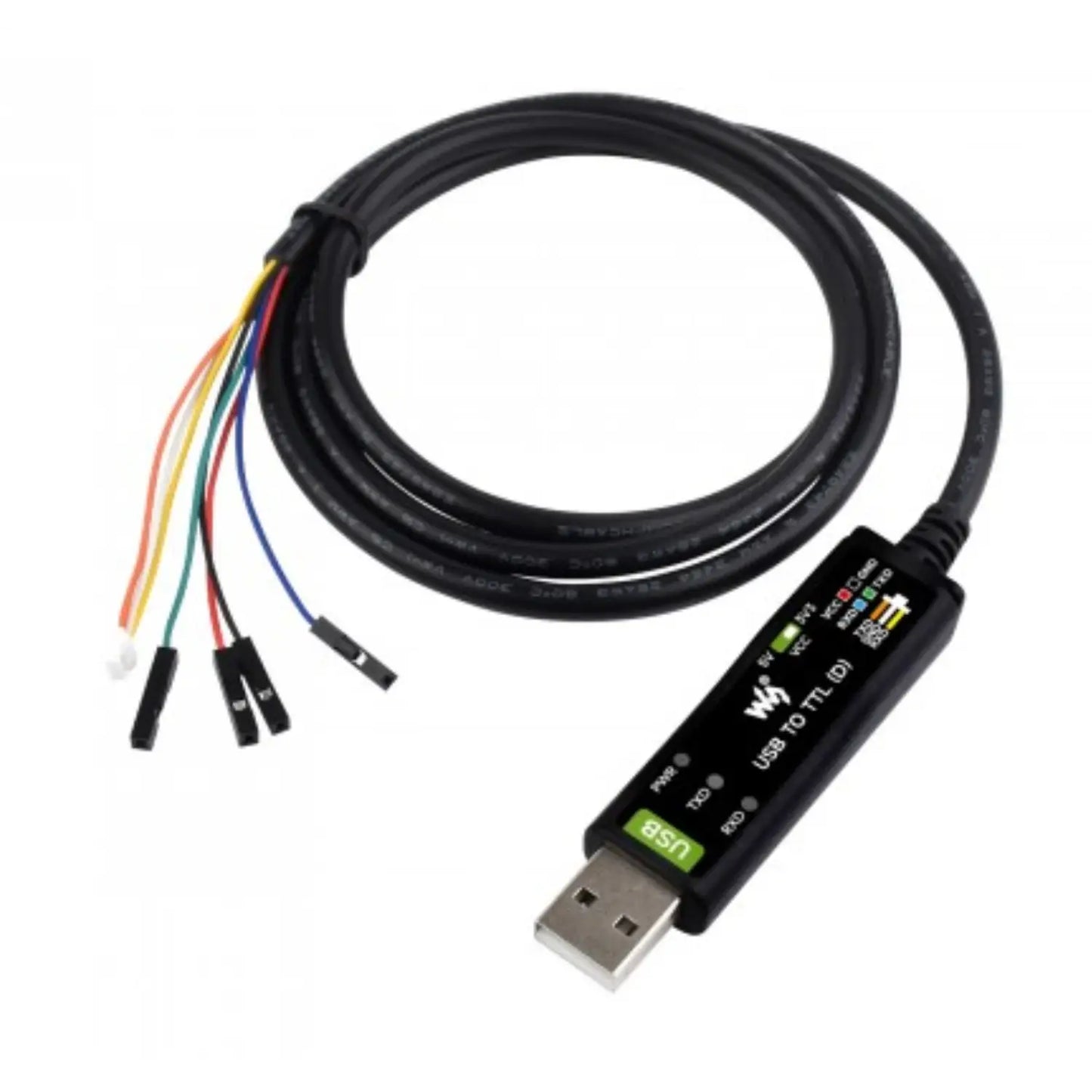

| Pinout | Function | Input/Output |
| VCC-Red | Provide 5V/3.3V for external devices (configurable via switch) | - |
| GND-Black | Ground | - |
| TXD-Green | UART data sending pin, connecting to MCU.RX | Output |
| RXD-Blue | UART data receiving pin, connecting to MCU.TX | Input |
| SH1.0-Yellow | UART data receiving pin, connecting to MCU.TX | Output |
| SH1.0-White | Ground | - |
| SH1.0-Orange | UART data sending pin, connecting to MCU.RX | Input |
Useful Link:
Waveshare Industrial USB to TTL (D) Serial Cable
Package Included:
1 x USB TO TTL (D)
