Description:

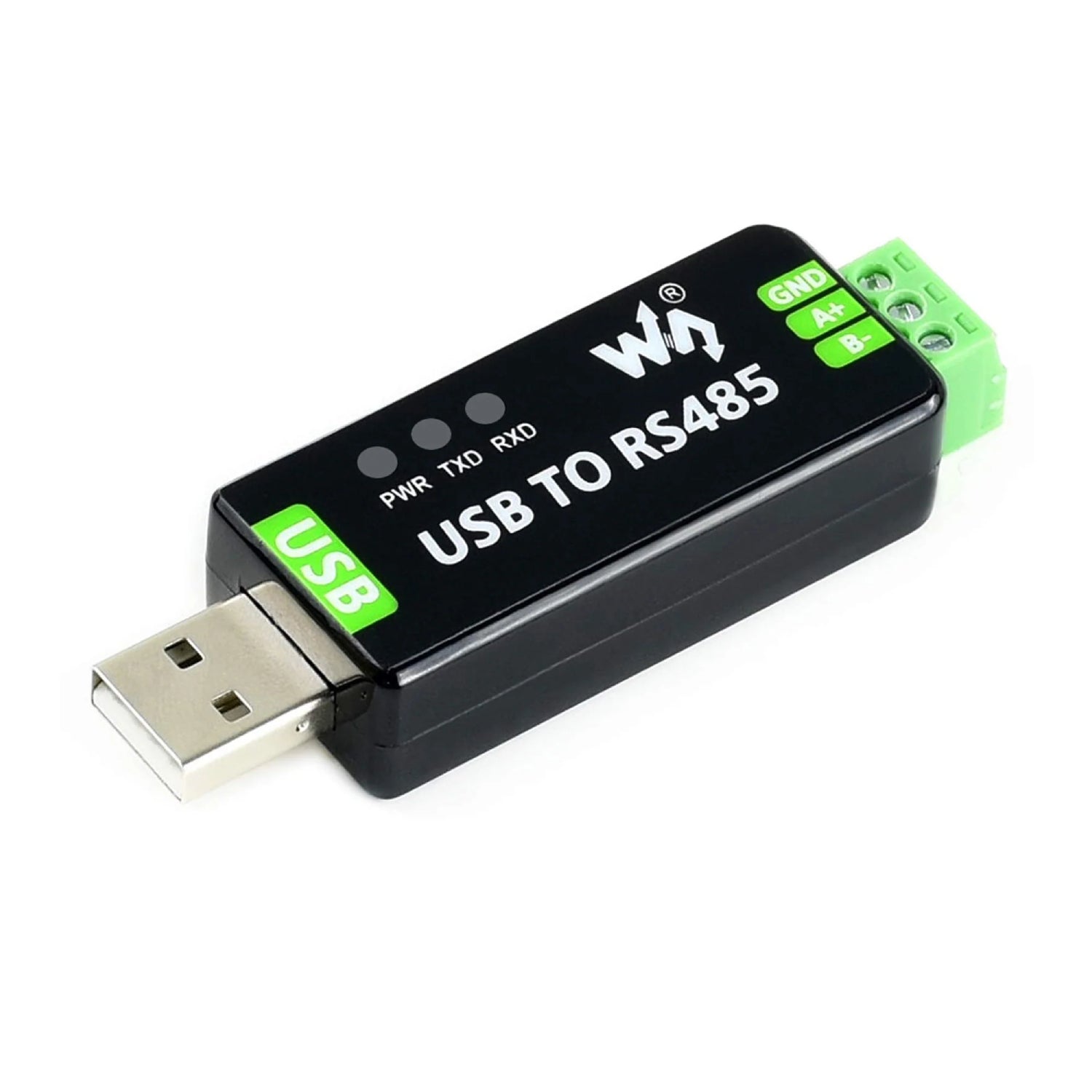

This is an Industrial USB to RS485 Converter with original FT232RL inside. It features embedded protection circuits such as lightning-proof, resettable fuse, ESD protection, TVS diode, etc. It's pretty small in size.
Specifications:
- Product Type: industrial converter
- Baudrate: 300-921600bps
- Host Port: USB
- Device Port: RS485
- USB:
- Operating Voltage: 5V
- Connector: USB-A
- Protection: 200mA self-recovery fuse, ESD protection
- Transmission Distance: about 5m
- RS485:
- Connector: screw terminal
- Pins: A+, B-, GND
- Direction Control: hardware automatic control
- Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor).
- Transmission Distance: about 1200m (low rate)
- Transmission Mode: point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more).
- LED Indicators:
- PWR: red power indicator, lights up when there is a USB connection and voltage is detected.
- TXD: red TX indicator, lights up when the USB port sends data.
- RXD: red RX indicator, lights up when the device ports send data back.
- Operating Environment:
- Temperature: -15℃ ~ 70℃
- Humidity: 5%RH ~ 95%RH
- Operating System: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP
Features:
- Support USB to RS485 bidirectional conversion
- Industrial USB to RS485 Converter has onboard Original FT232RNL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
- Industrial USB to RS485 Converter has onboard resettable fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shockproof performance
- Industrial USB to RS485 Converter have 3 LEDs for indicating the power and transceiver status
Working Status Indicator
Onboard 3 LEDs for indicating the power and transceiver status
1. PWR: Light Up Red Power Connected
2. TXT: Blinking Red Data Transmitting
3. RXD: Blinking Red Data Receiving
Pin Description:

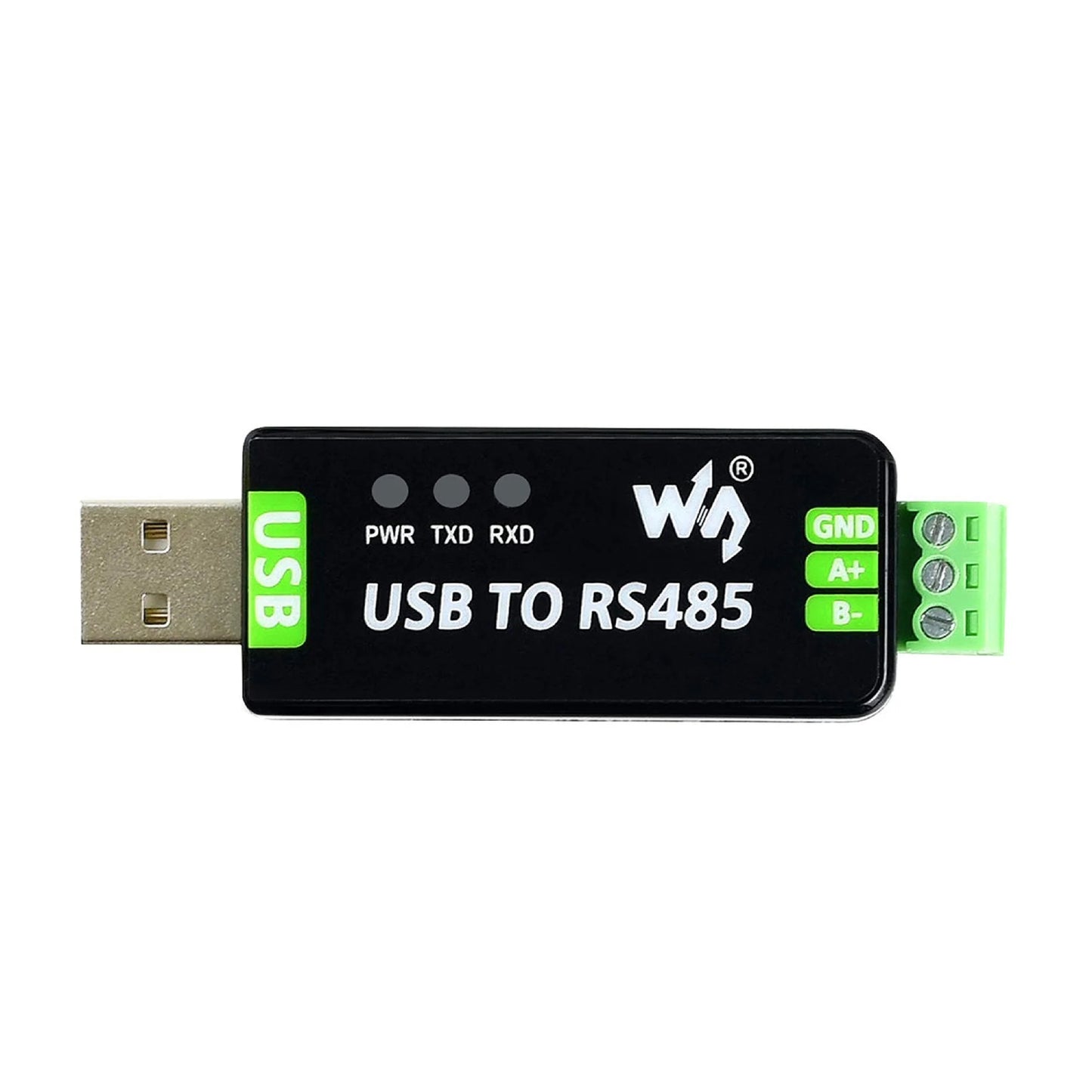

Upper:

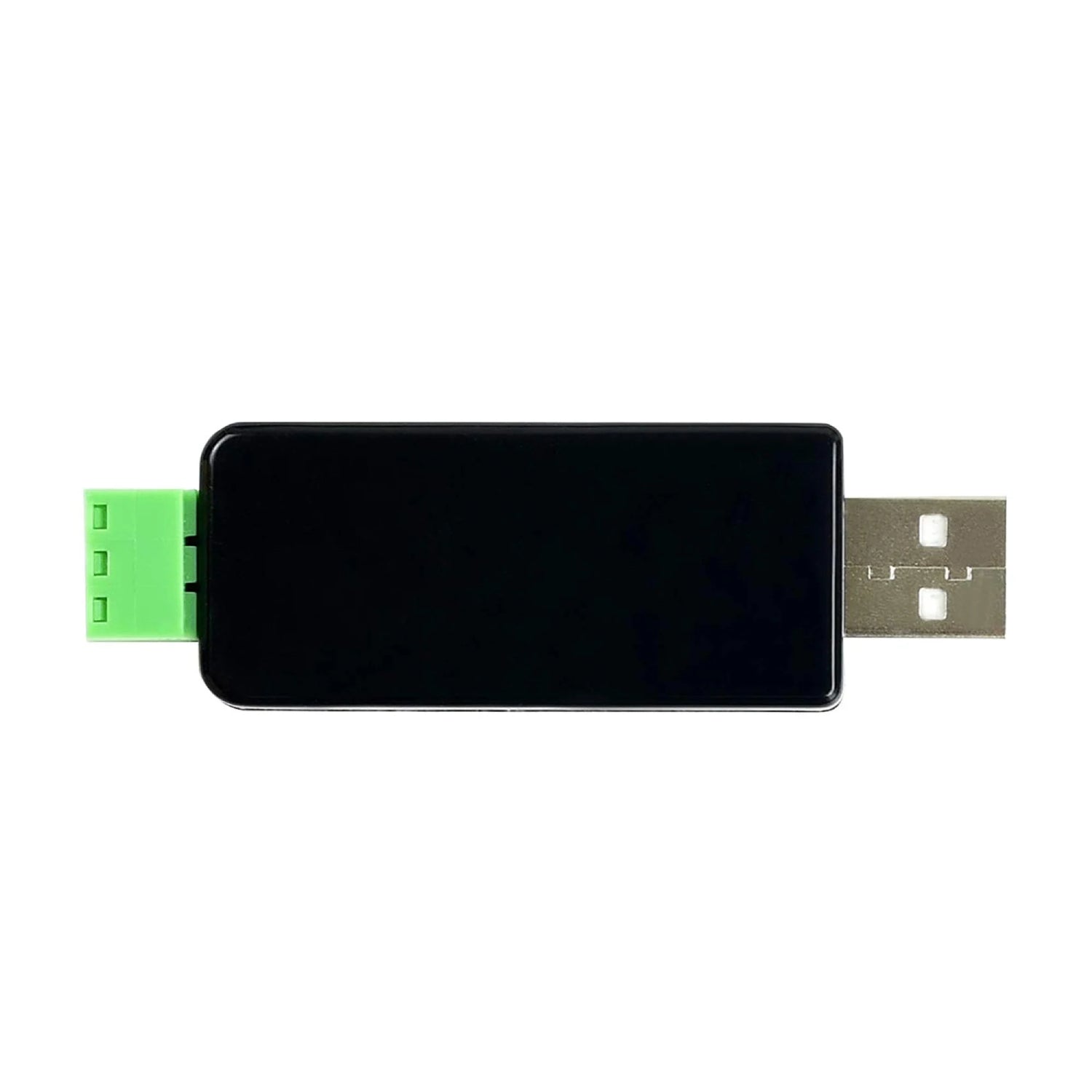

Back:
Useful Link:
Waveshare Industrial USB to RS485 Converter

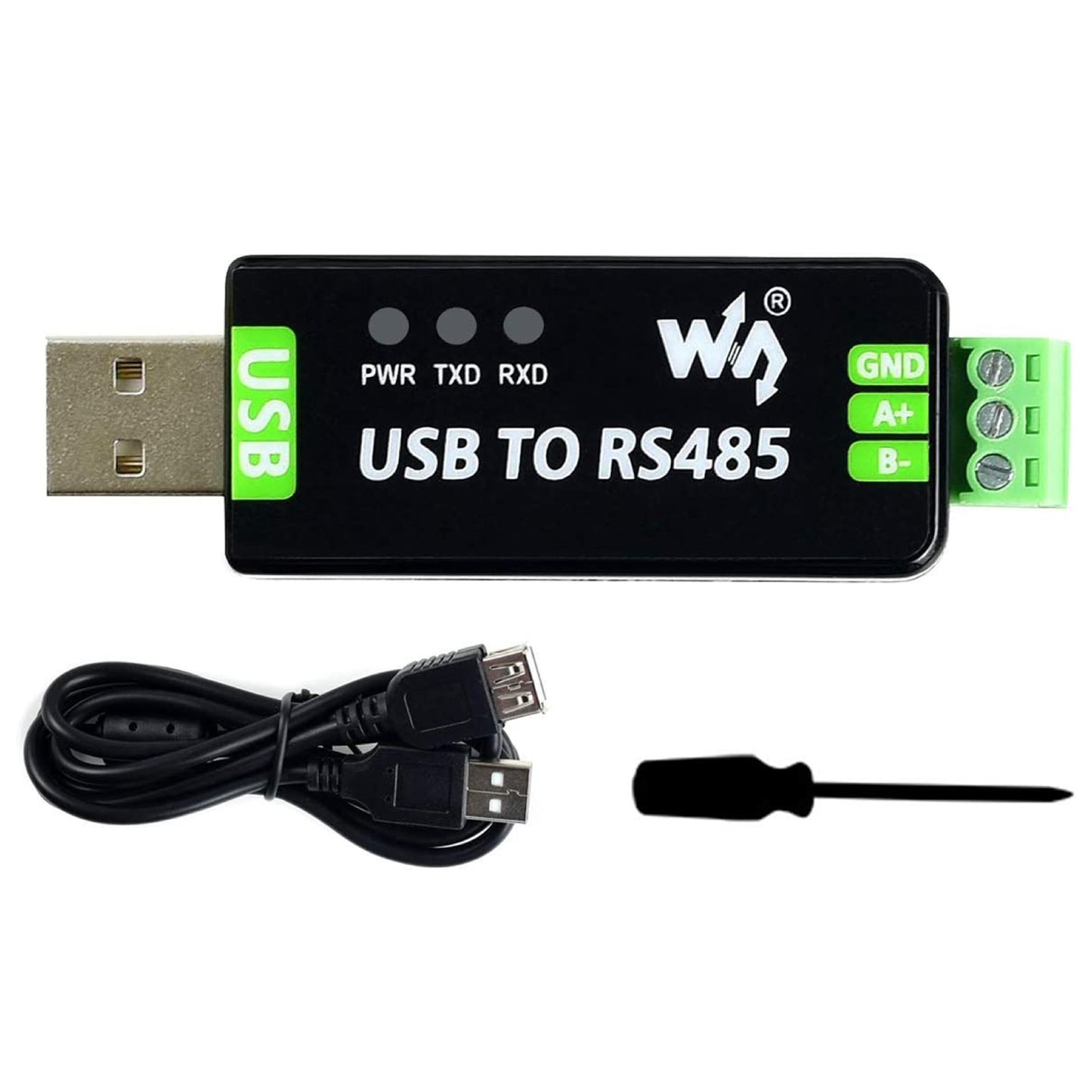

Package Included:
- 1 x USB to RS485 Converter
- 1 x USB-A Male-to-Female Cable
- 1 x Screwdriver
