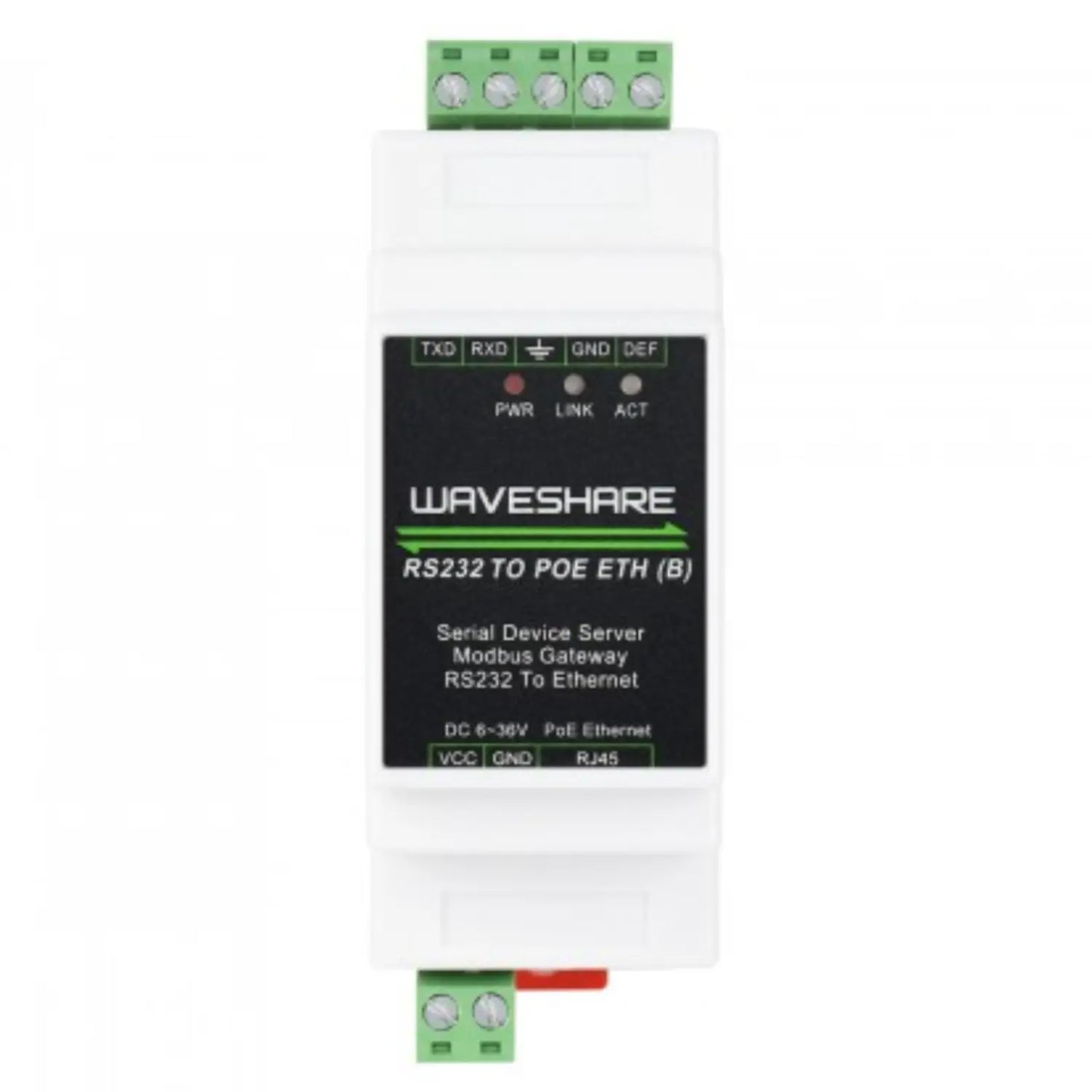

Waveshare Industrial RS232 to RJ45 Ethernet Serial Server Reliable TCP/IP Converter with Rail-Mount & POE function(optional)

SKU:

In stock

Rs. 2,159.00

Sale Sold out

Shipping calculated at checkout.

Version Options RS232 TO ETH (B) RS232 TO POE ETH (B)

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

The Waveshare Industrial Serial Server is a high-performance RS232 data acquisition and IoT gateway designed for demanding industrial environments. This versatile module integrates multiple powerful functions in a single compact unit — including serial server, Modbus gateway, MQTT gateway, and RS232 to JSON conversion — making it ideal for a wide range of industrial automation and IoT applications.

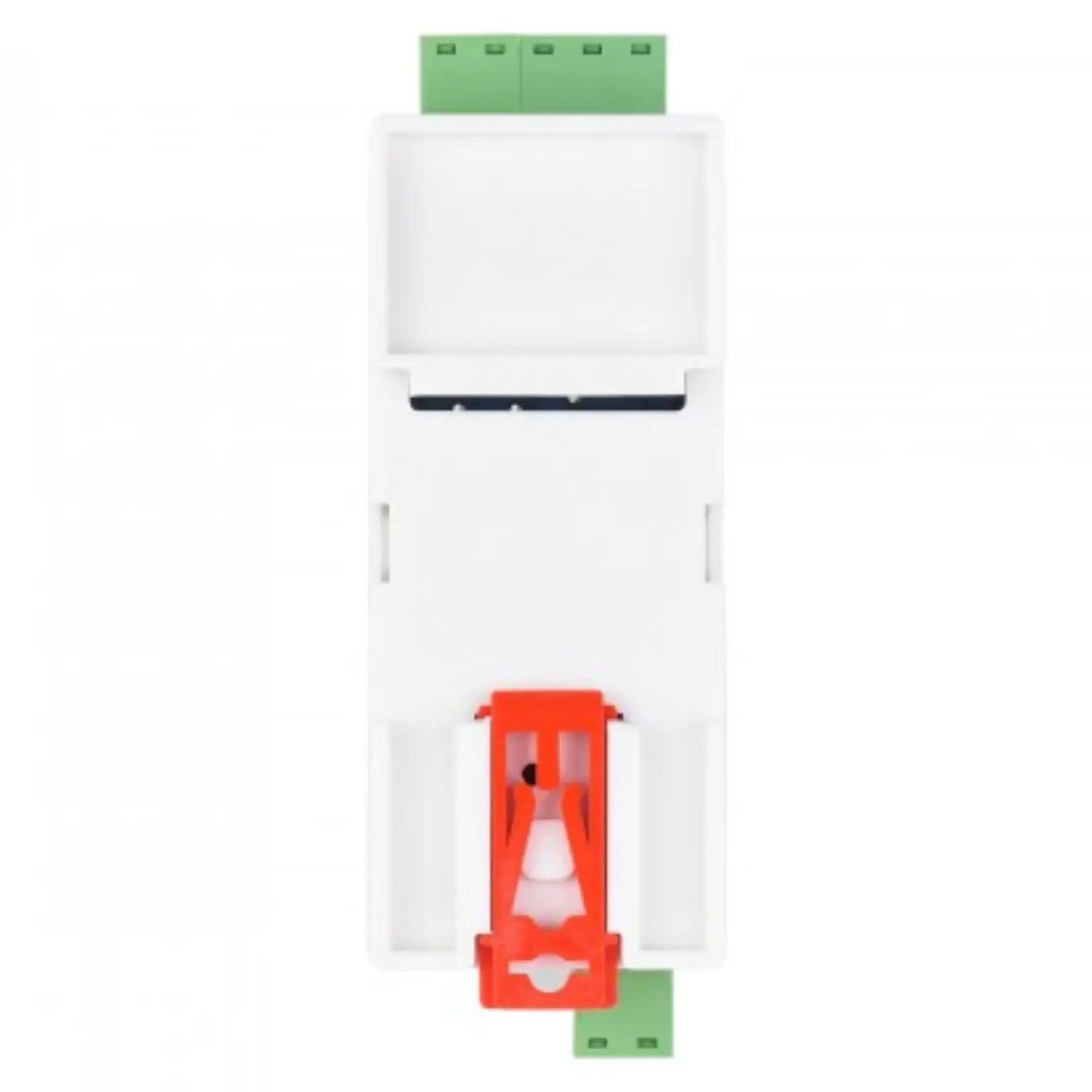

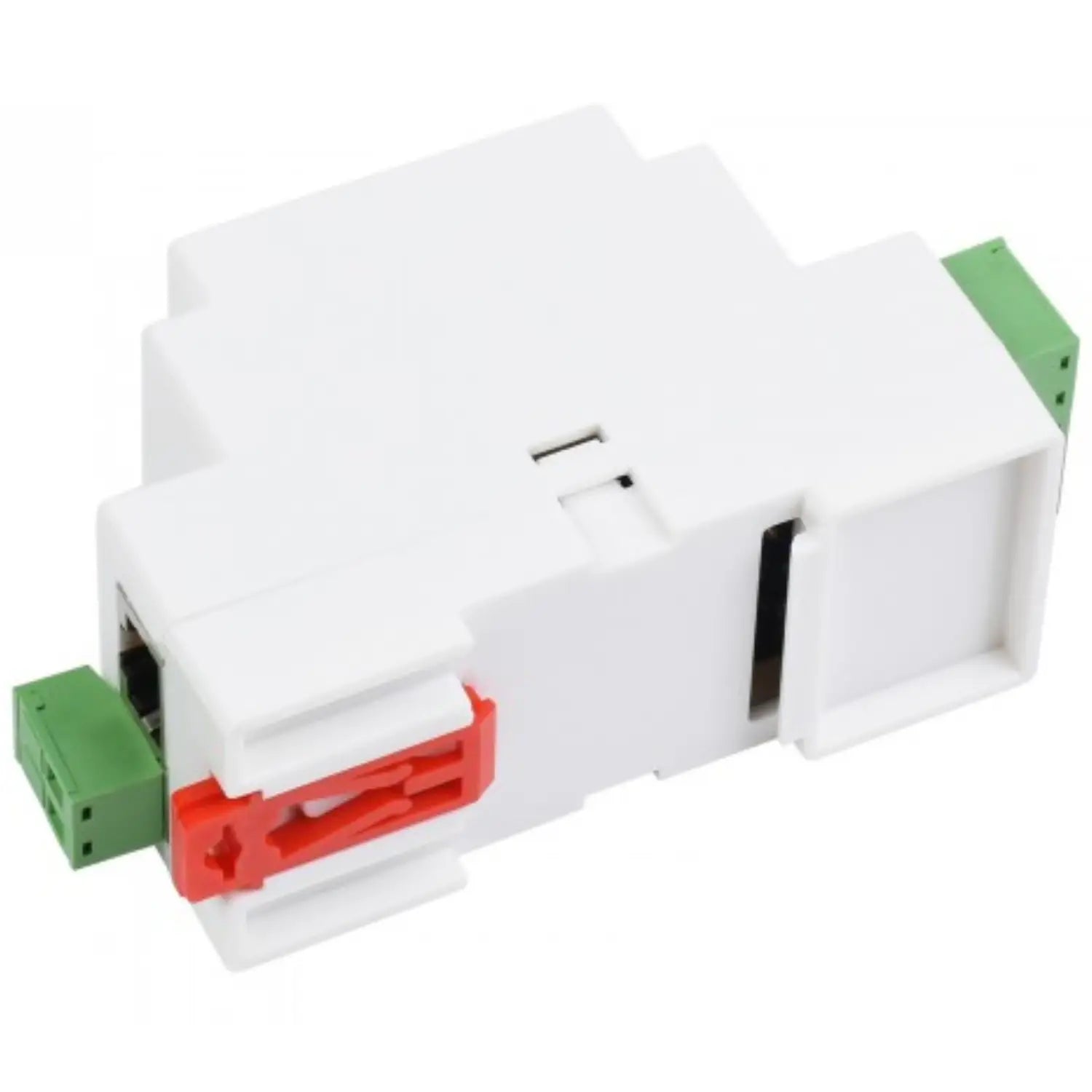

Equipped with RS232 and Ethernet ports, it ensures reliable data transmission and seamless network integration. The screw terminal power input provides secure connections, while the compact rail-mountable case allows quick and easy installation in control cabinets or production lines.

Perfect for connecting and collecting data from various RS232 instruments and sensors, this device supports both local network collection and autonomous cloud uploading, enabling efficient and flexible data management in smart factories, monitoring systems, and IoT deployments.

Specification:

Product	RS232 TO ETH (B)	RS232 TO POE ETH (B)
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Basic Function	Bi-directional transparent data transmission between RS232 and Ethernet
Communication interface	RS232 port x 1, Ethernet port x 1
Power supply	6 ~ 36V DC screw terminal	6 ~ 36V DC screw terminal, or PoE port
Isolation Protection	Power isolation, Signal isolation
Communication
Ethernet	common network port	PoE network port supports the IEEE 802.3af standard
Ethernet	10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port	Isolated RS232
Serial specification
Baudrate	300 ~ 115200 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
Software
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	host, web browser, device management functions library
Communication method	TCP/IP direct communication, VCOM
Operating mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
Others
Operating temperature	-40℃ ~ 85℃
Humidity range	5% ~ 95% relative humidity
Dimensions	L × W × H: 87 × 36 × 59 mm

Features:

Supports TCP server, TCP client, UDP mode, and UDP multicast. As a TCP client, it also supports TCP server-side functions. Supports 30 TCP connections as a TCP server and 7 destination IPs as a TCP client.
Supports the baud rate of 1200~115200bps, the data bit supports 5~9 bits, and the parity bit can be no check, odd check, even check, mark, or space.
Support the function of sending the MAC address on device connection, which is convenient for cloud management of devices.
Provides a secondary development kit DLL development library for computer-side search and configuration of devices.
Support Web browser configuration, support DHCP dynamic acquisition of IP, DNS protocol, and connection name server addresses.
Support remote search for devices, configure device parameters, and upgrade device demos in the cloud.
Support remote viewing of the TCP connection status, serial port data sending, and receiving the status of the device through software. The virtual serial port supports the data monitoring function.
