Description :

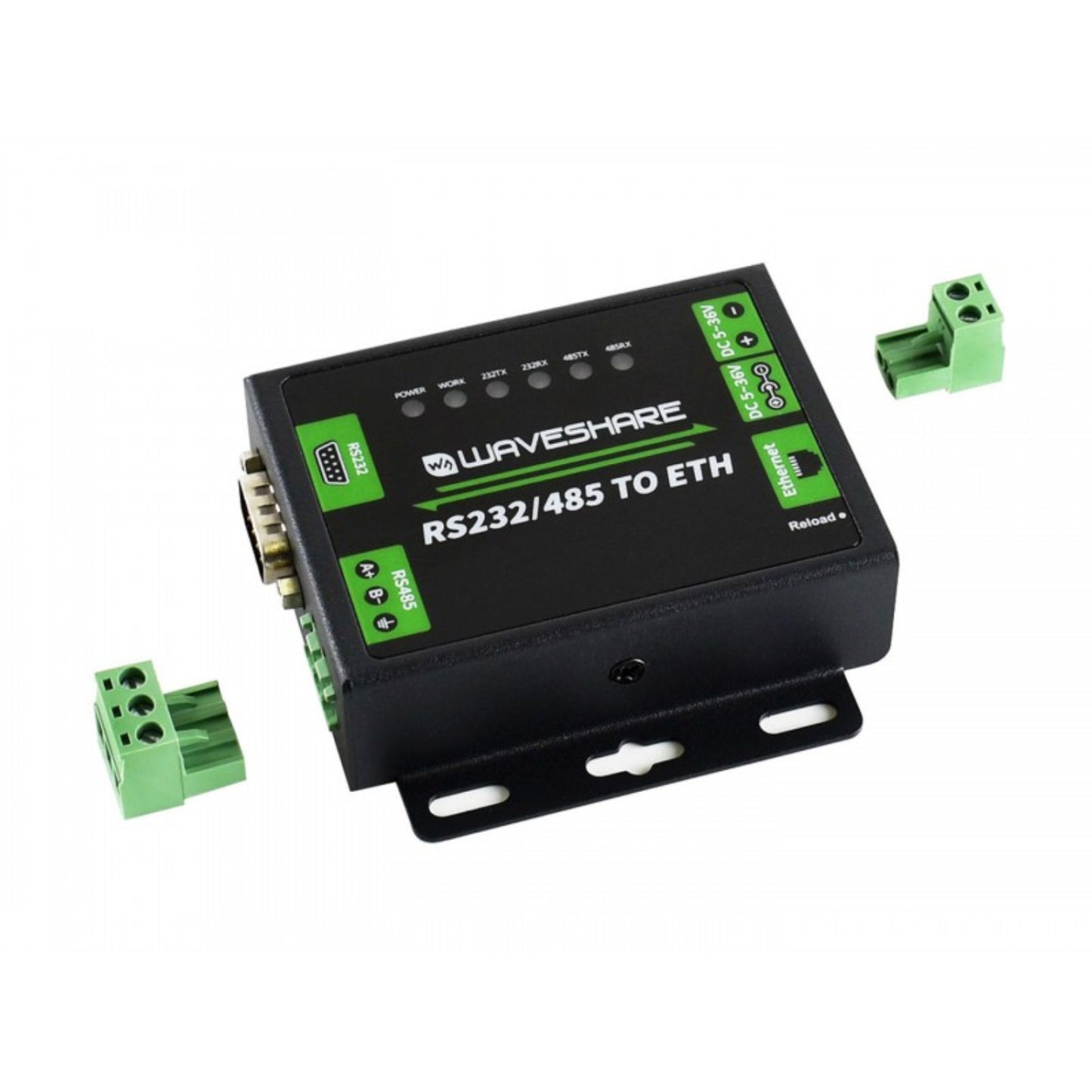

The RS232/RS485 Industrial Serial Ethernet Converter is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via a webpage.
Specifications:
- Ethernet:
- Connector: 4-pin RJ45
- Communication rate: 10/100Mbps
- Interface protection: 2KV electromagnetic isolation
- Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket
- TX cache: 16Kbyte
- RX cache: 16Kbyte
- RS485/RS232:
- Connector:
- RS485: screw terminal (A+, B-, GND)
- RS232: DB9 male
- Data bit: 5bit, 6bit, 7bit, 8bit
- Stop bit: 1, 2
- Parity bit: None, Odd, Even, Mark, Space
- Baudrate: 600bps~230.4Kbps
- TX cache: 2Kbyte
- RX cache: 2Kbyte
- Hardware flow control: RTS/CTS
- Interface protection:
- RS485: 2KV ESD protection, lightning proof, anti-surge, over-current protection
- RS485 pull up/down registers: 2.2KΩ
- Connector:
- Power:
- Power supply: 5.0~36.0V (5V recommended)
- Operating current: 86.5mA (@5V)
- Power consumption: <1W
- Interface protection: reverse-proof, ESD protection, anti-surge
- Environment:
- Operating temperature: -40~85°C
- Storage temperature: -40~105°
Features
- M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
- 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
- Both RS232 and RS485 interface allows one to work independently at the same time, without interfering with the other
- Configurable baud rate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
- Multi indicators, for monitoring communication and working status
- Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
- Supports Modbus, suit for industrial application
- Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
- Configurable via the webpage, AT commands, serial protocol, and network protocol, provides a configuration protocol that can be integrated into your own software
- Supports customized heartbeat packets, makes sure the connection is truthful, as well as for actively retrieves sensor data
- Supports customized registration packets, auto-passing the registered packet as an identifier after the connection is established, so that different devices can be distinguished
- Supports customized webpage, allows user to customize the module configuration page
- Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baud rate, data bit, etc.) may change
- KeepAlive mechanism, detects broken connections, auto re-connecting
- Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
- Supports DNS domain name resolution, configurable DNS server
- Supports DHCP, auto-obtained IP, or static IP
- Firmware is upgradable via the network
- Restore to factory settings via software and/or hardware
- Comes with a default MAC address, which is customizable
- Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
Useful Link:
Waveshare Industrial RS232/RS485 to Ethernet Converter
Package Included :
- 1 x RS232/485 TO ETH
- 1 x 5V Power Adapter
- 1 x Ethernet Cable
- 1 x Male-to-Female Serial Cable
- 1 x Female-to-Female Serial Cable
