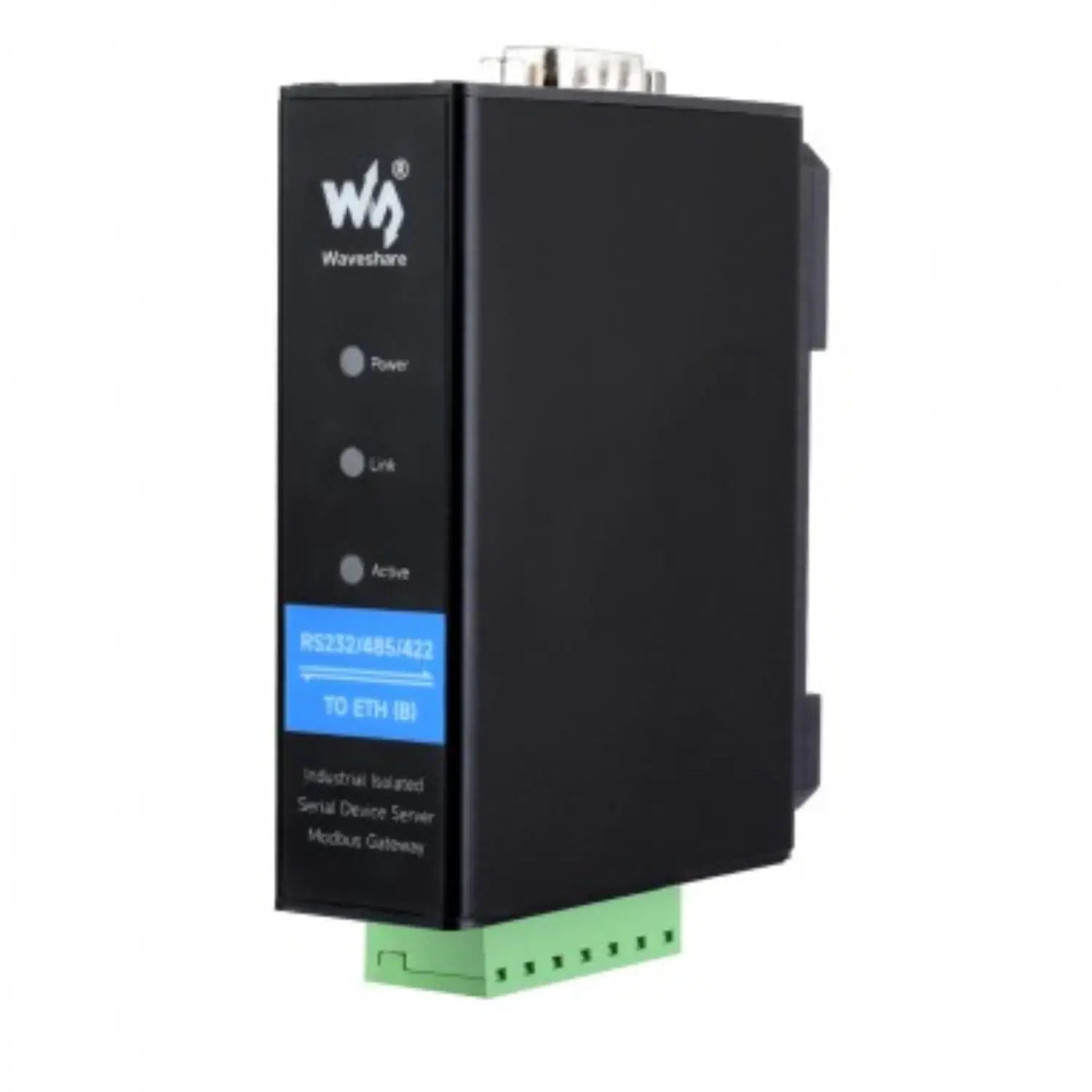

Waveshare Industrial Rail-Mount Serial Server – Reliable RS232/485/422 to RJ45 Ethernet Converter TCP/IP to Serial Optional PoE Support

SKU:

In stock

Rs. 2,483.00

Sale Sold out

Shipping calculated at checkout.

Version Options Common Ethernet port PoE Ethernet port

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

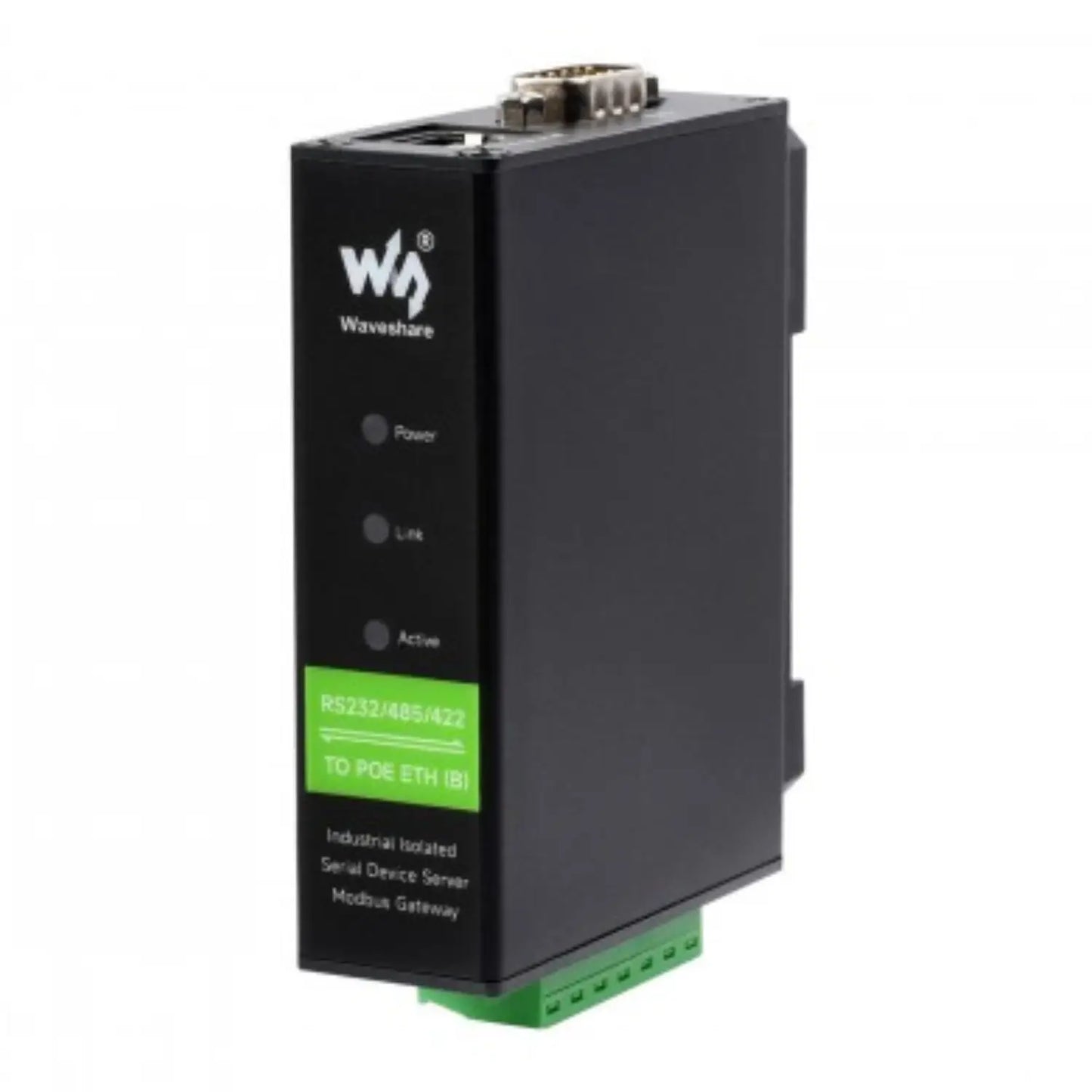

The Waveshare Industrial RS232/485/422 Serial Server & IoT Gateway is a powerful and versatile data acquisition device designed for demanding industrial environments. It integrates multiple functions in one compact unit, including a serial server, Modbus gateway, MQTT gateway, and RS232/485/422 to JSON converter, enabling seamless communication between serial devices and Ethernet networks.

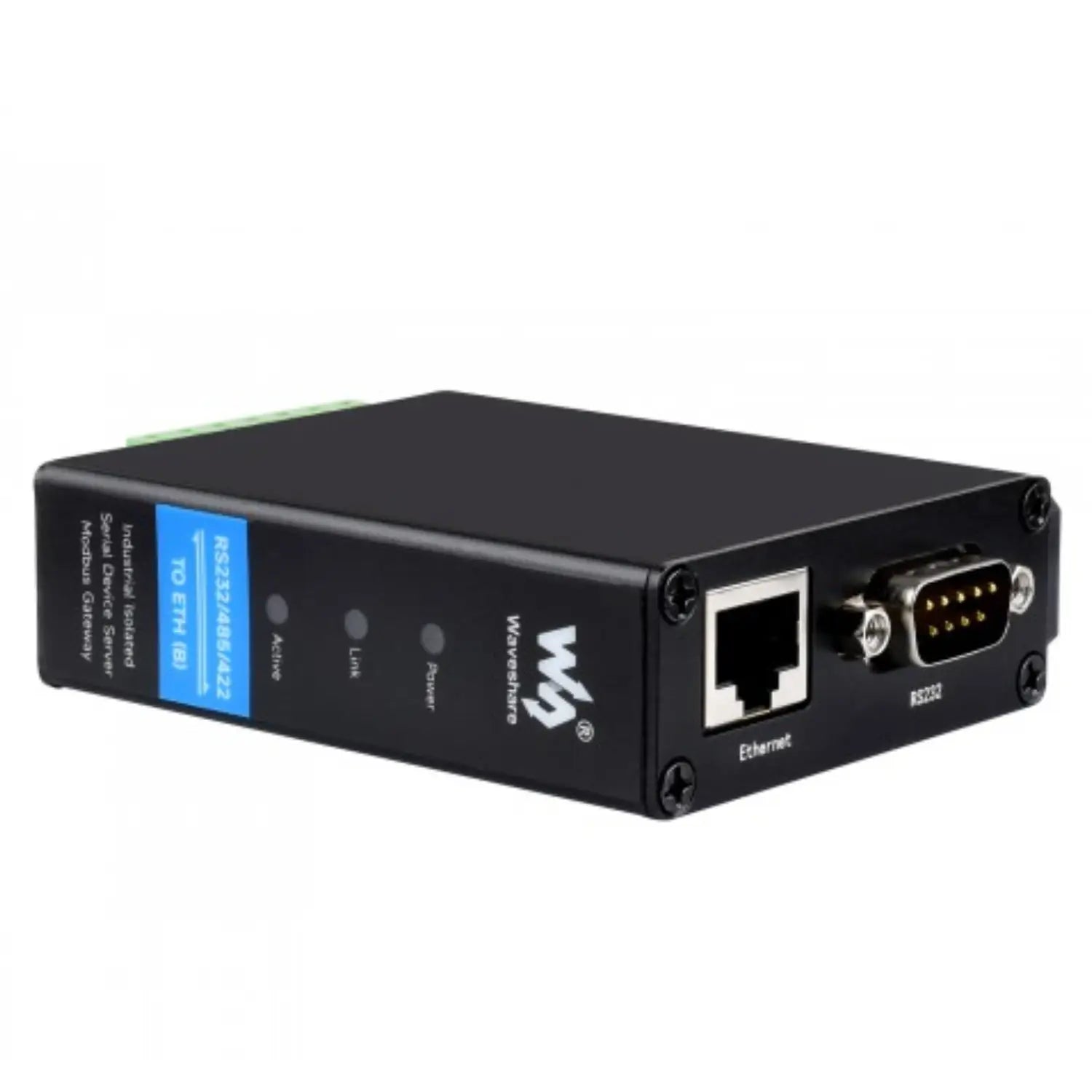

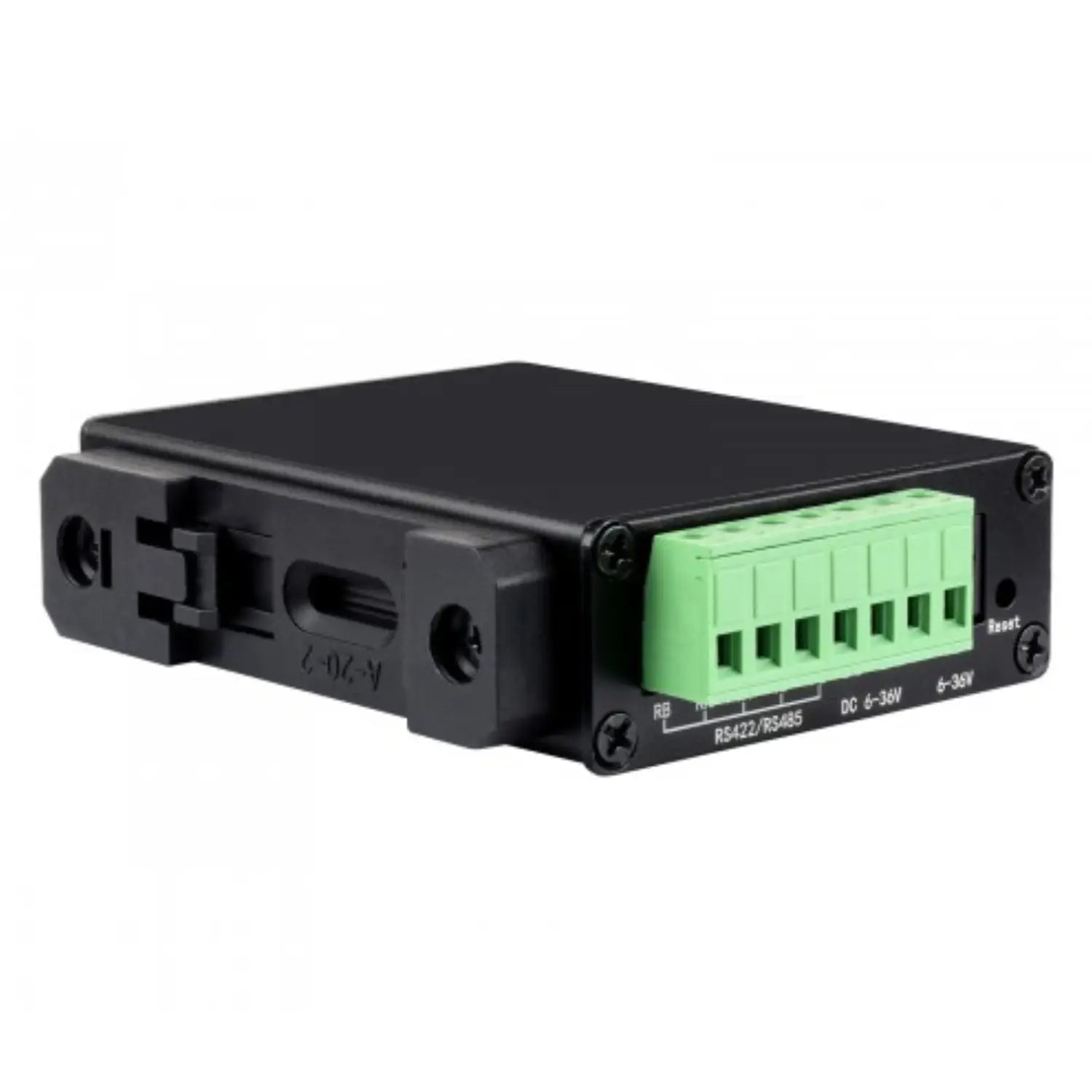

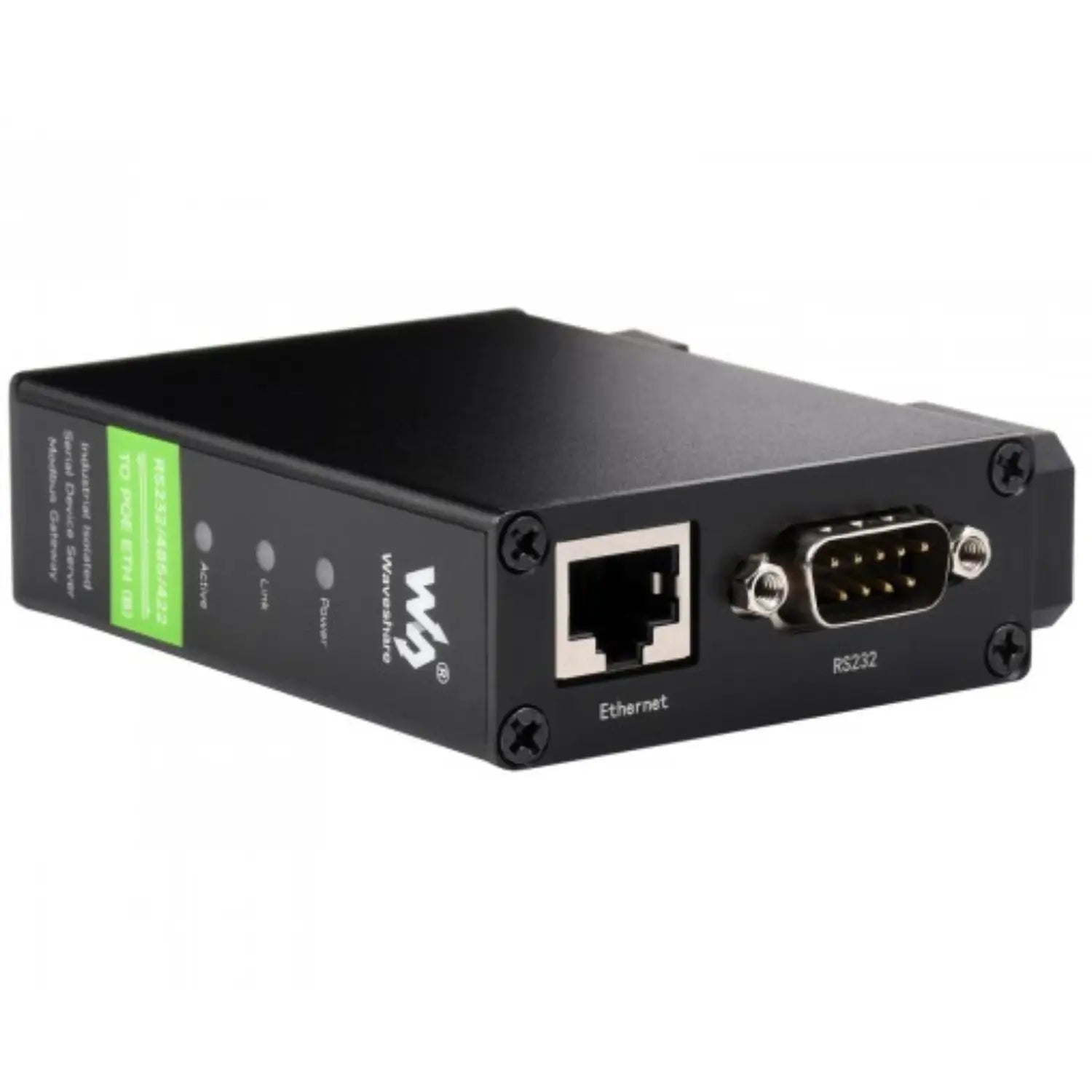

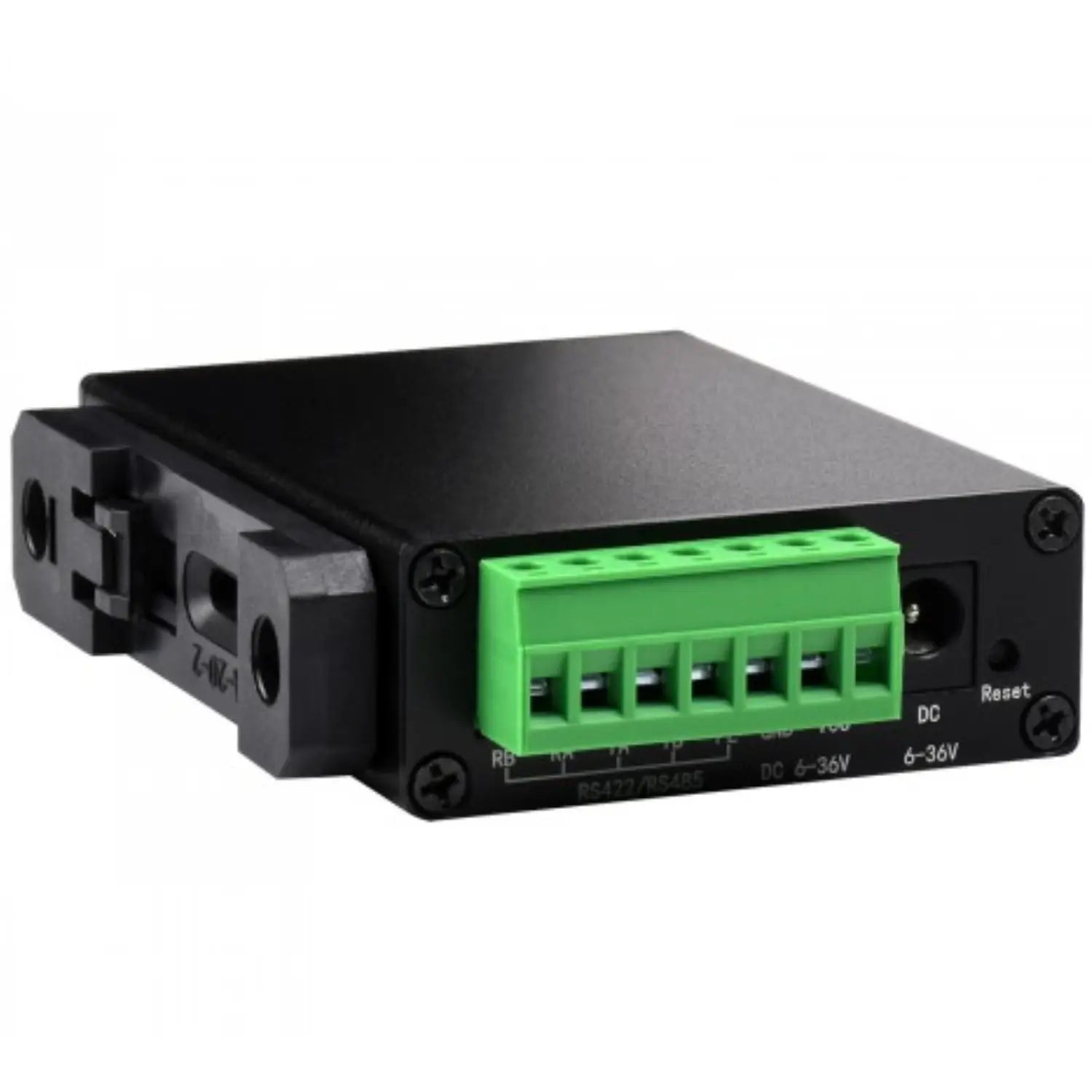

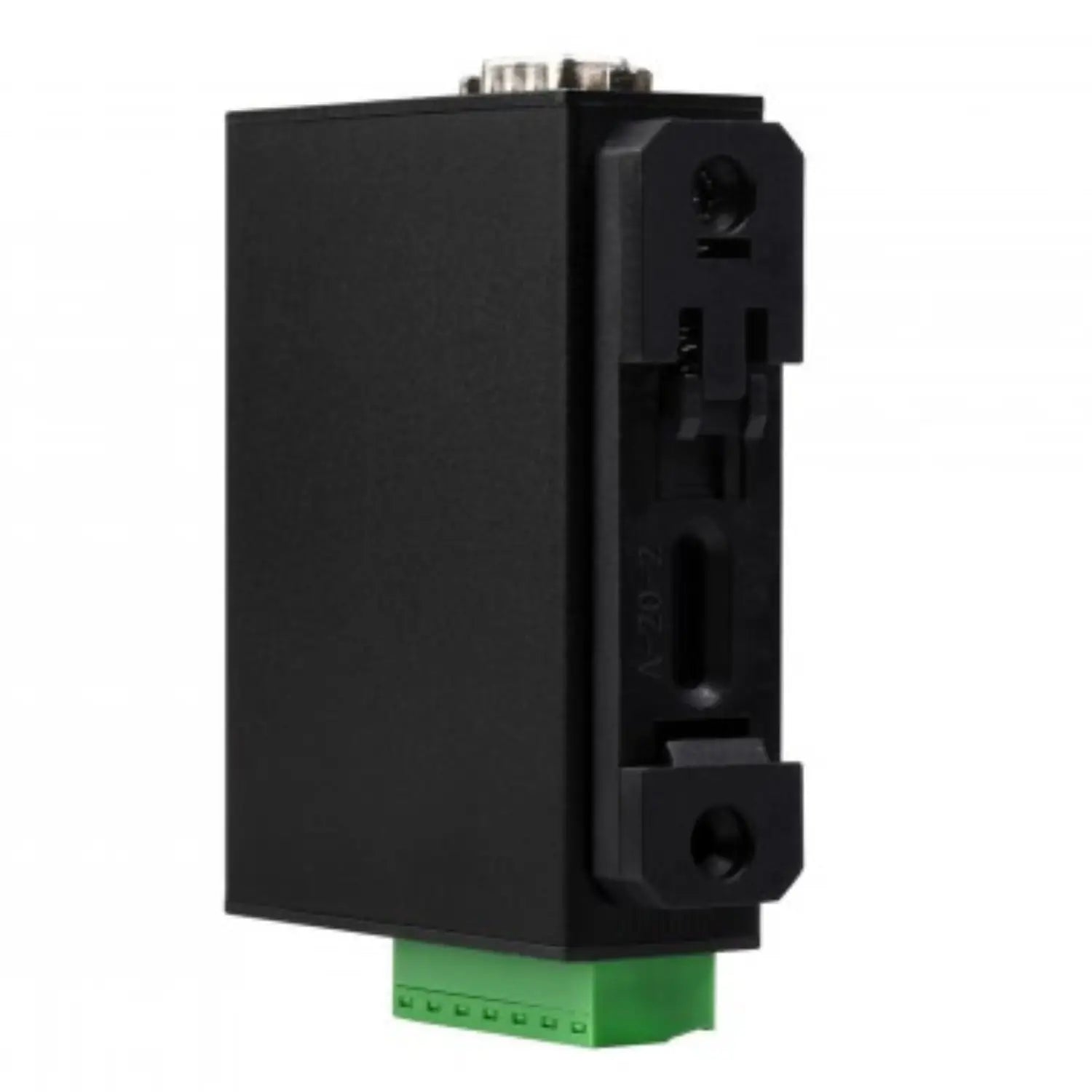

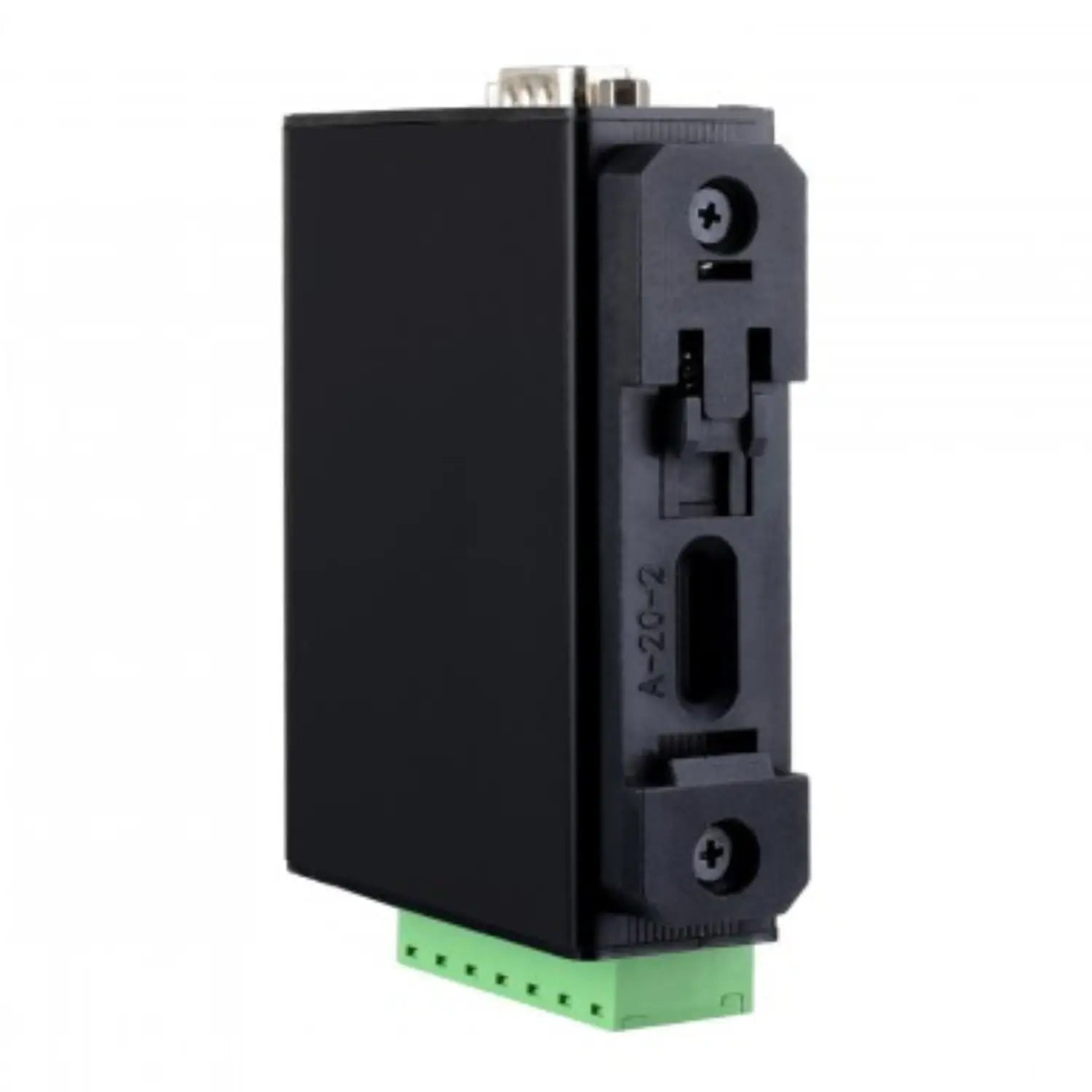

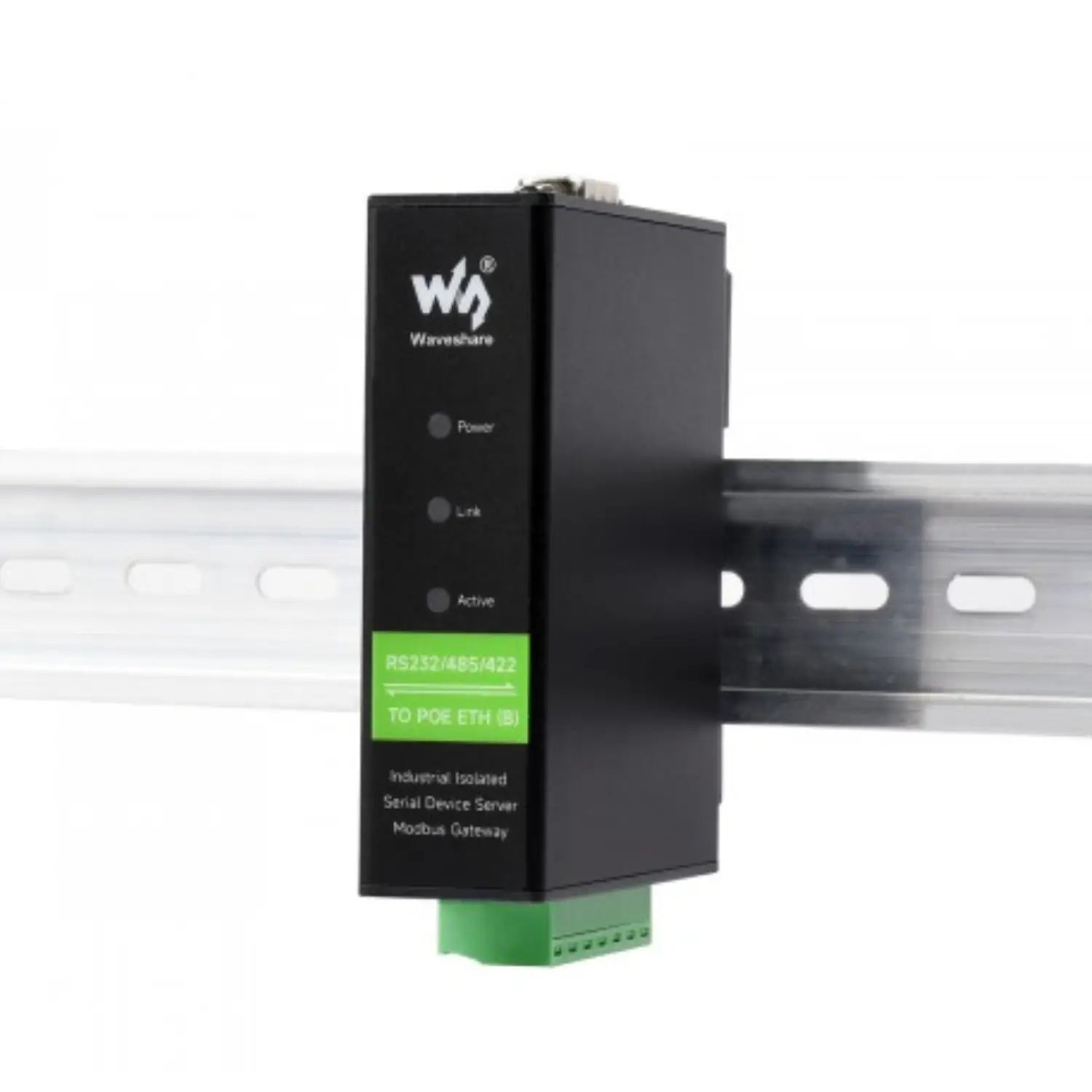

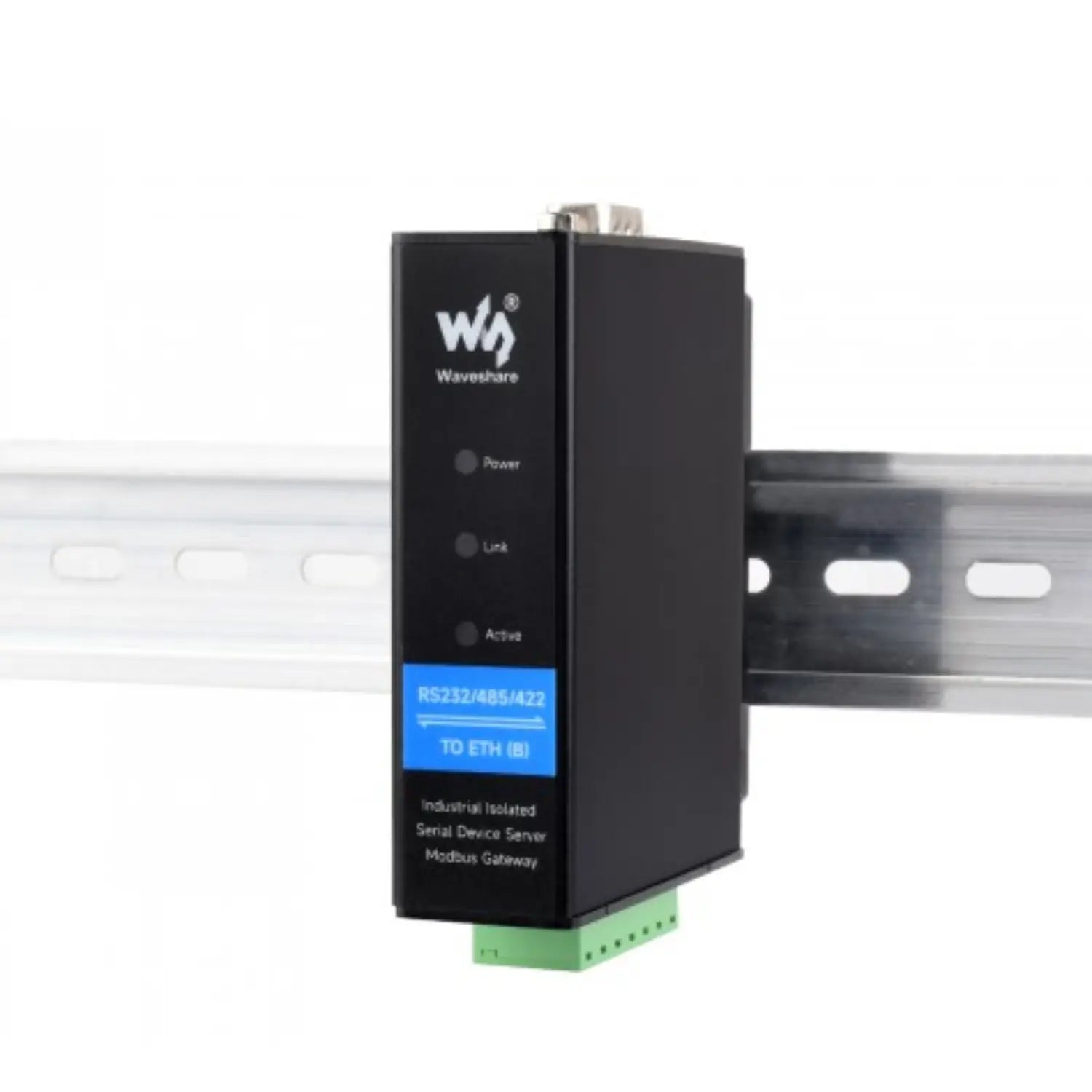

Equipped with RS232/485/422 and RJ45 Ethernet interfaces and supporting PoE (Power over Ethernet), this module offers flexible power options through both PoE and screw terminals (5.5 mm outer / 2.1 mm inner diameter). Its rail-mount, space-saving enclosure ensures quick installation and reliable performance in control panels and factory settings.

Ideal for industrial data collection, this gateway can gather information from serial devices and sensors for local network monitoring or cloud data uploading, making it a cost-effective solution for smart factory and IoT applications.

Specification:

Product	RS232 TO ETH (B)	RS232 TO POE ETH (B)
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Basic Function	Bi-directional transparent data transmission between RS232 and Ethernet
Communication interface	RS232 port x 1, Ethernet port x 1
Power supply	6 ~ 36V DC screw terminal	6 ~ 36V DC screw terminal, or PoE port
Isolation Protection	Power isolation, Signal isolation
Communication
Ethernet	common network port	PoE network port supports the IEEE 802.3af standard
Ethernet	10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port	Isolated RS232
Serial specification
Baudrate	300 ~ 115200 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
Software
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	host, web browser, device management functions library
Communication method	TCP/IP direct communication, VCOM
Operating mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
Others
Operating temperature	-40℃ ~ 85℃
Humidity range	5% ~ 95% relative humidity
Dimensions	L × W × H: 87 × 36 × 59 mm

Features:

Support TCP server, TCP client, UDP mode, and UDP multicast. When used as a TCP client, it also supports TCP server functions. It supports 30 TCP connections as a TCP server and 7 destination IPs as a TCP client.
The baud rate supports 1200~115200bps, the data bit supports 5~9 bits, and the parity bit can be in five ways: no parity, odd parity, even parity, mark, and space.
Supports the function of sending the MAC address on device connection, which is convenient for cloud management of devices.
Provides a secondary development kit DLL development library for searching and configuring devices on the computer side.
Support Web browser configuration, support DHCP to obtain IP dynamically, and the DNS protocol to connect domain name server address.
Support cloud remote search for devices, configure device parameters, and upgrade device programs.
Support viewing the TCP connection status, and the data sending and receiving of the serial port. The virtual serial port also supports the monitoring function.
