- CM4 SOCKET: suitable for all variants of Compute Module 4
- NETWORKING: Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
- Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
- USB USB: 2.0 3
- PIN HEADER: Non-isolated RS485 2, Non-isolated CAN 1, Partial GPIO pins
- CAMERA MIPI: CSI-2 1 (15pin 1.0mm FPC connector)
- VIDEO HDMI: 1, supports 4K 30fps output
- RTC Real-time clock with a battery socket and ability to wake Compute Module 4
- STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- FAN HEADER: 5V/12V, allows speed adjustment and measurement
- POWER INPUT: 5V or 7~36V
- DIMENSIONS: 145 90 40mm
Description :

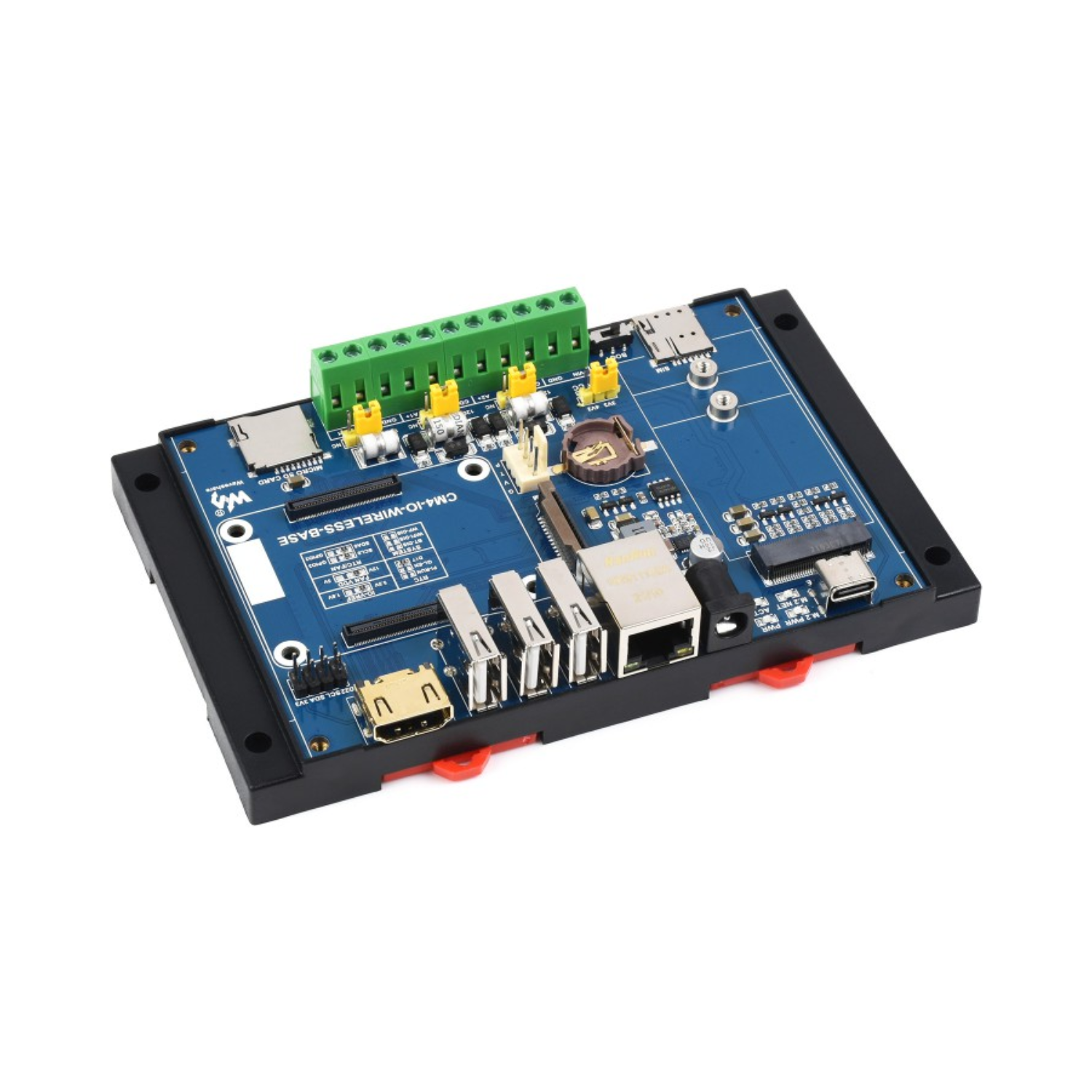

This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allowing additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.

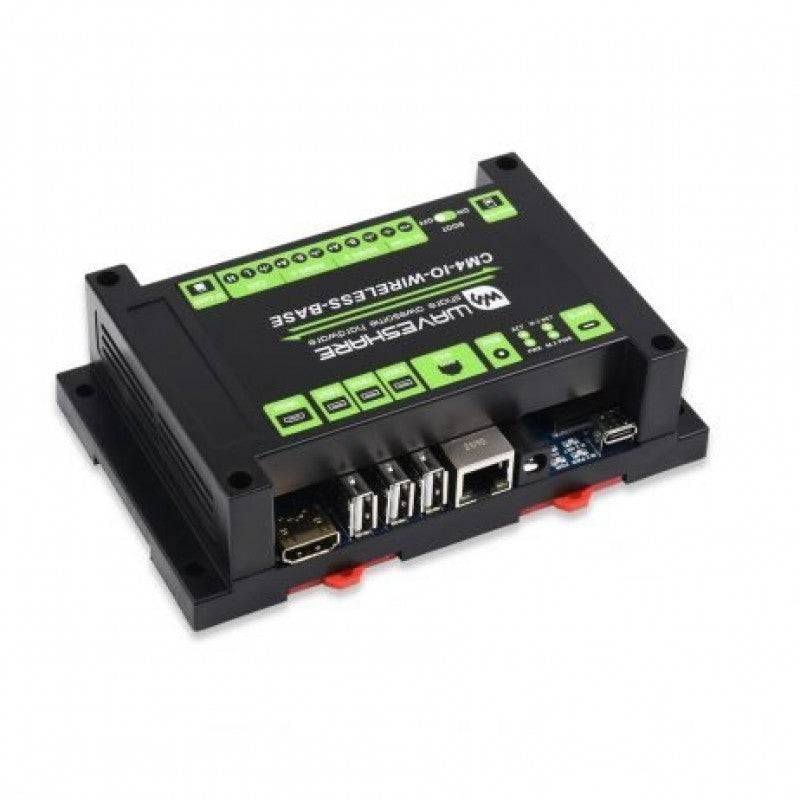

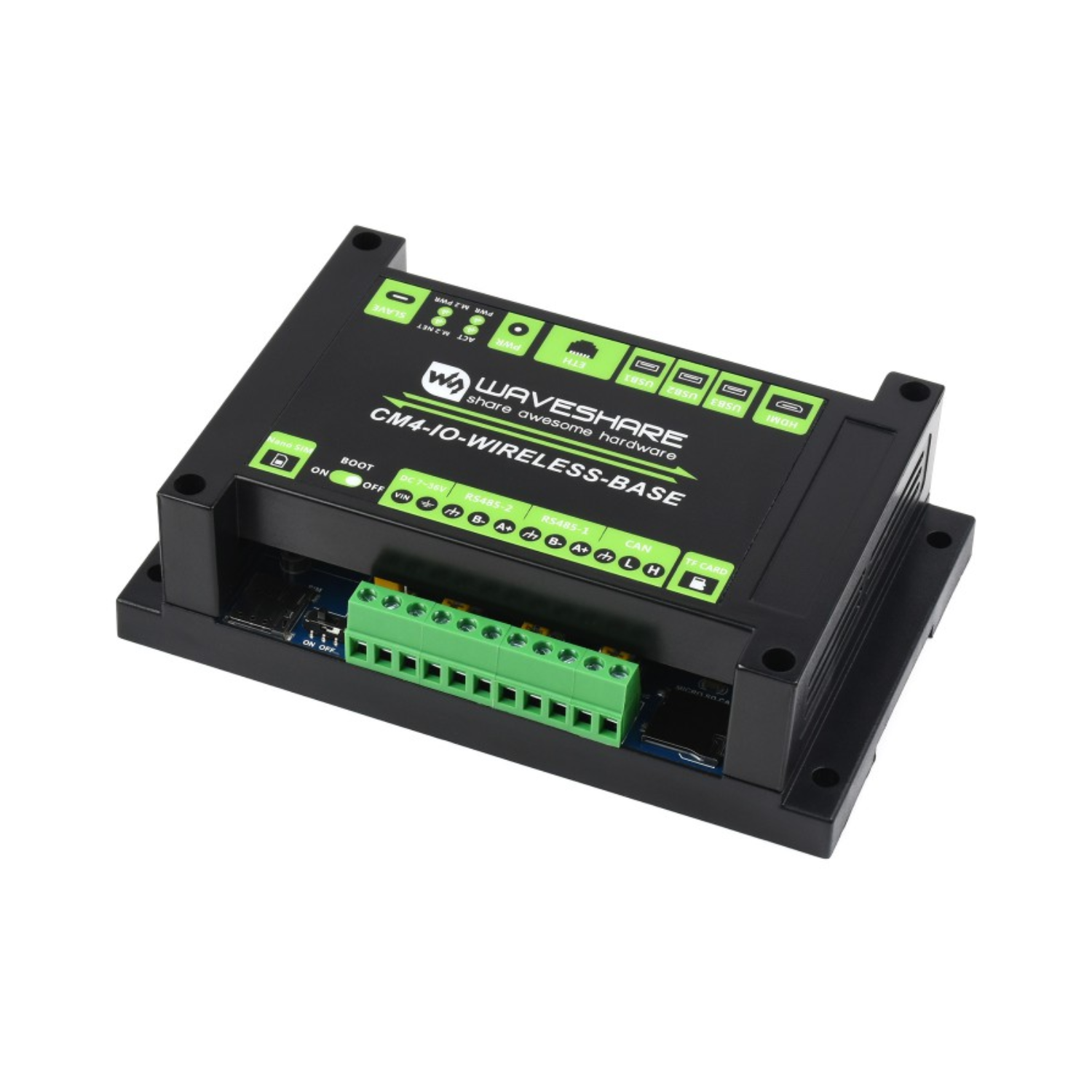

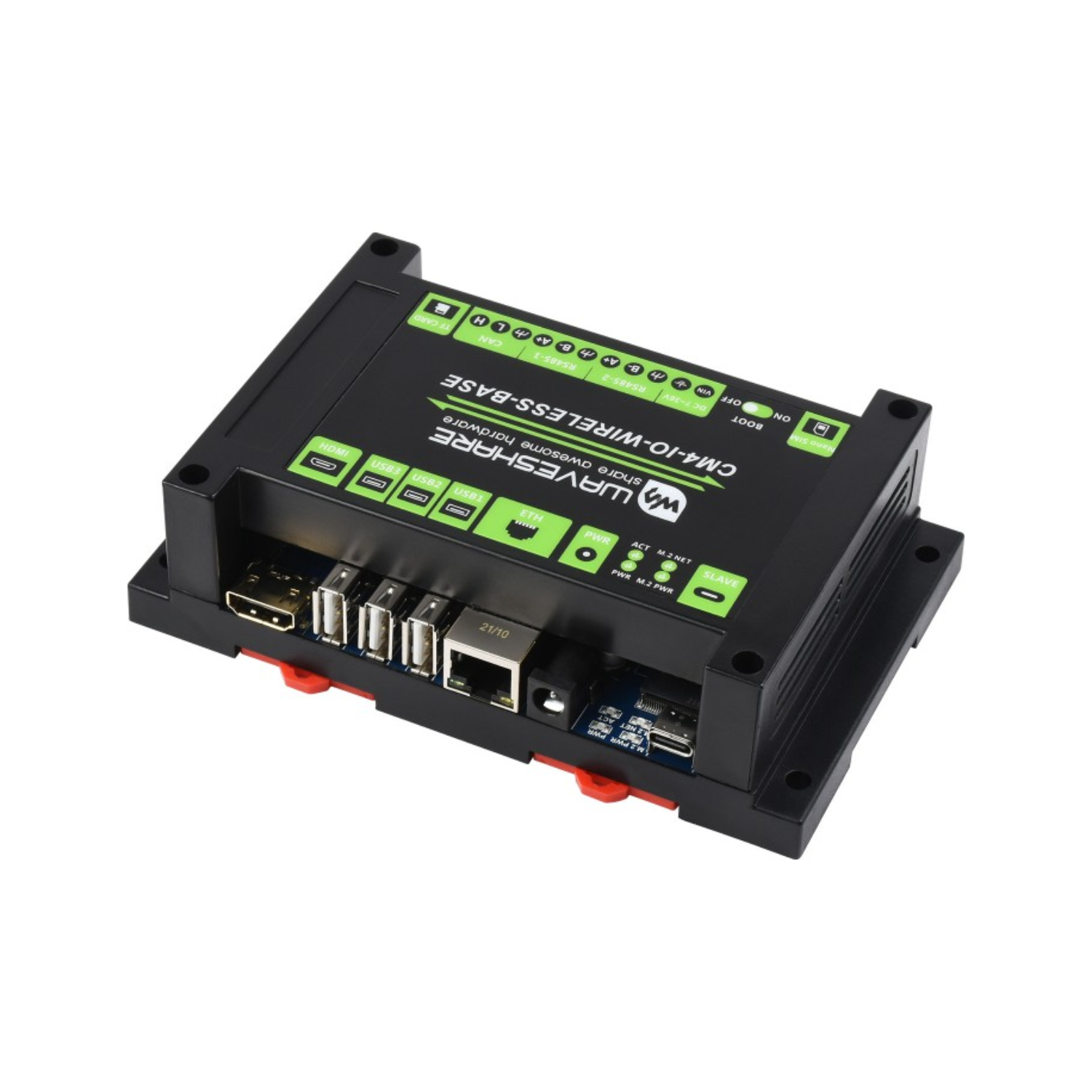

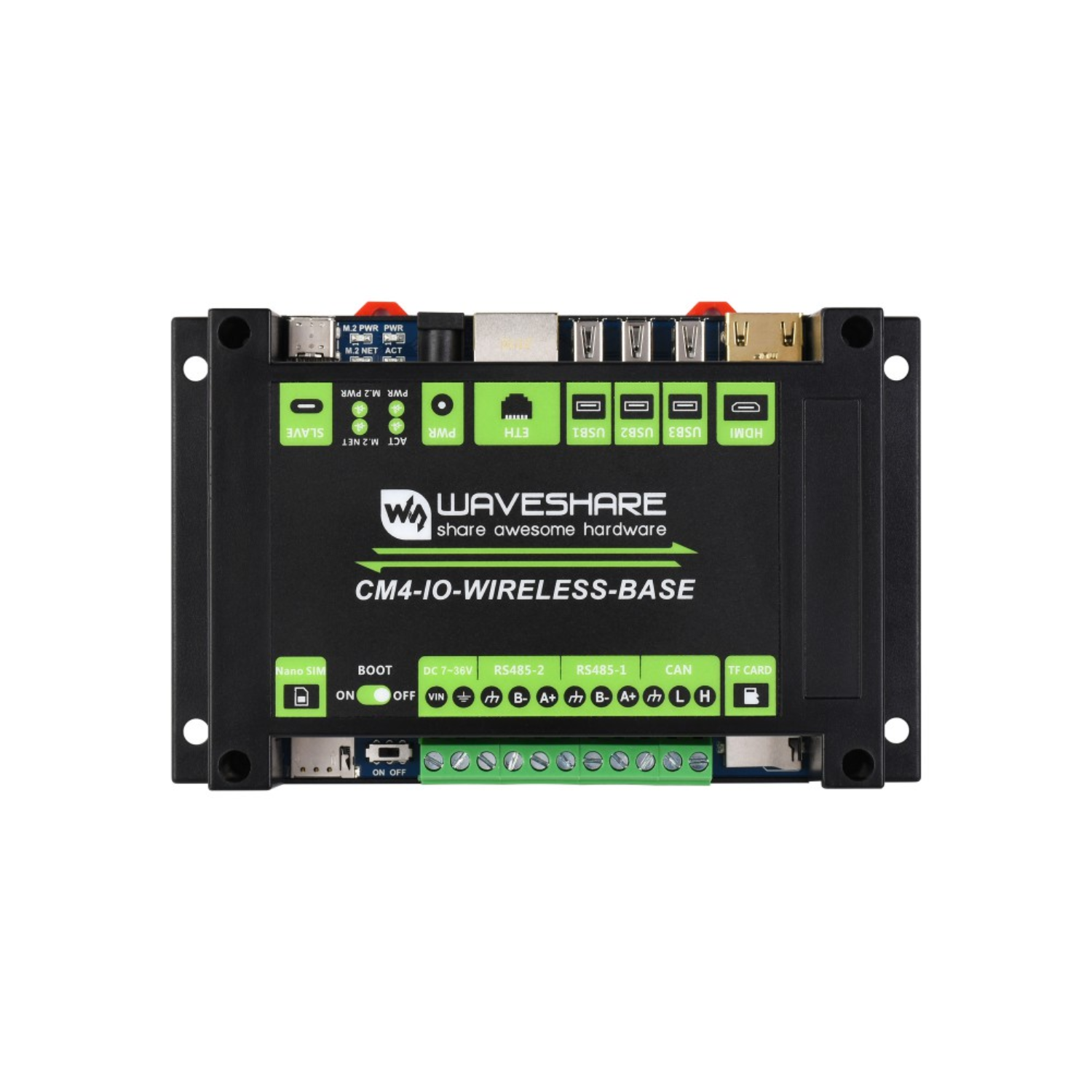

Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in the industrial automatic control system, and more.
Specifications and Features:
- CM4 SOCKET: suitable for all variants of Compute Module 4
- NETWORKING: Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
- Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
- USB USB: 2.0 3
- PIN HEADER: Non-isolated RS485 2, Non-isolated CAN 1, Partial GPIO pins
- CAMERA MIPI: CSI-2 1 (15pin 1.0mm FPC connector)
- VIDEO HDMI: 1, supports 4K 30fps output
- RTC Real-time clock with a battery socket and ability to wake Compute Module 4
- STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- FAN HEADER: 5V/12V, allows speed adjustment and measurement
- POWER INPUT: 5V or 7~36V
- DIMENSIONS: 145 90 40mm
Package Included:
1 x Waveshare Industrial IoT Wireless Expansion Module Kit
