Description:
This industrial-grade USB 2.0 hub provides robust and reliable connectivity, extending your system with four high-speed USB 2.0 ports. Engineered for demanding industrial and professional office environments, it meets the rigorous demands of higher-level devices, ensuring stable data transmission and power delivery.
Specification:
- Standard: USB 2.0
- Data rate: up to 480Mbps
- USB HUB INPUT:
- Operating voltage: 5V
- Connector: USB-A
- USB OUTPUT:
- Operating voltage: 5V@Imax:1.2A①
- Connector: USB-A
- External Power:
- Power supply voltage: DC 5V②
- Connect: DC jack
- Operating environment: -40°C ~ 85°C
Features:
- The HUB can only support 5V power input, if the supply voltage is too high, the protective circuit will cut off the power directly.
- This HUB has four USB output ports and supports up to 1.2A Max output current for each USB port. If the working current of the USB device is larger than 1.2A, the short-protective circuit will be activated and you need to remove the USB device to restore it.
- The working temperature of the HUB is -40°C ~ 85°C, with no condensation. Note that this device is not waterproof.
- LED1 ~ LED4 is the working indicator of every USB port, the indicators light if the USB ports are connected and enumerated successfully.
- The red PWR LED is the power indicator of the USB HUB.

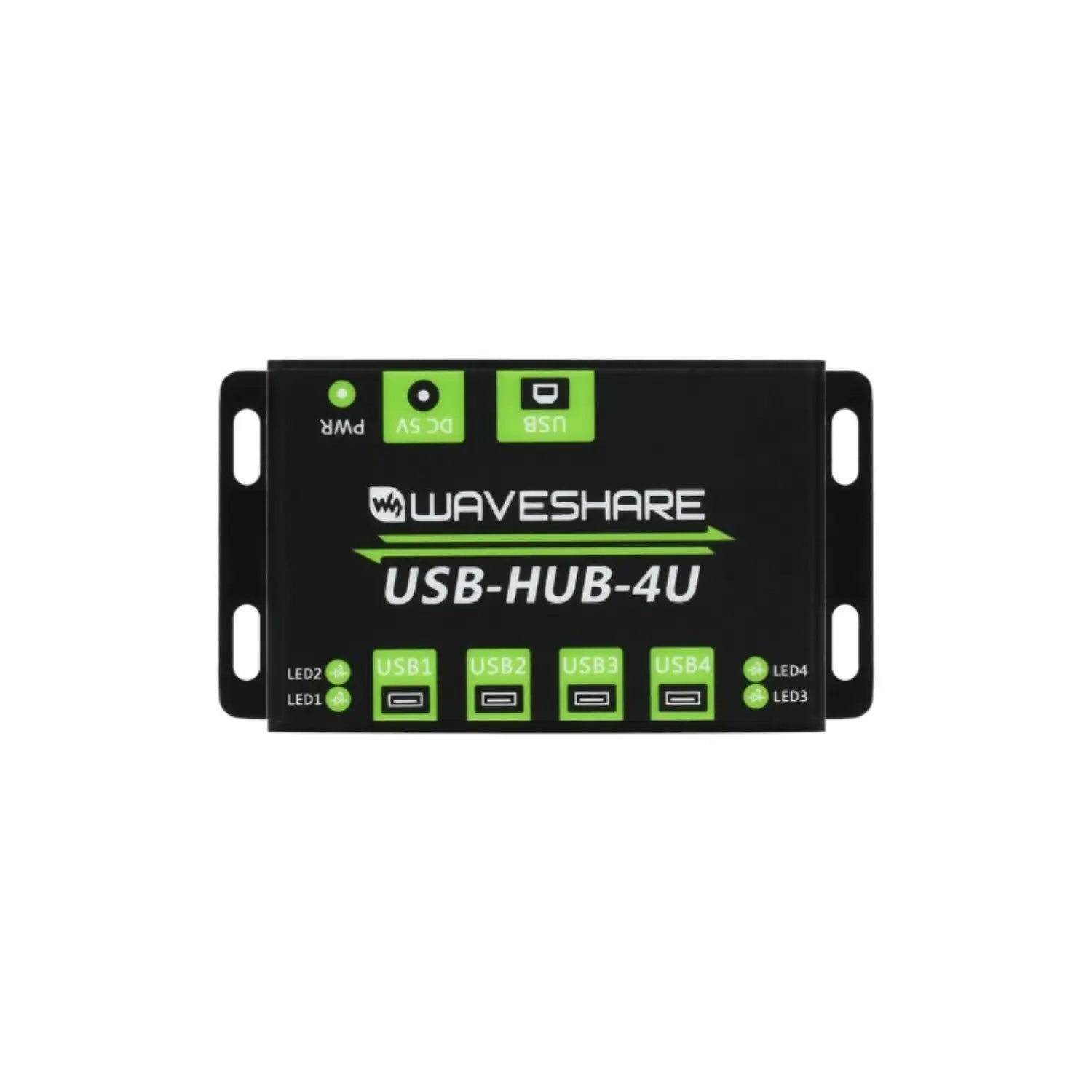

Interface Introduction:
Useful Link:
Waveshare USB 2.0 Hub 4-Port Extension Hub
package Included:
- 1 x USB-HUB-4U
- 1 x USB cable ~1.2m
-
1 x 5V 2A power adapter
