Description:
Waveshare Industrial 5-Port Gigabit Ethernet Switch designed to endure extreme temperatures (-40°C to 75°C), vibrations, and shocks, they offer a significant upgrade in resilience compared to standard commercial switches. Benefit from industrial safety certifications and hazardous location approvals, making them suitable for the most demanding sites. Select models boast advanced features such as Industrial Protocol Management, enhanced reliability, robust security measures, network redundancy for uninterrupted operation, and simplified setup.
Our IDS Switch portfolio includes a comprehensive range of unmanaged, managed, and PoE options, supporting fast 10/100/1000 Ethernet and versatile fiber connectivity.
Specifications:
- Switch Type: Gigabit Ethernet Switch
- Voltage Rating: 5 to 36V
- Main chip: RTL8367N
- Ethernet Port: 5x 10/100/1000M With Auto MDI/MDI-X Support
- Operating Temperature: -40°C to 75°C
- Full-Duplex: 10/100/1000M

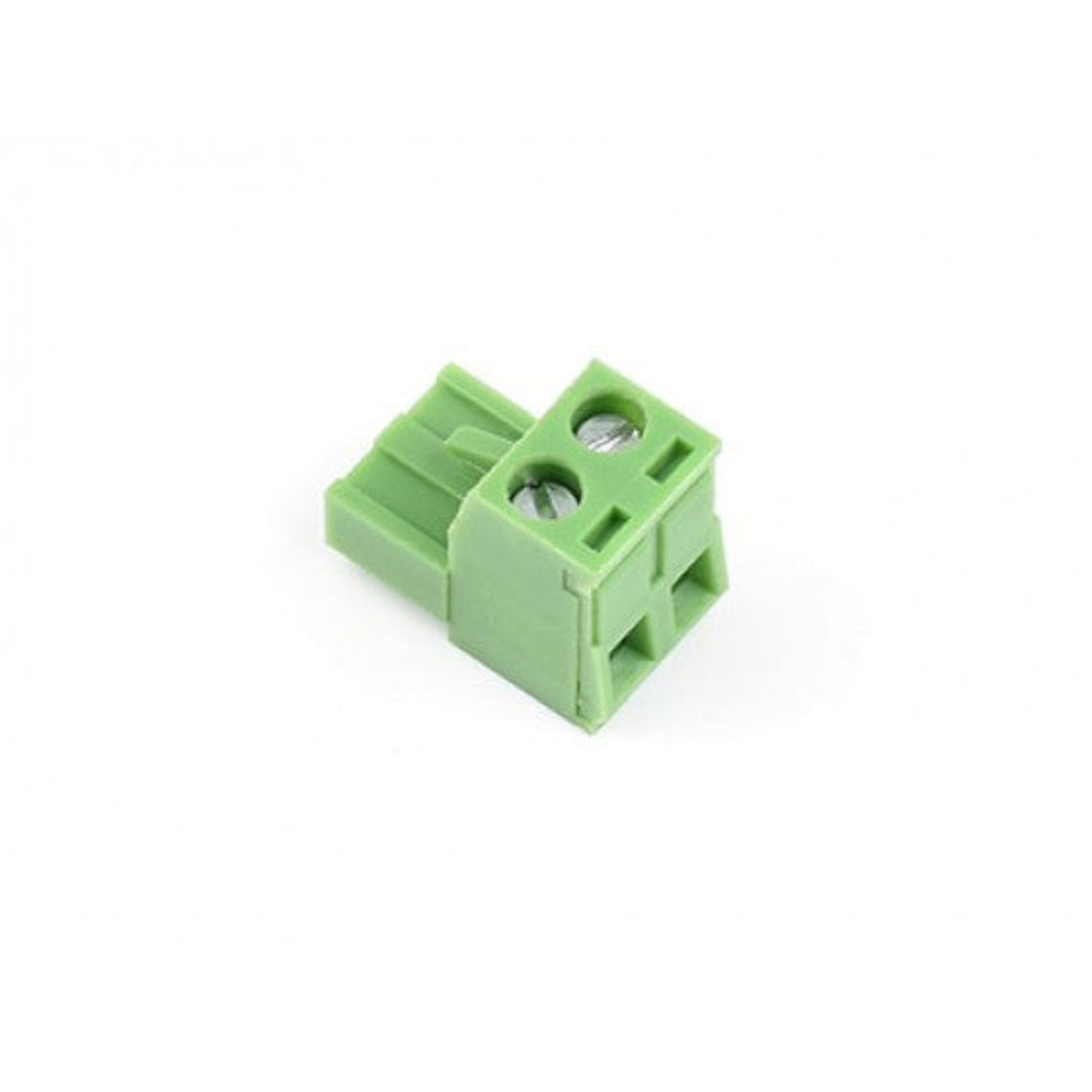

- Dual Power Inputs: DC Jack And Screw Terminal
Features:
- Onboard switch chip, 5 x ports 10/100/1000M non-blocking switch architecture.
- Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode).
- Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support.
- Allow forwarding a 9216-byte huge data packet at linear speed.
- Over-voltage protection, effectively preventing damages caused by other high-voltage power supplies.
- Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installation.
- 5~36V wide voltage power supply, dual power interface (DC interface and terminal block) onboard overvoltage protection, reverse connection protection.
- Support 25mm standard rail.
Product Interface:
Useful Link:
Waveshare Industrial 5-Port Gigabit Ethernet Switch
Package Included:
1 x Waveshare Industrial 5-Port Gigabit Ethernet Switch
