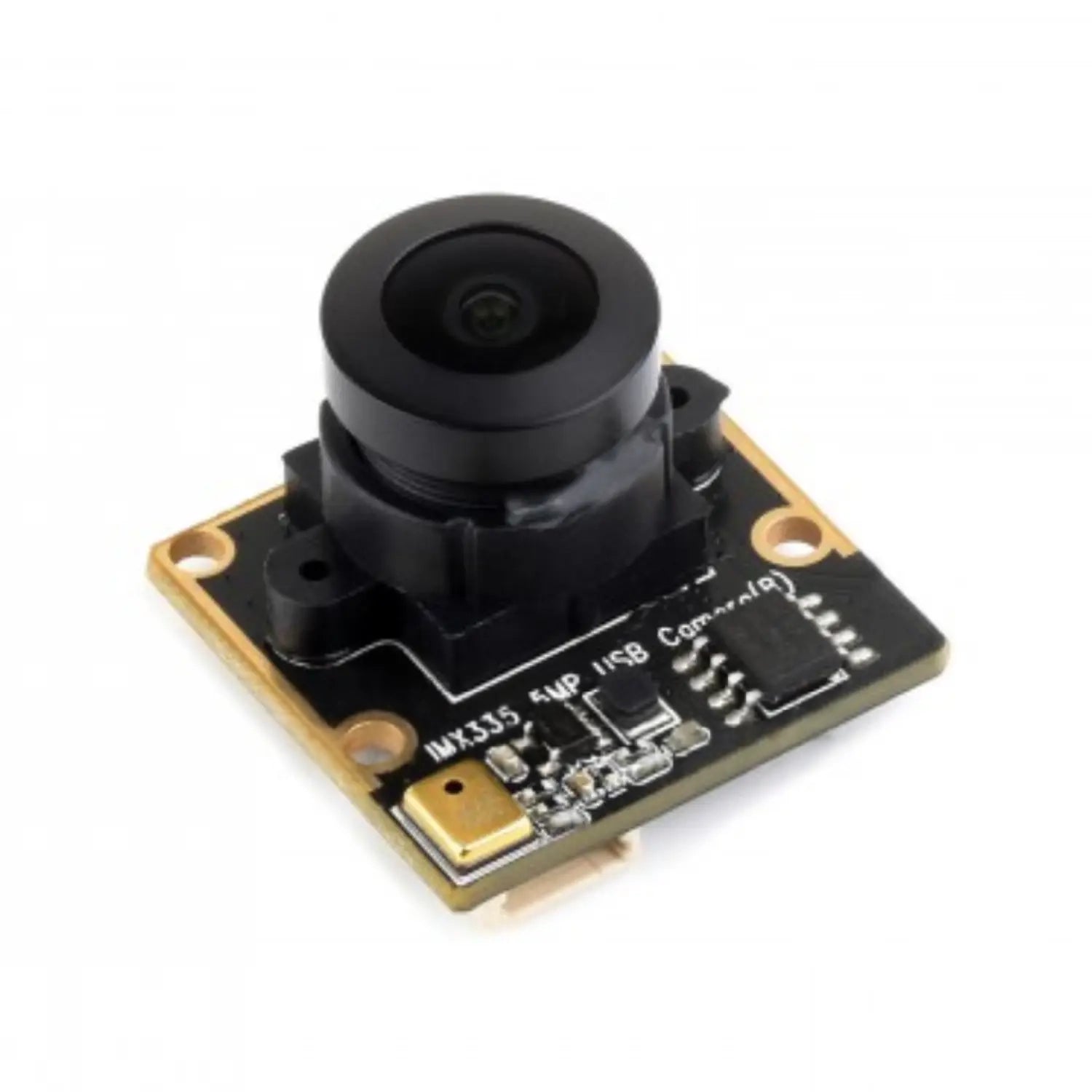

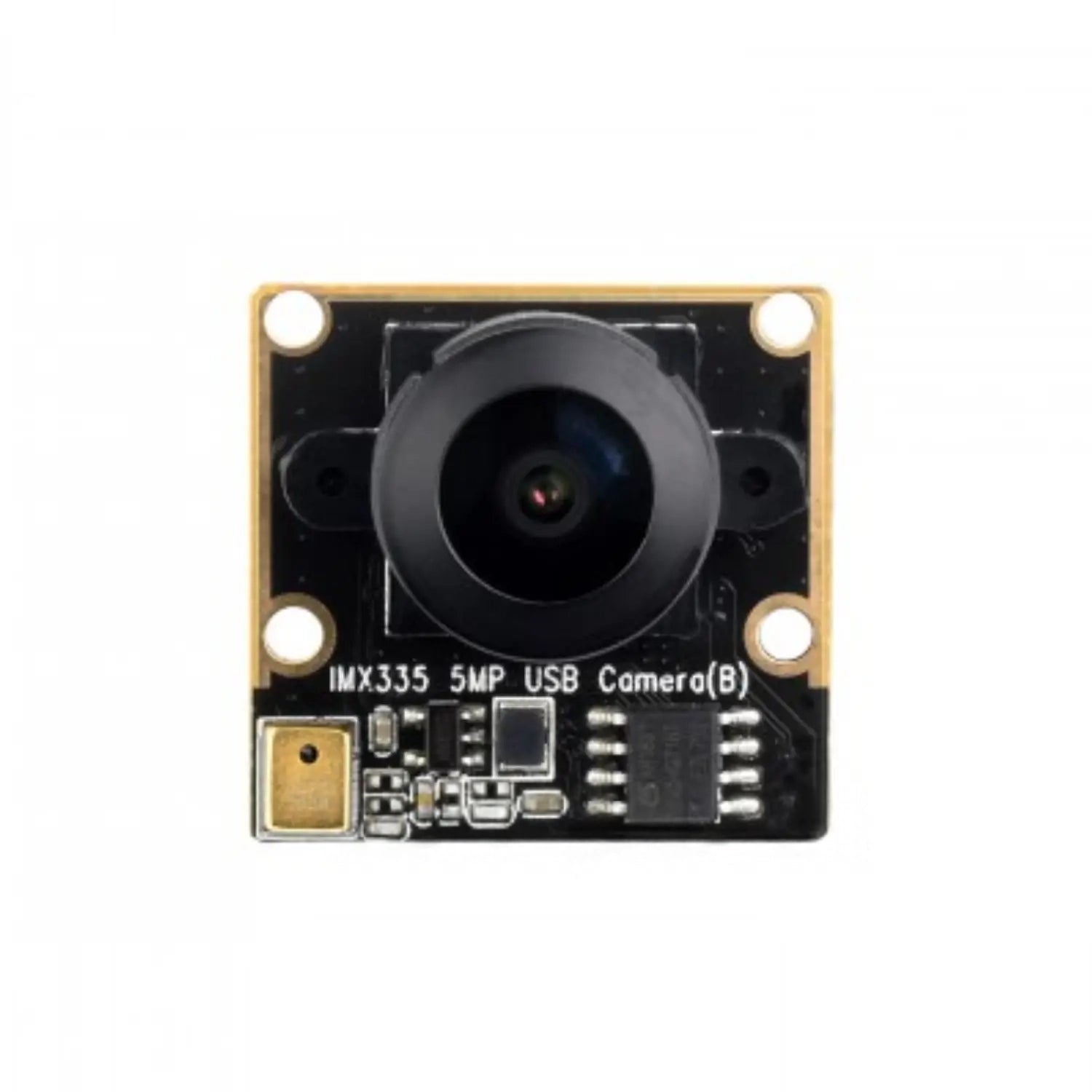

Waveshare IMX335 5MP USB Camera (B) with Sony STARVIS - 2K Video, Excellent Low-Light & WDR for Machine Vision & Surveillance

Description:

The Waveshare IMX335 5MP USB Camera (B) is a high-performance imaging module offering 2K video recording and outstanding clarity. Equipped with the advanced IMX335 sensor, it excels in low-light environments and delivers sharp, well-balanced visuals with its wide dynamic range. Ideal for security, surveillance, robotics, and embedded vision projects, this compact USB camera ensures easy integration with PCs, laptops, and single-board computers like the Raspberry Pi. Perfect for professionals and hobbyists alike seeking premium video quality and versatile functionality.

Specification:

• Pixels: 5 million
• Resolution: 2592 × 1944
• Photosensitive chip: IMX335
• DSP: Auto gain/exposure/white balance
• Camera:
  • CCD size: 1/2.8 inch
  • Aperture (F): 2.0
  • Focal length (EFL): 3.65 mm
  • Field of View (FOV): 175° (D)
  • Distortion: -36%
  • Focus mode: Fixed focus
• Interface type: USB 2.0
• Image:
  • Supported image formats: MJPG, YVY2
  • Static image resolution: 2592 × 1944
  • Video recording support:

    30 FPS 2592 × 1944

    30 FPS 1920 × 1080

    30 FPS 1280 × 720

  • Dynamic range: 71.6dB@8xgain
  • Signal-to-noise ratio (SNR): 36dB
• Audio: Onboard microphone
• Operating voltage: 5V ± 5%
• Operating temperature: 10°C ~ 60°C
• Lens size: 23.50 × 19.50 × 36.94 (mm)
• Outline dimensions: 25.00 × 24.00 (mm)
• Supported systems: Windows, Linux, MacOS

Features:

• IMX335 5MP USB Camera (B) features a sensor size of 1/2.8 inch
• Offering compatibility with MJPG and YVY2 formats
• It provides a static image resolution of 2592 × 1944 pixels and supports video recording at various frame rates and resolutions: 30 FPS at 2592 × 1944 pixels, 30 FPS at 1920 × 1080 pixels, and 30 FPS at 1280 × 720 pixels.
• A dynamic range of 71.6 dB at 8x gain ensures better sensitivity in low-light conditions.
• The camera offers a signal-to-noise ratio (SNR) of 36 dB, ensuring high-quality image capture and video recording.
• Improved sensitivity in low-light conditions
• Wide dynamic range for accurate representation of bright and dark areas
• Convenient USB interface for easy connection to various devices
• Suitable for a wide range of applications, including security systems, surveillance cameras, drones, and robotics

Pin Description:

Useful link:

Waveshare IMX335 5MP USB Camera (B)

Package Includes:

1 x Waveshare IMX335 5MP USB Camera (B)
