Description:

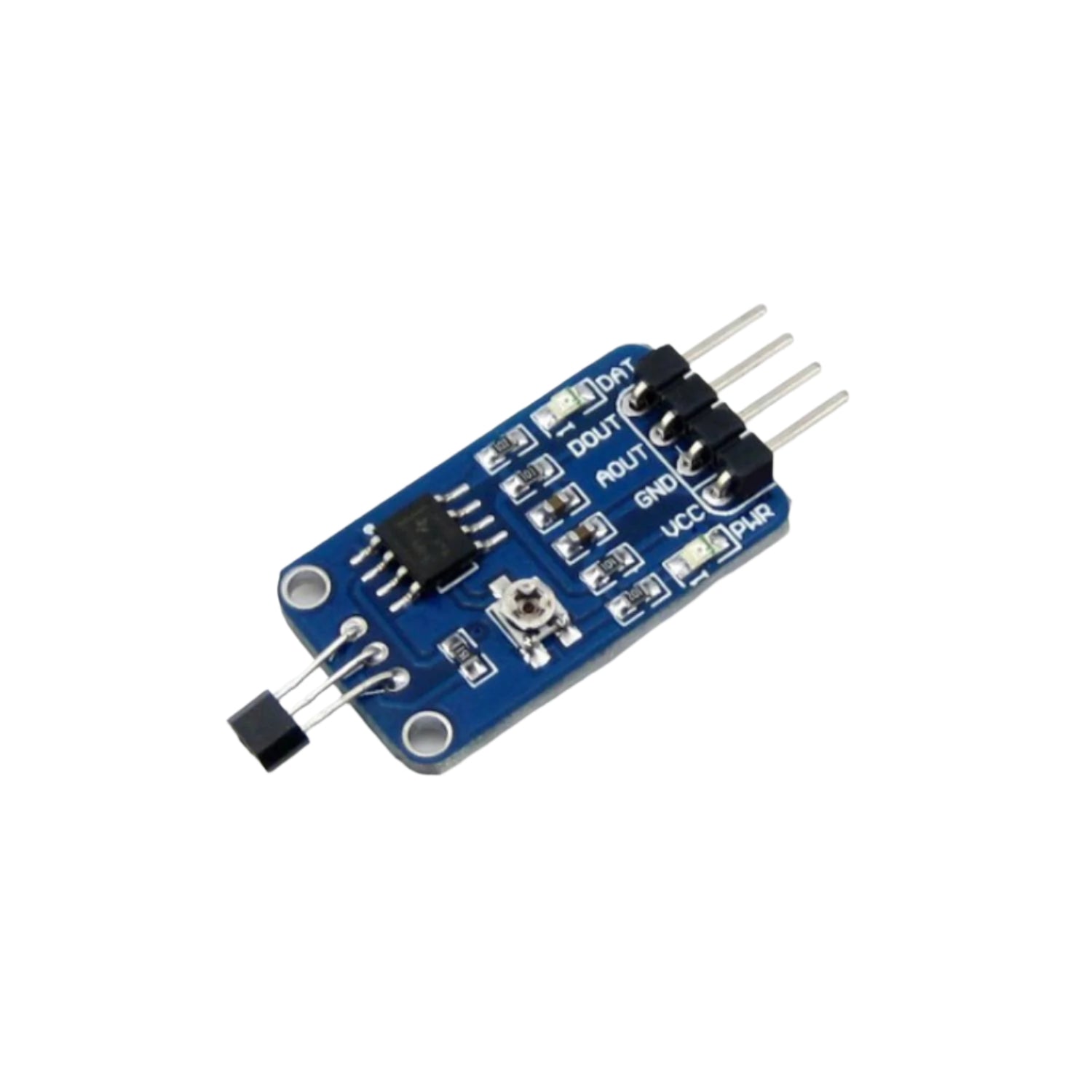

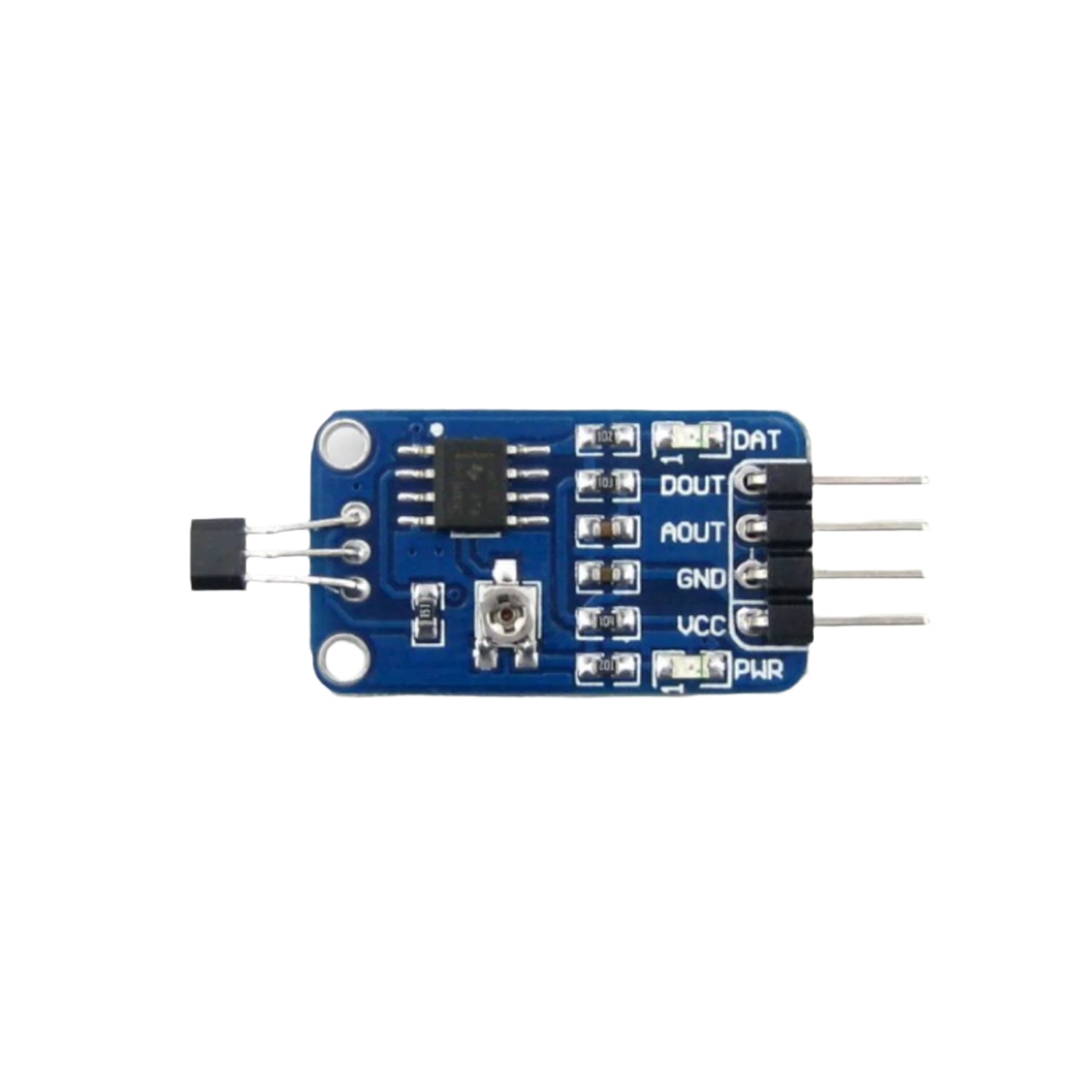

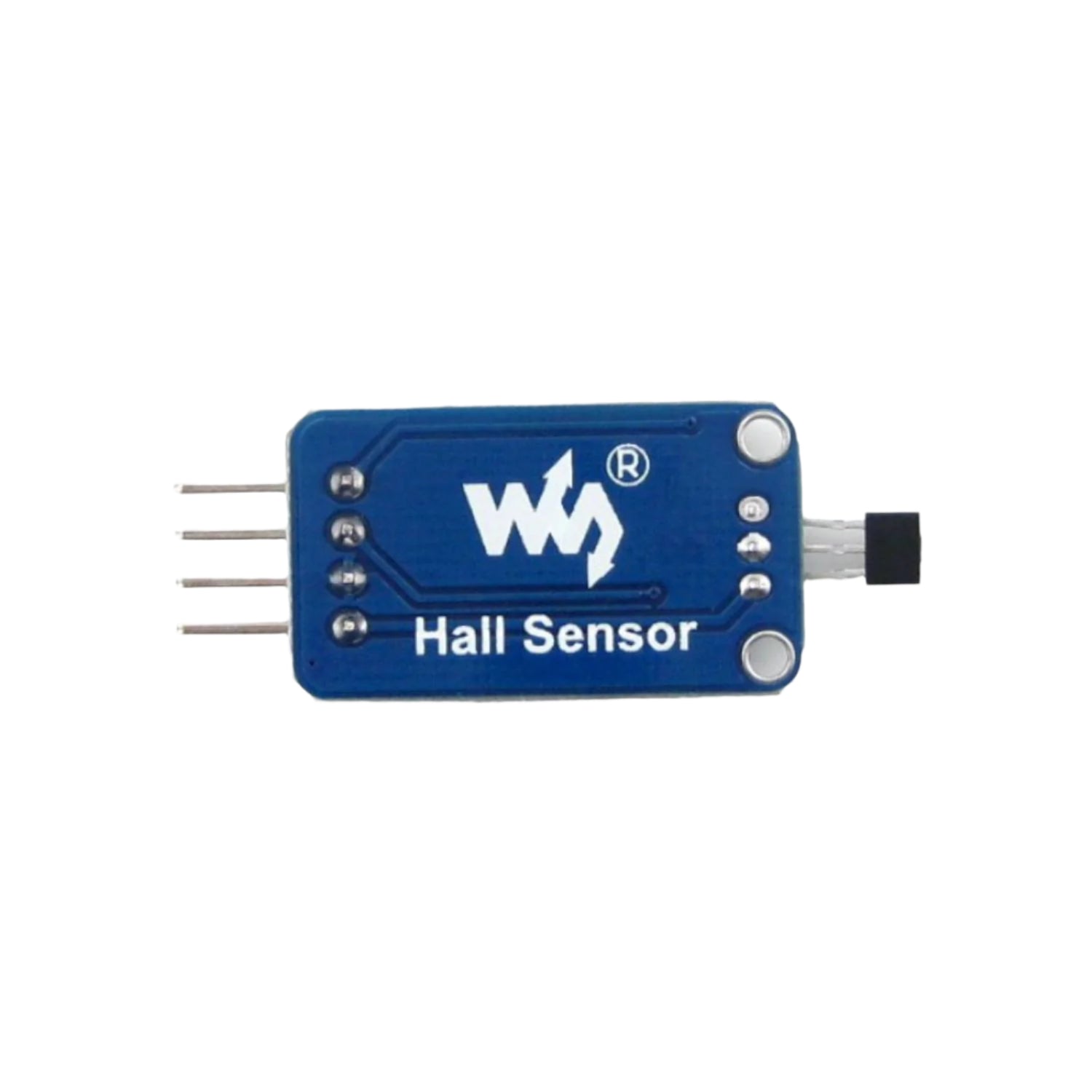

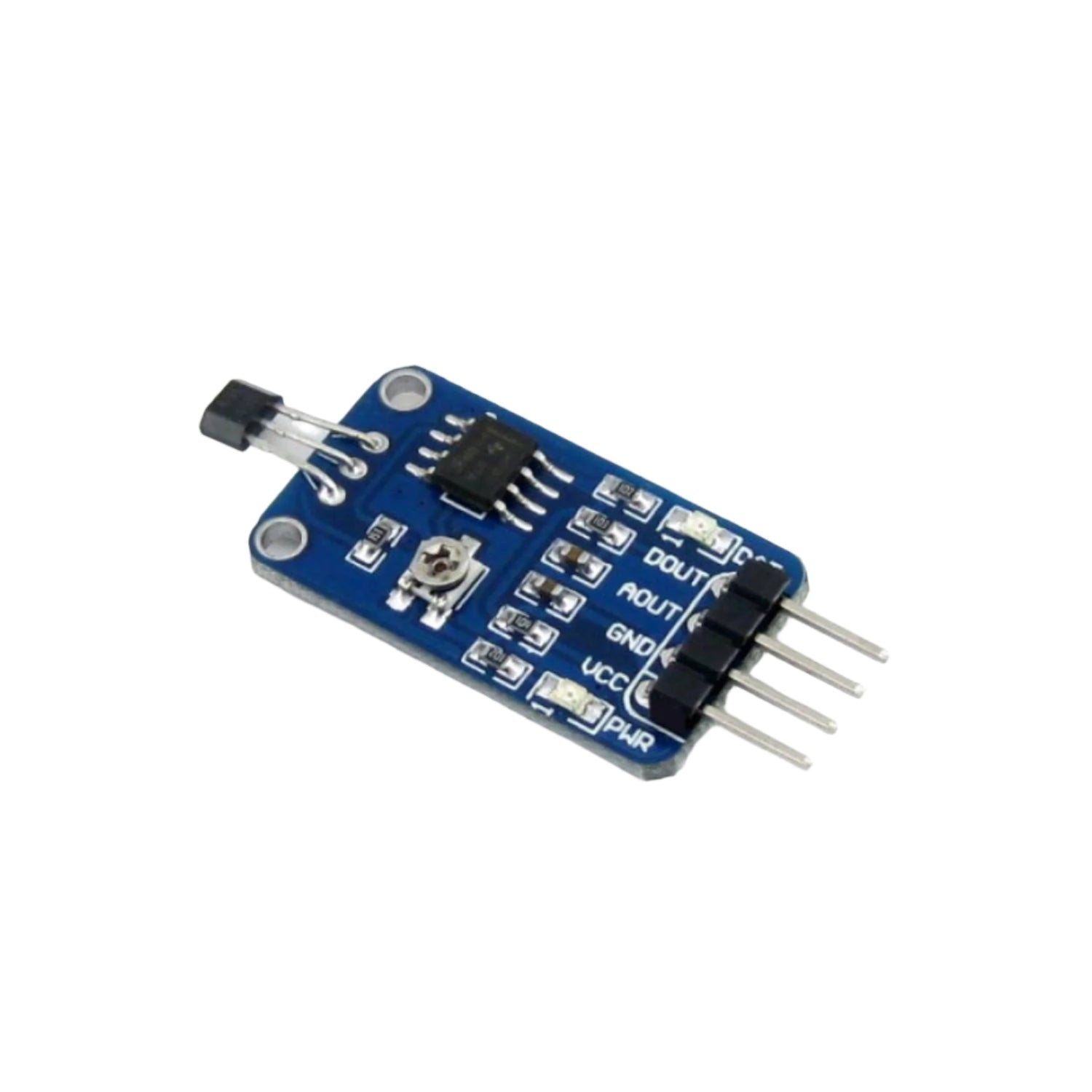

This compact Hall Effect Sensor Module detects the presence of a magnet. Upon sensing a magnetic field above a set threshold, its open-collector output goes low, simultaneously activating an onboard LED indicator. Featuring both analog and digital outputs, this module operates from 2.3V to 5.3V, with the analog output voltage proportional to the magnetic field strength.
Specifications:
- Model Type: Hall Effect Sensor
- Sensitivity: 1,6 mV/GSdBm
- Power: 2.3V ~ 5.3V
- Color: Blue
Features:
- 49E Hall Sensor: Detects magnetic fields.
- LM393 Comparator: Wide-range voltage comparison
- Adjustable Sensitivity: Tailor detection thresholds.
- Signal Indicator: Visual output confirmation.
- Included Cable: Easy female-end connectivity.
Connections:
- VCC ↔ 2.3V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Useful Link:
Package Included:
1 x Waveshare Hall Sensor
