Description:

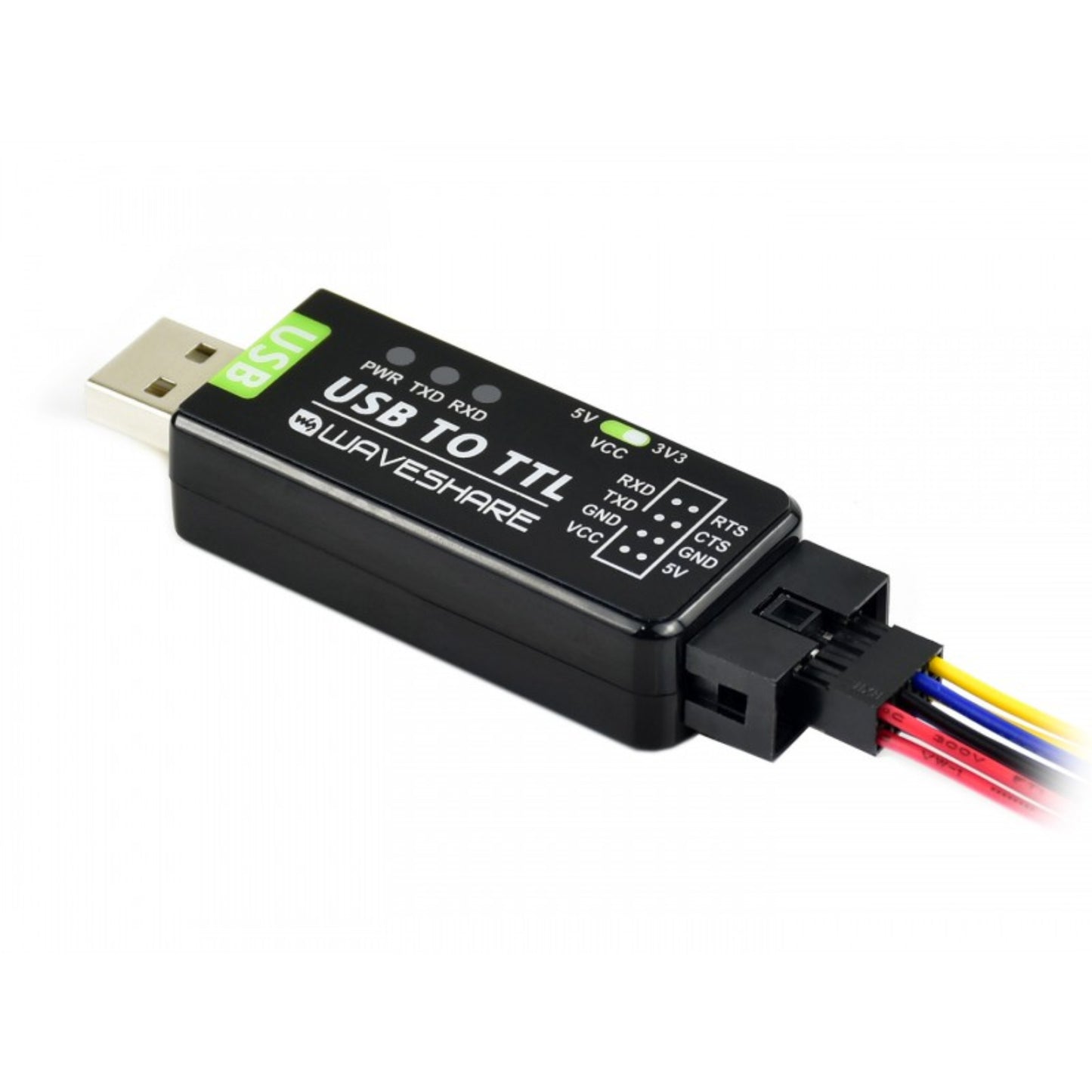

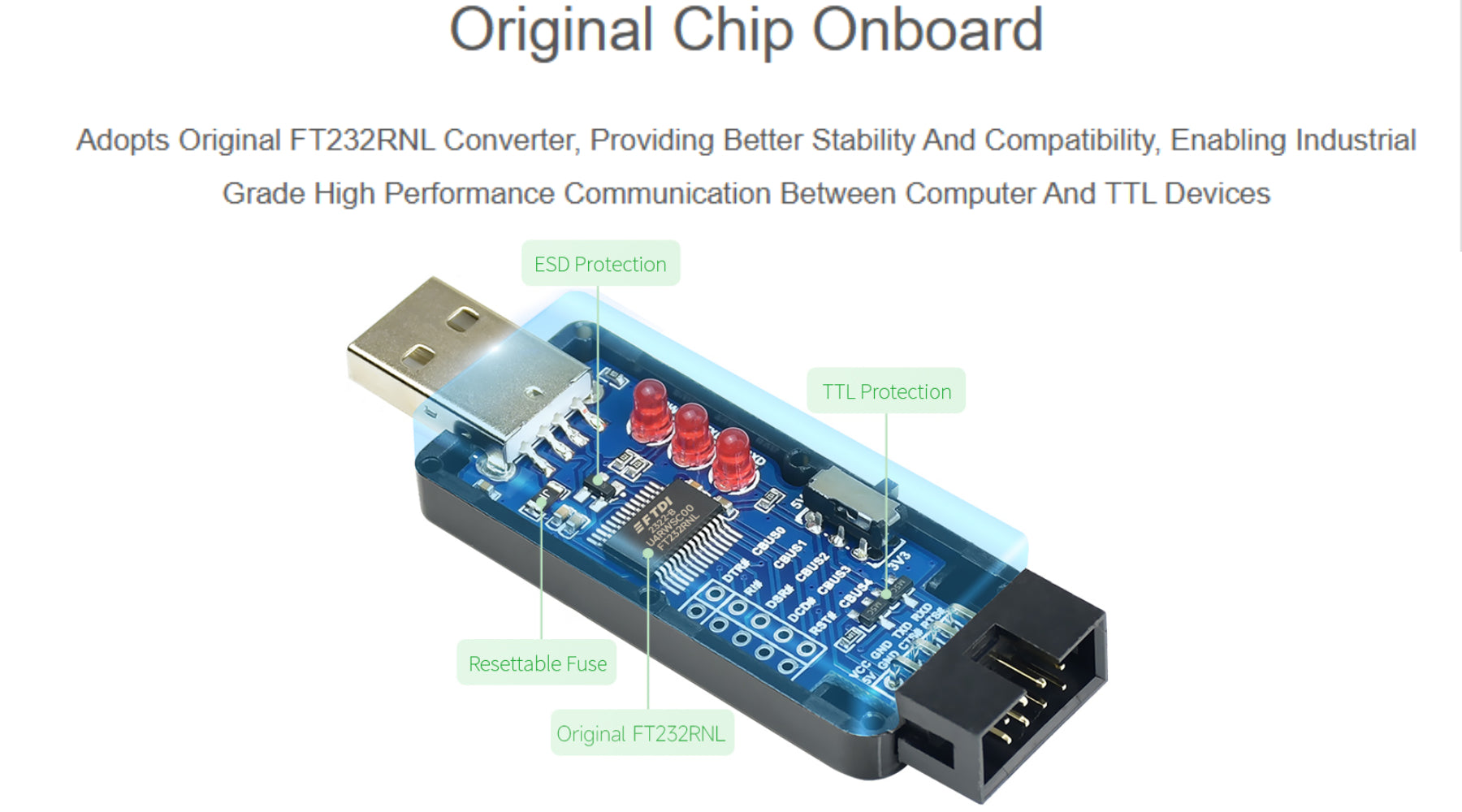

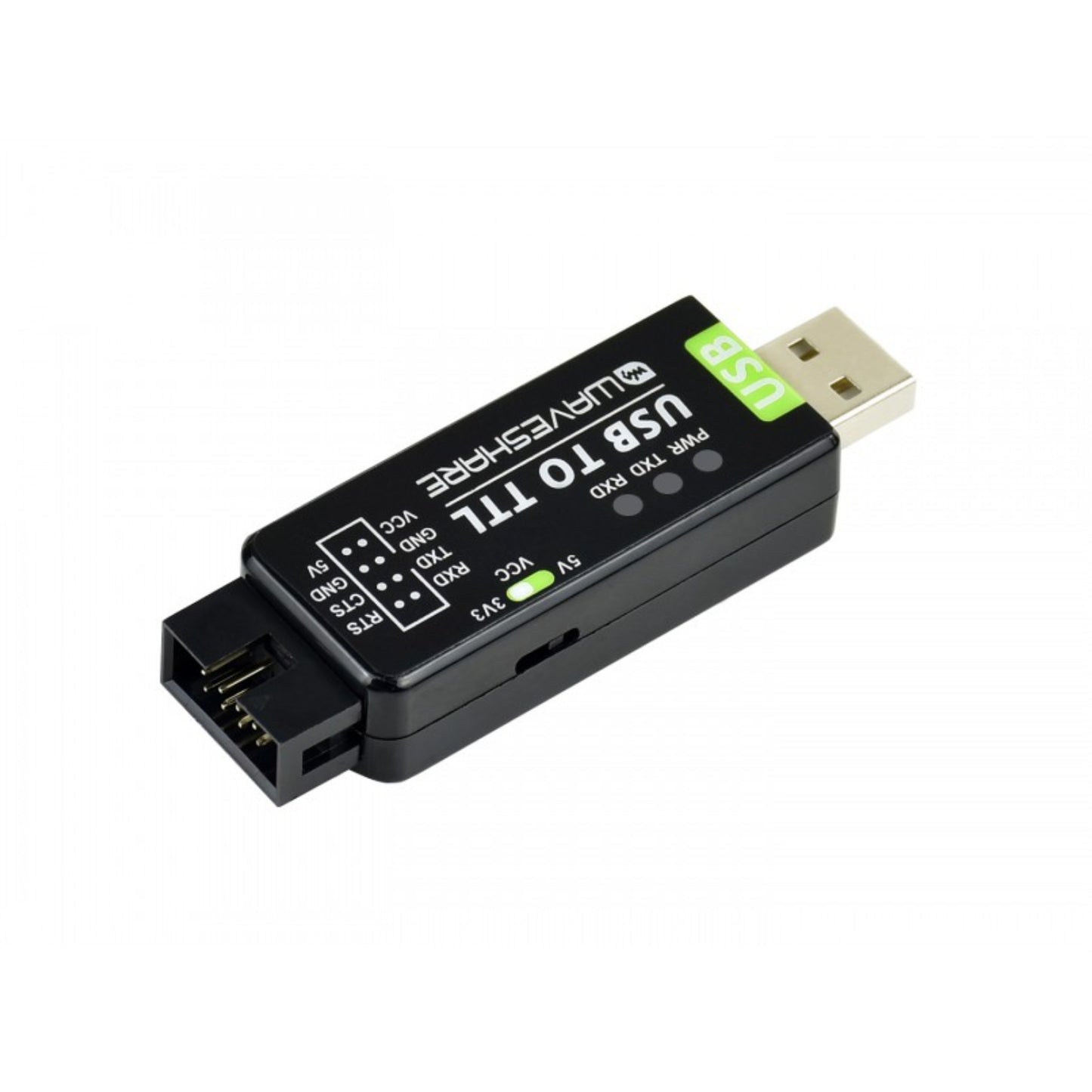

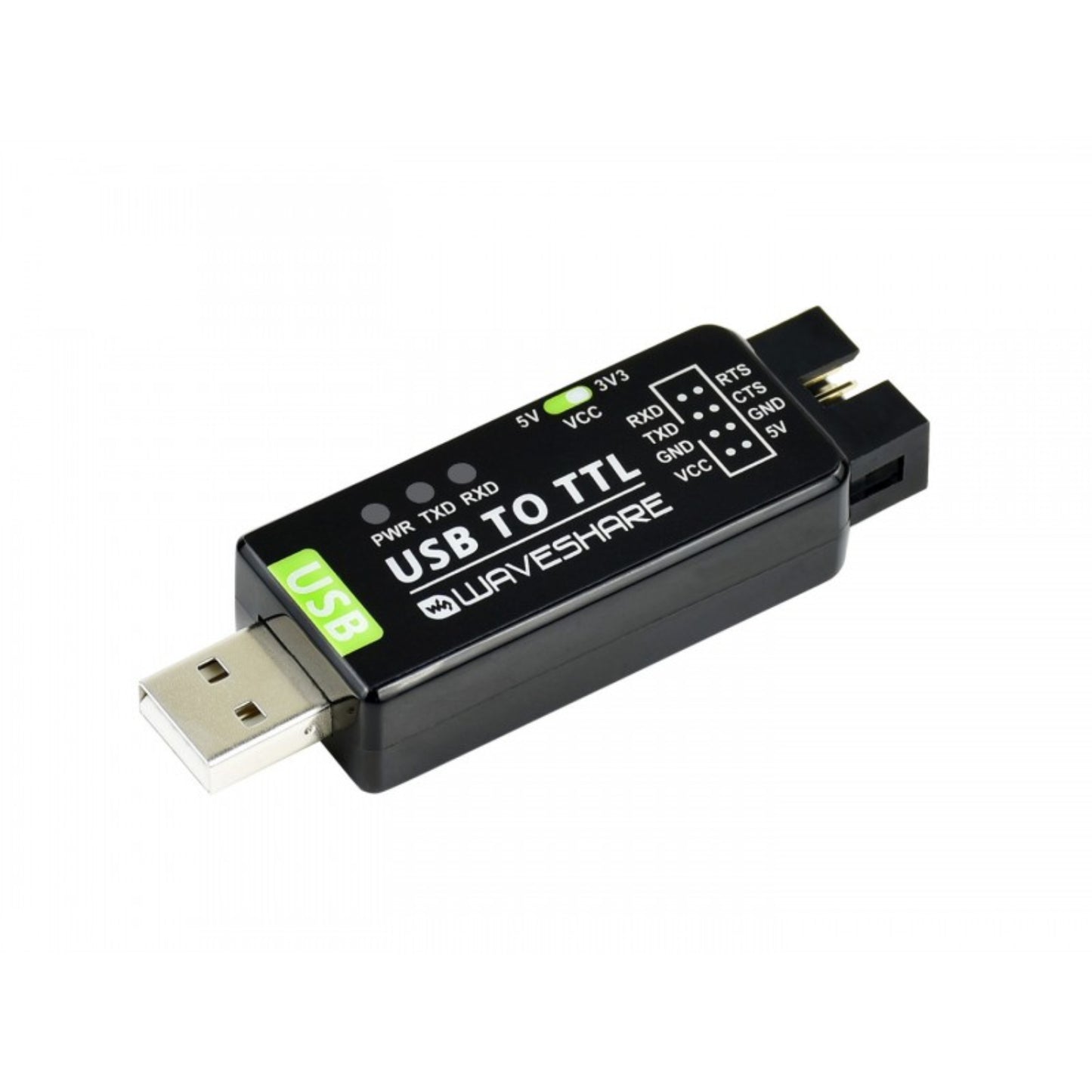

This is an onboard FT232RL Industrial USB TO TTL Converter from Waveshare. The FT232RL provides better stability and compatibility, enabling industrial-grade high-performance communication between computer and TTL devices. Industrial USB TO TTL Converter Features Embedded resettable fuse and is compatible with popular systems like Win7/8/8.1/10, Mac, Linux, Android, WinCE, etc. The onboard three LED indicators establish easy checking of the operating status convenient for programming/debugging.
Note:
- USB cable is not included
- This converter is designed to work on the TTL level, NEVER connect it to the RS232 level to avoid damage
Specifications:
| Product Category | Industrial USB TO TTL converter | Host Port |
USB |
|---|---|---|---|
| Data Rate |
300bps ~ 3Mbps | Device Port |
UART |
| USB Port | Connector: USB-A Protection: resettable fuse, ESD protection |
||
| UART Port | Connector: 8PIN fool-proof header Protection: IO protection diode |
||
| Indicator |
PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data |
||
Features:
- Original FT232RL.
- Stable Transmission.
- Multi Devices & Multi-Systems support.

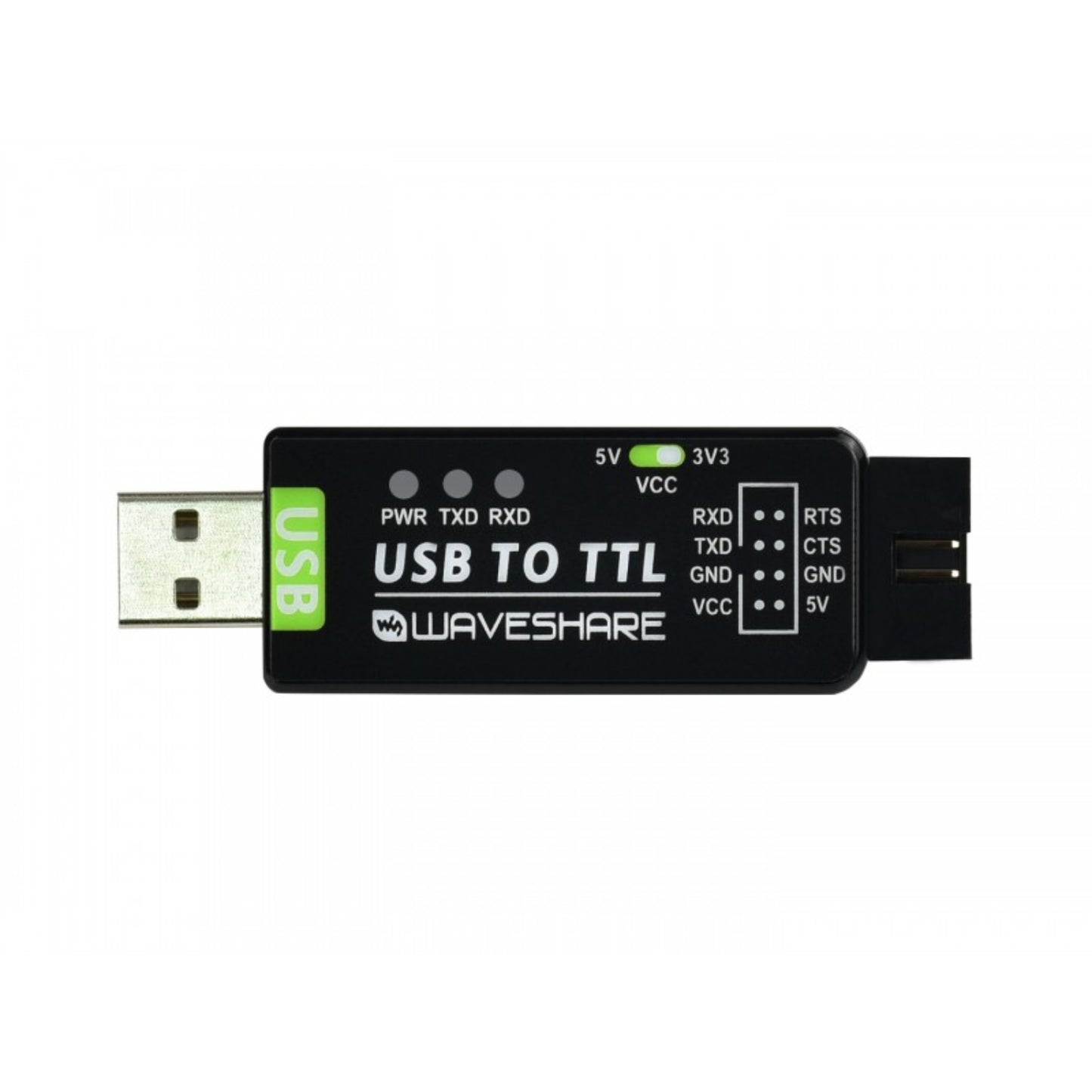

Indicators:
Pin Description:
| 5V | 5V output |
| VCC | 3.3V or 5V output, configured by switch |
| GND | Ground |
| TXD | Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) |
| RXD | Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX) |
| RTS | Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) |
| CTS | Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS) |
Useful Link:
Waveshare FT232RNL USB-to-TTL Converter

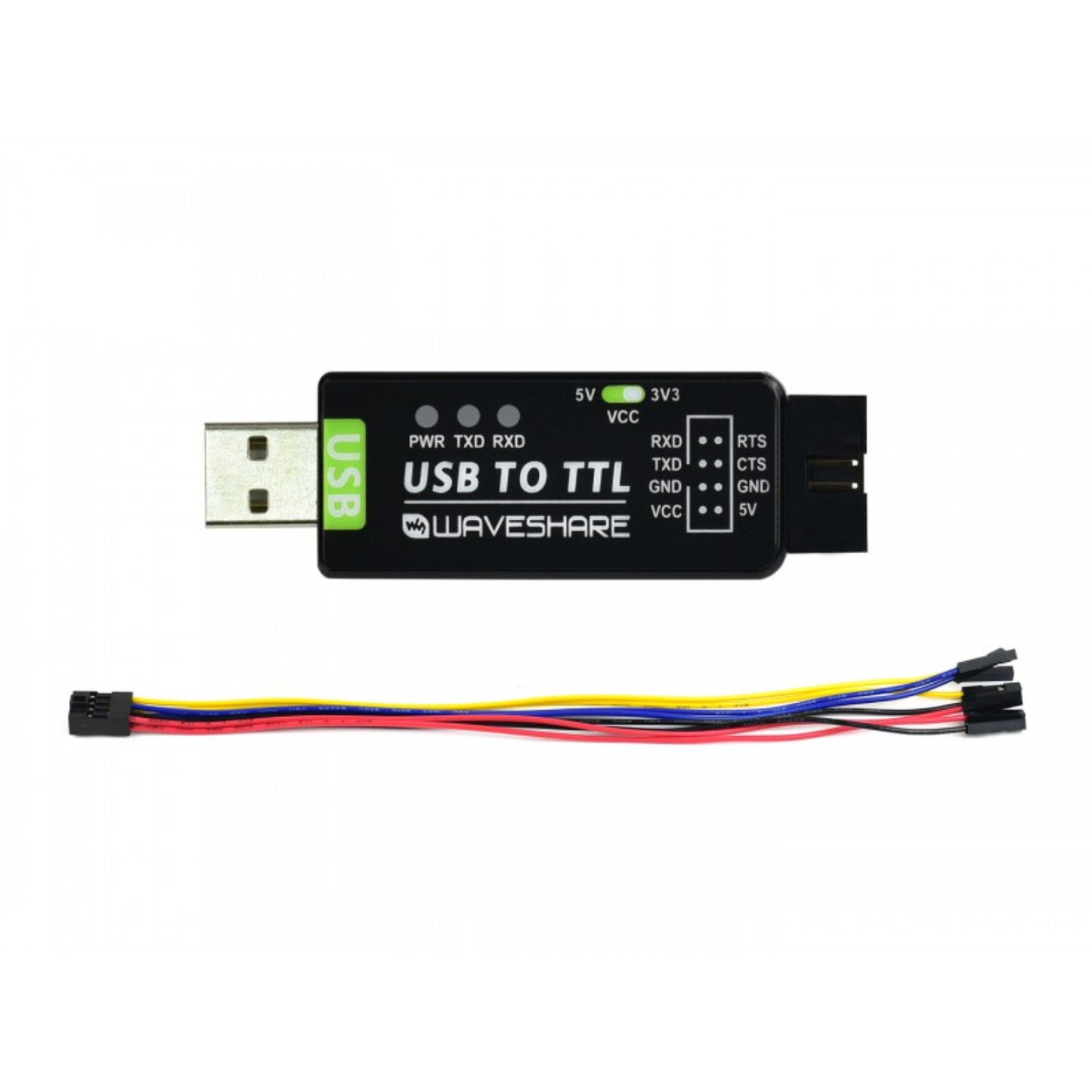

Package Included:
- 1 x Waveshare FT232RNL USB-to-TTL Converter
- 1 x 8 PIN fool-proof wire
