Waveshare FT232 USB UART Board (Type-C) High-Speed USB to TTL Serial Communication Module with Modern USB-C Connector For Development and Debugging - RS2412

Waveshare FT232 USB UART Board (Type-C) High-Speed USB to TTL Serial Communication Module with Modern USB-C Connector For Development and Debugging - RS2412

RS2412

In stock

Rs. 500.00
Rs. 500.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

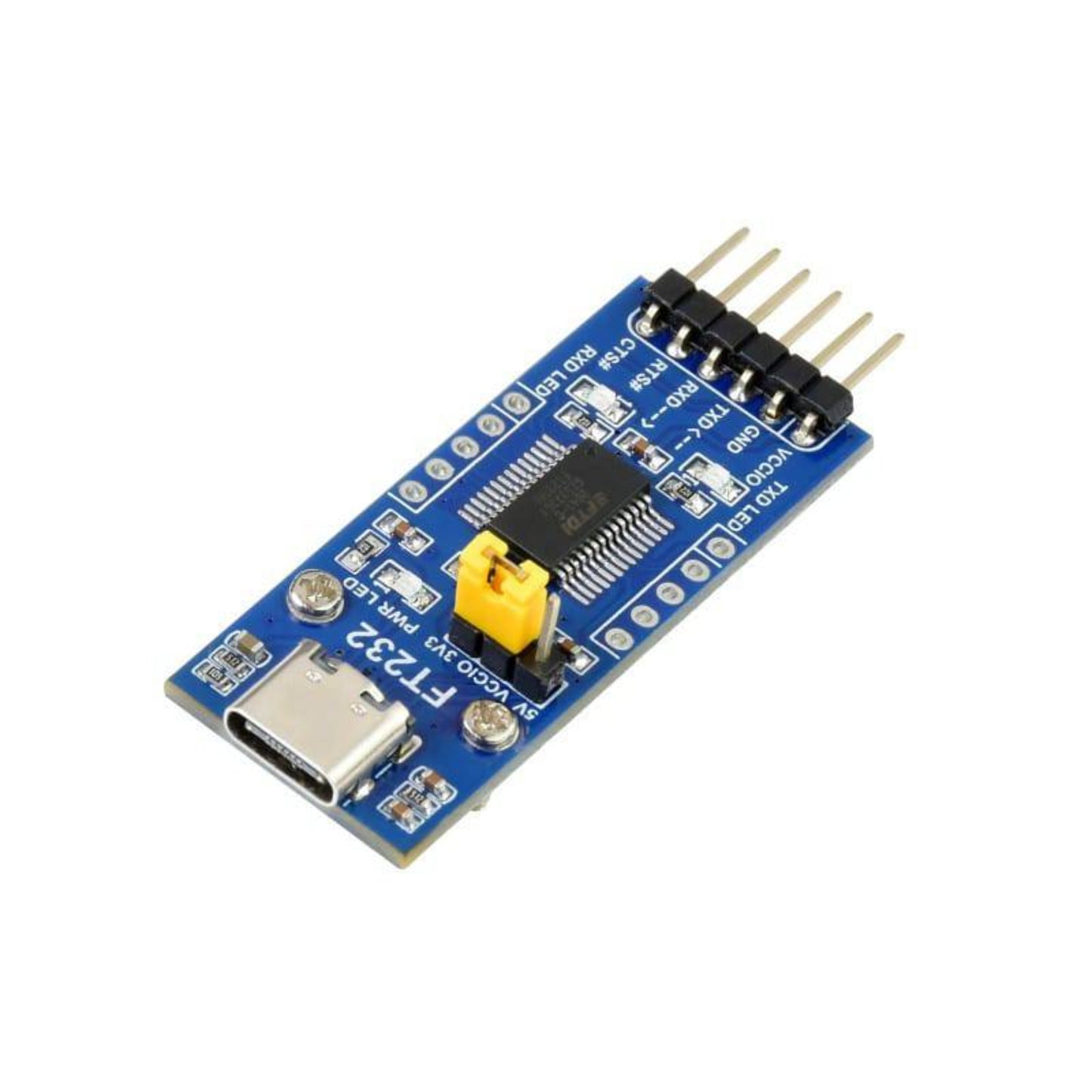

FT232 USB UART Board is a UART module that converts the USB interface to the TTL level. This module enables data communication by connecting the USB interface of a computer or other device to TTL logic-level devices such as microcontrollers, sensors, etc.

Specifications:

  • Model: USB to UART TTL
  • Power Supply: 5V
  • Baudrate: 300bps ~ 3Mbps
  • UART: 5V/3.3V
  • OS Support: Support Win7/8/8.1/10/11, Mac, Linux, Android, WinCE

Features :

  • Original FT232RL onboard
  • Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
  • 3x VCCIO power mode via jumper setting:
    • VCCIO - 5V: 5V output
    • VCCIO - 3.3V: 3.3V output
    • open the jumper: powered from the target board (3.3V-5V)
  • 3x LED indicators: TXD, RXD, PWR

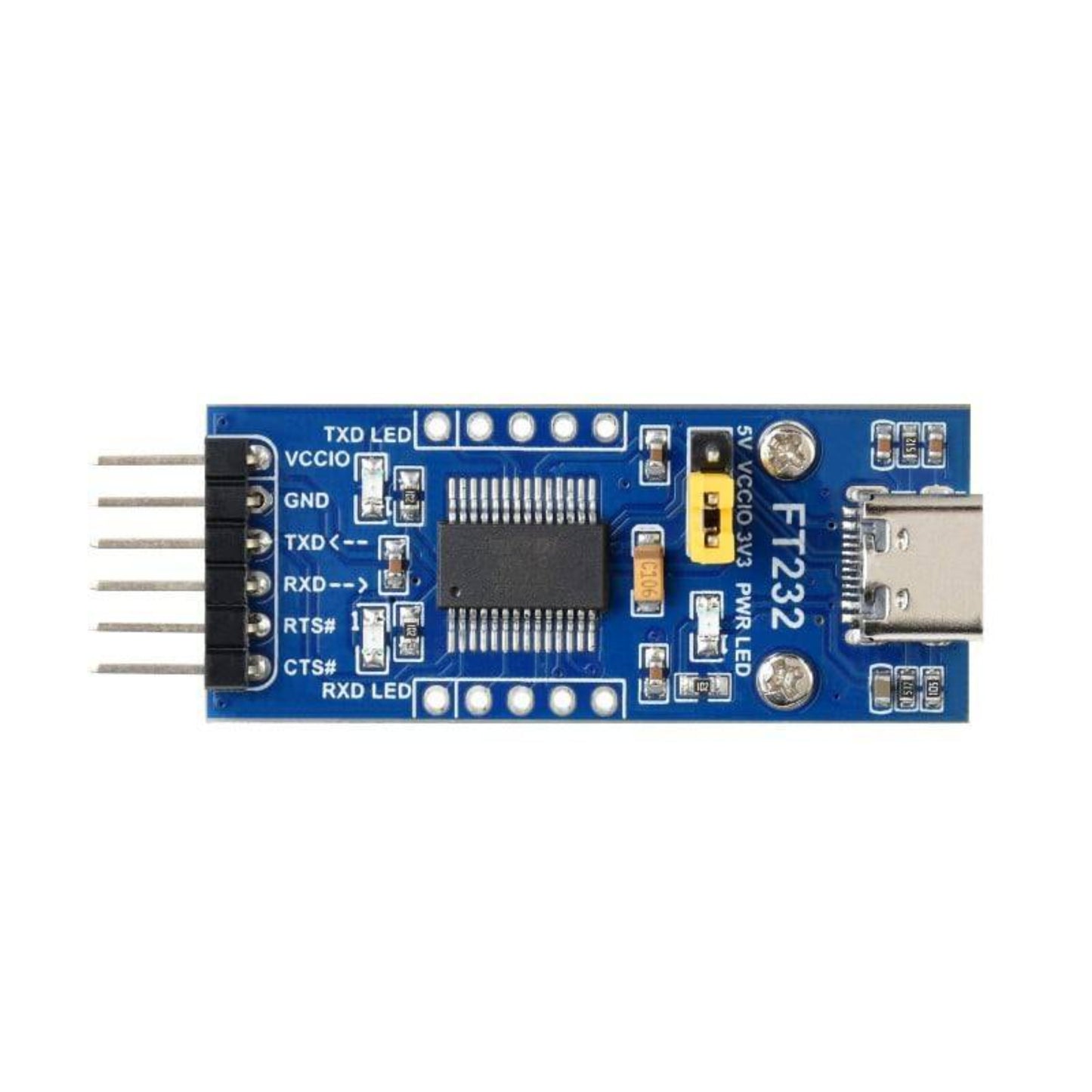

  • Pins accessible on pin headers: TXD, RXD, RTS#, CTS#

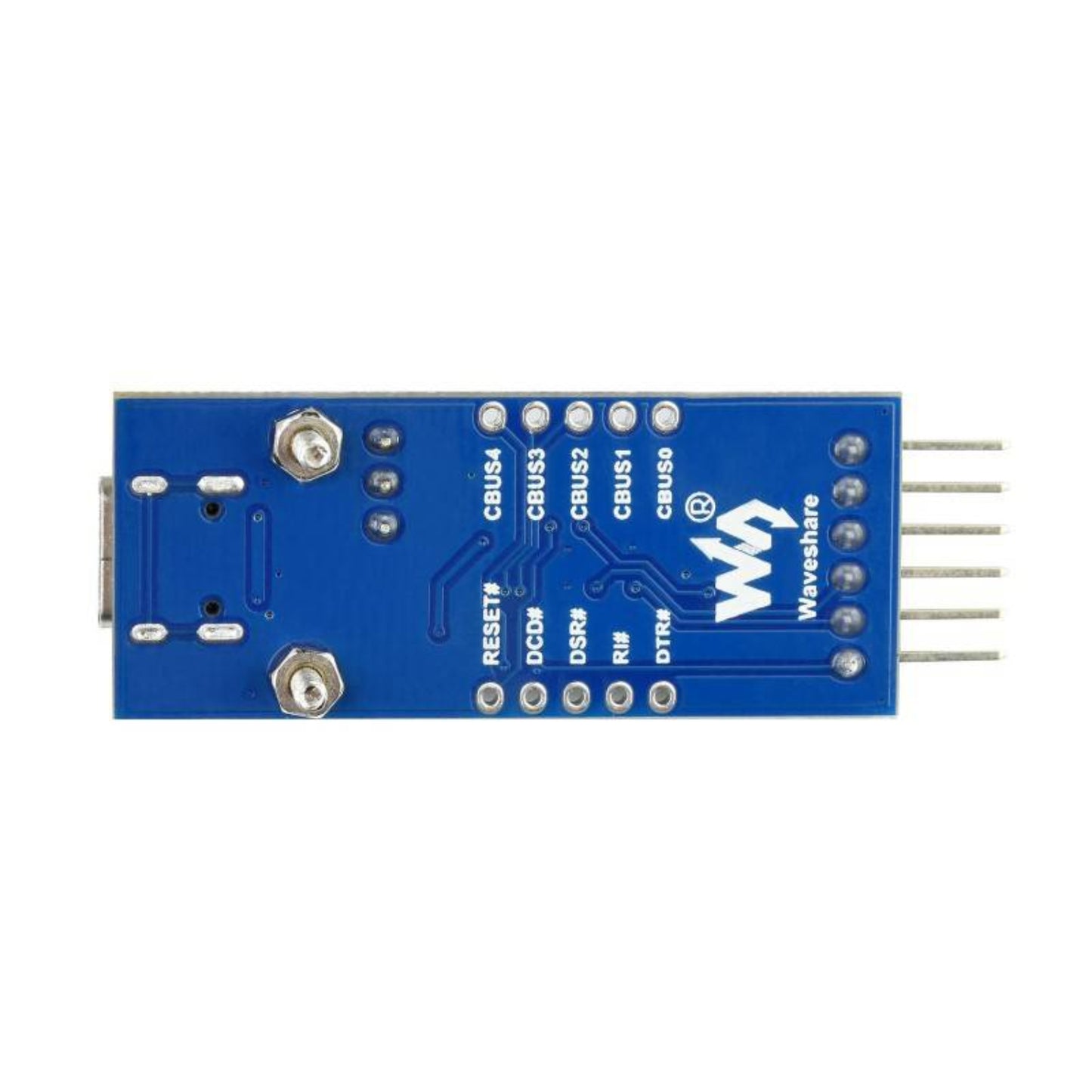

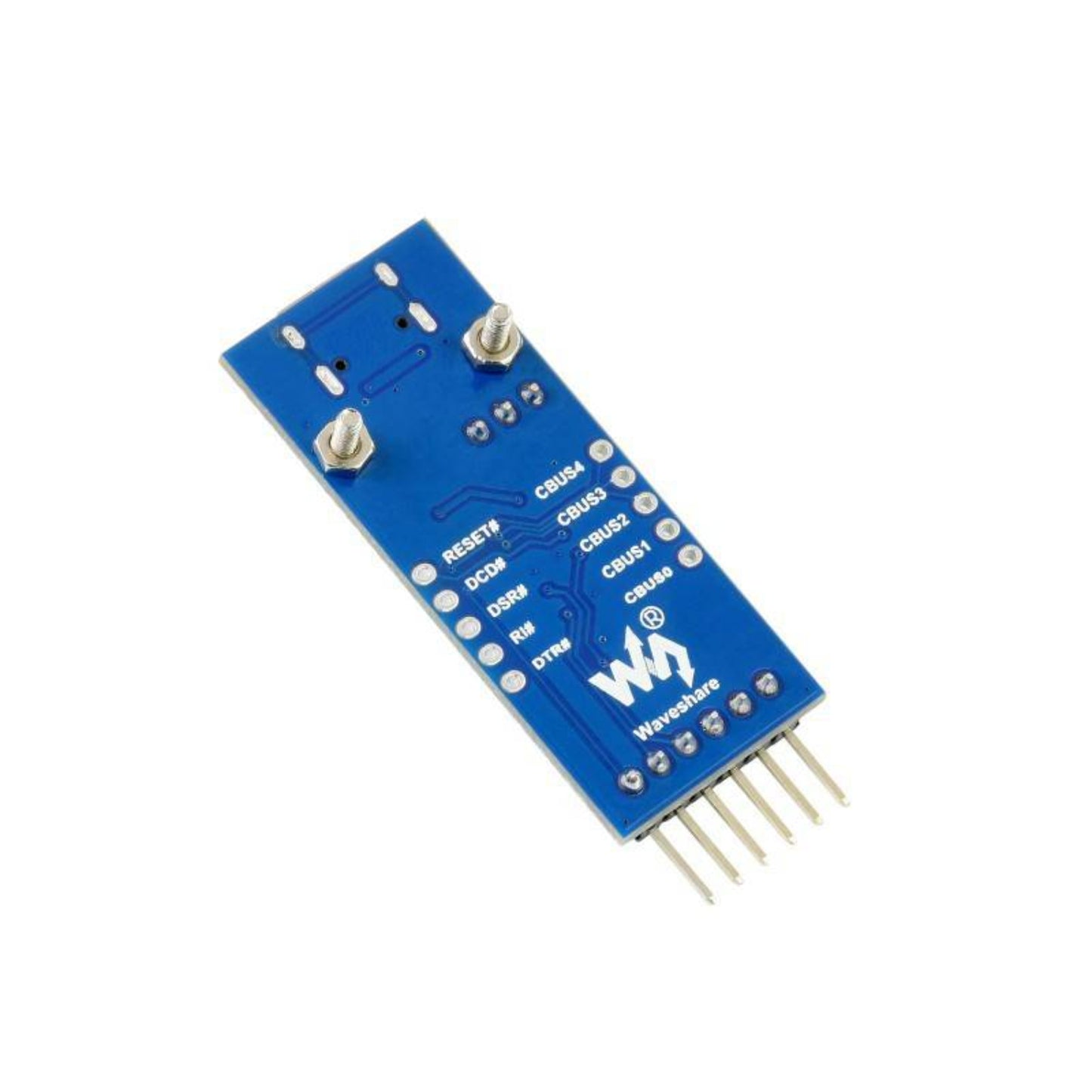

  • Other pins are accessible on drilled holes, and easily connected to the user application system (the pin pitch is compatible with the universal prototype board)

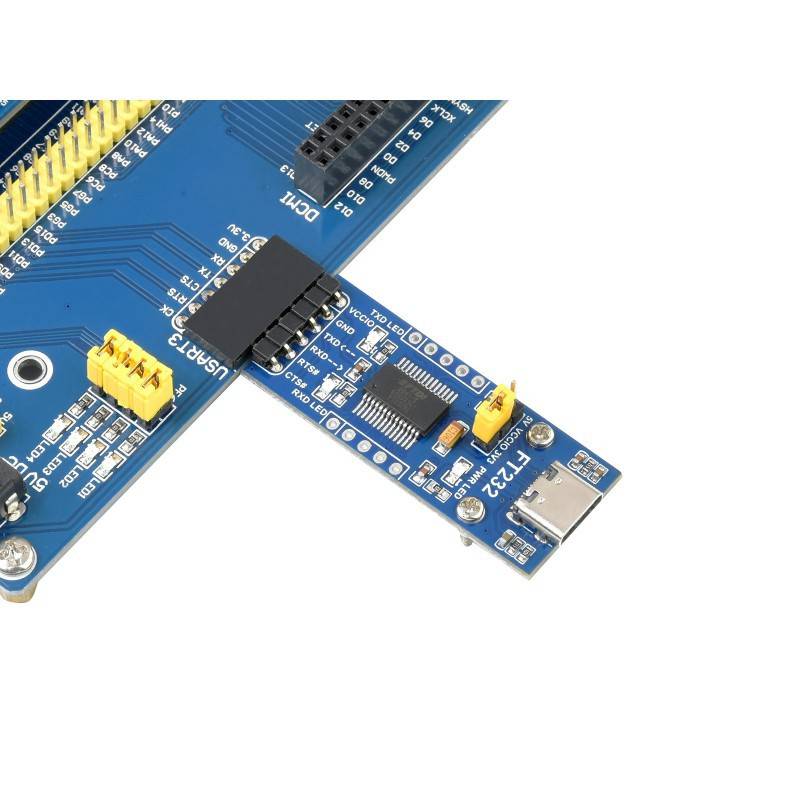

Hardware Connection :

  • VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
  • GND ↔ GND
  • TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
  • RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
  • RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
  • CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

Pin Description:

Pin Function Input/Output
VCCIO 5V or 3.3V available for external devices (via jumper cap) -
GND Ground -
TXD Serial data transmit pin, connect to MCU.RX Output
RXD Serial data receive a pin, connect to MCU.TX Input
RTS# Request to send, connected to MCU.CTS Output
CTS# Clear to send, connected to MCU.RTS. Input
RI# Ringing indication, used to detect whether the external device is ringing, low active Input
DCD# Data carrier detection, low active Input
DTR# Data terminal is ready for controlling external devices, low active Output
DSR# Dataset is ready for detecting whether the external device is ready, low active Input
RESET# FT232 reset pin, low active (pull low the RESET pin, FT232 reset) Input
CBUS0-CBUS4 I/O pin Output/Input

Useful Link:

Waveshare FT232 USB UART Board

Package Included :

  • 1 x FT232 USB UART Board (Type C)
  • 1 x 6-Pin Custom Connector Jumper Wire
  • 2 x 5-Pin Male Pinheader & 5-Pin Female Pinheader
