Description:

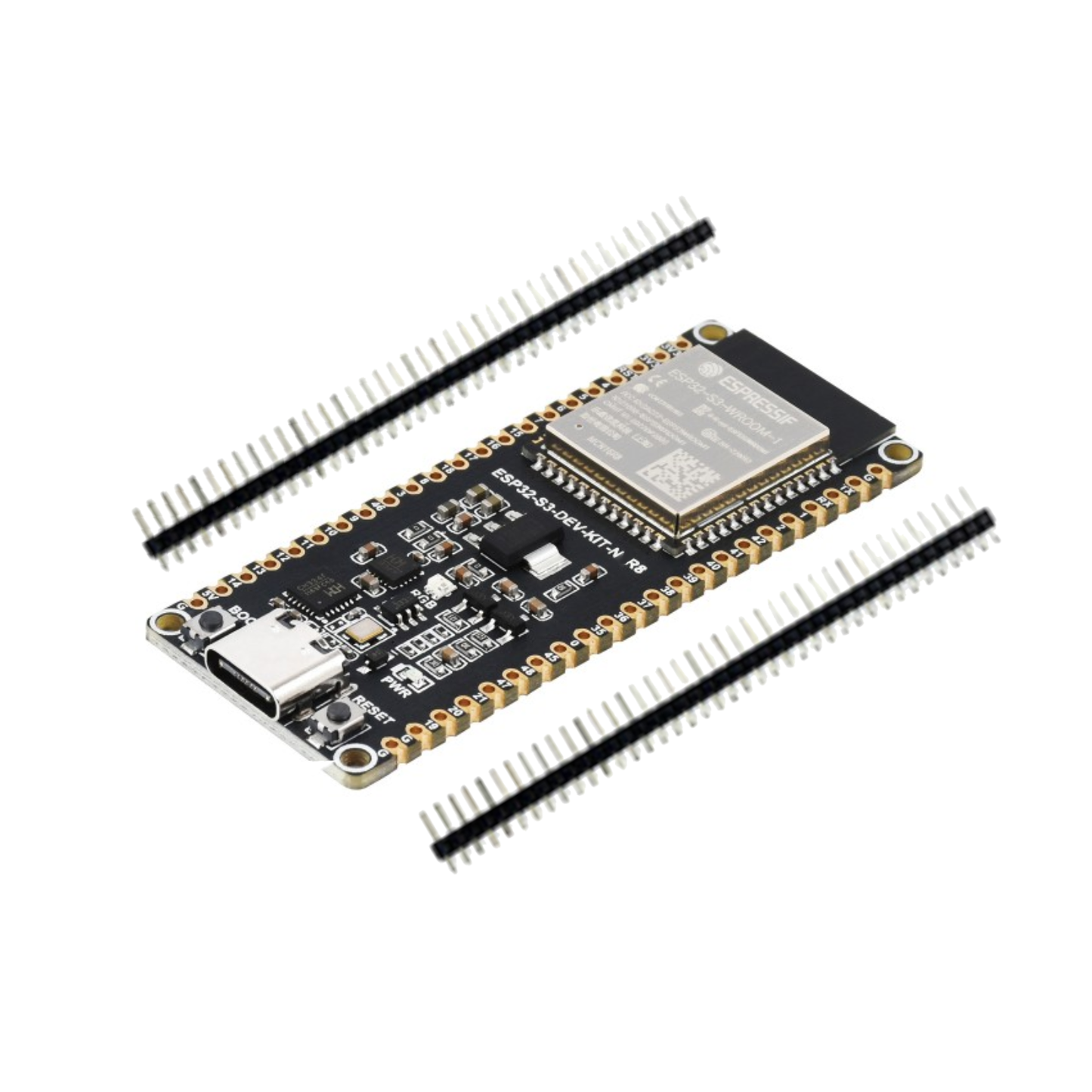

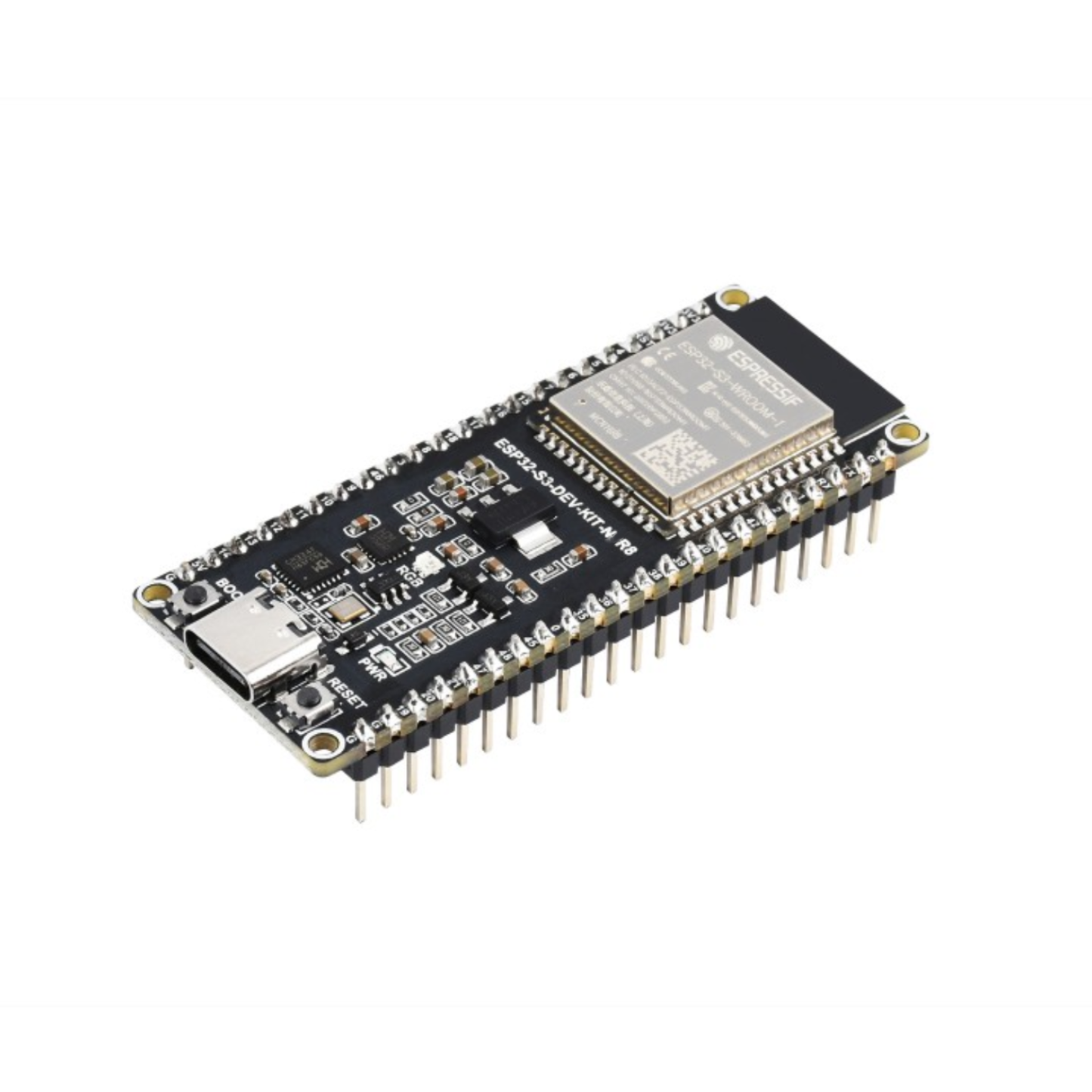

ESP32-S3-DEV-KIT-N16R8 is a compact-size microcontroller development board with multiple digital interfaces. In terms of hardware, it adopts ESP32-S3-WROOM-1-N16R8 module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM. Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of the ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.
As for the software, you can choose ESP-IDF, Arduino, MicroPython, or other development environments so that you can easily and quickly get started and apply it to the product.
Features:
- Adopts ESP32-S3-WROOM-1-N16R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB/16MB Flash memory
- Integrated 2.4GHz WiFi and Bluetooth LE dual-mode wireless communication, with superior RF performance
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offer strong compatibility and expandability
- The Castellated module allows soldering directly to carrier boards
- Support a variety of low-power operating states, adjustable balance between communication distance, data rate, and power consumption to meet the power requirements of various application scenarios
Pin Description:
Board Overview:
Useful Link:
Waveshare ESP32-S3 Development Board
Package Included:

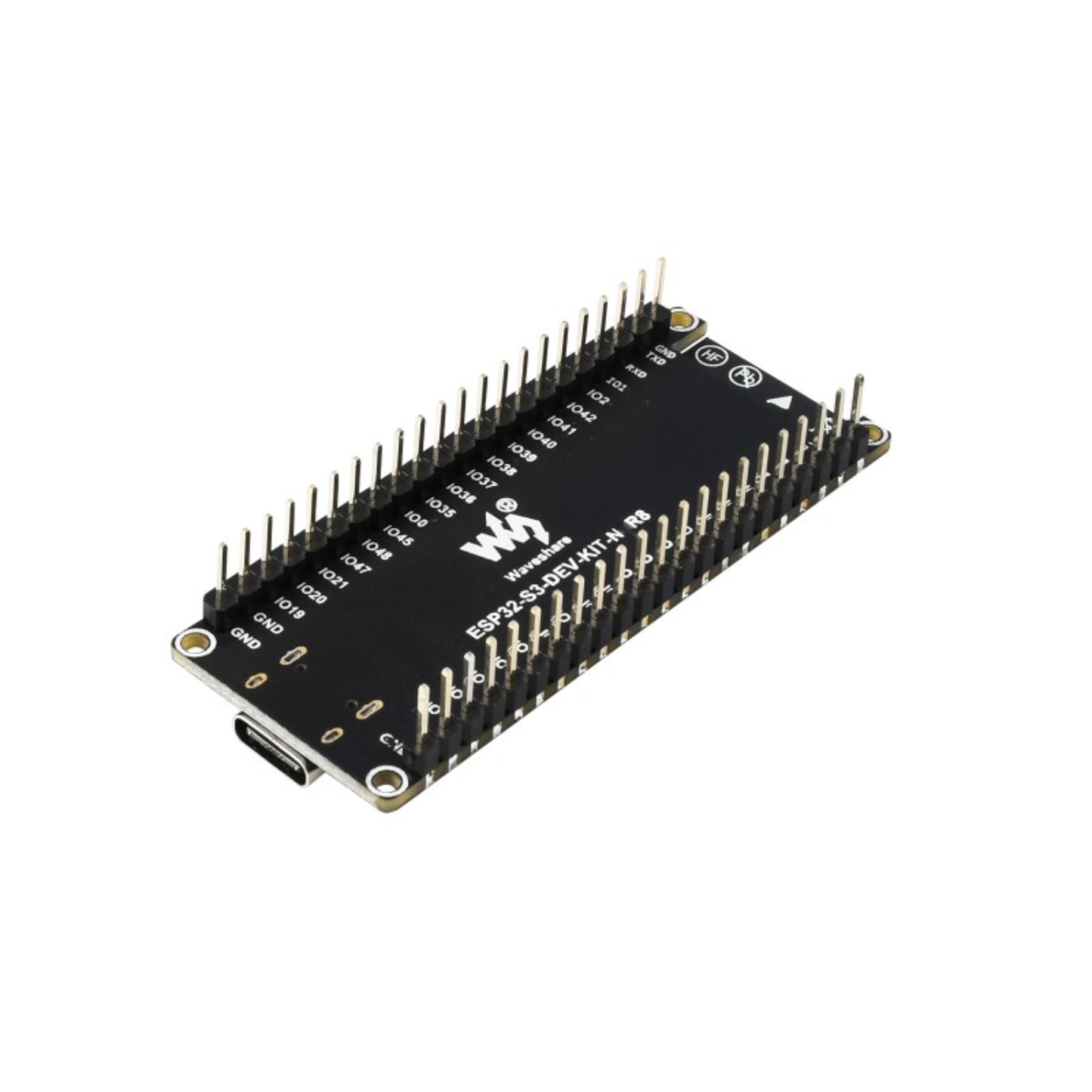

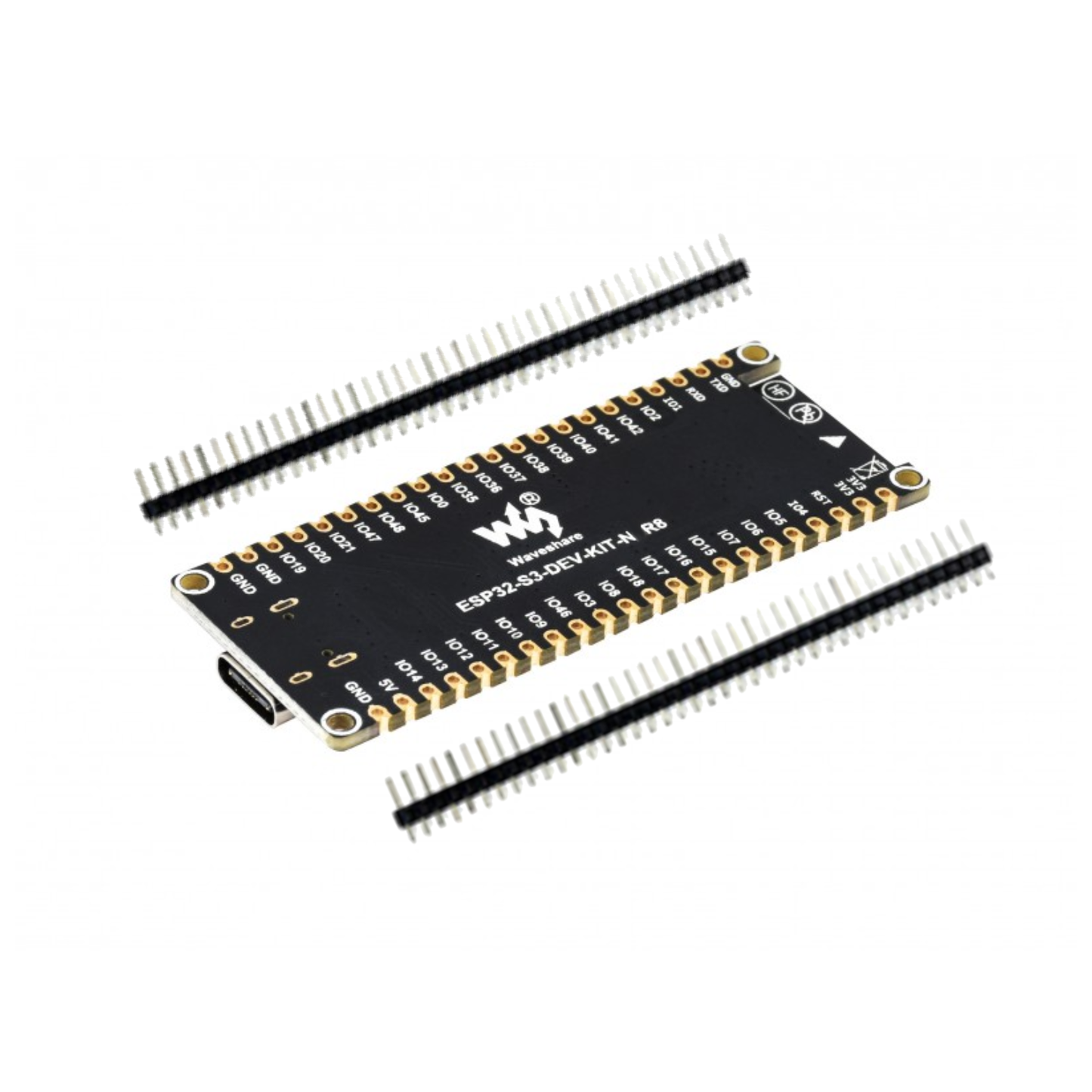

1 x Waveshare ESP32-S3-DEV-KIT-N16R8 Development Board
