Waveshare ESP32-S3 7-Inch Display Development Board 800×480 LCD Dual-Core 32-bit LX7 WiFi & Bluetooth

Waveshare ESP32-S3 7-Inch Display Development Board 800×480 LCD Dual-Core 32-bit LX7 WiFi & Bluetooth

SKU:

In stock

Regular price Rs. 3,861.76
Regular price Sale price Rs. 3,861.76
Sale Sold out
Shipping calculated at checkout.
Touch Function

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

"This development board supports two powerful frameworks — Arduino IDE and ESP-IDF — offering flexible options to suit a wide range of project requirements. Whether you prefer the user-friendly interface of Arduino or the advanced features of ESP-IDF, you can choose the development environment that best aligns with your experience and project goals."

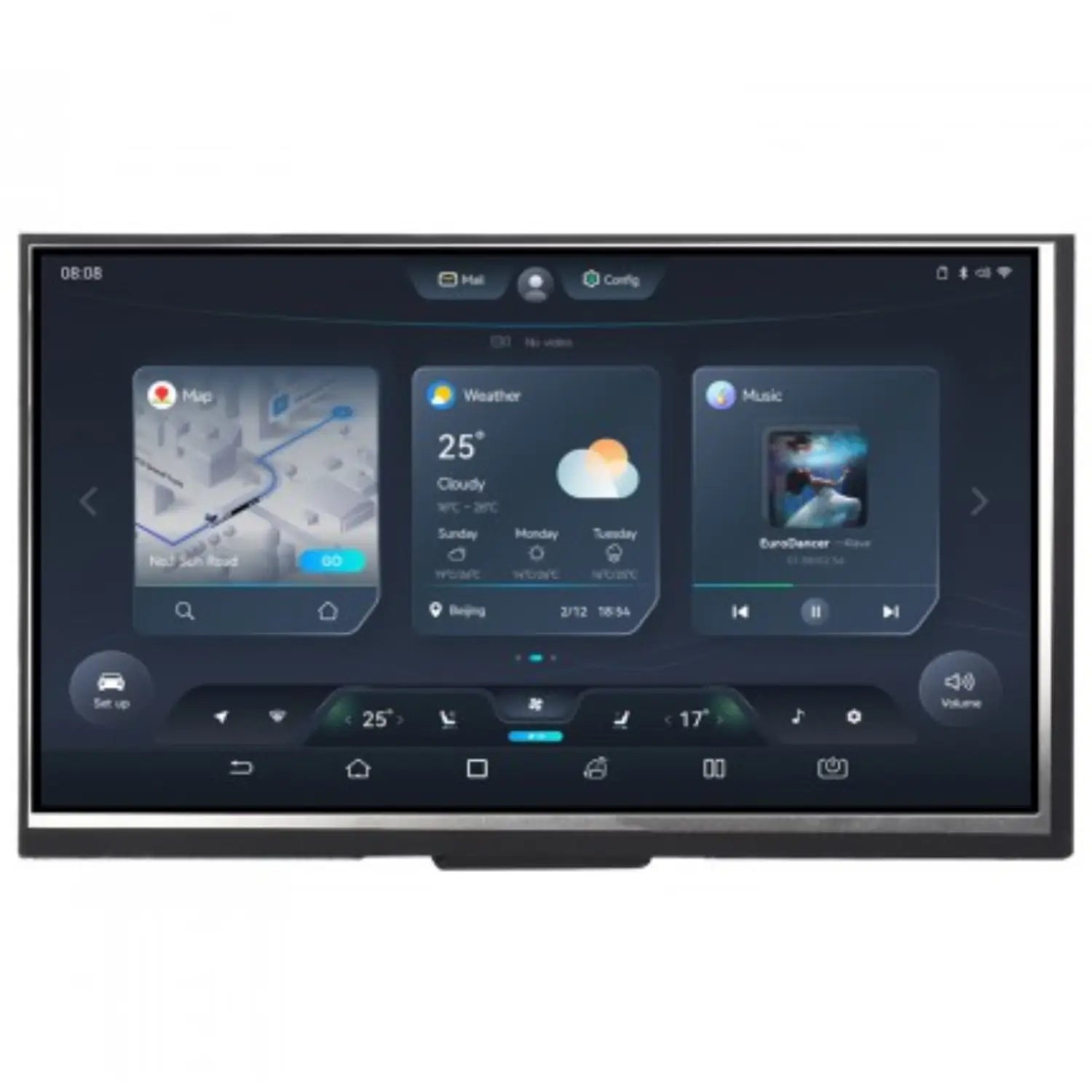

ESP32-S3 7inch touch display development board, front view

Specification:

  • Item Type: Development Board

Application Example:

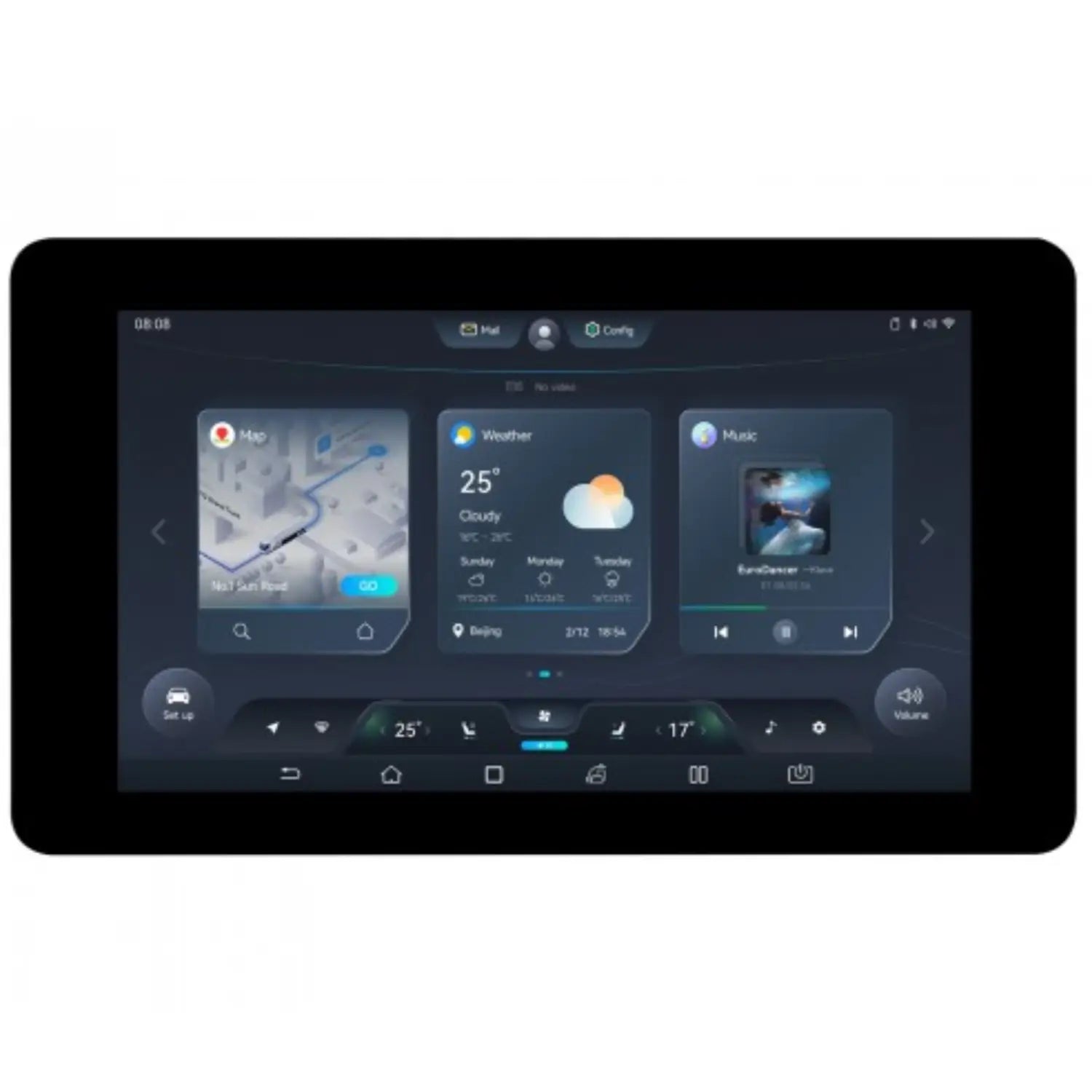

ESP32-S3 7inch touch display development board, application example

Features:

  • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash
  • Onboard 7inch LCD display, 800×480 resolution, 65K color
  • Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
  • Onboard CAN, RS485, I2C interface, and TF card slot, integrates a full-speed USB port
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Product interface:

ESP32-S3 7inch touch display development board, onboard multiple interfaces

Pin Description:

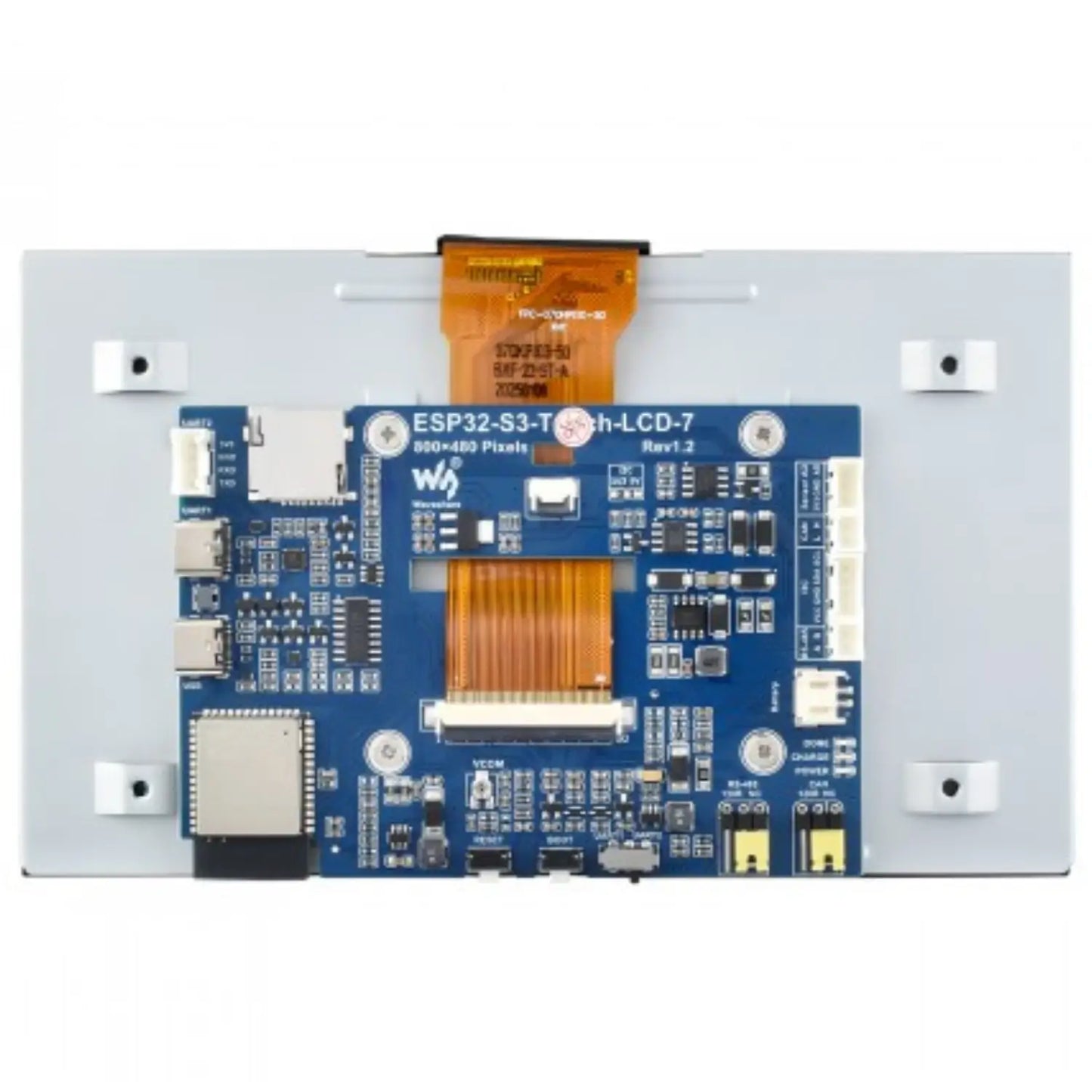

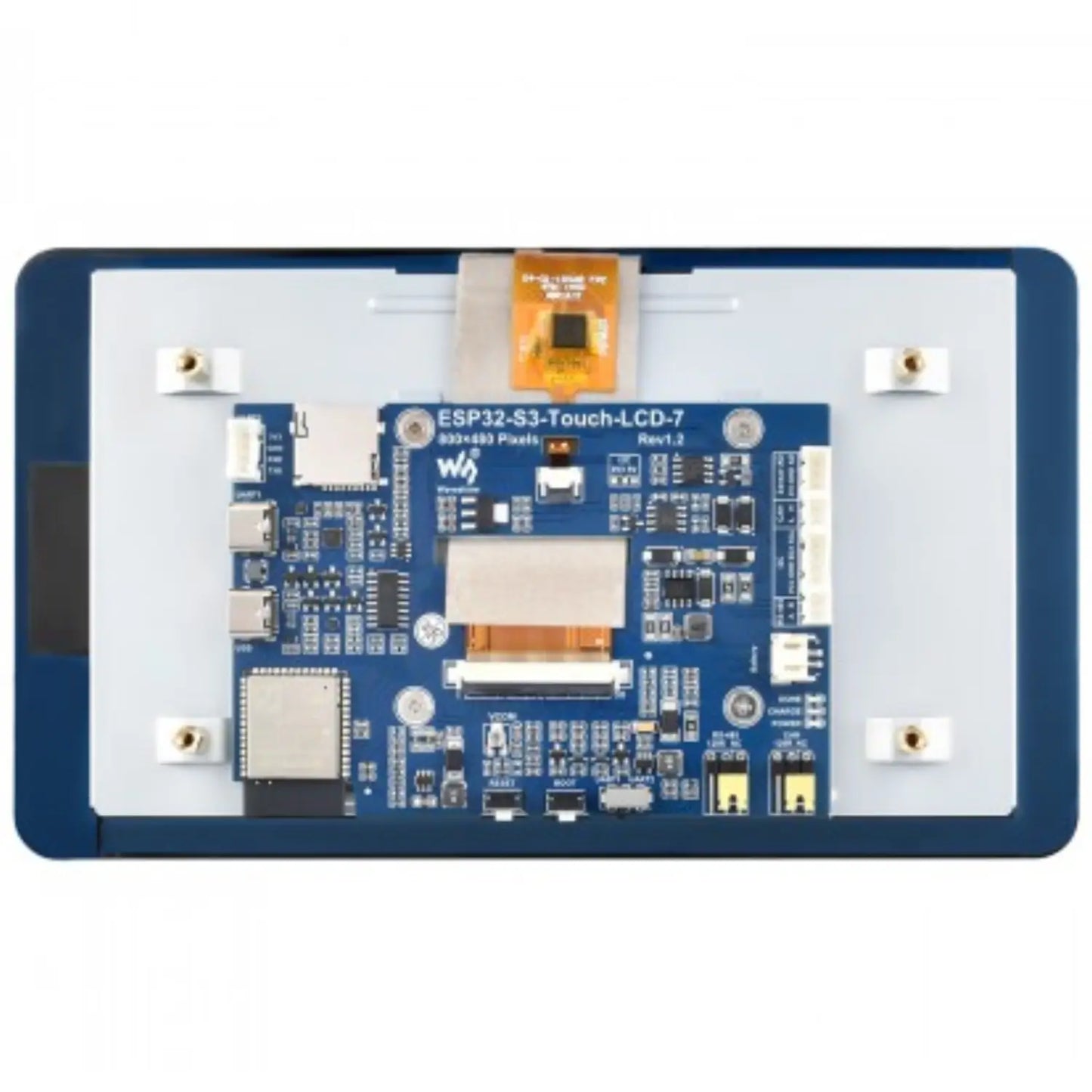

ESP32-S3 7inch touch display development board, onboard components

  1. ESP32-S3N16R8: The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
  2. 7-inch display panel connector
  3. Touch panel connector
  4. TF card slot
  5. USB Type-C port
  6. UART1 Port: USB TO UART Type-C port
  7. UART2 connector: UART1 and UART2 are the same UART, selected by the switch
  8. Sensor header
  9. CAN header
  10. I2C header
  11. RS485 header
  12. 3.7V single lithium battery PH2.0 header
  13. CAN terminal resistor selection
  14. RS-485 terminal resistor selection
  15. UART selection: select UART1 or UART2
  16. BOOT button: Press and hold while powering on for program burning
  17. RESET button
  18. I2C level selection: 3.3V / 5V
  19. DONE: Lithium battery charging completed indicator
  20. CHG: Lithium battery charging indicator
  21. PWR: Power supply indicator

Useful Link:

Waveshare ESP32-S3 7-Inch Display Development Board

Package Included:

  • 1 x ESP32-S3-Touch-LCD-7
  • 2 x HY2.0 2P to 2PIN male cable 10cm
  • 1 x HY2.0 3P to 3PIN male cable 10cm
  • 2 x HY2.0 4P to 4PIN male cable 10cm
  • 1 x Screws pack
