Waveshare ESP32-S3 5-Inch Touch Display Development Board, 32-Bit LX7 Dual-Core Processor, Standard Version (800x480), Touch Function Option

SKU:RS9811

In stock

Rs. 4,237.00

Sale Sold out

Shipping calculated at checkout.

Touch Function With Touch Without Touch

Quantity

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

ESP32-S3 5-inch Touch LCD Display: A versatile development board featuring a 32-bit LX7 Dual-Core processor, supporting both Arduino IDE and ESP-IDF for flexible project development. Choose the best framework based on your needs for seamless integration and efficient design.

Specification:

Basic Parameters
Processor	High-performance Xtensa 32-bit LX7 dual-core processor, up to 240 MHz
Wi-Fi/Bluetooth	Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
Embedded Memory	512KB SRAM and 384KB ROM
Flash	16MB Flash
PSRAM	8MB PSRAM
Power Supply Range	Type-C 5V / DC 7-36V
Screen Parameters
Resolution	800 × 480
Display Colors	65K colors
Display Interface	RGB
Display Panel	IPS
Viewing Angle	160°
Brightness	550 Cd/m²
Touch Type	Capacitive
Touch Panel	Tempered Glass
Touch Features	Supports I2C interface control for capacitive touch, 5-point touch, and interrupt support
Peripheral Interfaces
Communication Interfaces	CAN, RS485, I2C, USB
Digital Input	5–36V, bidirectional optocoupler isolation, supports dry contact and wet contact (NPN or PNP) switch inputs
Digital Output	5–36 V, optocoupler isolation, output uses a high-current transistor, sink current up to 450 mA
USB	Integrated full-speed USB
Others
Power Consumption	5V 450mA

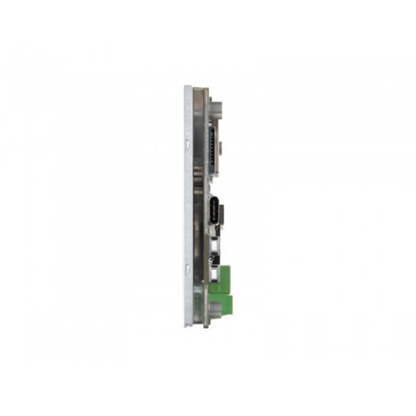

Product Interface:

Features:

Powered by a high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240 MHz.
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna
Built-in 512KB SRAM and 384KB ROM, stacked with 16MB Flash and 8MB PSRAM
Onboard 5-inch wide capacitive touch screen, 800 × 480 resolution, 65K colors
Supports I2C interface control for capacitive touch, with 5-point touch, and supports interrupts
Onboard CAN, RS485, I2C interfaces, TF card slot, and integrated full-speed USB
Supports precise control features like flexible clocking and independent module power supply settings, enabling low-power modes for multiple scenarios

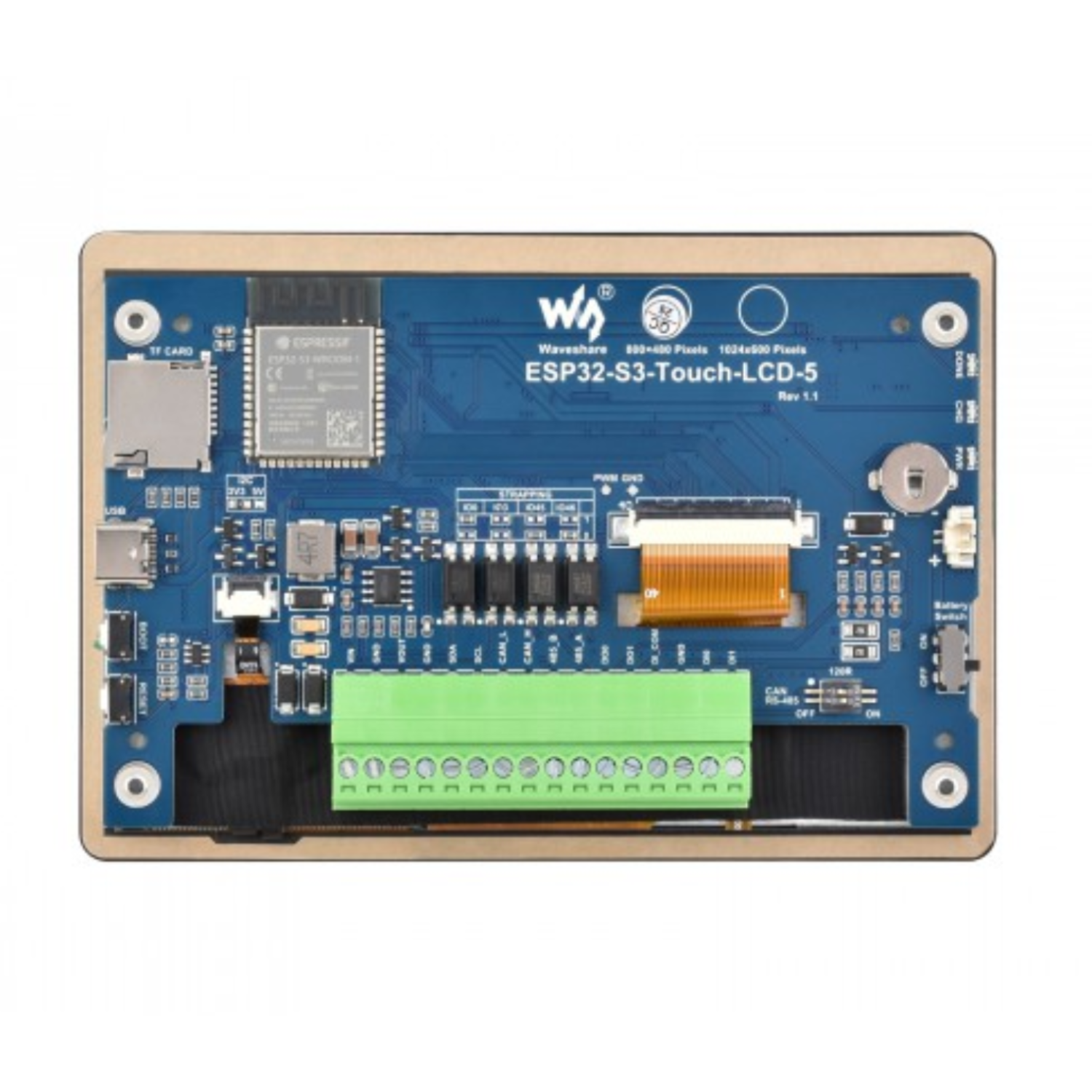

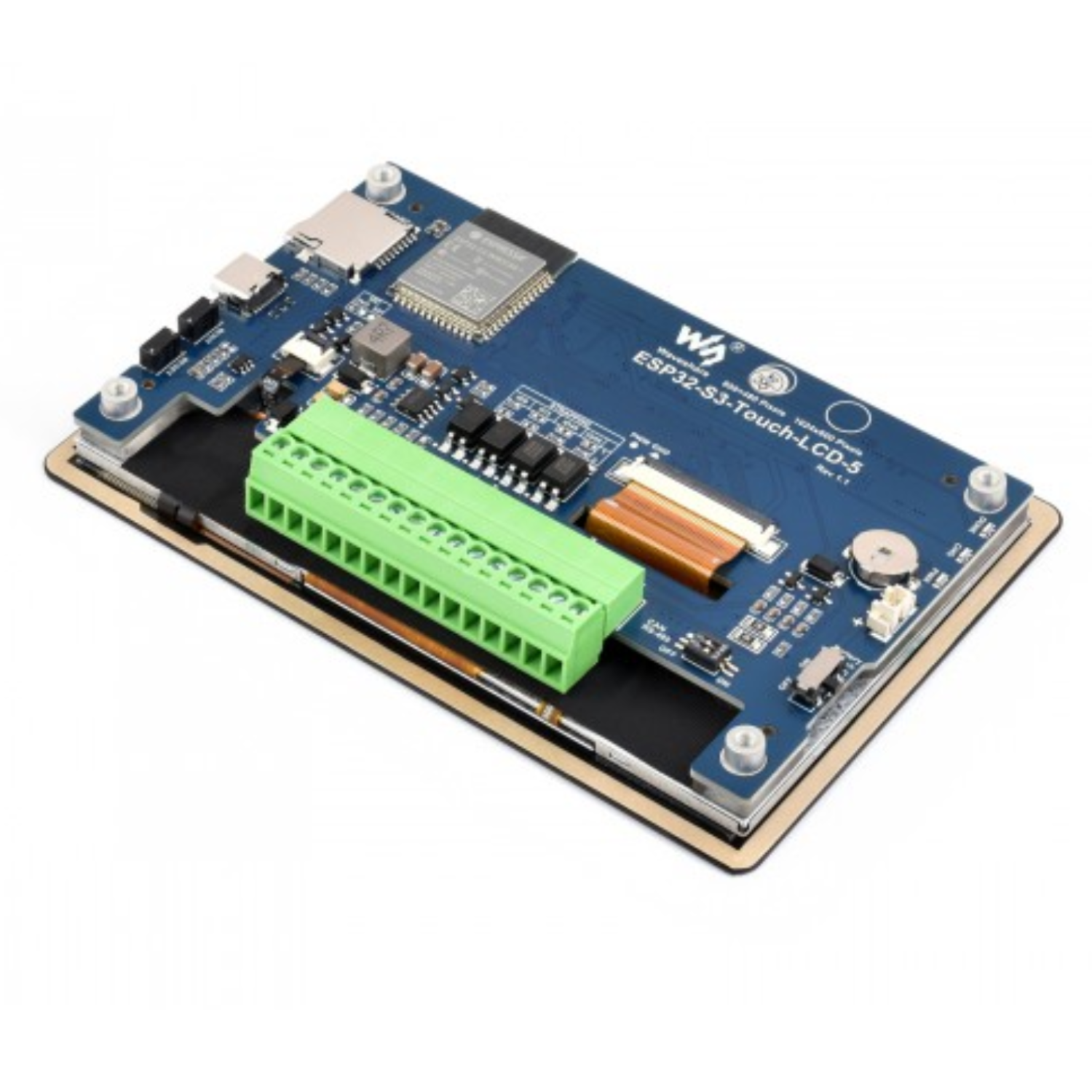

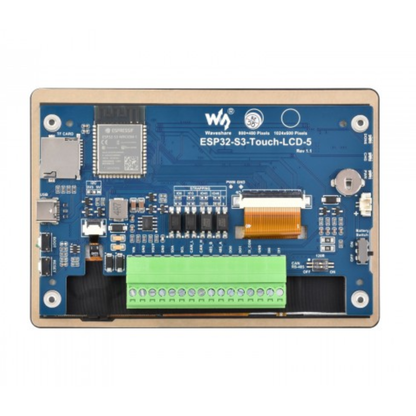

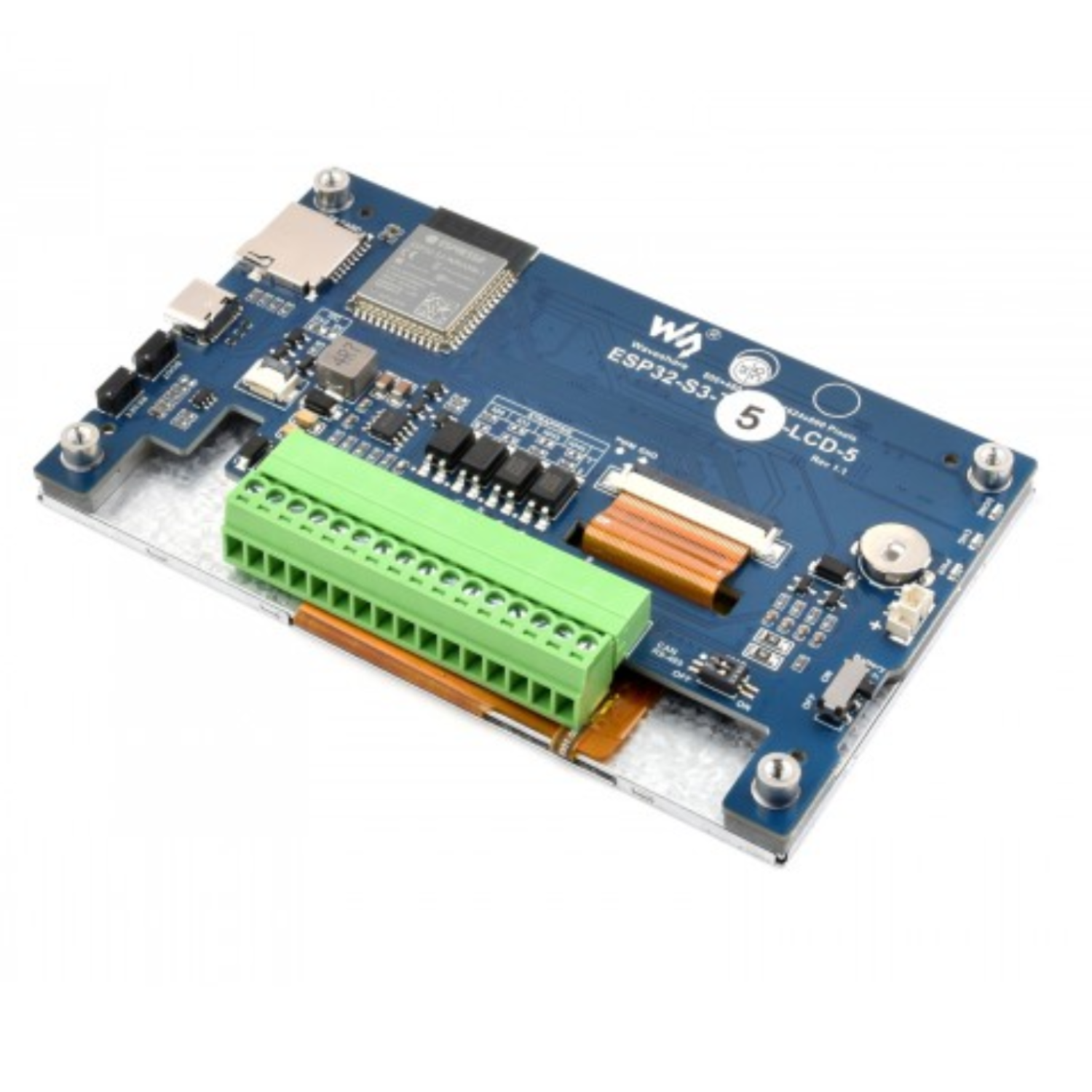

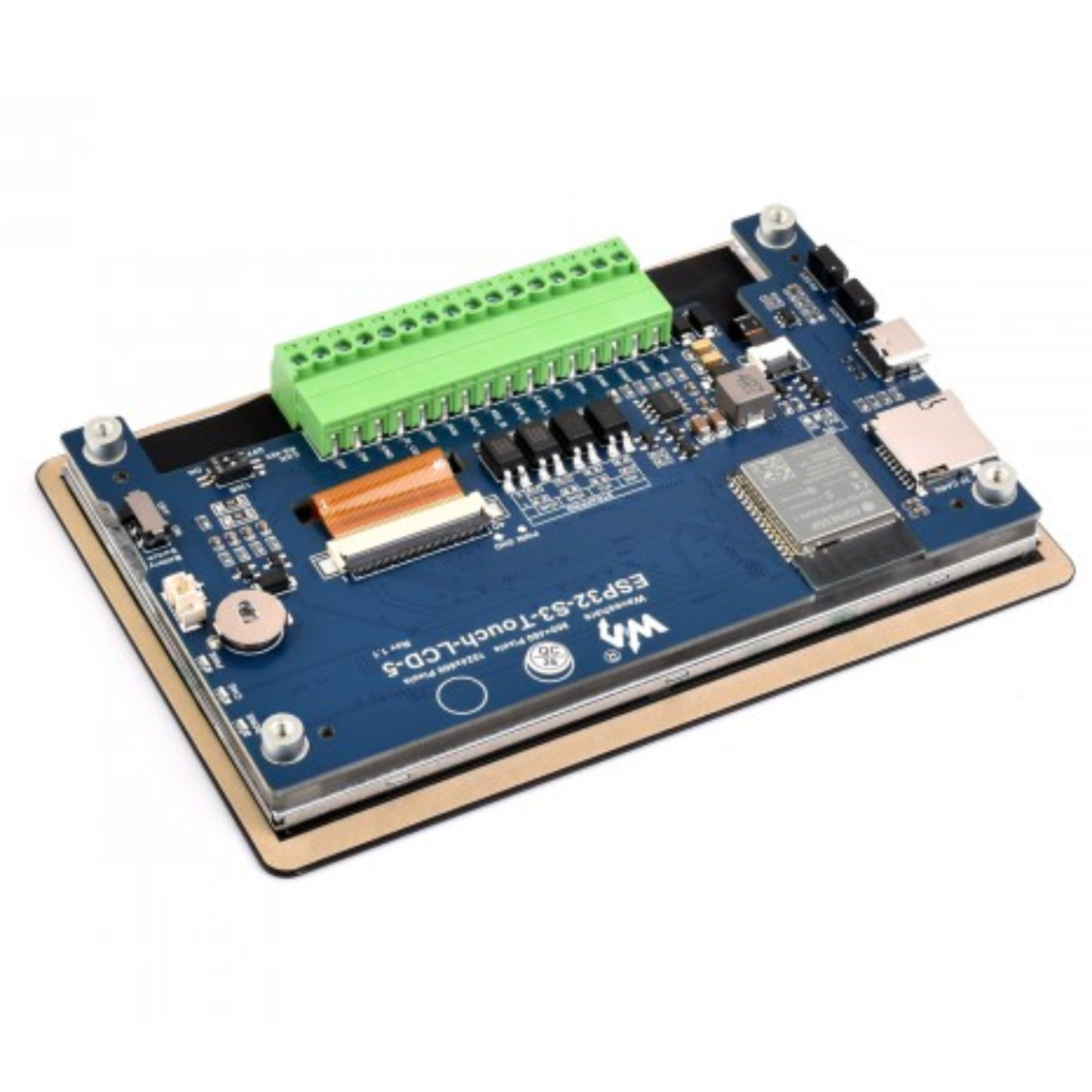

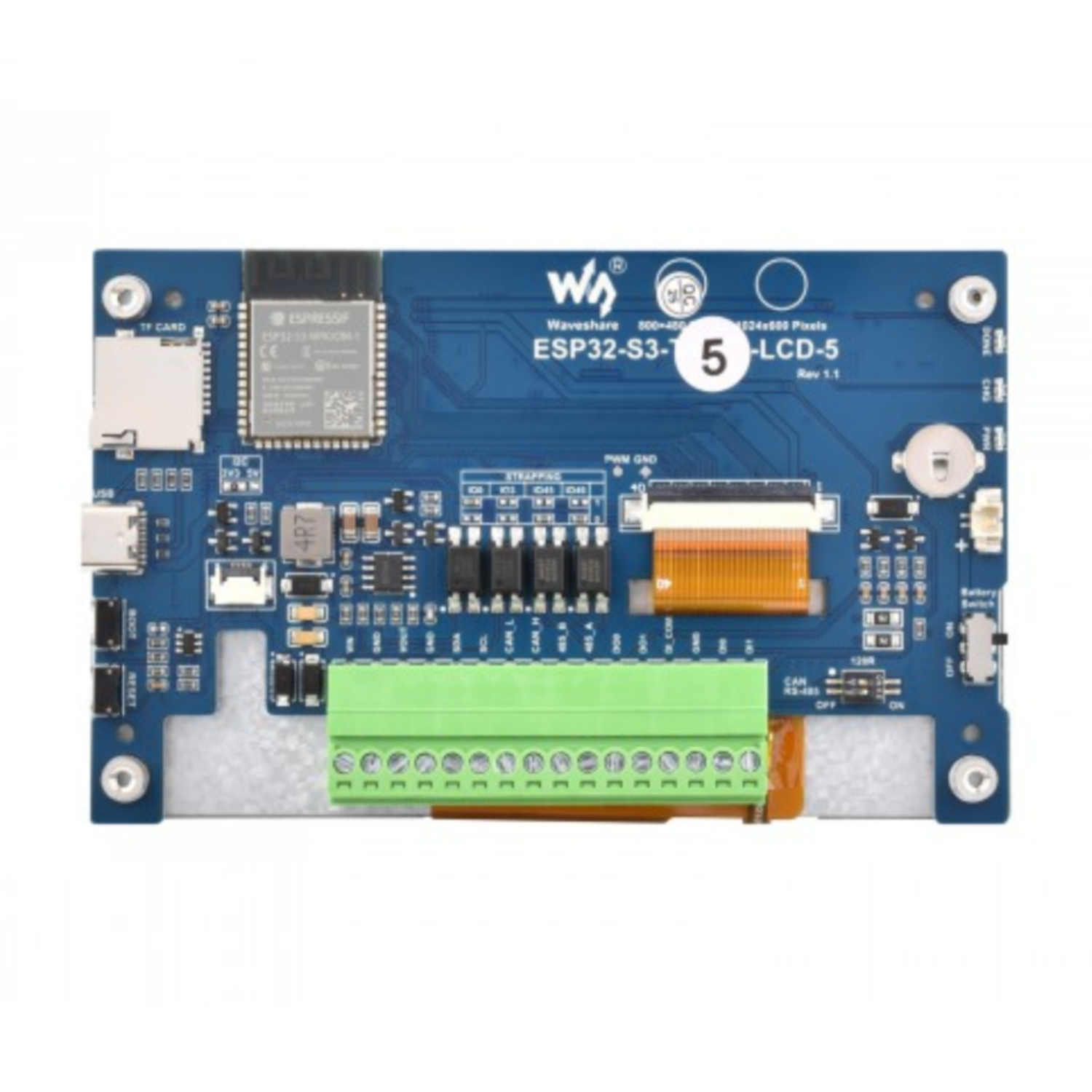

Pin Description:

ESP32-S3-WROOM-1-N16R8
The SoC with WiFi and Bluetooth, up to 240 MHz operating frequency, integrated 8 MB PSRAM and 16MB Flash
TF card slot
USB Type-C port
BOOT button
Press and hold while powering on for program burning
RESET button
Optocoupler isolation
Touch panel connector
5-inch display panel connector
RS485 and CAN terminal resistors selection
close by default
Battery power supply ON/OFF
3.7V single lithium battery GH1.25 header
Status Indicators
DONE: Lithium battery charging completed indicator
CHG: Lithium battery charging indicator
PWR: Power supply indicator
(the CHG will blink and DONE will light on when connecting with a DC power supply, and without a lithium battery connected or when the battery switch is OFF)
7-36V DC power supply terminal
I2C interface terminal
VOUT pin output 5V/3.3V (switching by onboard resistor)
CAN interface terminal
RS485 interface terminal
Digital output
5–36V, open-drain output, output load: 450 mA per channel (MAX)
Input signal common terminal
NC: dry contact passive input
Connect to power supply positive: digital input low active, for NPN wet contact active input, 5V-36V DC
Connect to power supply negative: digital input high active, for PNP dry contact active input, 5V-36V DC
Digital input
5–36V, supports passive/active input (NPN or PNP)
I2C VOUT output selection
for switching output voltage and I/O level of I2C VOUT, 3.3V by default
RTC battery holder
Compatible with CR927 battery
