Waveshare ESP32-S3 4.3" Display Development Board 800x480 Display Board With Capacitive Touch Screen, Wi-Fi & Bluetooth

Description:

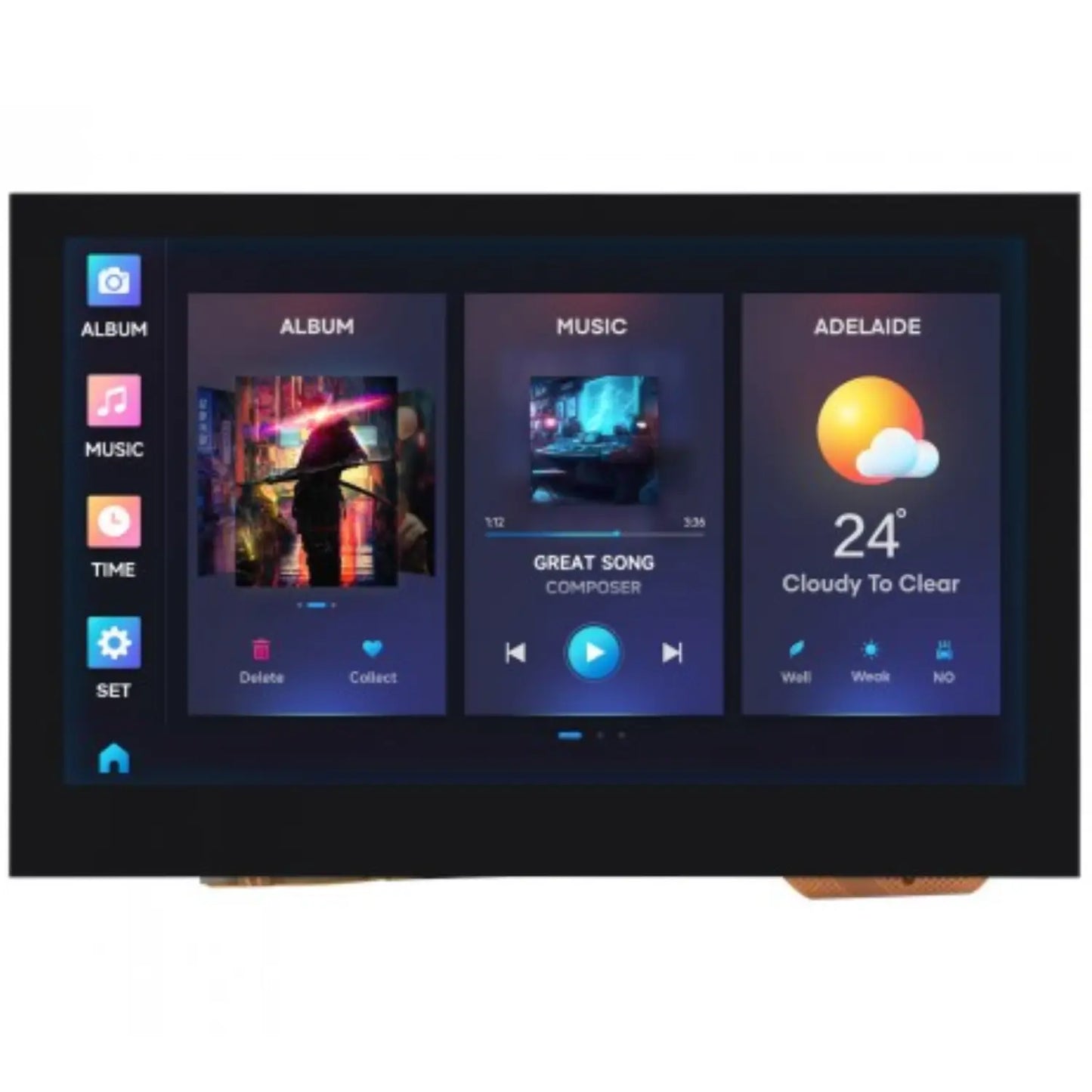

This is a low-cost, high-performance MCU development board designed by Waveshare. It supports 2.4GHz WiFi and BLE 5, integrates high-capacity Flash and PSRAM, and has a 4.3-inch wide capacitive touch LCD screen on board to smoothly run GUI interface programs such as LVGL. It combines a variety of peripheral interfaces (e.g., CAN, I2C, RS485, etc.) to quickly develop applications such as HMIs for ESP32-S3. With a wide range of functions and interfaces, it can meet power consumption requirements in Internet of Things (IoT), mobile devices, smart home, and other applications.

Specification:

• Display Size: 4.3 inches
• Display Type: Capacitive Touch
• Interface: CAN, RS485, I2C, TF card slot, Full-speed USB
• Item Type: Development Board
• Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz
• Wireless Functions: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)
• Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash
• Display Resolution: 800 x 480

Features:

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash

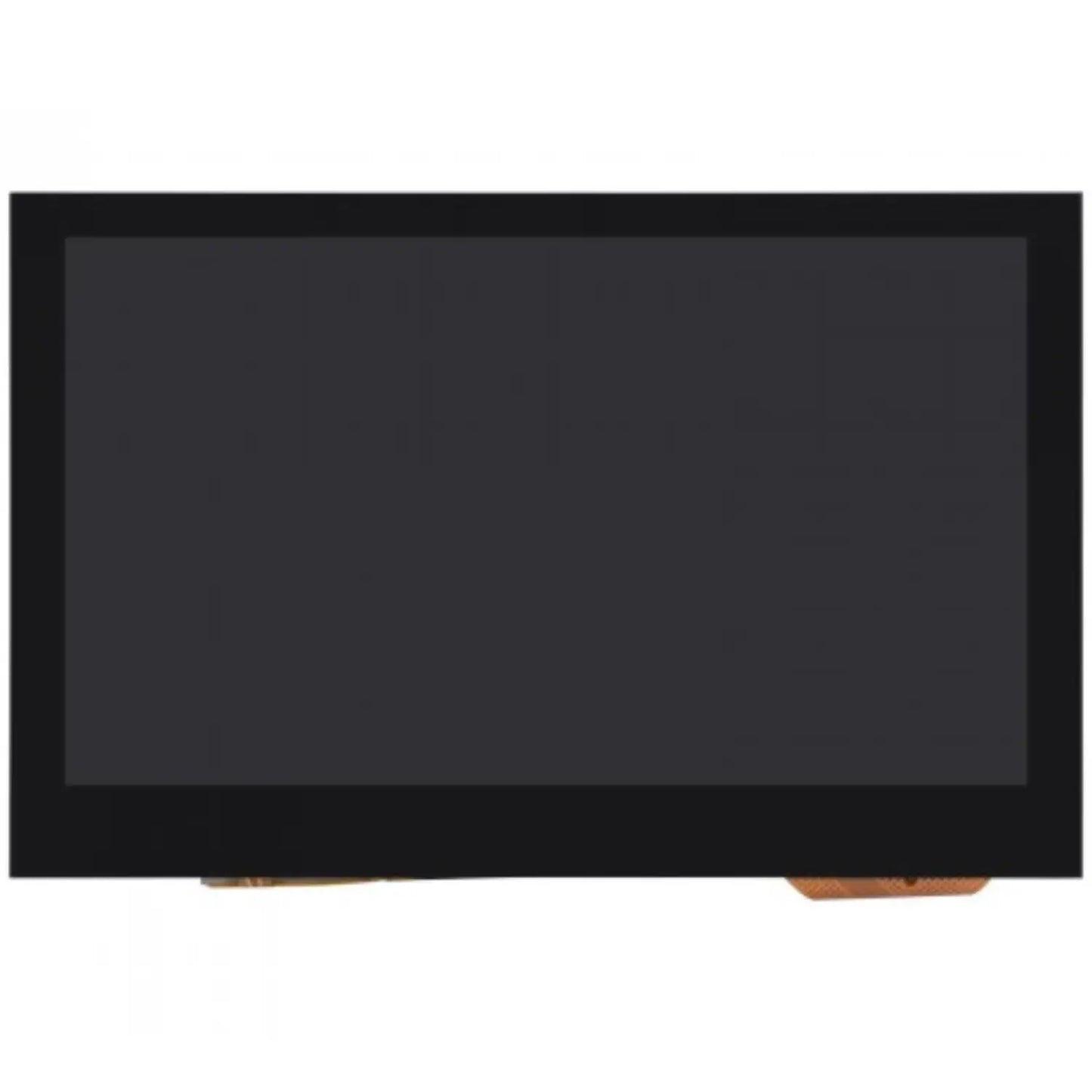

• Onboard 4.3inch LCD display, 800×480 resolution, 65K color
• Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
• Onboard CAN, RS485, I2C interface, and TF card slot, integrates a full-speed USB port
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Product Interface:

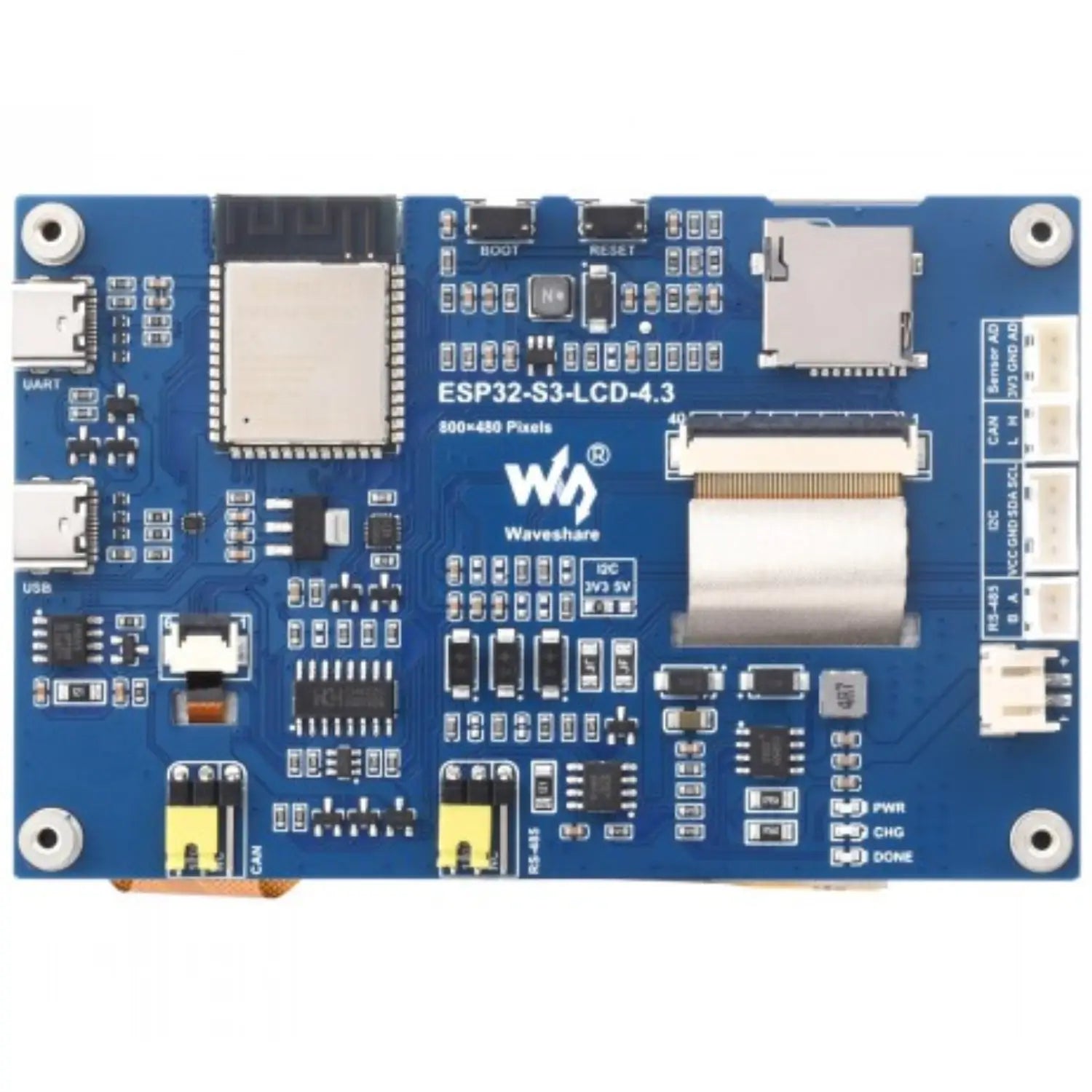

Pin Description:

1. ESP32-S3N16R8: The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM, and 16MB Flash
2. SGM2212-3.3: 800mA low-noise LDO
3. FSUSB42UMX: for USB pins multiplexing
4. Touch panel connector
5. USB TO UART Type-C port
6. USB Type-C port
7. TJA1051T/3/1J: CAN interface chip
8. CH422G: IO expansion chip
9. BOOT button: Press and hold while powering on for program burning
10. RESET button
11. MP3302DJ-LF-Z: Screen backlight boost chip
12. 4.3-inch display panel connector
13. TF card slot
14. Sensor header
15. CAN header
16. I2C header
17. RS485 header
18. 3.7V single lithium battery PH2.0 header
19. CAN terminal resistor selection
20. RS485 terminal resistor selection
21. CH343P: USB to UART chip
22. SP3485: RS485 transceiver chip
23. CS8501: Lithium battery recharge manager
24. Status Indicators:
    PWR: Power supply indicator
    CHG: Lithium battery charging indicator
    DONE: Lithium battery charging completed indicator

Useful Link:

Waveshare ESP32-S3 4.3" Display Development Board

Package Included:

• 1 x ESP32-S3-Touch-LCD-4.3
• 2 x HY2.0 2P to 2PIN male cable 10cm
• 1 x HY2.0 3P to 3PIN male cable 10cm
• 1 x HY2.0 4P to 4PIN male cable 10cm
• 1 x Standoff pack
