Description:

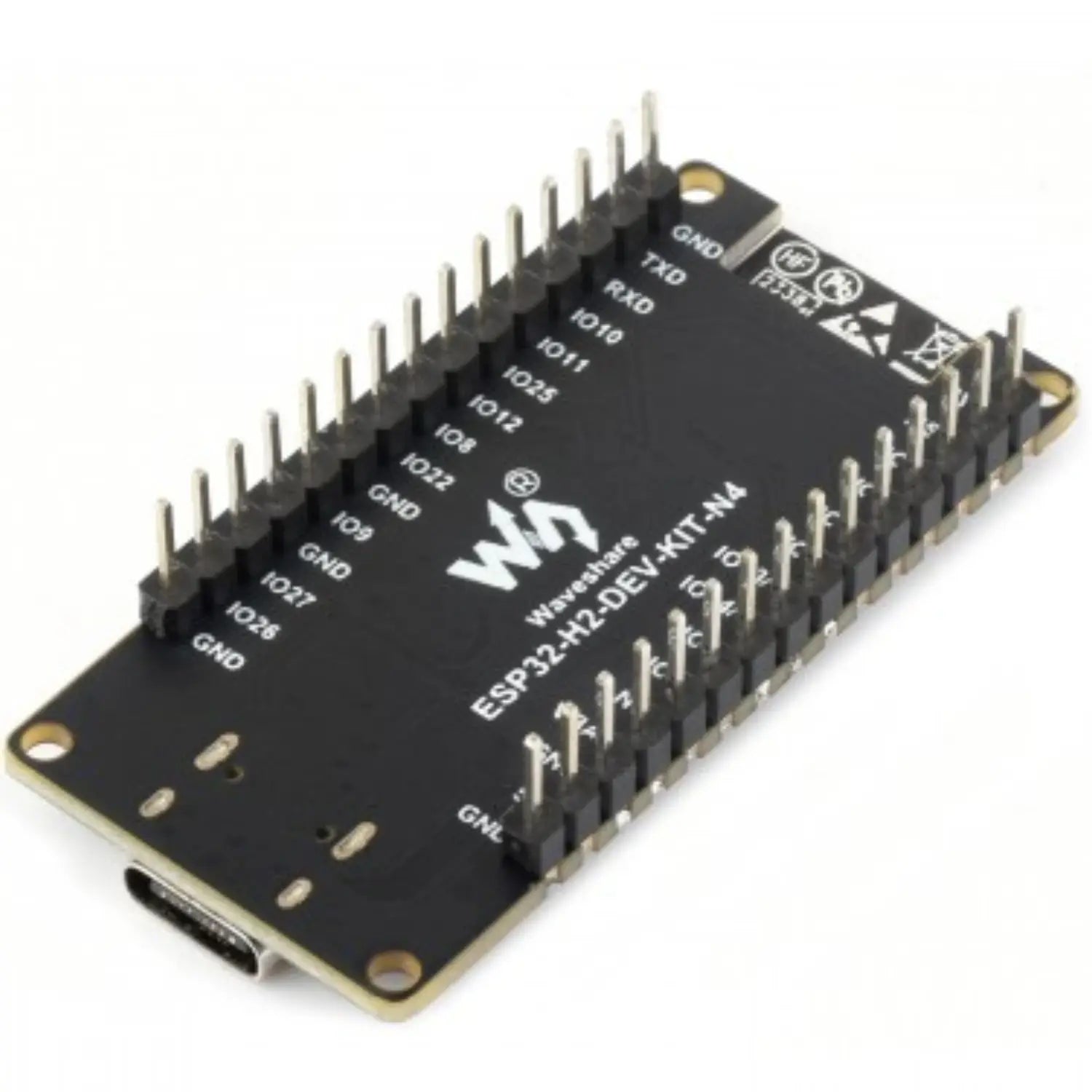

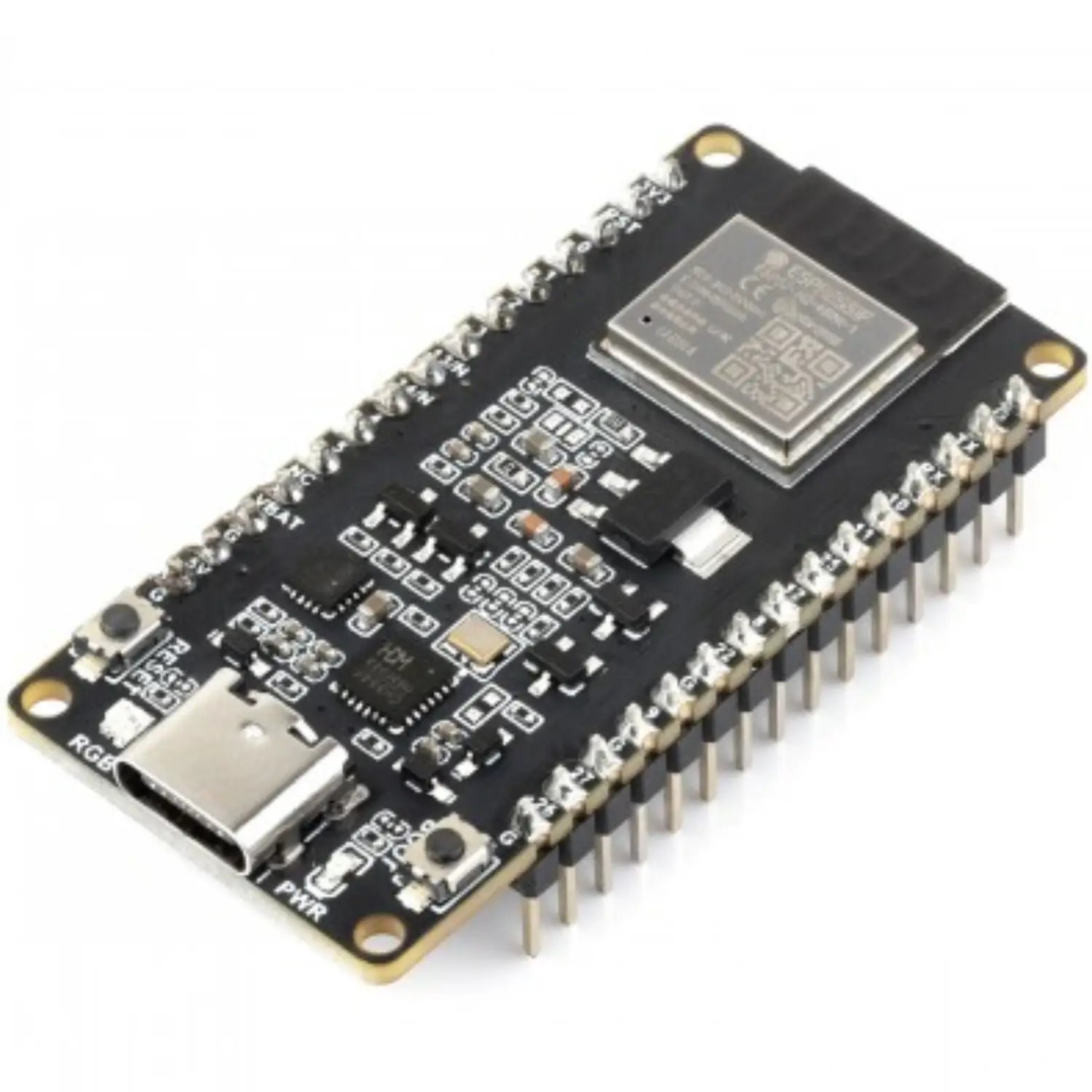

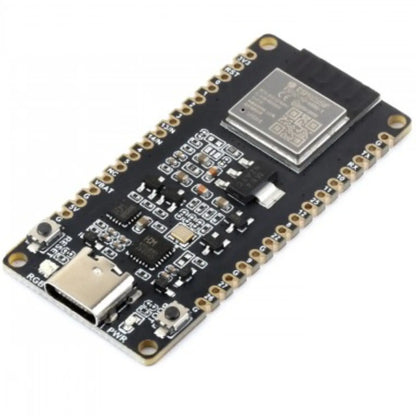

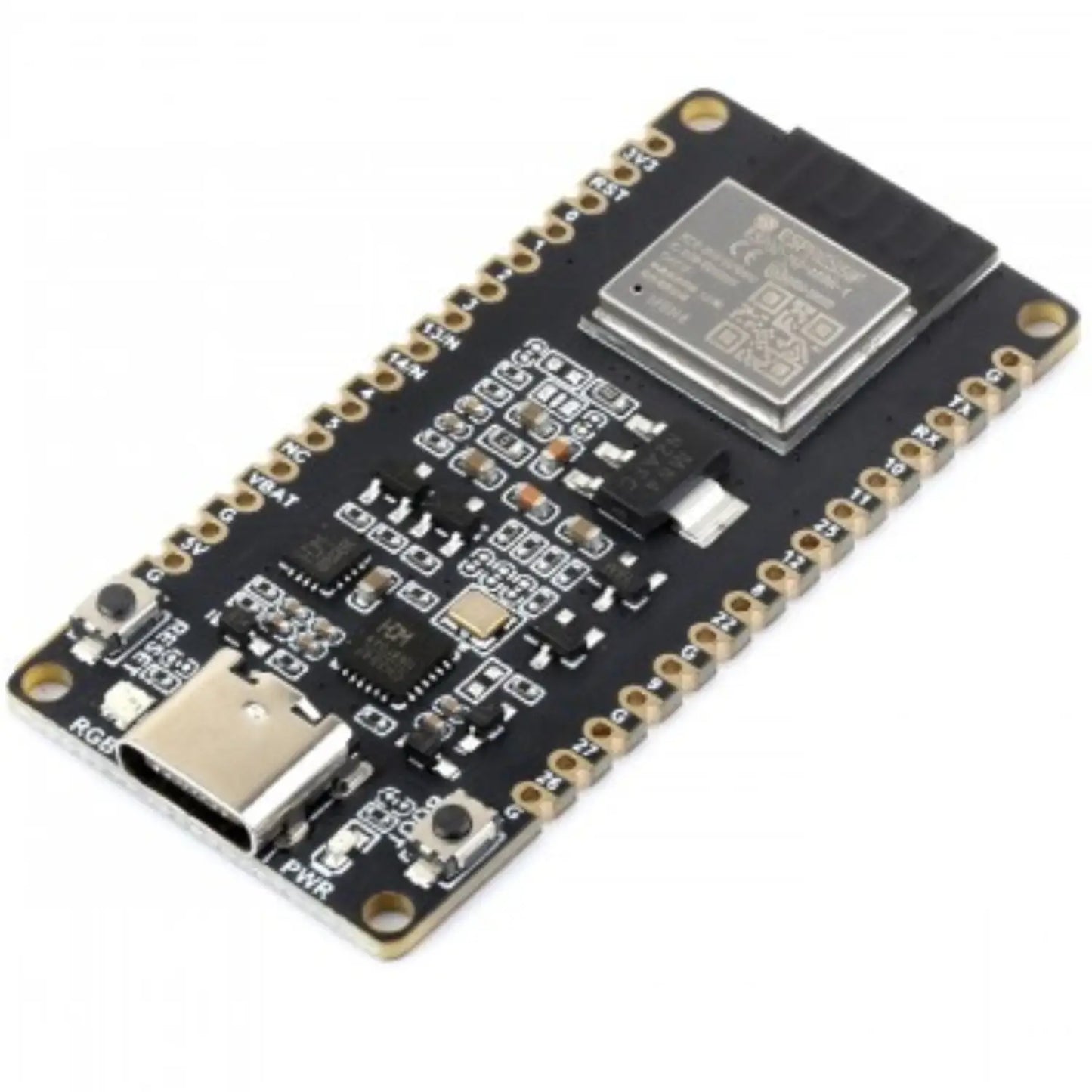

The ESP32-H2-DEV-KIT-N4 is a compact and versatile microcontroller development board built around the ESP32-H2-MINI-1 module, featuring a 32-bit single-core RISC-V processor running up to 96MHz. It integrates 320KB of SRAM, 128KB of ROM, and 4KB of low-power memory, along with 4MB of onboard Flash for code and data storage.
Designed with flexibility in mind, the board includes onboard CH343 and CH334 chips to support both UART and USB development simultaneously through a single USB-C port. Its pin layout is fully compatible with the ESP32-H2-DevKitM-1, allowing seamless expansion with various peripheral modules.
The development board supports multiple wireless communication protocols including Bluetooth Low Energy (BLE), Zigbee, and Thread, making it ideal for IoT, smart home, and mesh network applications. Backed by extensive online examples and tutorials for the ESP-IDF development environment, this kit enables rapid prototyping and easy integration into commercial or hobbyist projects.
Specification:
- Item Type: ESP32 Based
- Flash Memory: 4MB
- Processor Type: RISC-V 32-bit single-core processor
- Clock Frequency: 96MHz
- Microcontroller: ESP32-H2-MINI-1 module
- Max. Clock Frequency: 96MHz
- SRAM: 320KB
- ROM: 128KB
- Connectivity: IEEE 802.15.4, Low-power Bluetooth (BLE)
Features:
- Adopts ESP32-H2-MINI-1 module with RISC-V 32-bit single-core processor, up to 96MHz main frequency.
- Integrated 320 KB SRAM, 128 KB ROM, 4 KB LP memory, and 4MB Flash memory.
- Integrated low-power Bluetooth (Bluetooth LE), and IEEE 802.15.4, with superior RF performance.
- Type-C connector, easier to use.
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface.
- Rich peripheral interfaces, compatible with the pinout of the ESP32-H2-DevKitM-1 development board, offer strong compatibility and expandability.
- The castellated module allows soldering directly to carrier boards.
- Supports a variety of low-power operating states, adjustable communication distance, data rate, and power consumption balance, to meet the power requirements of various application scenarios.
Product Interface:

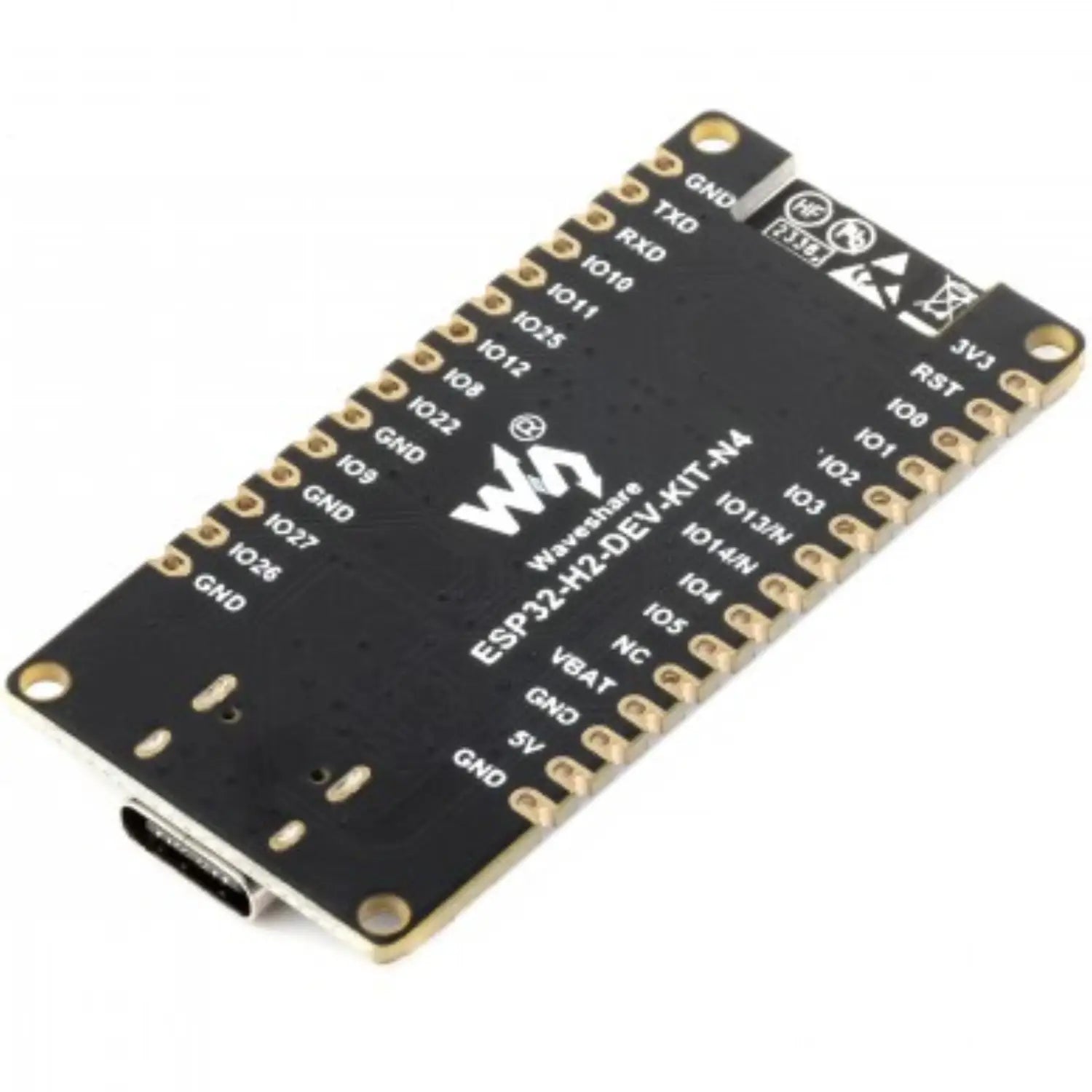

Pin Description:
Useful Link:
Waveshare ESP32-H2-MINI-1-N4 Microcontroller Board
Package Included:
1 x Waveshare ESP32-H2 Microcontroller Board
