Waveshare ESP32-C6-MINI-1 WiFi 6 Development Board Without Pre-Soldered Header 160MHz Single-Core Microcontroller

Description:

This Waveshare ESP32-C6 development board is powered by the ESP32-C6-MINI-1 module, featuring a RISC-V 32-bit single-core processor clocking in at 160MHz. It comes equipped with 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB flash for robust performance. For reliable power delivery, the board integrates an MP28164 high-efficiency DC-DC buck-boost chip capable of supplying up to 2A of load current, ensuring the safety and stability of your projects. You can easily get started with development using popular environments like ESP-IDF or Arduino, making it quick to apply this versatile board to your product designs.

Specification:

• Processor: RISC-V 32-bit single-core
• ROM: 320KB
• SRAM: 512KB HP
• SRAM: 16KB LP
• Flash memory: 4MB
• Connector: Type-C

Features:

• Processor: RISC-V 32-bit single-core
• ROM: 320KB
• SRAM: 512KB HP
• SRAM: 16KB LP
• Flash memory: 4MB
• Connector: Type-C

Product Interface:

Features:

• Adopts ESP32-C6-MINI-1 chip with RISC-V 32-bit single-core processor, capable of running at 160 MHz
• Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB flash
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
• Type-C connector, easier to use
• Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
• 20 × multi-function GPIO pins and 7 × expanded IO pins
• Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, etc., to achieve various functions flexibly
• The castellated module allows soldering directly to carrier boards
• Supports multiple low-power operating states, adjustable balance between communication distance, data rate, and power consumption to meet the power requirements of various application scenarios
• Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence and IoT application development

Pin Description:

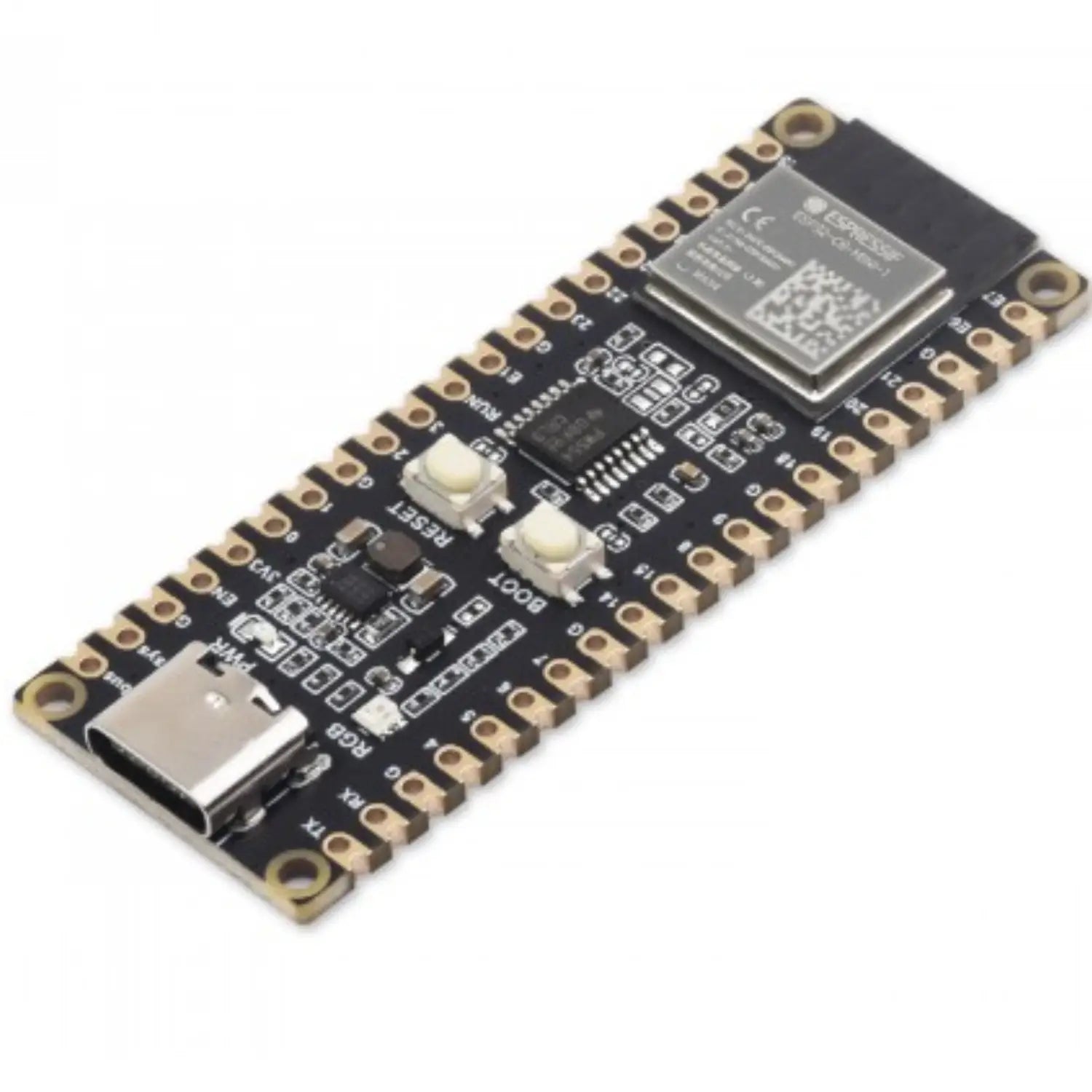

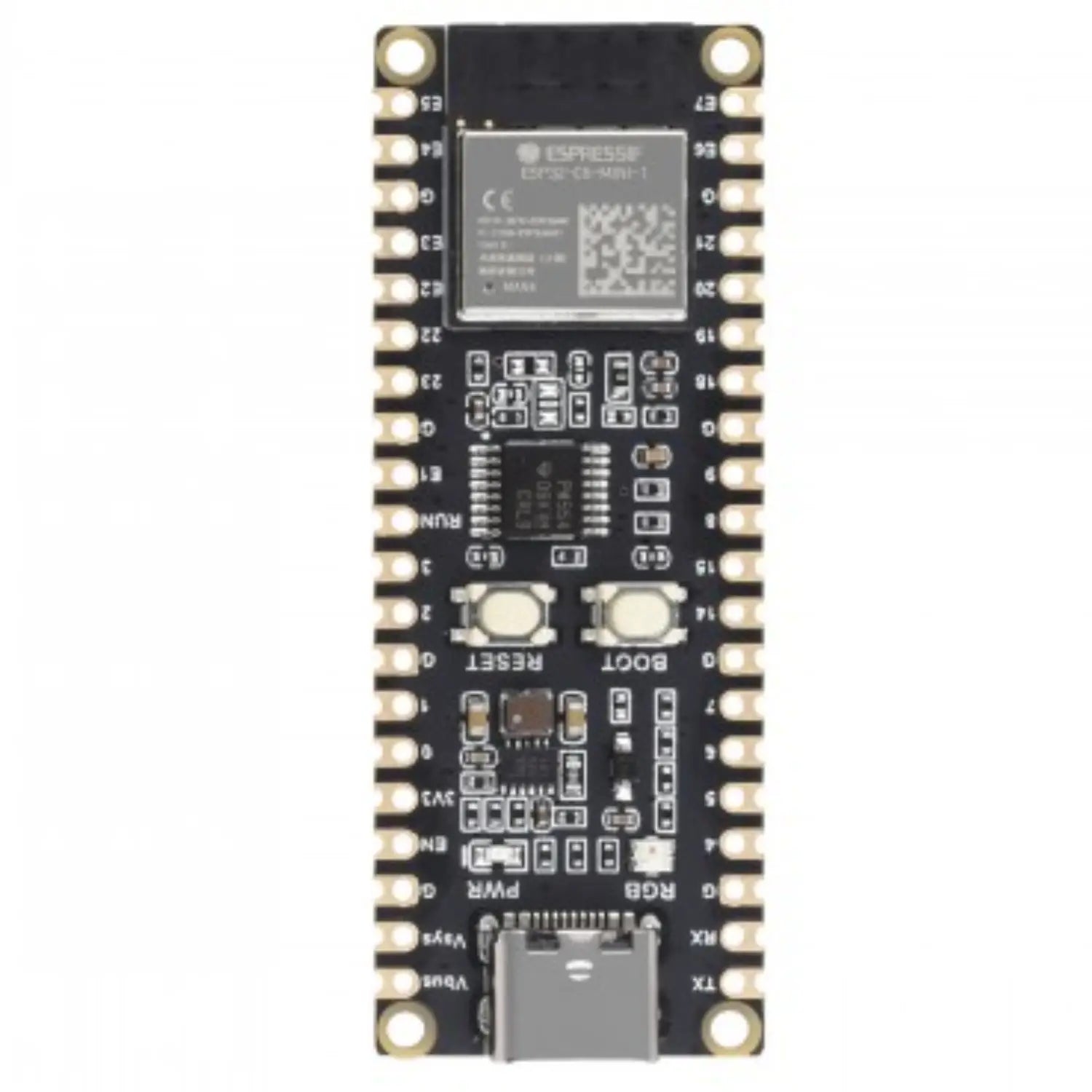

1. ESP32-C6-MINI-1: RISC-V 32-bit single-core processor
2. BOOT button: Press it when resetting to enter download mode
3. RESET button
4. TCA9554PWR: GPIO expander, extending 7 × IO pins such as E1~E
5. MP28164: High-efficiency DC-DC buck-boost chip
6. RGB LED
7. Power indicator
8. USB Type-C port: for programming, downloading, and serial debugging

Useful Link:

Waveshare ESP32-C6-MINI-1 WiFi 6 Development Board

Package Included:

• 1 x ESP32-C6-Pico
• 2 x 20-PIN male pinheader (black)
