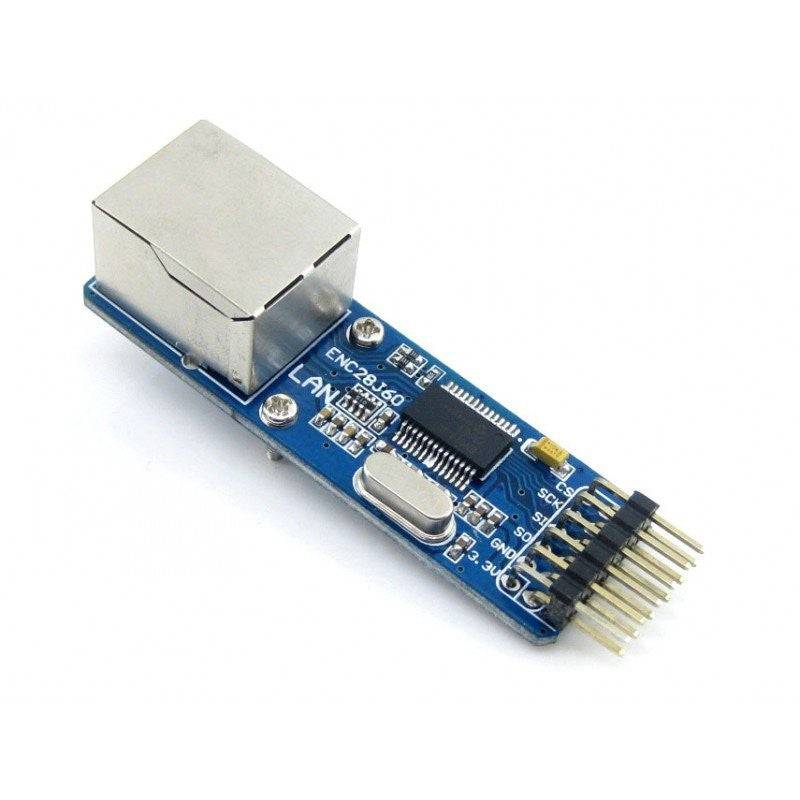

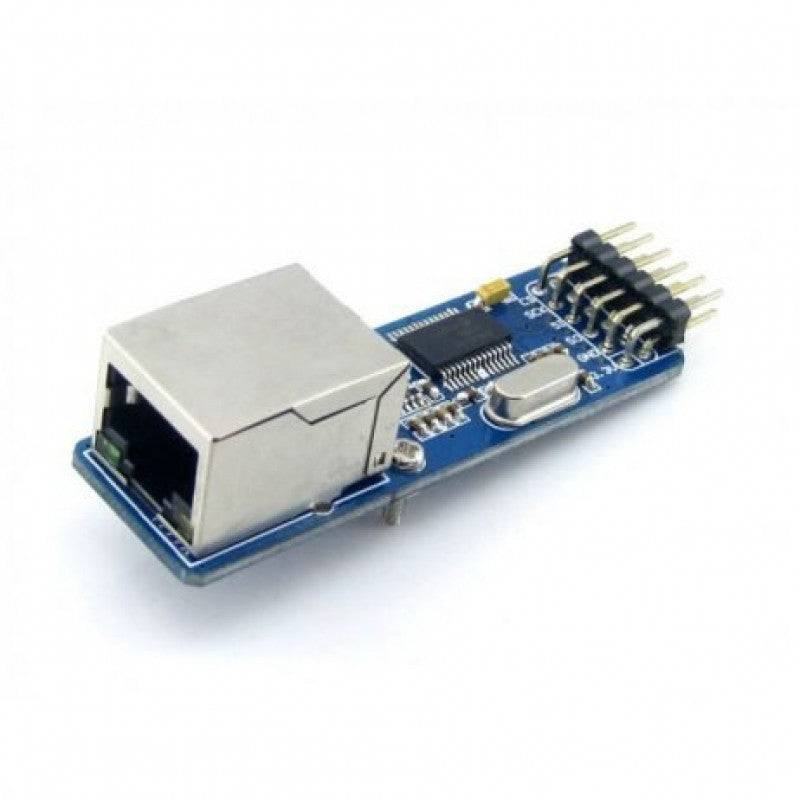

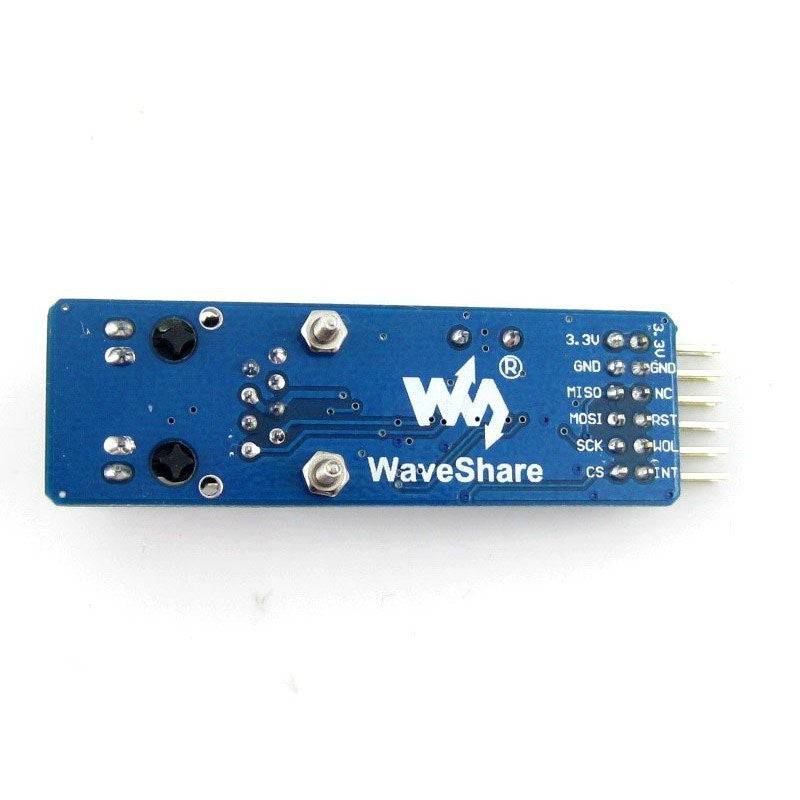

Waveshare ENC28J60 Ethernet Board - RS4764

Waveshare ENC28J60 Ethernet Board - RS4764

SKU:RS4764

In stock

Regular price Rs. 565.00
Regular price Sale price Rs. 565.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Fully Compatible with 10/100/1000Base-T Networks
  • Integrated MAC and 10Base-T PHY
  • Supports One 10Base-T Port with Automatic Polarity Detection and Correction
  • Supports Full and Half-Duplex modes
  • Automatic Programmable Retransmit on Collision

Description :

The Waveshare ENC28J60 Ethernet Board contains an Ethernet port and converts Ethernet input into SPI. It is ideal for connecting microcontrollers to the Ethernet network.

The board is based on Microchips ENC28J60integrated circuit and it can be used to provide internet connectivity to microcontroller systems like Arduino boards over Ethernet.

Since the board is small in size and it supports SPI, it is applicable to a variety of projects.

Utilizes the new SSOP 12 package Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 25MHz.

The ENC28J60 Ethernet Module is an industry-standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI.

This module includes all you need to change your Arduino into an ethernet device for your network. These days many makers prefer WiFi-type network communication. Ethernet still has lots of applications and still stays a fast and secure way to connect to network devices.

Features :

  • Fully Compatible with 10/100/1000Base-T Networks
  • Integrated MAC and 10Base-T PHY
  • Supports One 10Base-T Port with Automatic Polarity Detection and Correction
  • Supports Full and Half-Duplex modes
  • Automatic Programmable Retransmit on Collision
  • Programmable Padding and CRC Generation
  • Automatic Rejection of Erroneous Packets
  • SPI Interface with Clock Speeds Up to 20 MHz
  • Chipboard ENC28J60/SS.
  • The board 25MHZ crystal.

Specifications :

  • Driver IC : ENC28J60
  • Operating Voltage (VDC) : 3.3
  • Crystal Oscillator : 25MHz

Package Included :

1 x Waveshare ENC28J60 Ethernet Board
