Description:

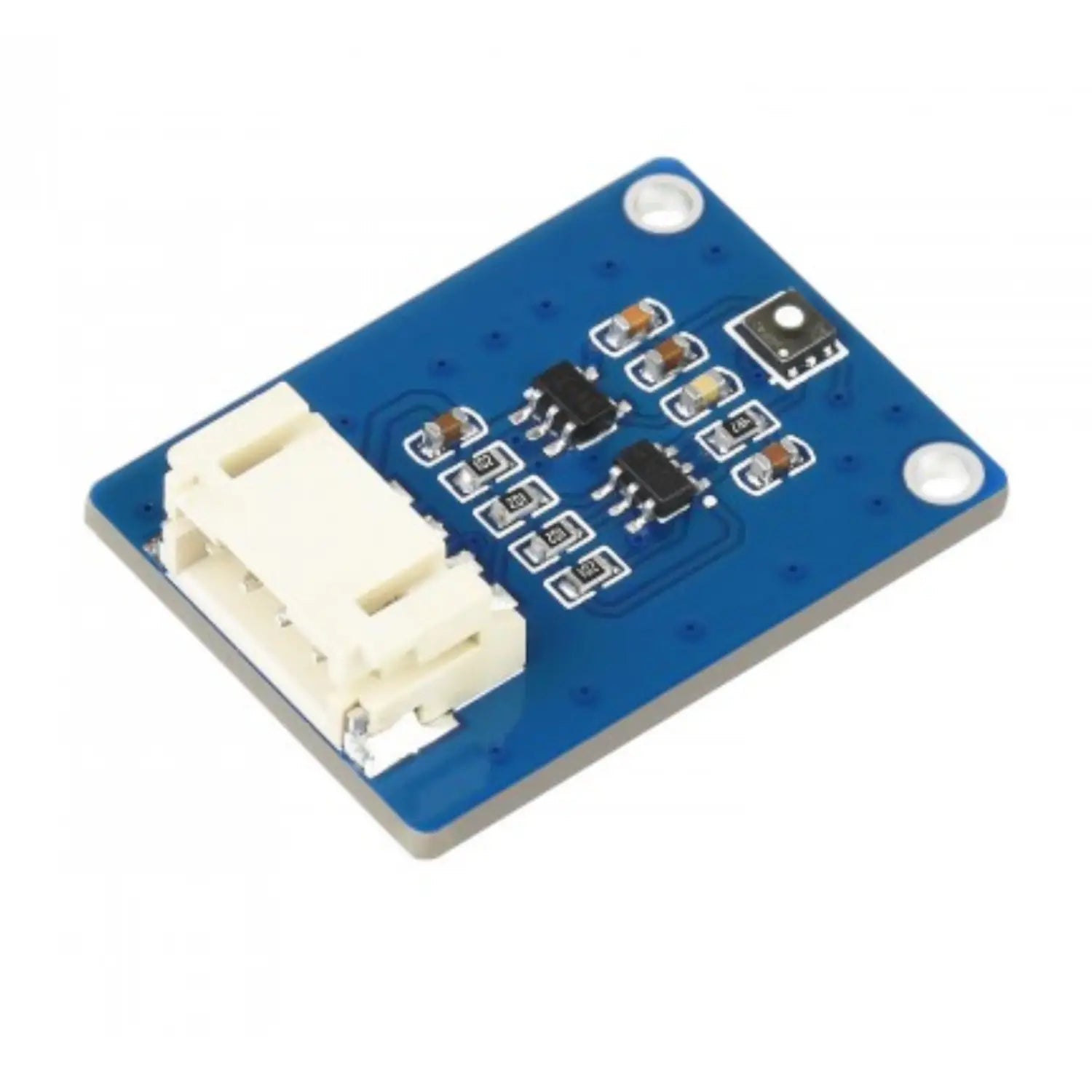

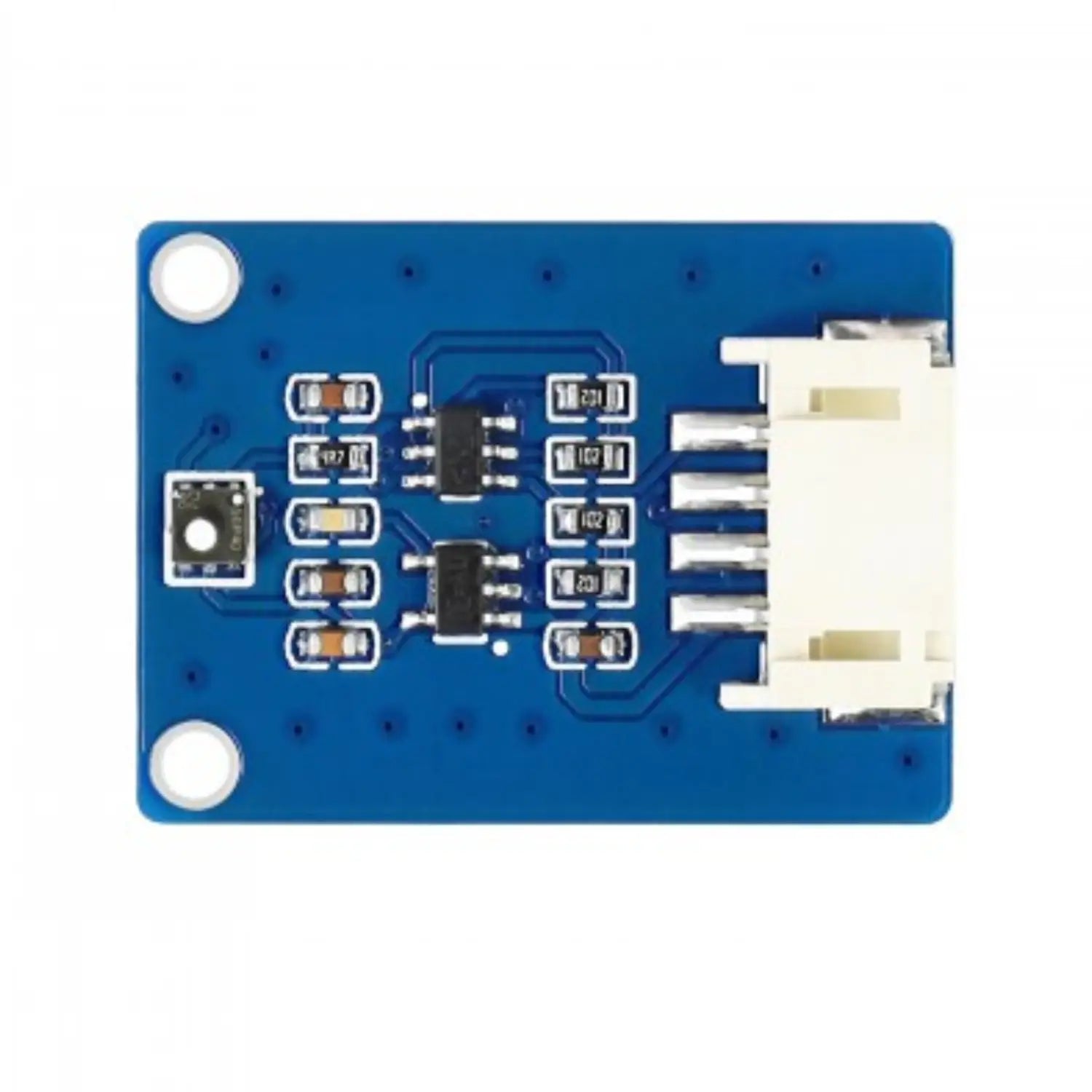

The Waveshare SGP40 VOC Sensor is a compact digital sensor designed to detect volatile organic compounds (VOCs) and monitor air quality in real-time. Powered by the advanced SGP40 sensor chip, it accurately measures emissions from cigarettes, cooking smoke, natural gas, fire coal, construction materials, furniture, and home appliances. The sensor generates precise digital signals that can trigger air treatment devices for safer, cleaner environments. Its small form factor allows easy integration into air purifiers, air quality monitors, and smart home devices, making it an ideal choice for both practical applications and learning air quality monitoring.
Specification:
Sensor | SGP40 | Measurement range | 0~1000 ppm of ethanol equivalents |
---|---|---|---|
Communication bus | I2C (constant address: 0x59) | Operating voltage | 3.3V/5V |
Response time | < 10s (tau 63 %) | Switch-on time | < 60s |
Dimensions | 27 × 20mm | Mounting hole size | 2.0mm |
Features:
- Incorporates SGP40 for measuring 0 ~ 1000 ppm of ethanol equivalents.
- Features humidity-compensation and low heat dissipation, providing outstanding performance in all sorts of environments.
- Digital I2C output, less interference.
- Onboard voltage translator, compatible with 3.3V/5V operating voltage.

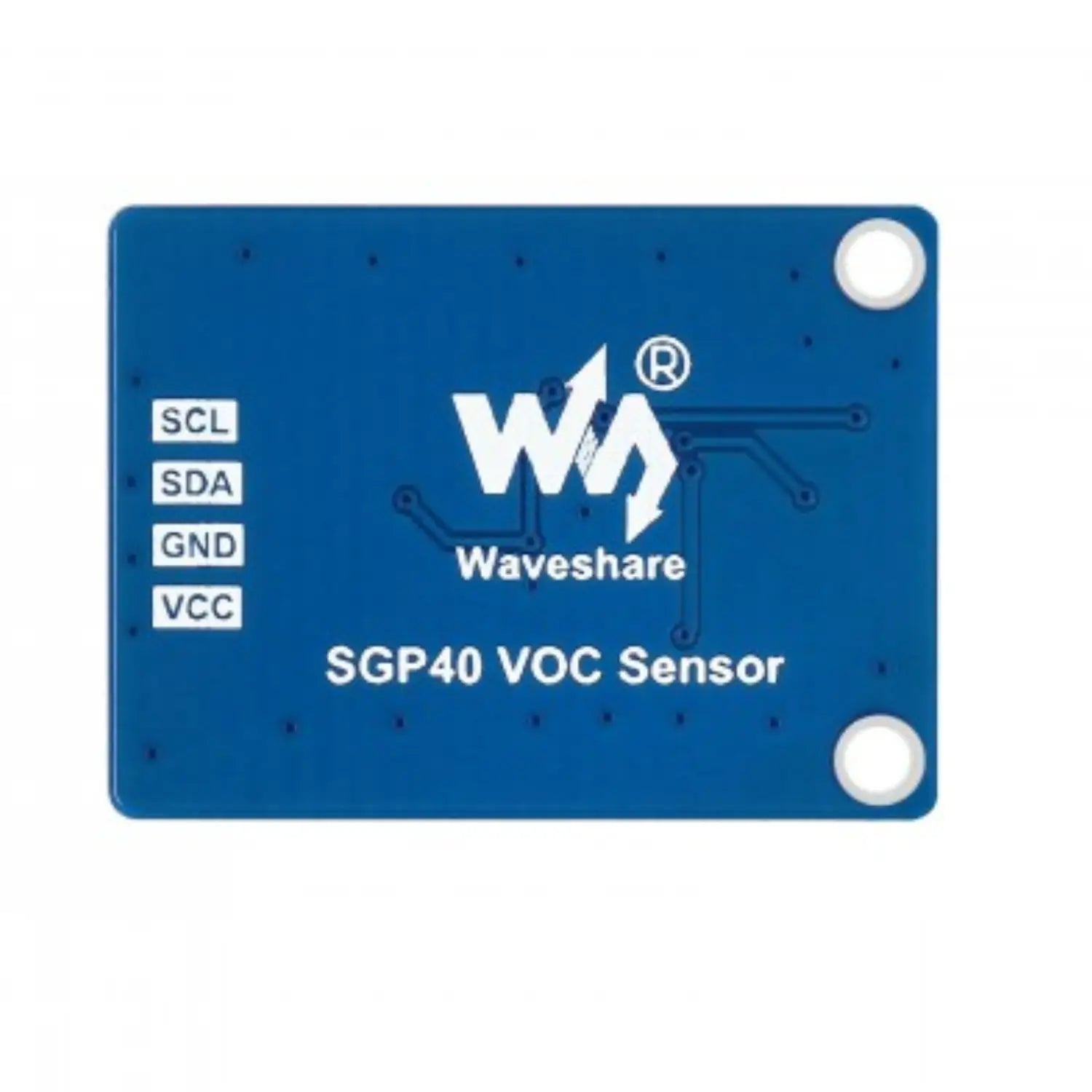

Pin Description:
VCC | 3.3V/5V power input |
GND | GND |
SDA | connects to the MCU I2C data pin |
SCL | connects to the MCU I2C clock pin |
Hardware Connection:
Connecting with Raspberry Pi
Connecting with the Arduino board
Useful Link:
Waveshare Digital SGP40 VOC Gas Sensor Module
Package Included:

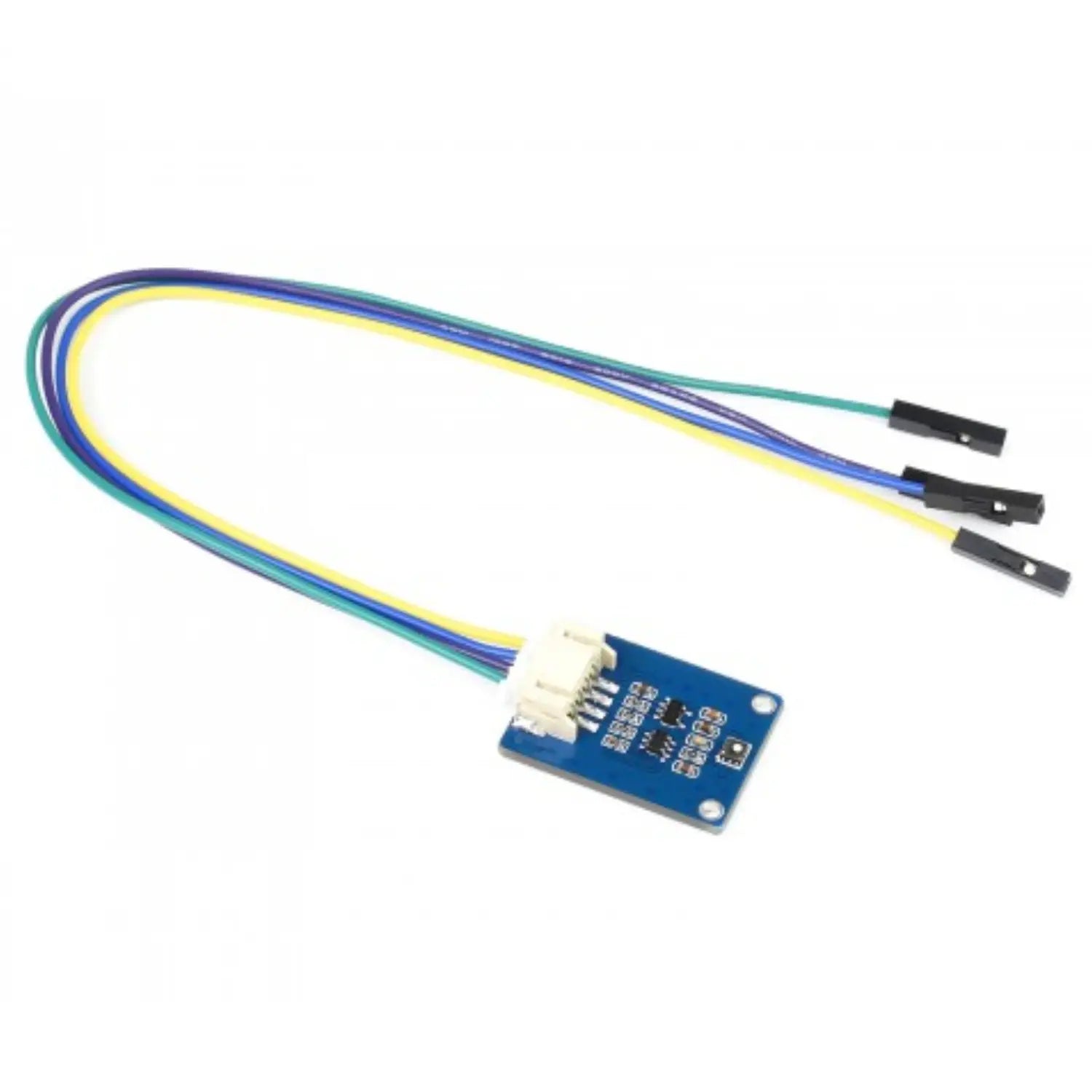

- 1 x SGP40 VOC Sensor
- 1 x PH2.0 4PIN wire 20cm
