Waveshare CP2102 USB UART Board USB to TTL Serial Adapter With Type A Connector USB UART Converter for Embedded Systems - NA152

Waveshare CP2102 USB UART Board USB to TTL Serial Adapter With Type A Connector USB UART Converter for Embedded Systems - NA152

NA152

Low stock: 1 left

Rs. 399.00
Rs. 399.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

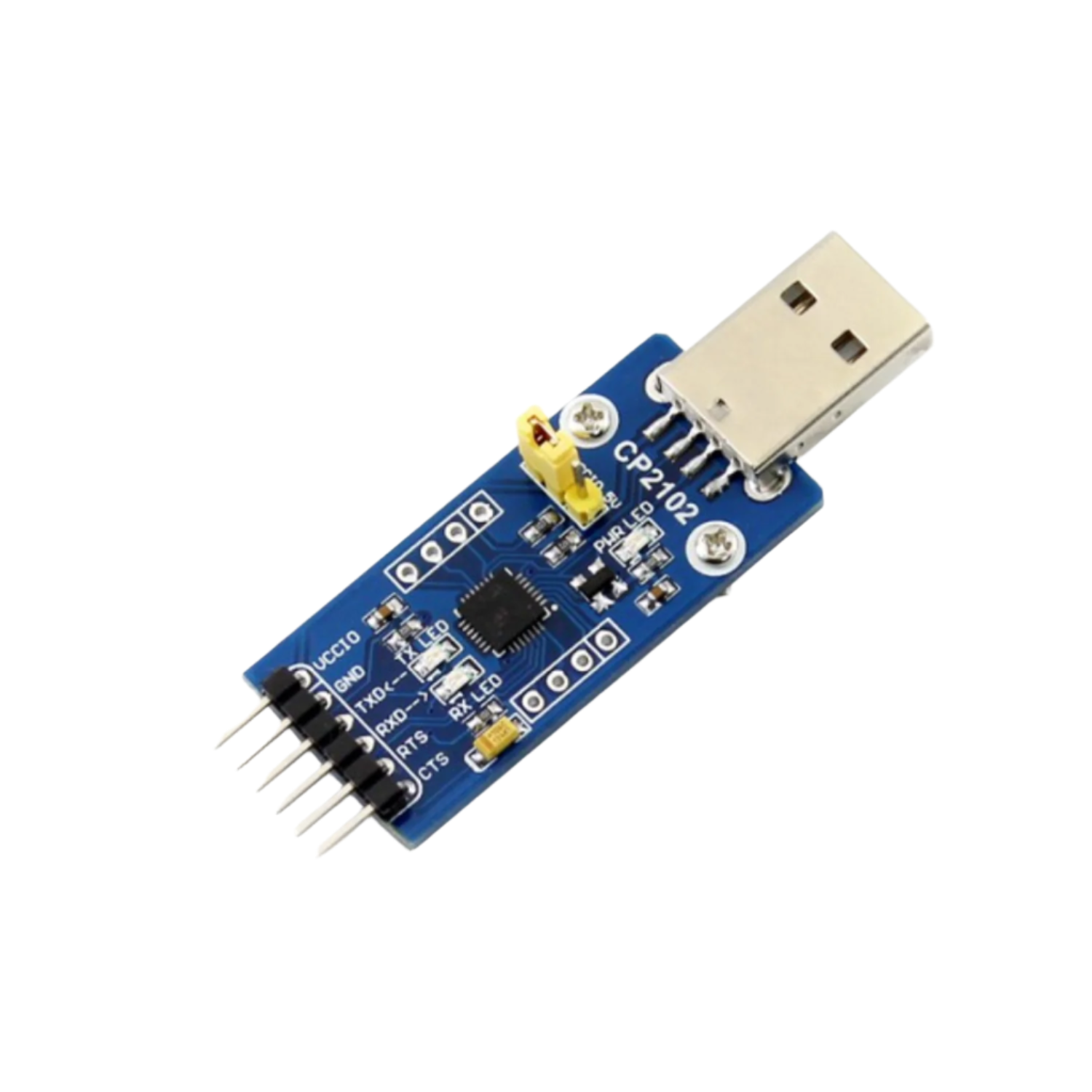

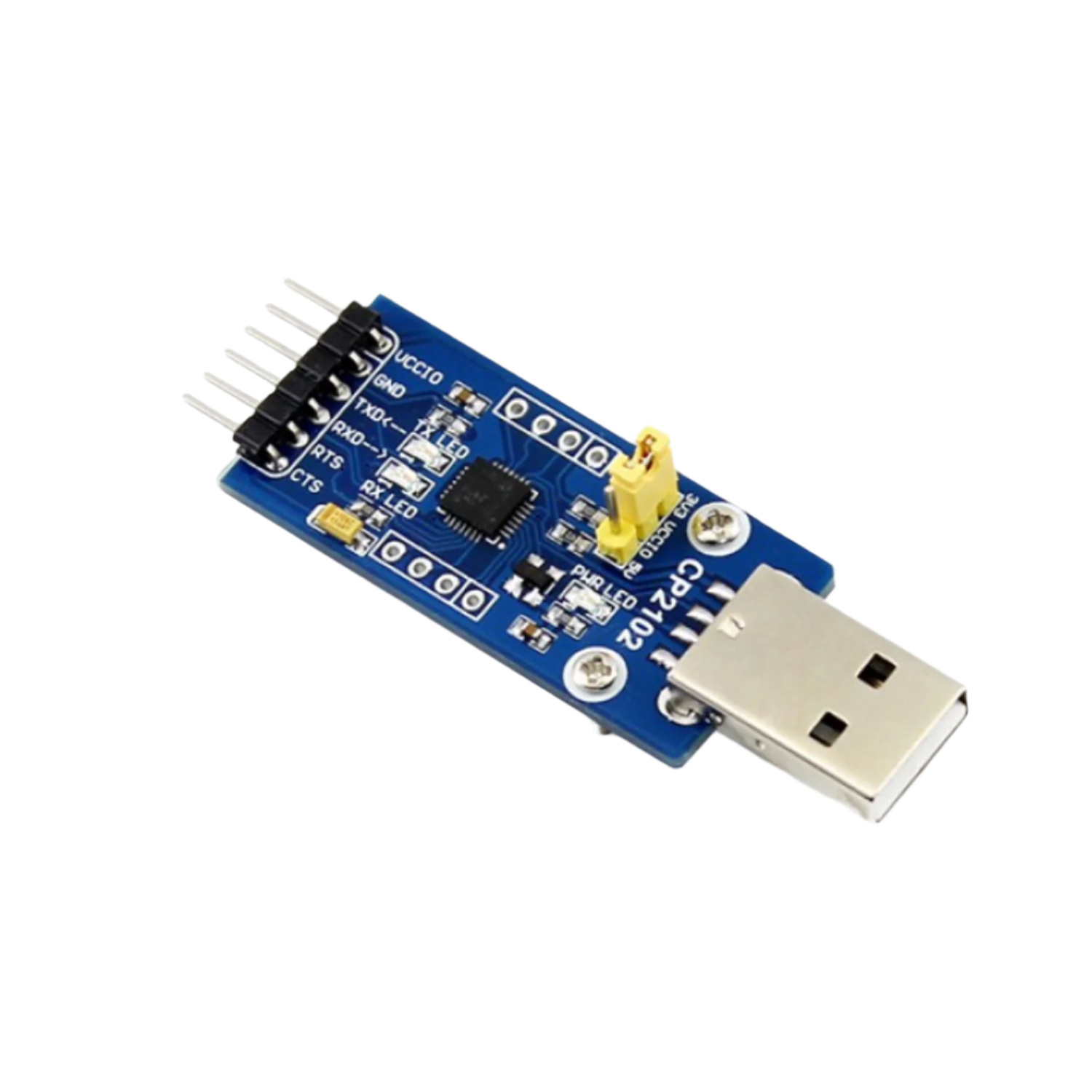

The CP2102 USB UART Board (type A) is an accessory board that features the single-chip USB to UART bridge CP2102 onboard.

Features:

  • Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
  • Voltage output support: 5V or 3.3V
  • Integrated USB protection device: SP0503

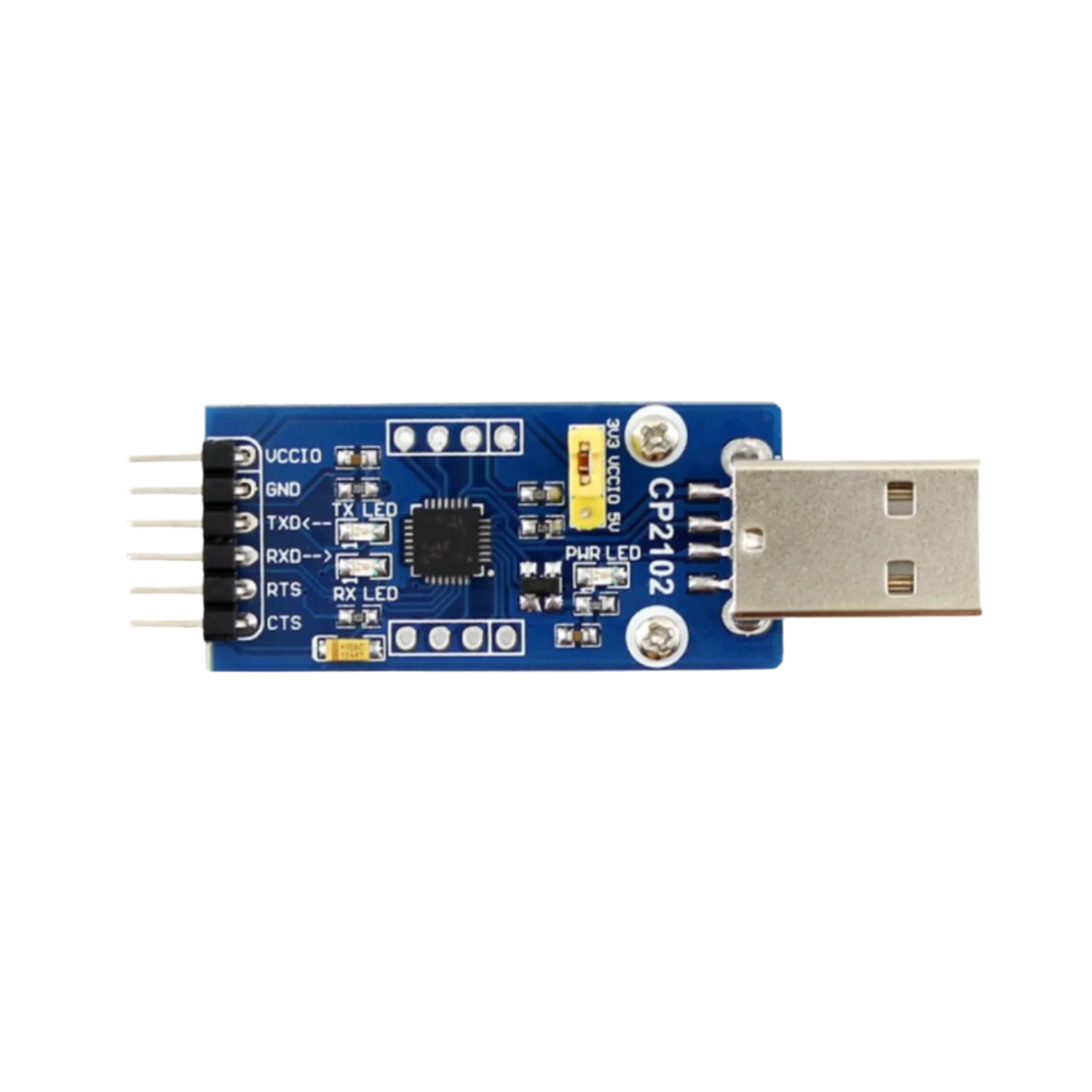

  • 3 LEDs: TXD LED, RXD LED, POWER LED

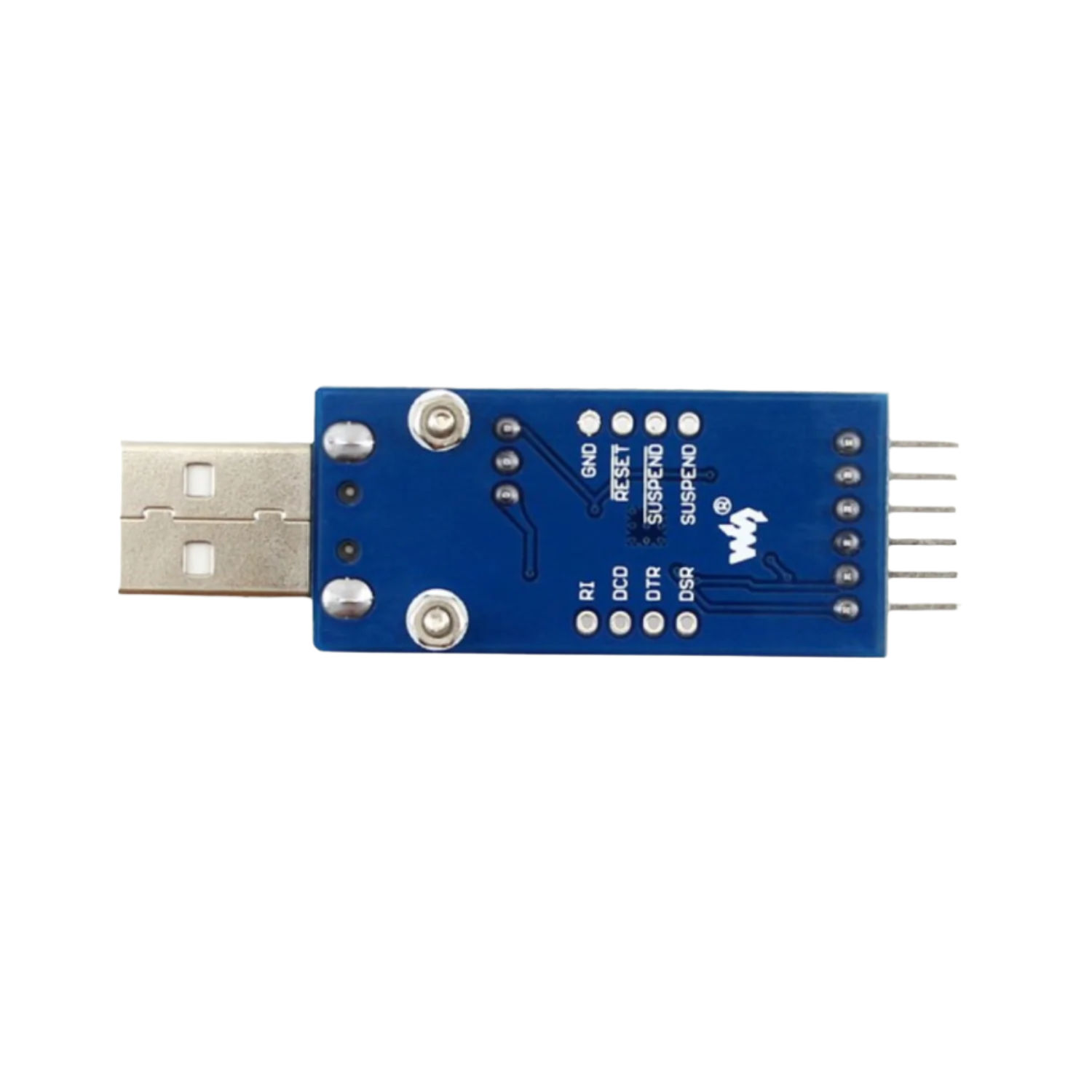

  • Pins accessible on pinheaders: TXD, RXD, RTS, CTS
  • Other pins are accessible on drilled holes, easily connected to the user application system (separate pin headers are provided)

CP2102 features:

  • Single-Chip USB to UART Data Transfer
    • No external resistors required, no external crystal required
    • On-chip power-on reset circuit and voltage regulator
    • Integrated 1024-Byte EEPROM
  • USB Function Controller
    • USB Specification 2.0 compliant; full-speed (12 Mbps)
    • USB suspend states supported via SUSPEND pins
  • UART
    • All handshaking and modem interface signals
    • Data formats supported:
      • Data bits: 5, 6, 7, and 8
      • Stop bits: 1, 1.5, and 2
      • Parity: odd, even, no parity
    • Baud rates: 300 bps to 1 Mbps
    • 576 Byte receive buffer; 640 byte transmit buffer
    • Hardware or X-On/X-Off handshaking supported
    • Event character support
  • Virtual COM Port Device Drivers
    • Windows 8/7/Vista/Server 2003/XP/2000
    • MAC OS-X/OS-9
    • Linux 2.40 or higher
  • USBXpress Direct Driver Support
    • Windows 7/Vista/Server 2003/XP/2000
    • Windows CE
  • Temperature Range
    • –40 to +85 °C)

How to Use:

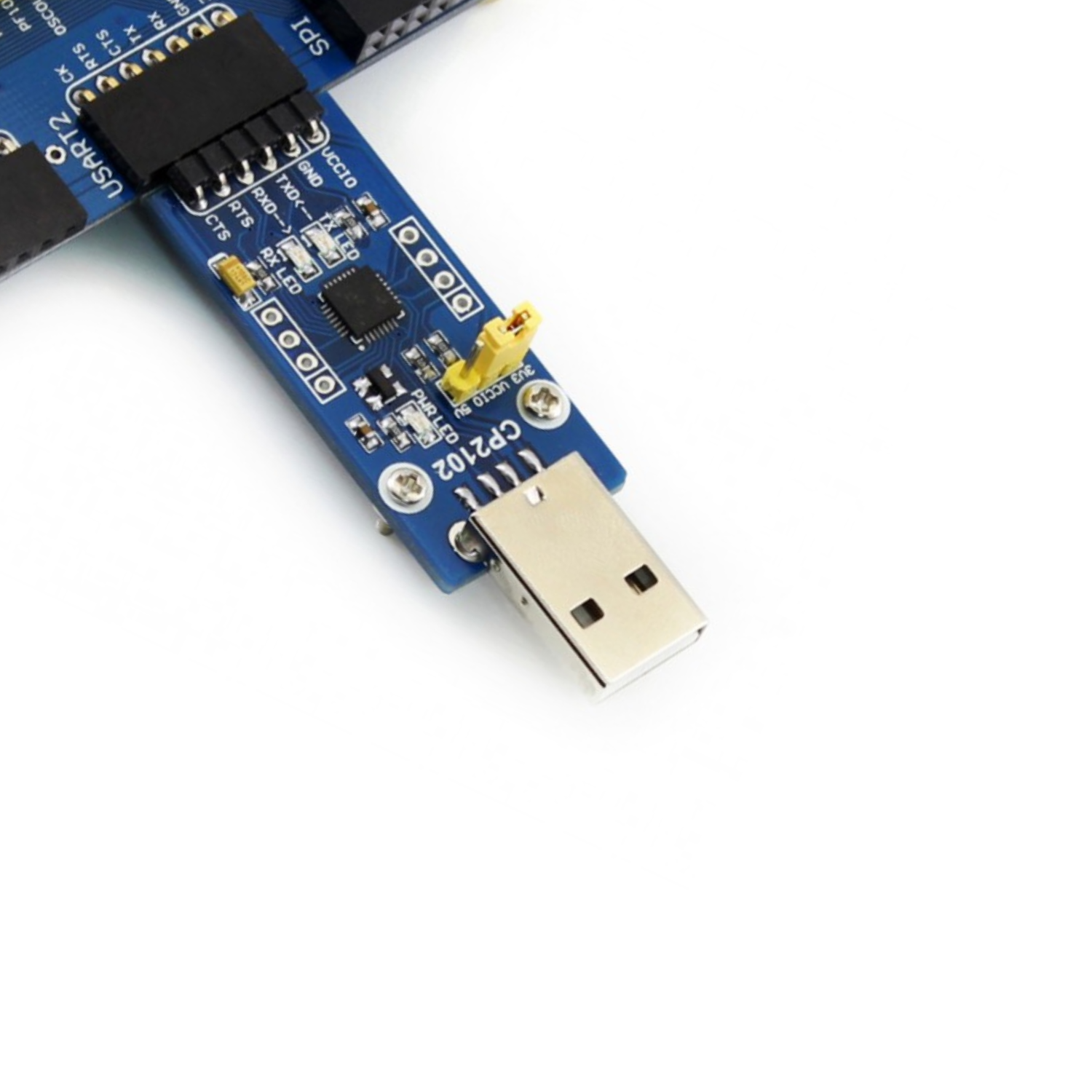

In the case of working with an MCU:

  • VCCIO: 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
  • GND: connects to GND
  • TXD: connects to the MCU.RX (signal direction: MCU. RX CP2102 PC.TX)
  • RXD: connects to the  MCU.TX (signal direction: MCU.TX CP2102 PC.RX)
  • RTS: connects to the MCU.CTS (signal direction: MCU.CTS CP2102 PC.RTS)
  • CTS: connects to the MCU.RTS (signal direction: MCU.RTS CP2102 PC.CTS)

Useful Link:

Waveshare CP2102 USB UART Board

Note: VCP examples and USBXpress driver program library are provided.

Package Included:

1 x Waveshare CP2102 USB UART Board (type A)
