Waveshare CP2102 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector - RS2009
Waveshare CP2102 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector - RS2009
SKU:RS2009
Low stock: 6 left
Regular price
Rs. 499.00
Regular price
Sale price
Rs. 499.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11...
- Voltage output support: 5V or 3.3V
- Integrated USB protection device: SP0503

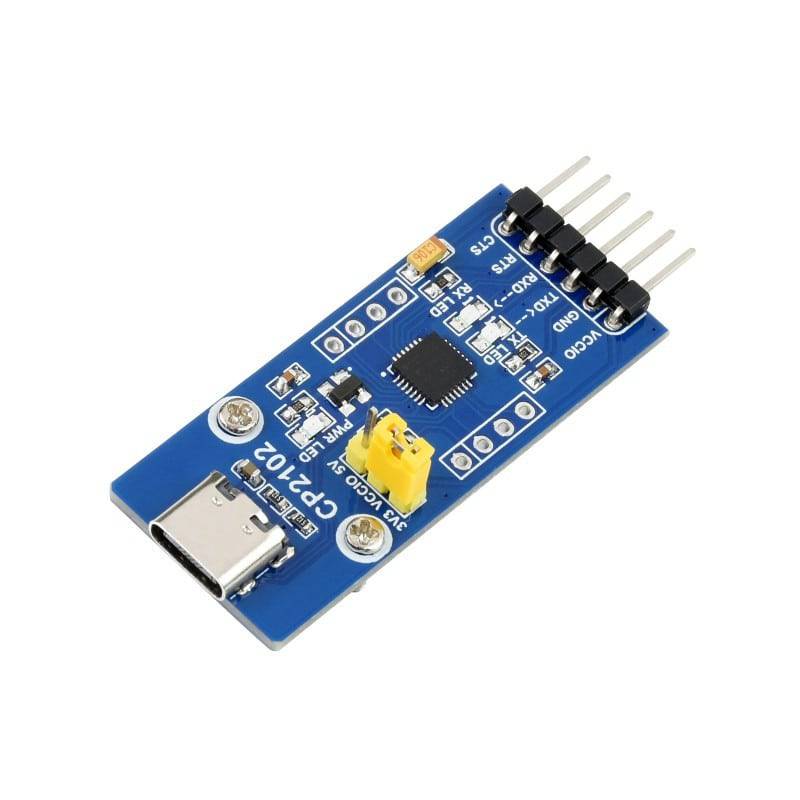

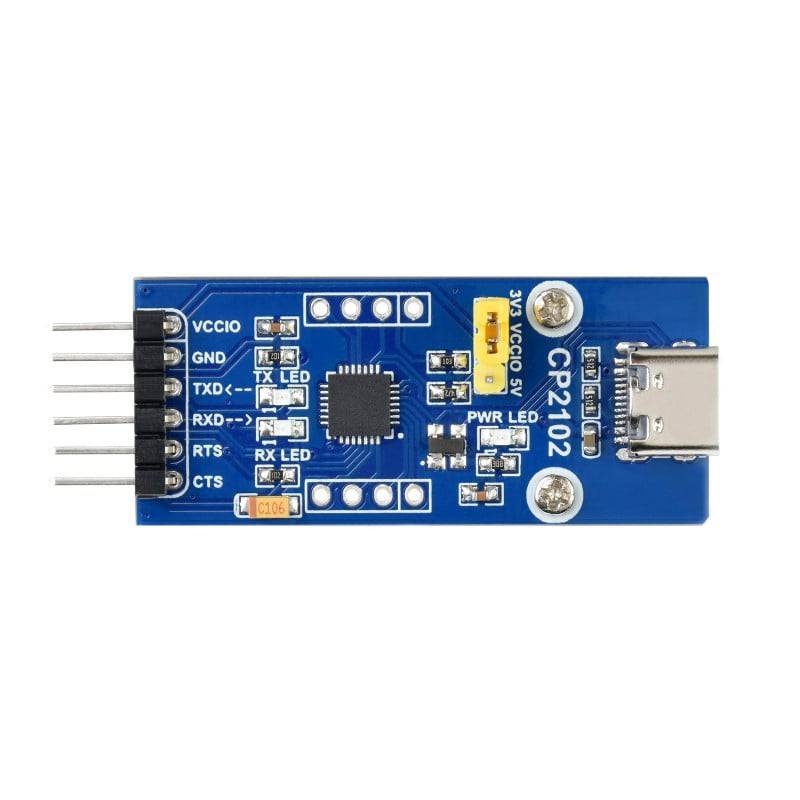

- 3x LED indicators: TXD LED, RXD LED, POWER LED
- Pins accessible on pinheaders: TXD, RXD, RTS, CTS

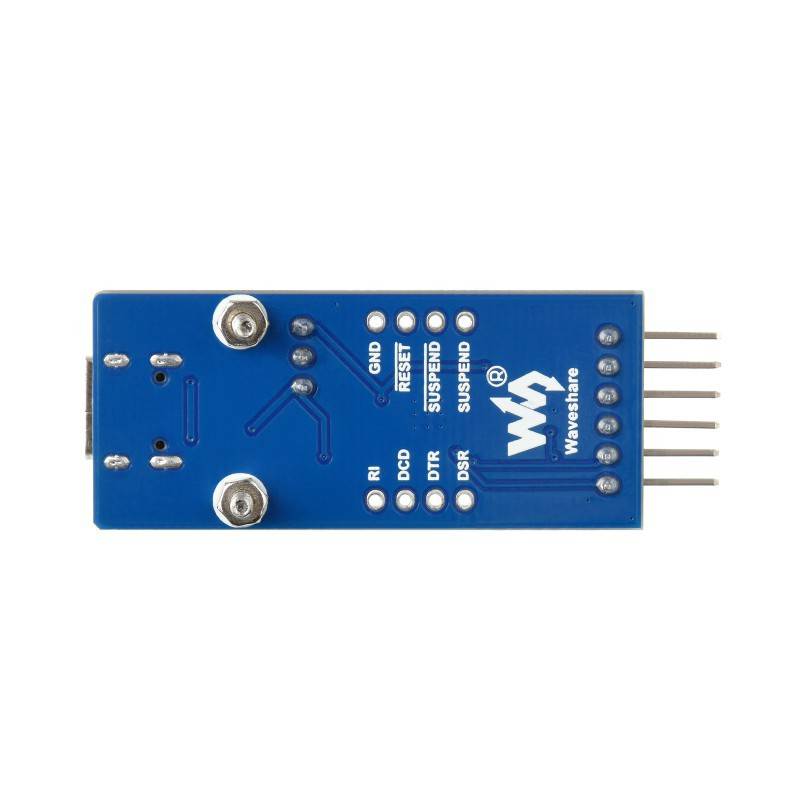

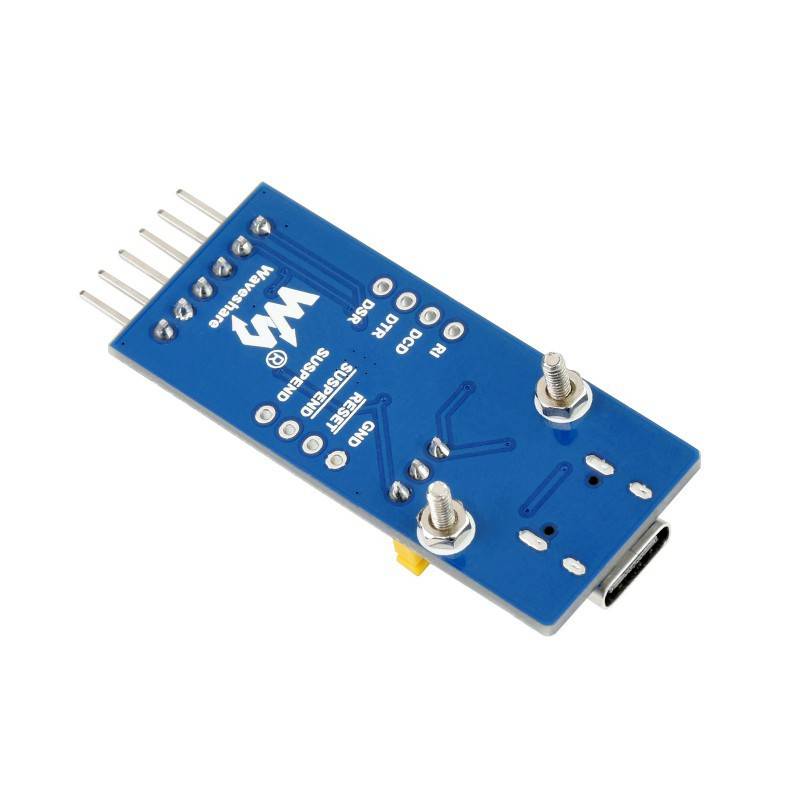

- Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
Description :
CP2102 USB to UART Module, USB type A connector
Features :
- Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11...
- Voltage output support: 5V or 3.3V
- Integrated USB protection device: SP0503
- 3x LED indicators: TXD LED, RXD LED, POWER LED
- Pins accessible on pinheaders: TXD, RXD, RTS, CTS
- Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
CP2102 Solution :
- Single-Chip USB to UART Data Transfer
- No external resistors required, no external crystal required
- On-chip power-on reset circuit and voltage regulator
- Integrated 1024-Byte EEPROM
- USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend state, supported via SUSPEND pins
- UART
- All handshaking and modem interface signals
- Data formats:
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: odd, even, no parity
- Baudrates: 300bps to 1Mbps
- 576 byte receiving buffer; 640 byte transmitting buffer
- Hardware or X-On/X-Off handshaking support
- Event character support
- Virtual COM Port Device Drivers
- Windows 8/7/Vista/Server 2003/XP/2000
- MAC OS-X/OS-9
- Linux 2.40 or higher
- USBXpress Direct Driver Support
- Windows 7/Vista/Server 2003/XP/2000
- Windows CE
- Temperature Range
- –40 to +85 °C

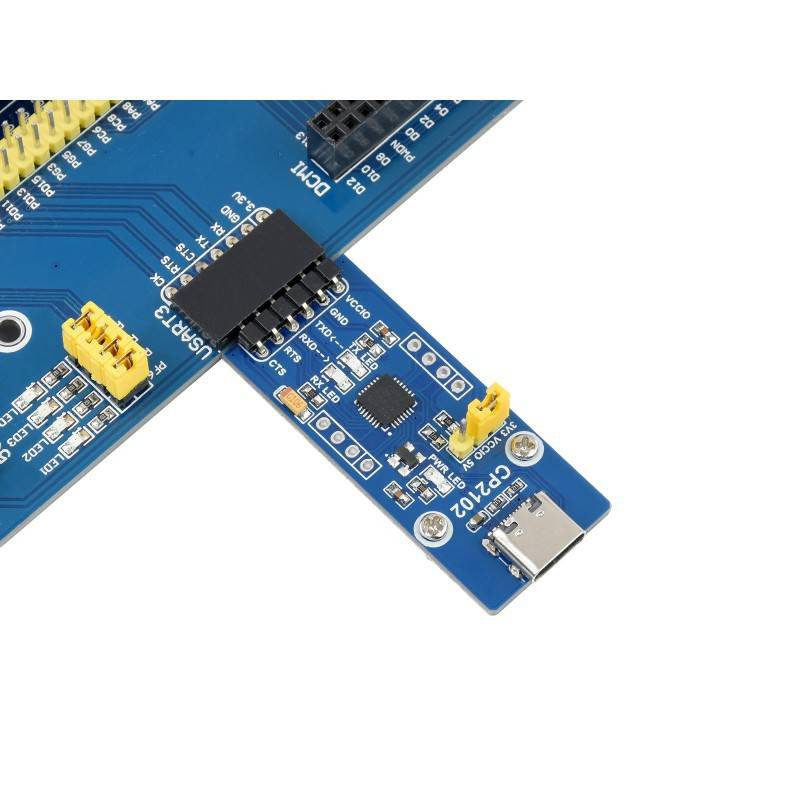

Hardware Connection :
- VCCIO: 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
- GND: connects to GND
- TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
- RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
- RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
- CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)
Package Included :
CP2102 USB UART Board (Type C) x1
6-pin custom connector jumper wire x1
4-pin male pinheader & 4-pin female pinheader x2
