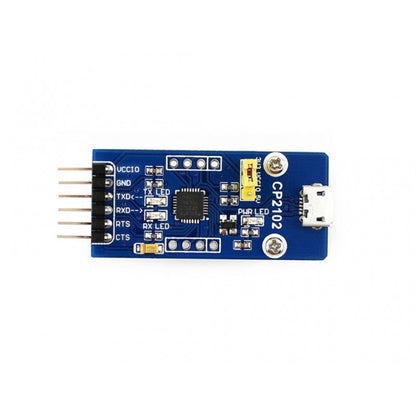

Waveshare CP2102 USB UART Board (Micro-USB) - RS3725

Waveshare CP2102 USB UART Board (Micro-USB) - RS3725

SKU:RS3725

Regular price Rs. 359.00
Regular price Sale price Rs. 359.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Single-Chip USB to UART Data Transfer.
  • Integrated 1024-Byte EEPROM.
  • USB Specification 2.0 compliant; full-speed (12 Mbps).
  • USB suspend states supported via SUSPEND pins.
  • All handshaking and modem interface signals.
  • 576 Byte receive buffer; 640 bytes transmit buffer.
  • Hardware or X-On/X-Off handshaking supported.
  • Virtual COM Port Device Drivers.
  • USB Xpress Direct Driver Support.

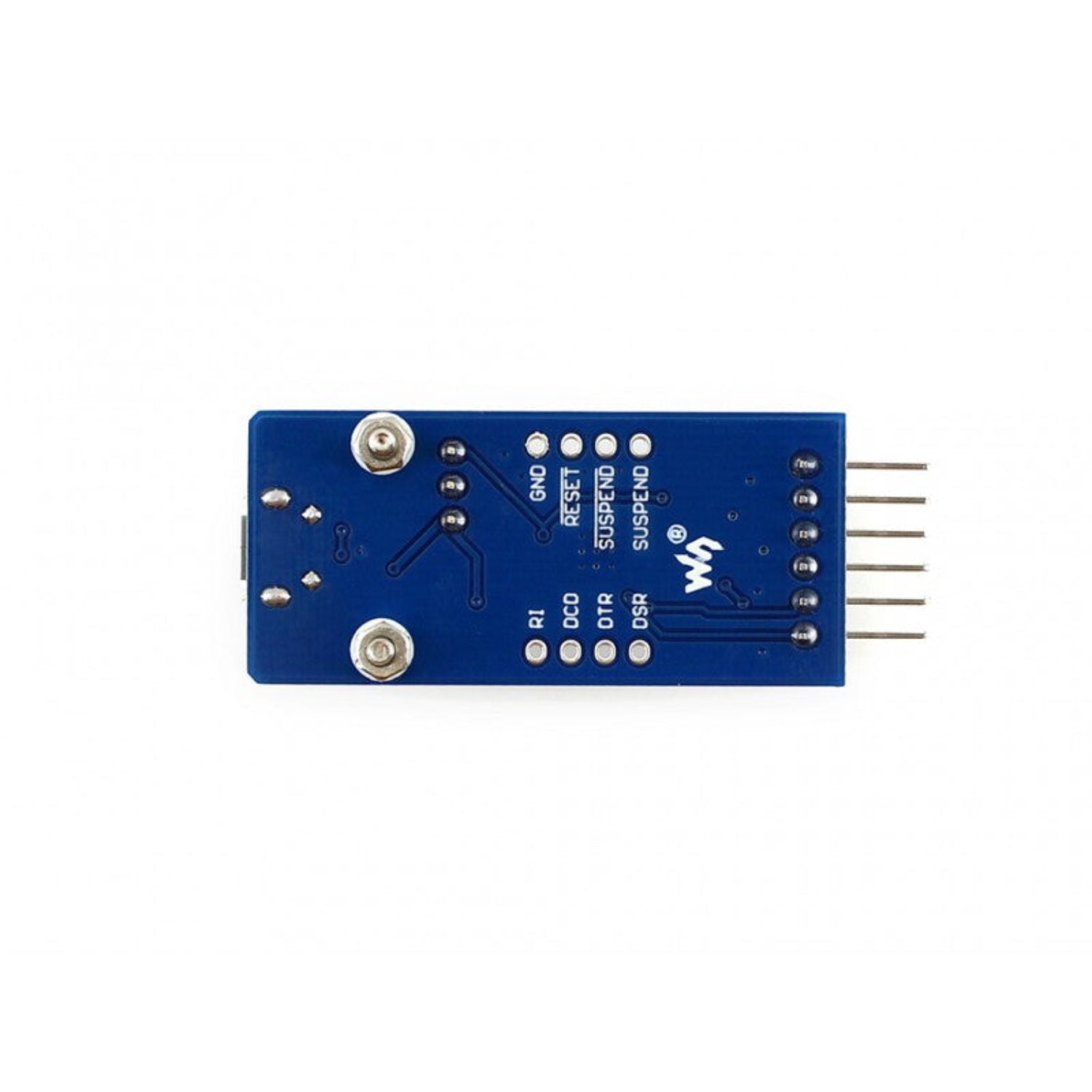

  • Other pins are accessible on drilled holes, easily connected to the user application system (separate pin headers are provided)

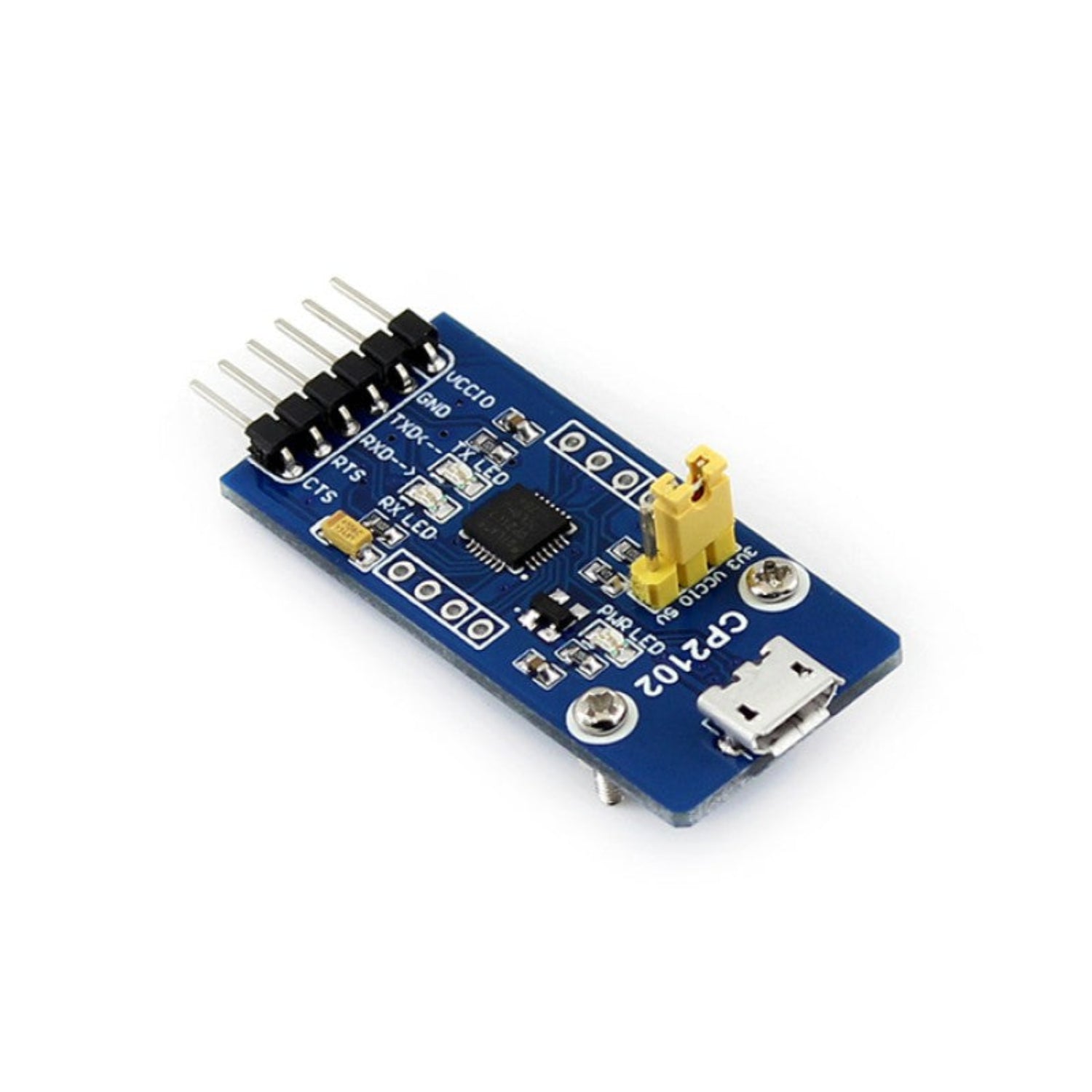

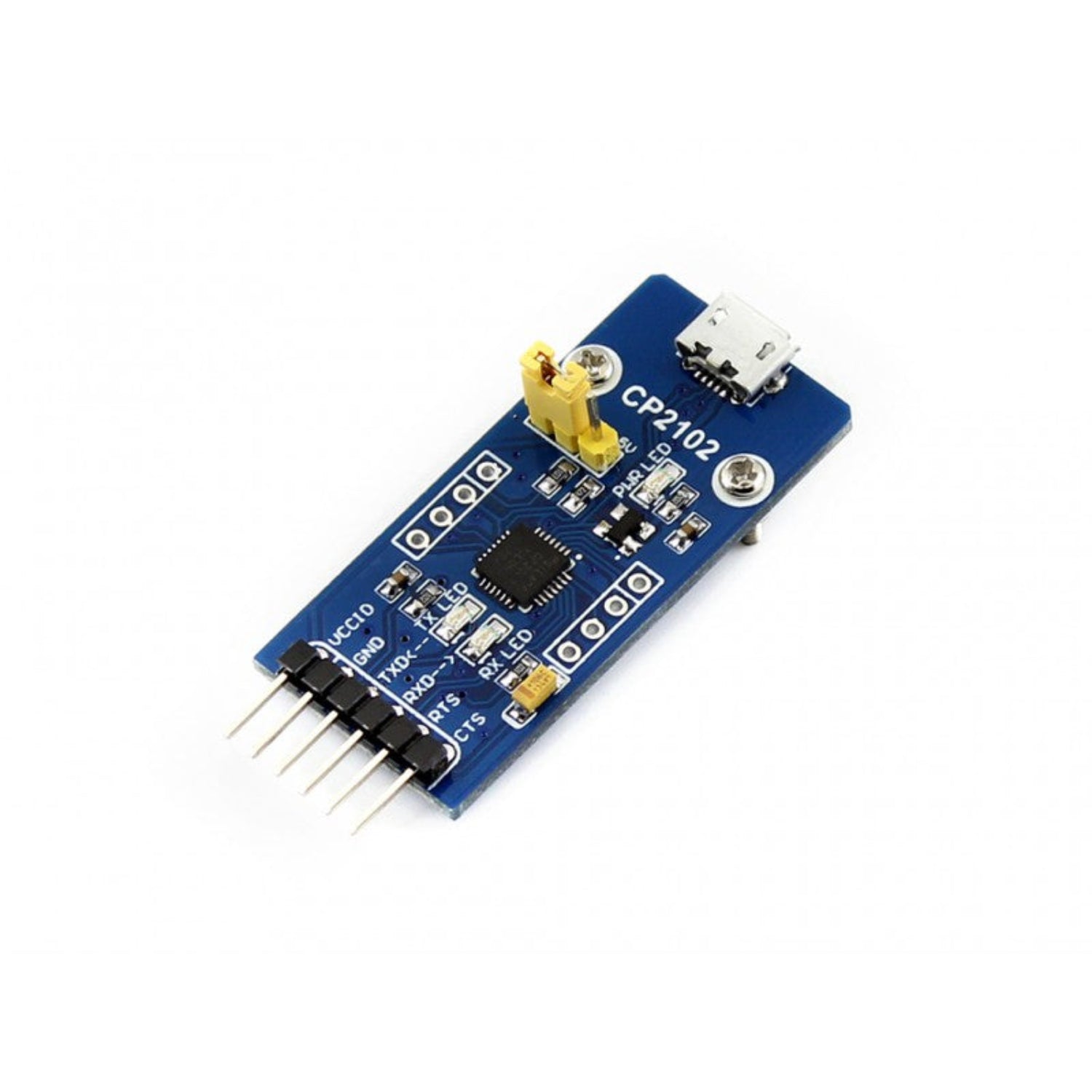

Description :

The CP2102 USB UART Board (micro) is an accessory board that features the single-chip USB to UART bridge CP2102 onboard. It features Single-Chip USB to UART Data Transfer with no external resistors required, no external crystal required and an on-chip power-on reset circuit and voltage regulator.

The USB suspend states supported via SUSPEND pins and UART has all handshaking and modem interface signals.

This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port.

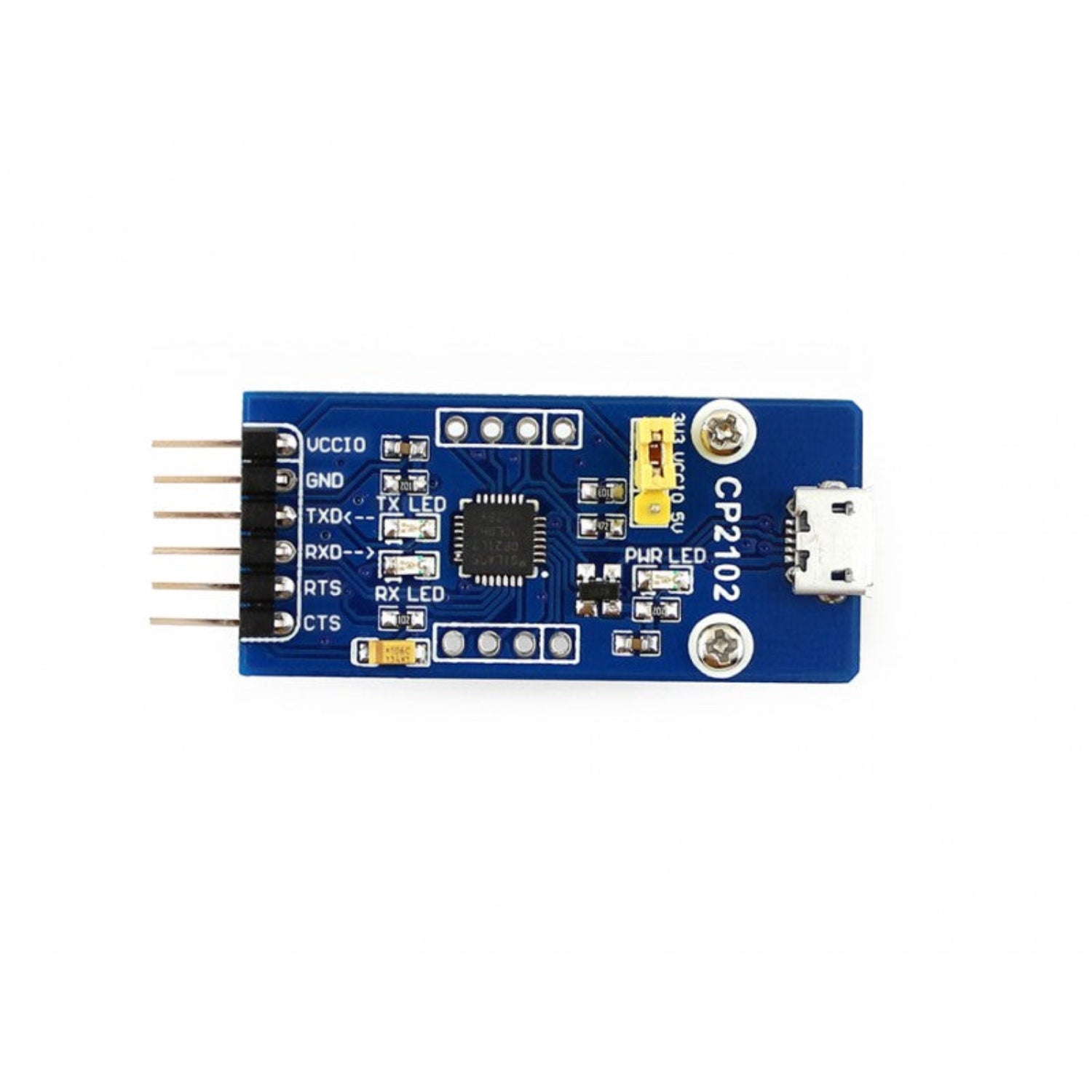

Pin connections of FT232 USB UART Board:

  • VCCIO 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
  • GND GND
  • TXD MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
  • RXD MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
  • RTS MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
  • CTS MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.

Features:

  • Single-Chip USB to UART Data Transfer.
  • Integrated 1024-Byte EEPROM.
  • USB Specification 2.0 compliant; full-speed (12 Mbps).
  • USB suspend states supported via SUSPEND pins.
  • All handshaking and modem interface signals.
  • 576 Byte receive buffer; 640 bytes transmit buffer.
  • Hardware or X-On/X-Off handshaking supported.
  • Virtual COM Port Device Drivers.
  • USB Xpress Direct Driver Support.
  • Other pins are accessible on drilled holes, easily connected to the user application system (separate pin headers are provided)

Specifications :

  • Operating Voltage (VDC) : 3.3 ~ 5
  • Integrated USB protection device : SP0503
  • UART Baudrate : 300 bps to 1 Mbits

Package Included:

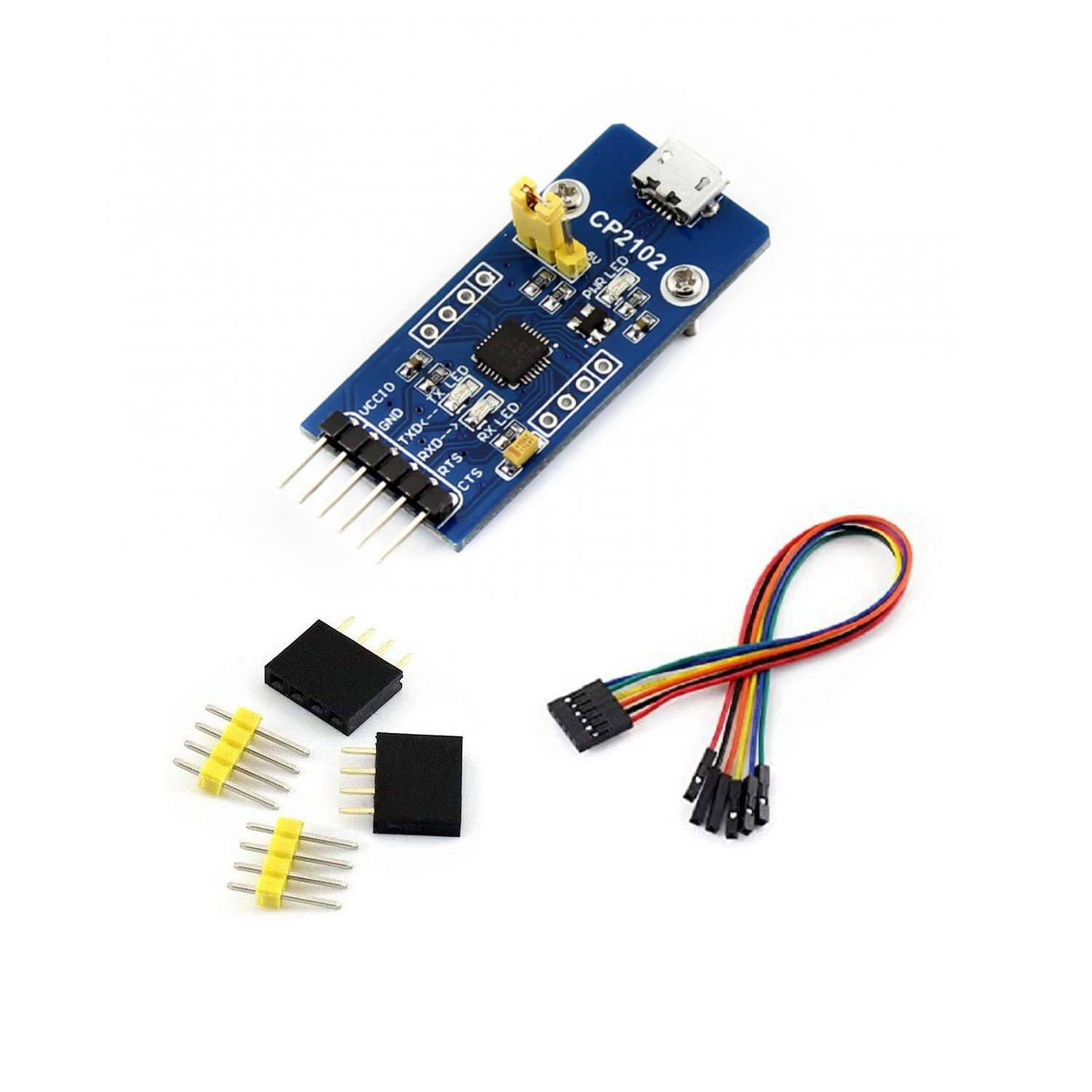

  • 1 x CP2102 USB UART Board (micro)
  • 2 x 4-pin male pin header & 4-pin female pin header
  • 1 x 6-pin custom connector jumper wire
