Waveshare Core1262 LF/HF LoRa Module SX1262-868M Chip LoRa Module Long-Range Core1262 LF/HF Communication Suitable For Sub-GHz Band

Description:

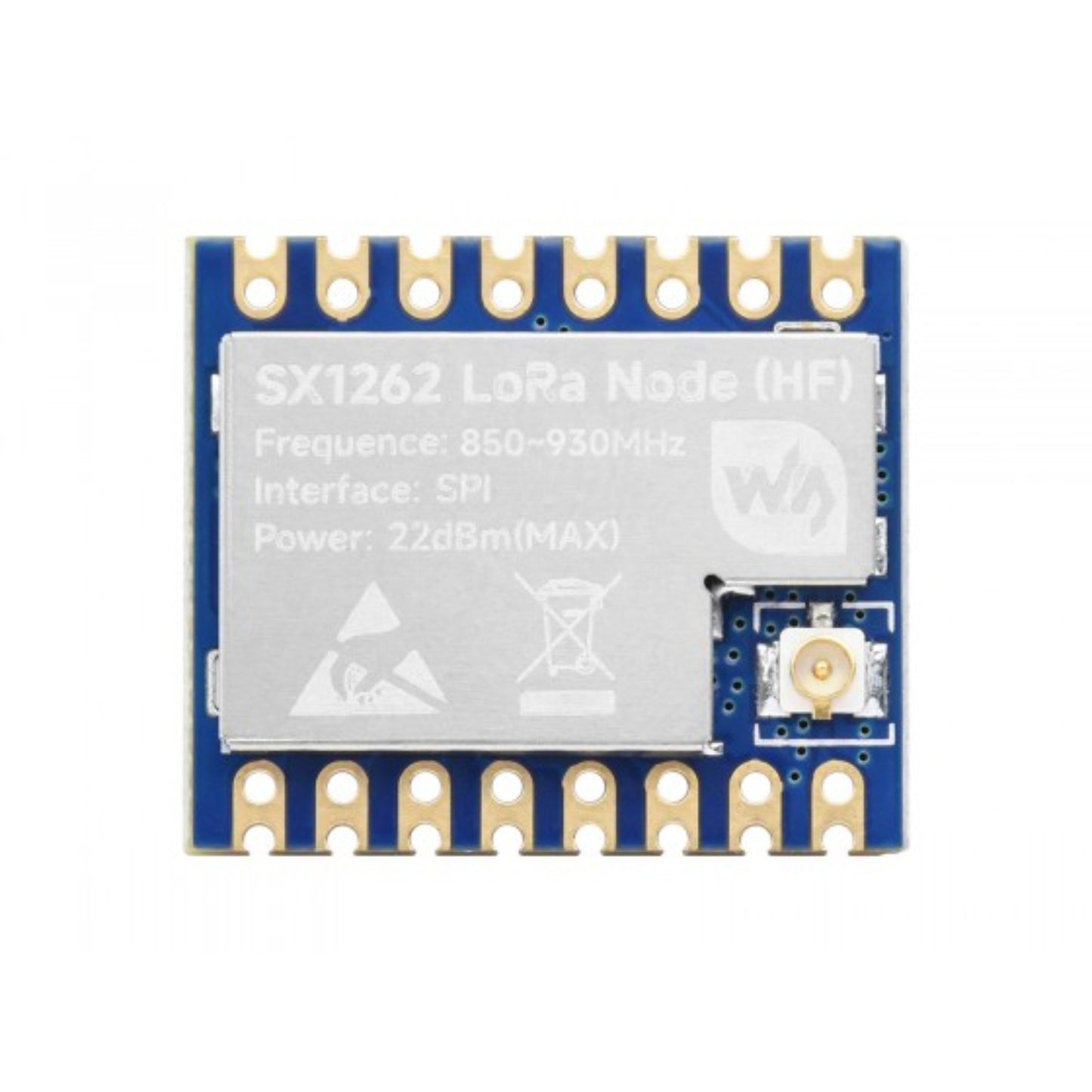

Core1262-868M is a LoRa core module that incorporates a new-generation SX1262 chip. It is mini and features long-range transmission and high anti-interference capability. The module uses the Sub-GHz band, and combined with the LoRa gateway, it can be connected to servers like the TTN server to build the LoRa network.

Specifications:

Features:

• The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
• Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network
• Suitable for application scenarios such as industry, smart home, and data acquisition
• Adopts high-quality components such as TCXO for working stably under harsh conditions
• Comes with development resources and manual (examples for Raspberry Pi Pico/STM32)
• THe New Generation LoRa Spread Spectrum Technology

Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.

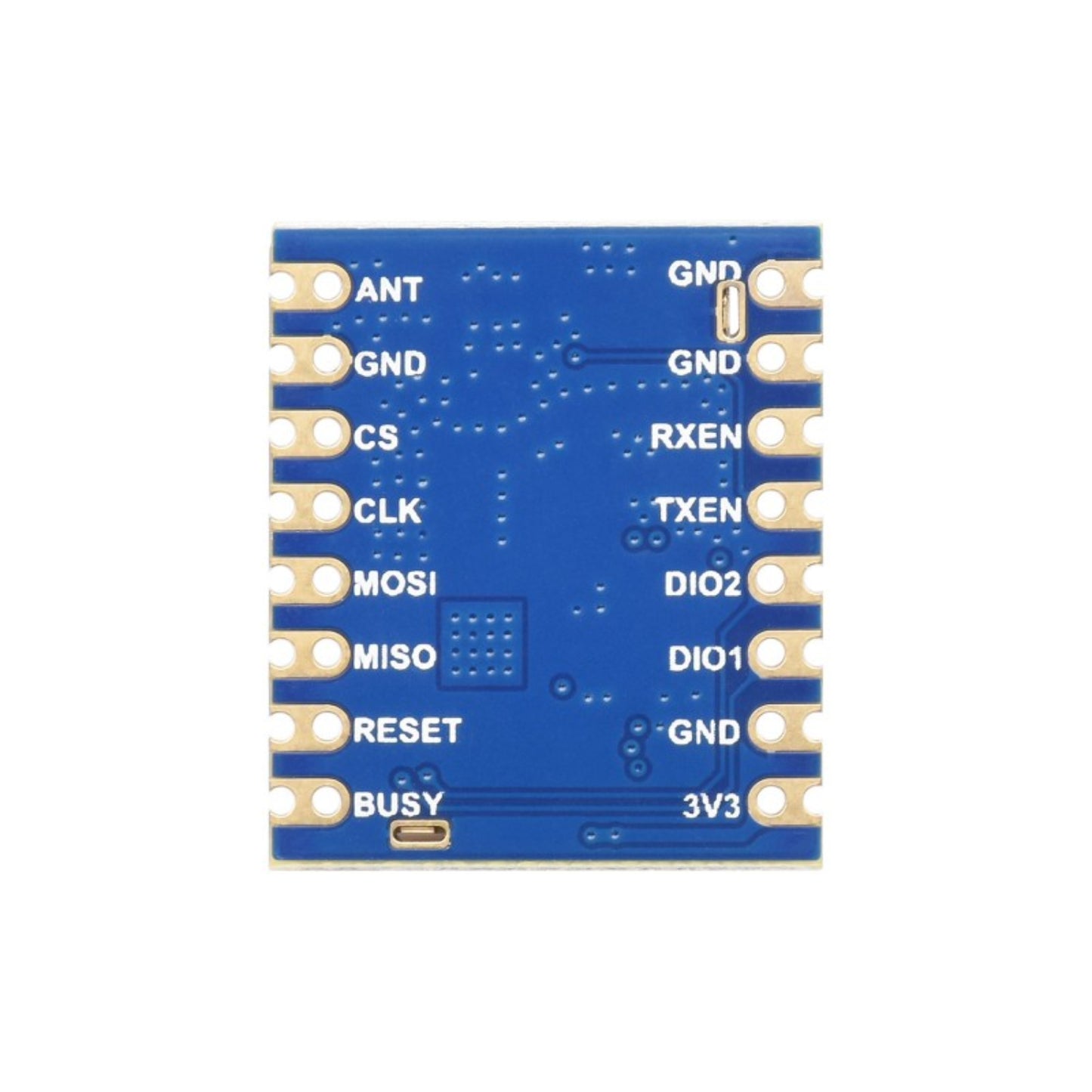

Pin Description:

Useful Links:

• Waveshare Core1262 LF/HF LoRa Module
• SX1261-2
• Schematic diagram
• 3D drawings
• TTS Document Link
• LoRaWAN Document Link
• RTC6603SP-RichWave

Package Included:

1 x Waveshare Core SX1262-868M LoRa Module
