Waveshare Compute Module DSI Interface Converter 22PIN to 15PIN Adapter for High-Speed Display Connectivity on Raspberry Pi CM Series

Waveshare Compute Module DSI Interface Converter 22PIN to 15PIN Adapter for High-Speed Display Connectivity on Raspberry Pi CM Series

In stock

Rs. 207.00
Rs. 207.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

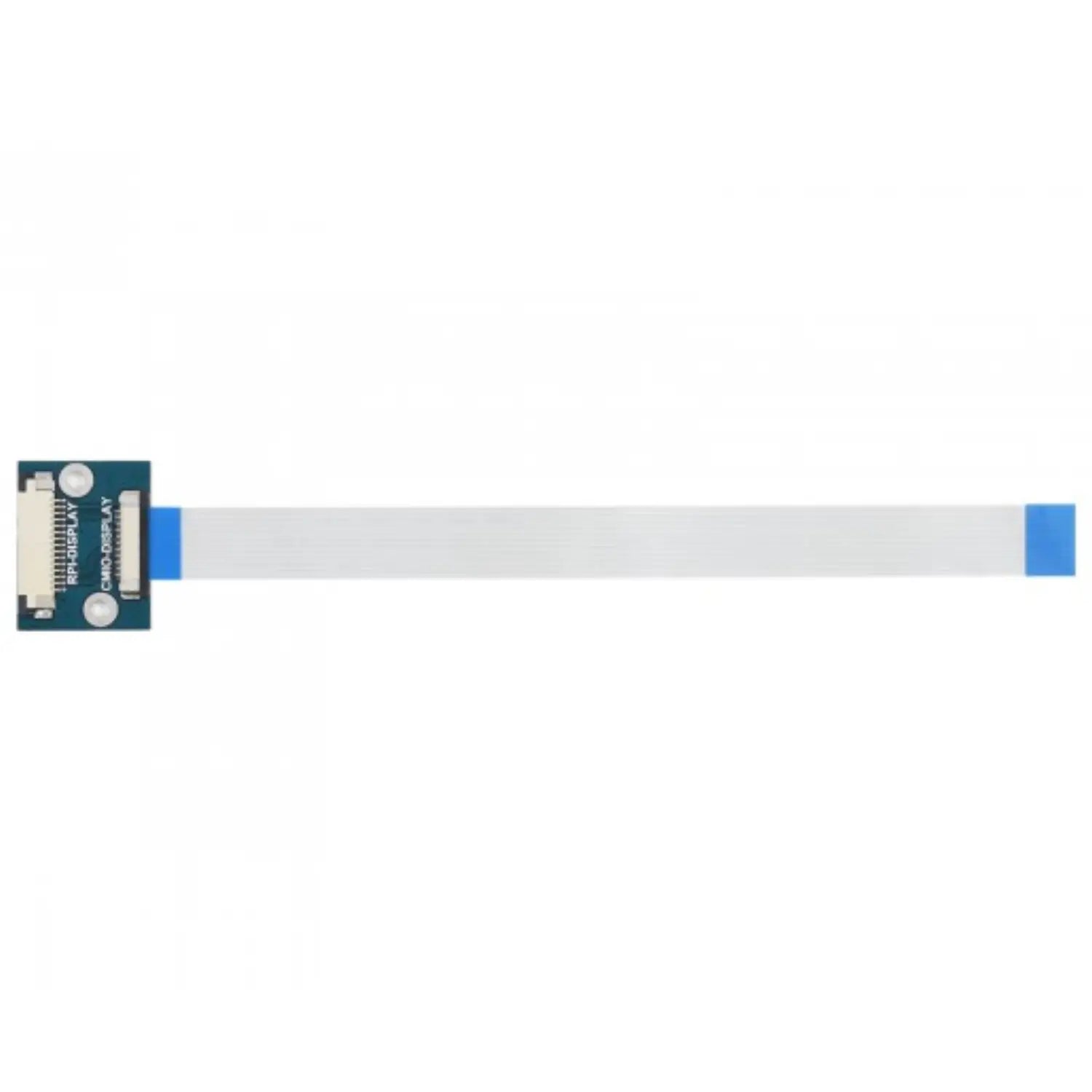

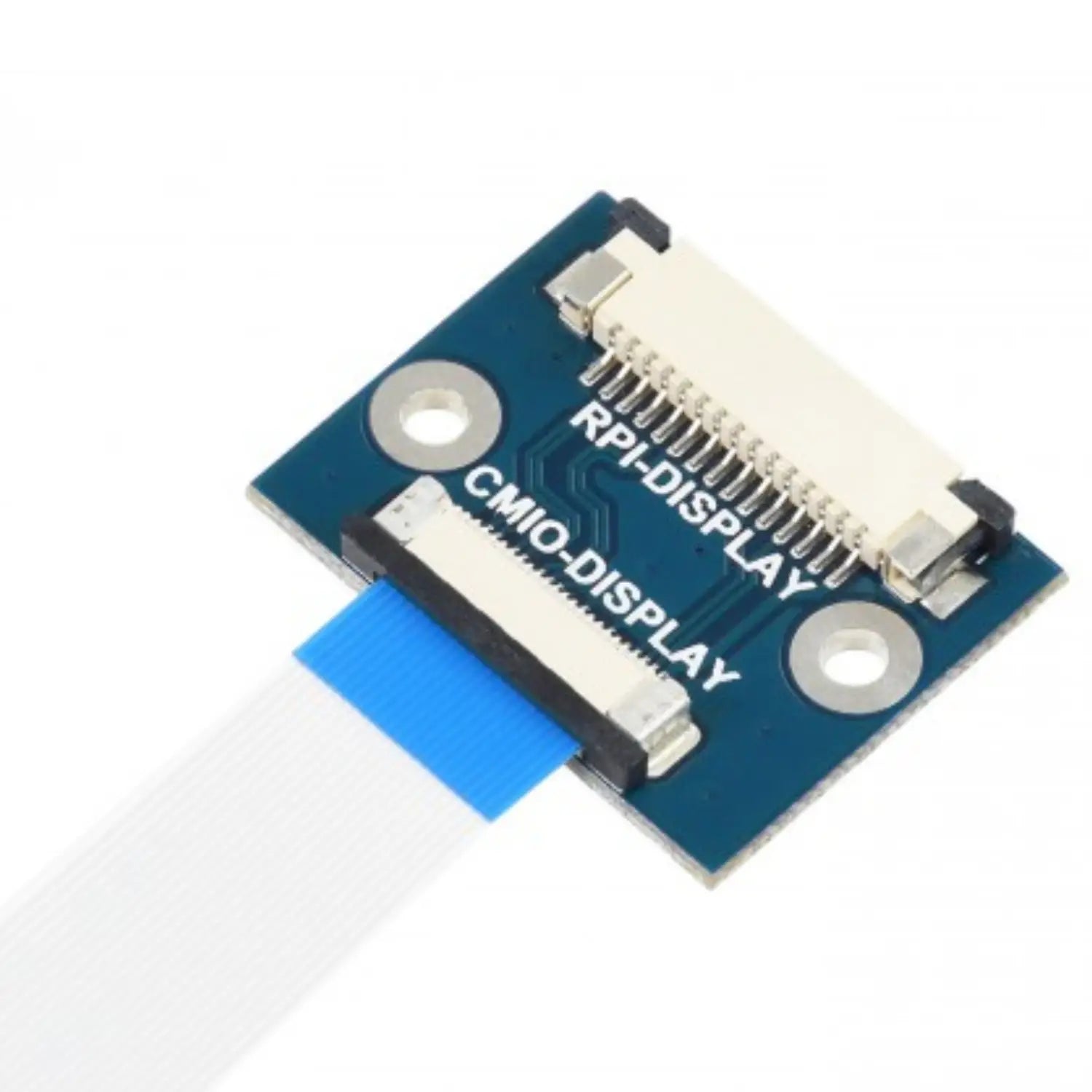

The Waveshare Compute Module DSI Display Adapter (22PIN to 15PIN) is a compact and reliable hardware interface designed to connect Raspberry Pi Compute Modules—such as the CM4—to standard DSI (Display Serial Interface) displays. This adapter bridges the gap between the 22-pin DSI output of the Compute Module and the widely used 15-pin DSI input found on many Raspberry Pi-compatible displays.

Ideal for applications like digital signage, industrial automation, interactive kiosks, and multimedia systems, the adapter ensures seamless high-speed communication between the compute module and display units. It supports essential functions such as power management, backlight control, and optional touchscreen capabilities, depending on display support.

Whether you're a developer building an embedded solution or an engineer prototyping a custom interface, this DSI adapter makes integration straightforward and reliable. Its plug-and-play nature and compatibility with various operating systems make it a go-to accessory for expanding your Raspberry Pi CM4 projects.

Specification:

  • Style: Modern
  • Model Type: Interface Adapter
  • Adapter Type: 22PIN to 15PIN

Features:

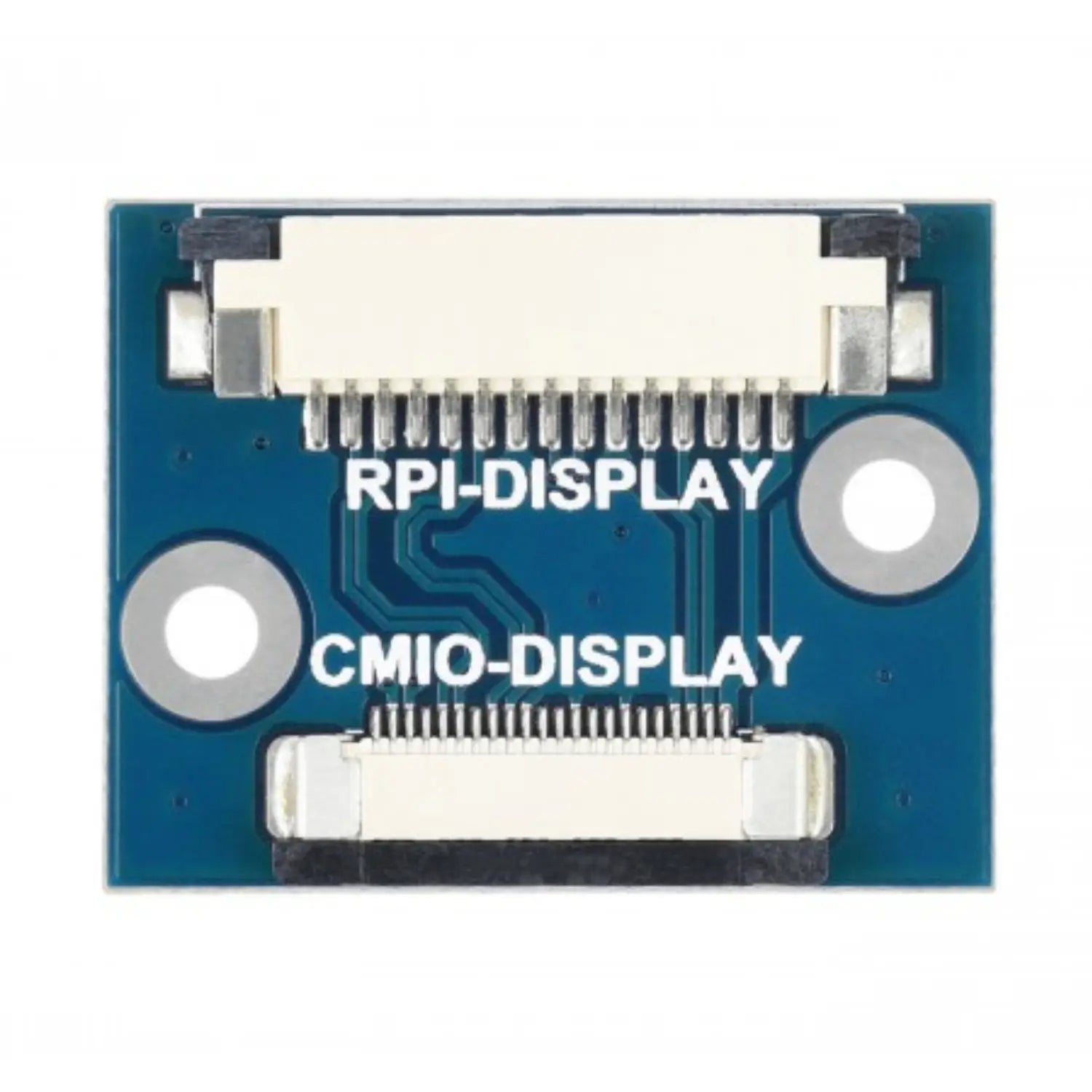

  • 22PIN To 15PIN, Allowing The Compute Module To Use 15PIN DSI Displays
  • Suitable For Compute Module IO Board
  • Connecting With Compute Module IO Board Plus

Connecting with Compute Module 4 IO Board

Connecting with Compute Module IO Board Plus

Package Included:

1 x Waveshare Compute Module DSI Display Adapter
