Waveshare BMM150 3-Axis Magnetometer Sensor Module High-Precision Digital Compass for Magnetic Field Measurement, Arduino & Raspberry Pi Compatible
Waveshare BMM150 3-Axis Magnetometer Sensor Module High-Precision Digital Compass for Magnetic Field Measurement, Arduino & Raspberry Pi Compatible
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The Waveshare BMM150 3-Axis Magnetometer Sensor is a compact, high-precision digital compass module engineered for accurate magnetic field measurement across X, Y, and Z axes. Leveraging advanced magnetoresistive technology, this sensor delivers reliable heading and orientation data, making it ideal for use in navigation systems, augmented reality, robotics, and a wide range of IoT and embedded applications.
Its 3-axis capability allows for precise detection of the Earth's magnetic field in all directions, providing essential data for compass functionality and spatial awareness. With its digital interface and versatile compatibility with platforms like Arduino, Raspberry Pi, and other microcontrollers, the BMM150 is an essential tool for developers building directional sensing, motion tracking, or position-aware systems.
Specification:
- Communication interface: I2C / SPI (I2C bus by default)
- Power supply: 3.3V~5V
- Magnetic measuring range: 1300μt (X, Y axis), 2500μt (Z axis)
- Resolution: 0.3μT
- Operating temperature: -40℃ ~ +85 ℃
- Dimensions: 29 × 20mm
Features:

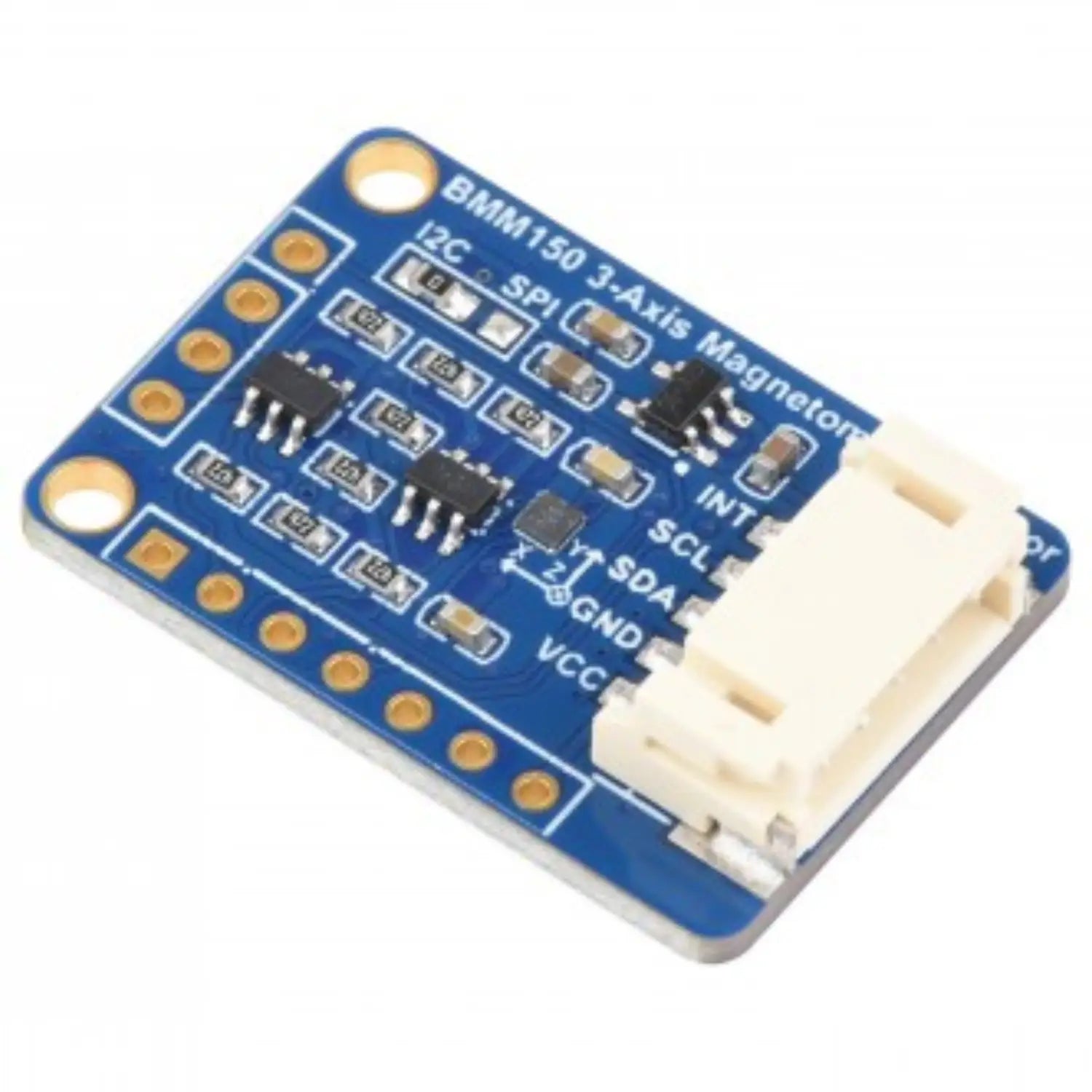

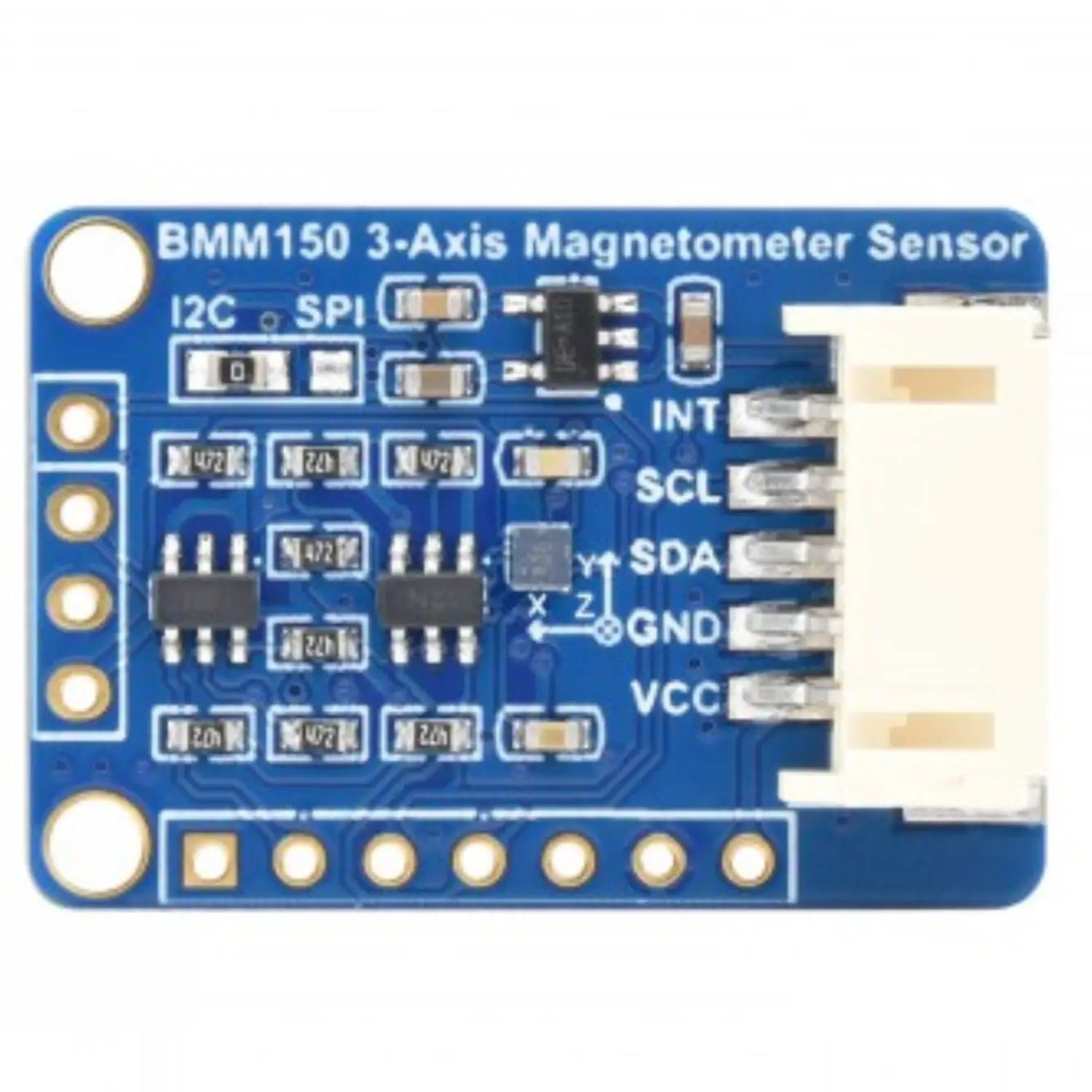

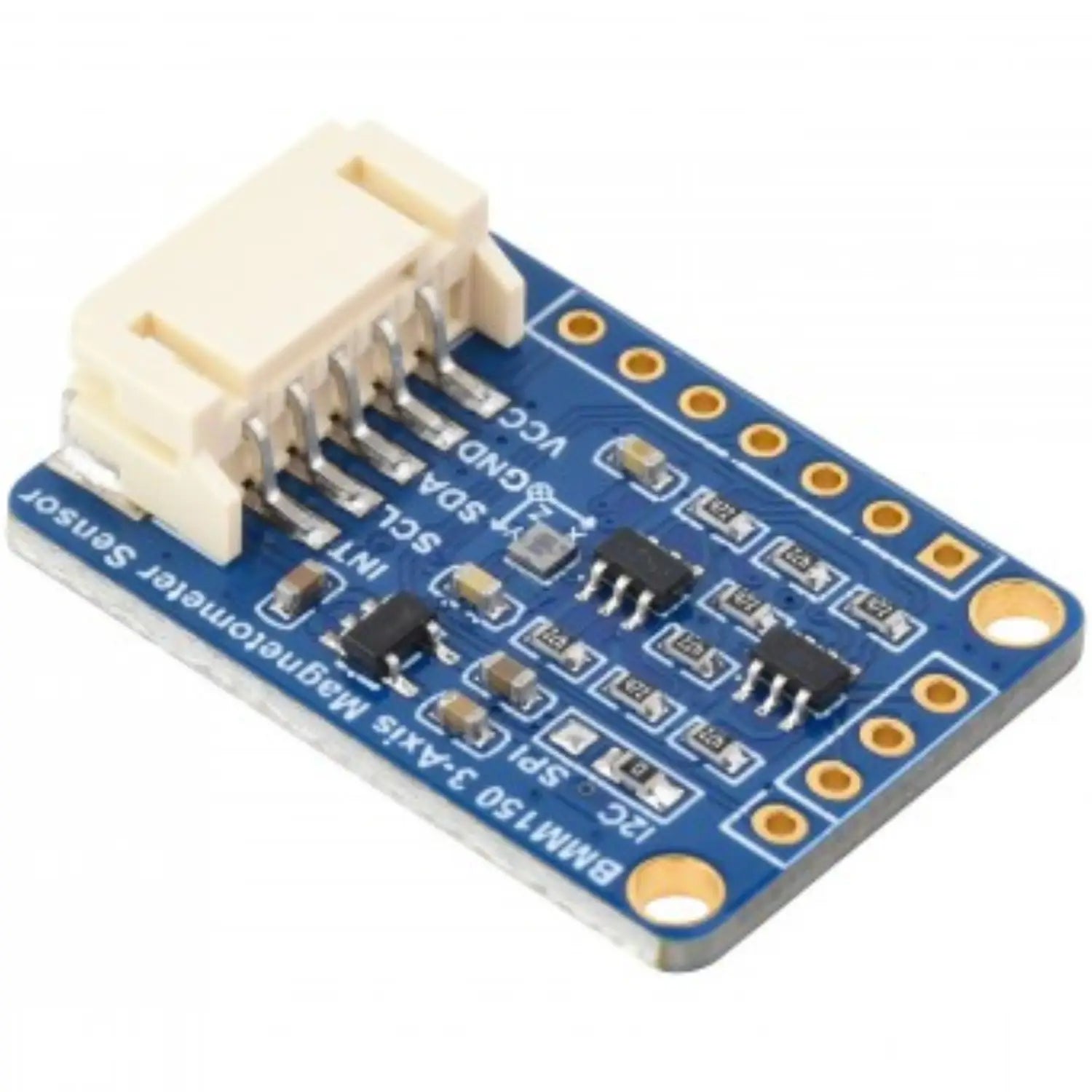

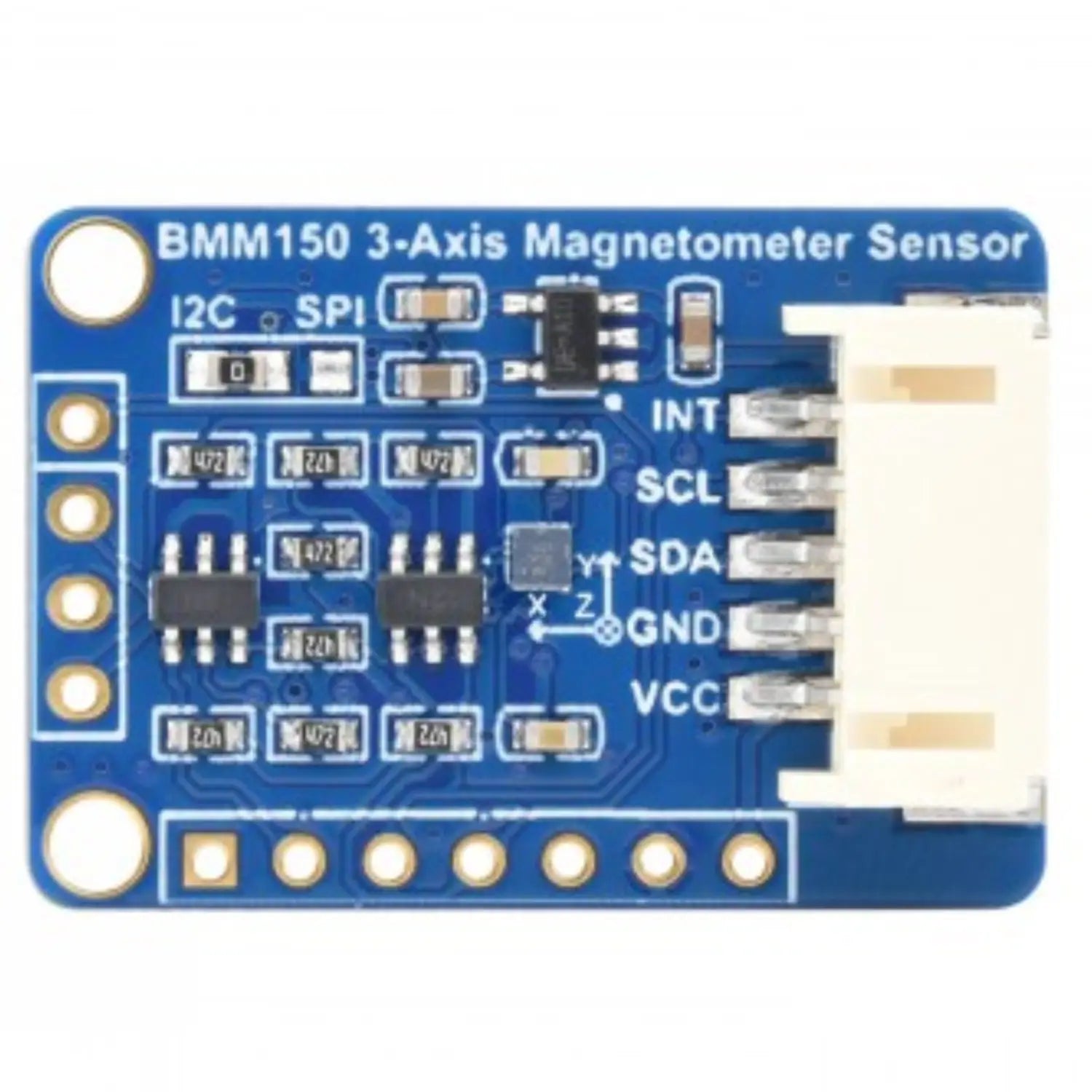

- Onboard BMM150 for measuring the magnetic field in three perpendicular axes
- Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor
- Onboard voltage translator, compatible with 3.3V/5V level
- Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

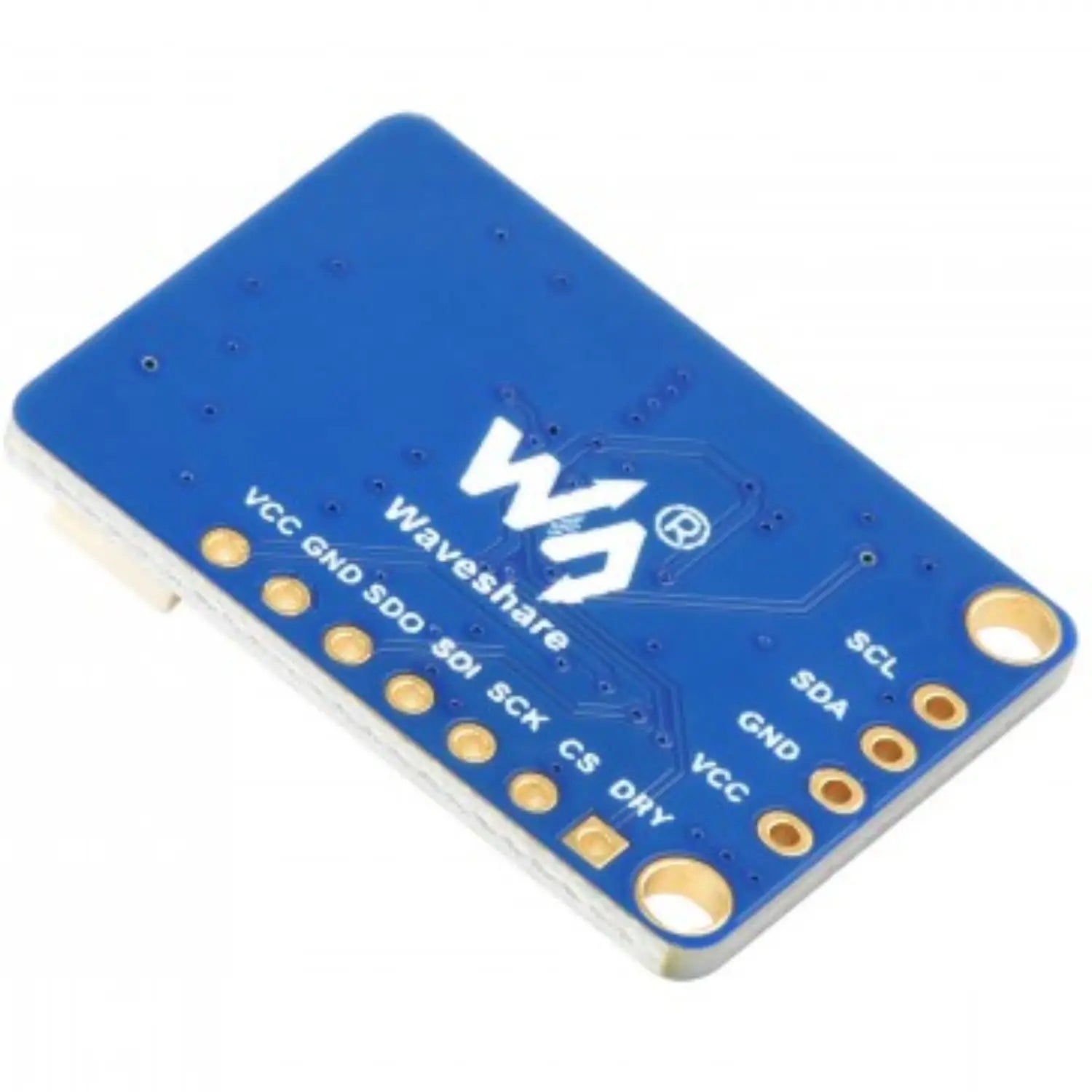

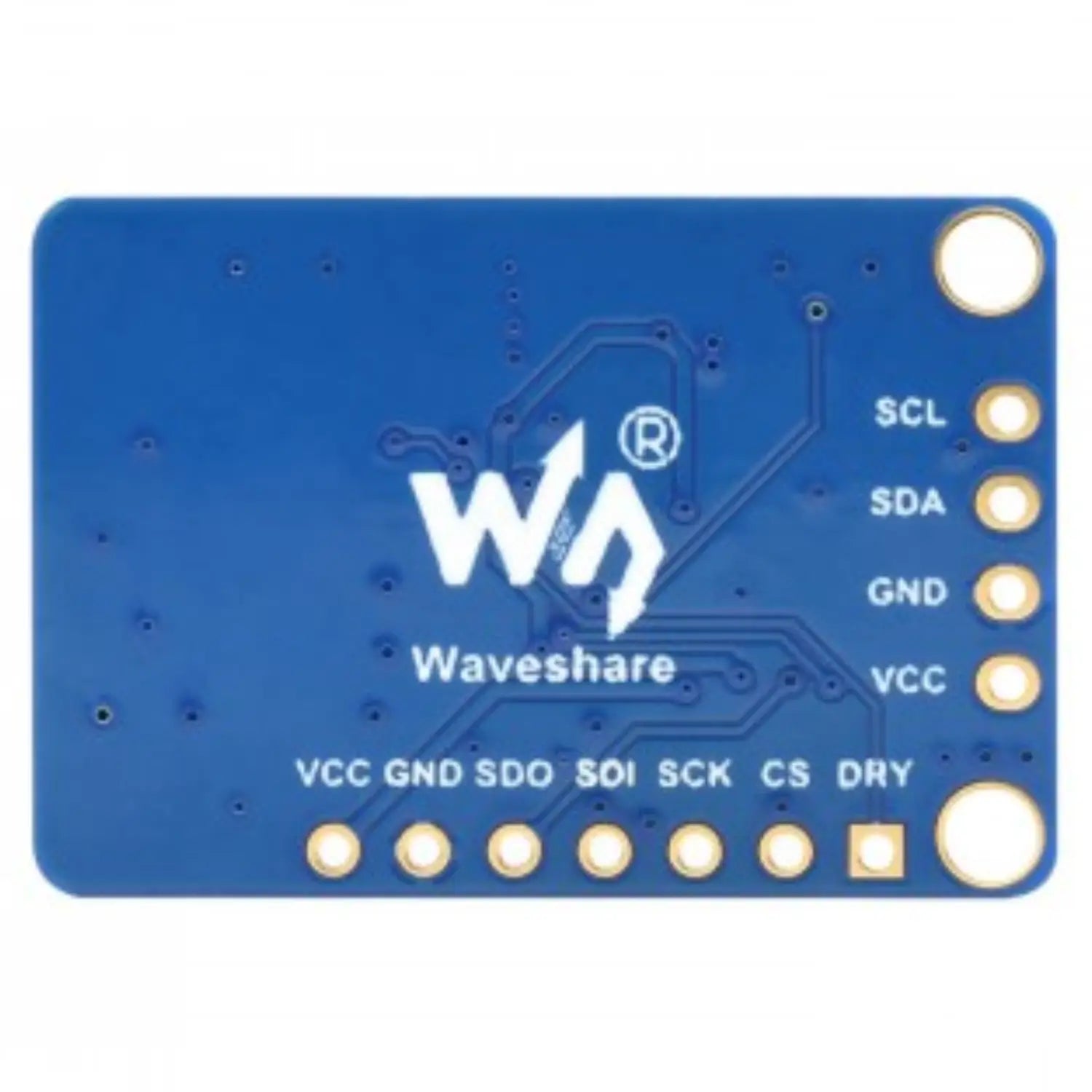

Pin Description:
| PIN | I2C | PIN | SPI |
|---|---|---|---|
| VCC | 3.3V/5V power supply | VCC | 3.3V/5V power supply |
| GND | Ground | GND | Ground |
| SDA | I2C data | SDO | SPI data can be connected to the host MISO |
| SCL | I2C clock | SDI | SPI data can be connected to the host MOSI |
| INT | interrupt output, can be connected to I/O | SCK | SPI clock input |
| CS | Chip selection can be connected to I/O | ||
| DRY | Data sending/receiving ready state, can be connected to I/O |
Useful Link:
Waveshare BMM150 3-Axis Magnetometer Sensor Module
Package Included:
- 1 x BMM150 3-Axis Magnetometer Sensor
- 1 x PH2.0 5PIN cable
