Description:

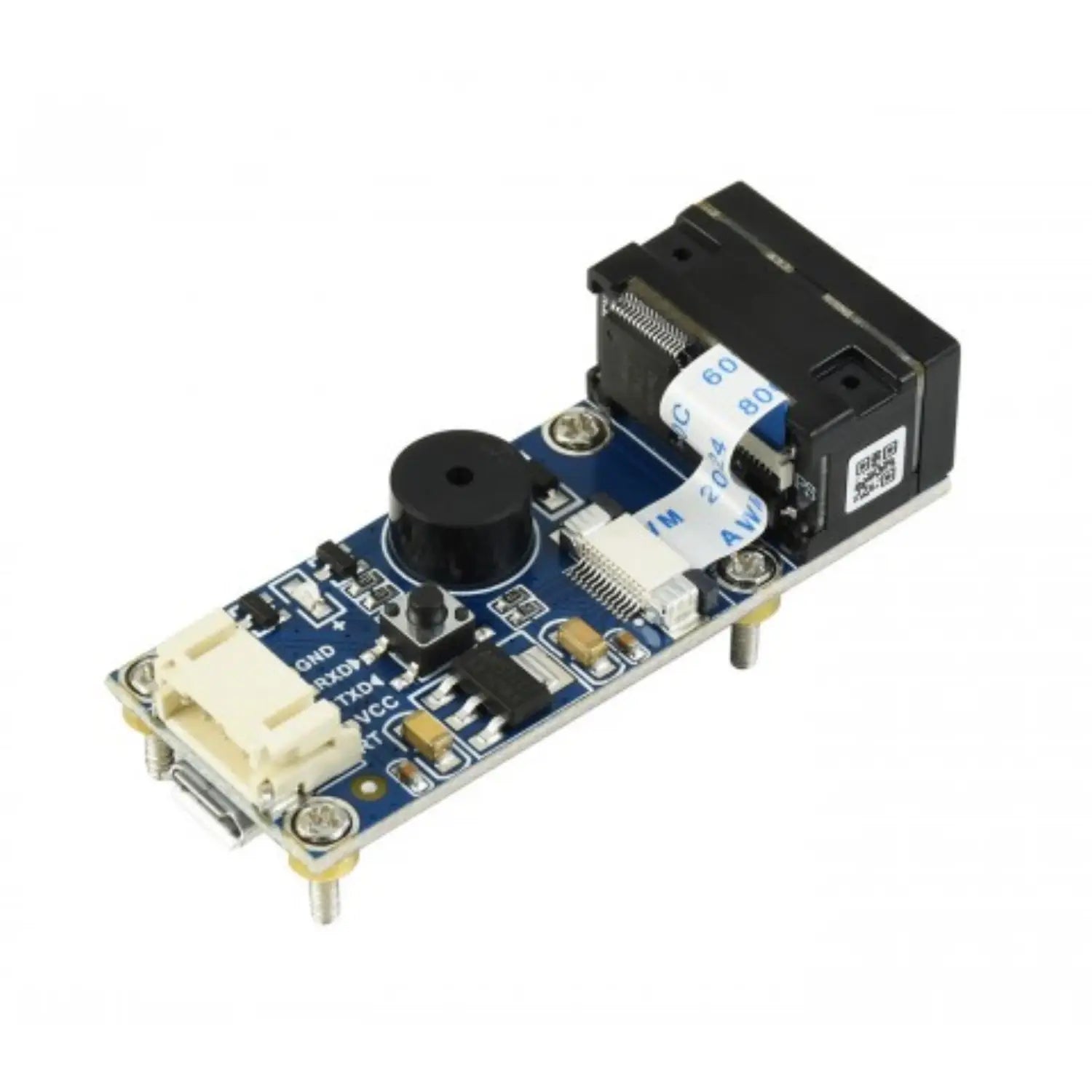

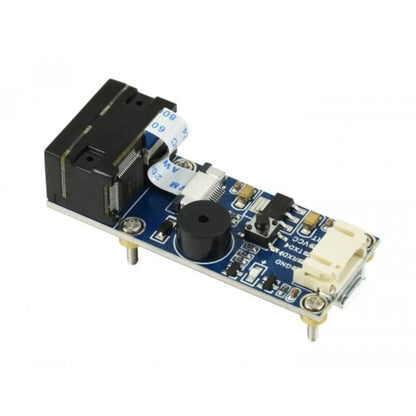

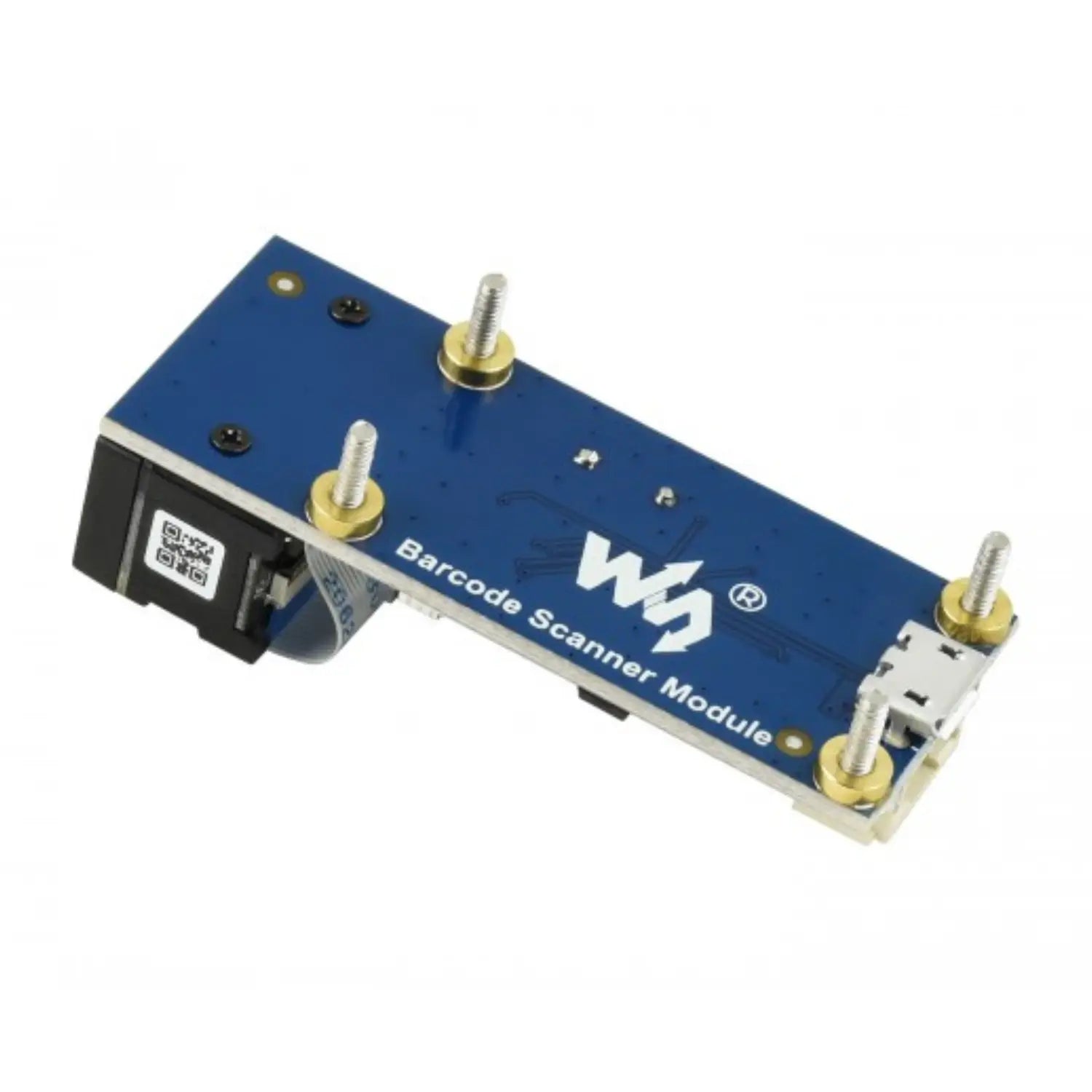

Designed for seamless use, this module features both onboard USB and UART interfaces. This means you can directly plug it into a computer for immediate use, or easily integrate it into a wide range of devices thanks to its small form factor. It's the ideal solution for adding robust barcode reading capabilities to your projects or products.
Specification:
- Operating voltage: 5V
- Operating current: 210mA (scanning), ≤25mA (standby), 2mA (sleep)
- Operating temperature: -20°C~60°C
- Operating humidity: 5%~95% (Non-condensing)
- Communication interface: UART, USB
- Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
- Decodes 2D codes: QR code, Data Matrix, PDF417
- Light source: white
- Scan angels: roll 360°, skew ±65°, pitch ±60°
- Resolution: 640 (horizontal) × 980 (vertical)
- Field of view: 42° (horizontal), 32° (vertical)
- Dimension: 53.3mm x 21.4mm
Features:
- Easy to use, requires no knowledge of image recognition
- Decodes various common 1D/2D codes such as Barcodes, QR codes, etc.
- Onboard micro USB and UART serial ports allow connection with computers or embedded devices
- Configurable via scanning the 'configuration code'
- The onboard light source works in the dark

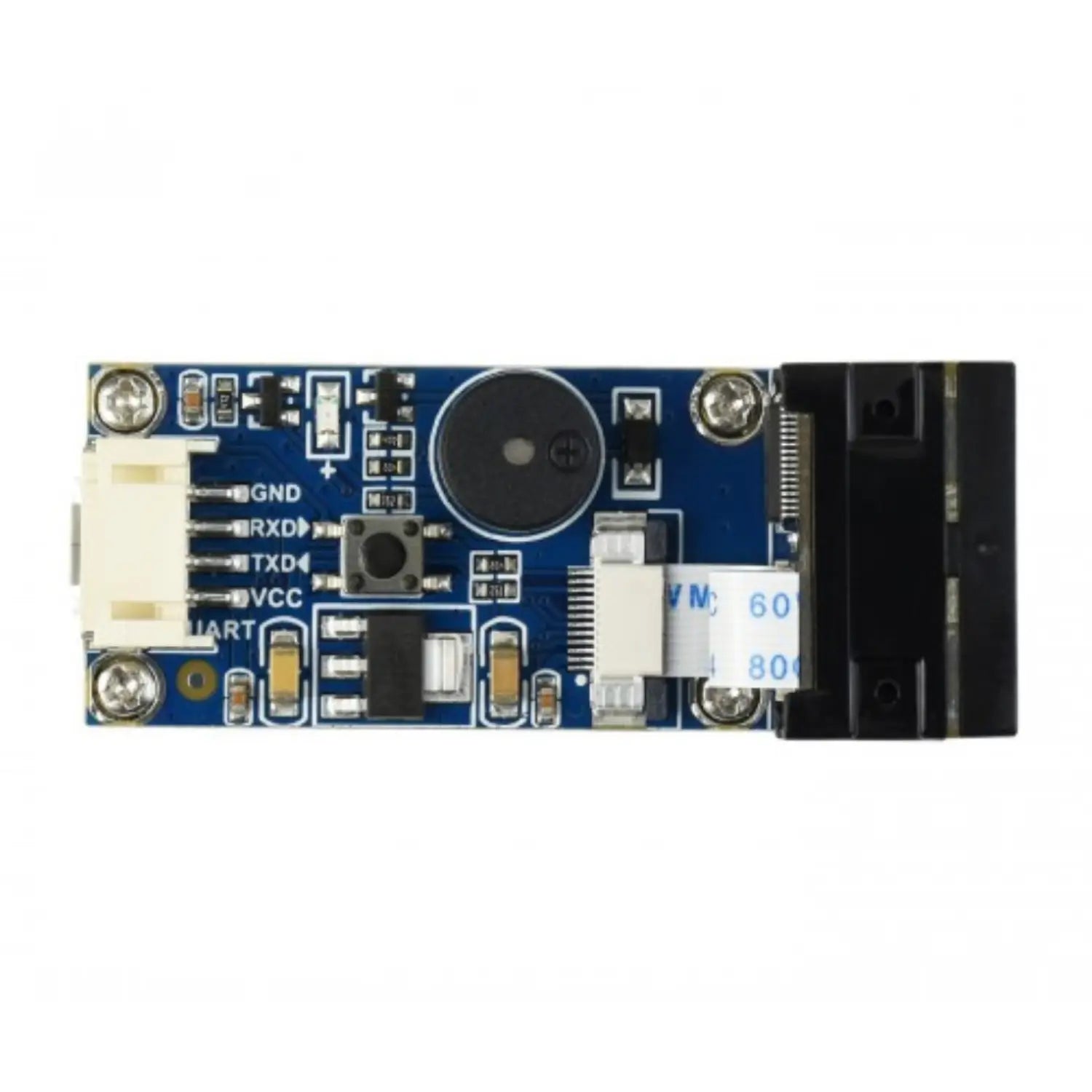

Product Interface:
Useful Link:
Waveshare Barcode Scanner Module
Package Included:
- 1 x Barcode Scanner Module
- 1 x USB Type A plug to micro B plug cable
- 1 x PH2.0 4Pin
