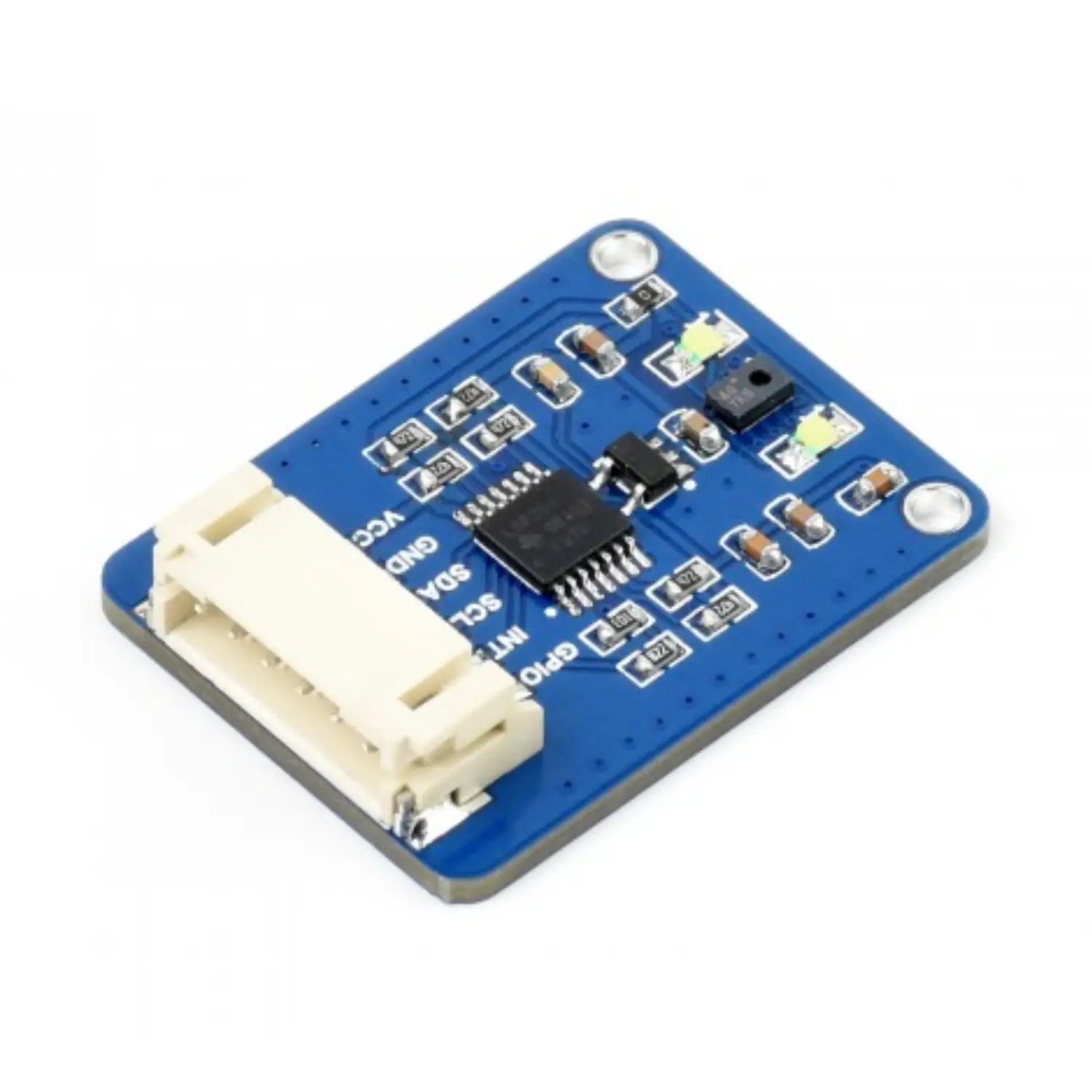

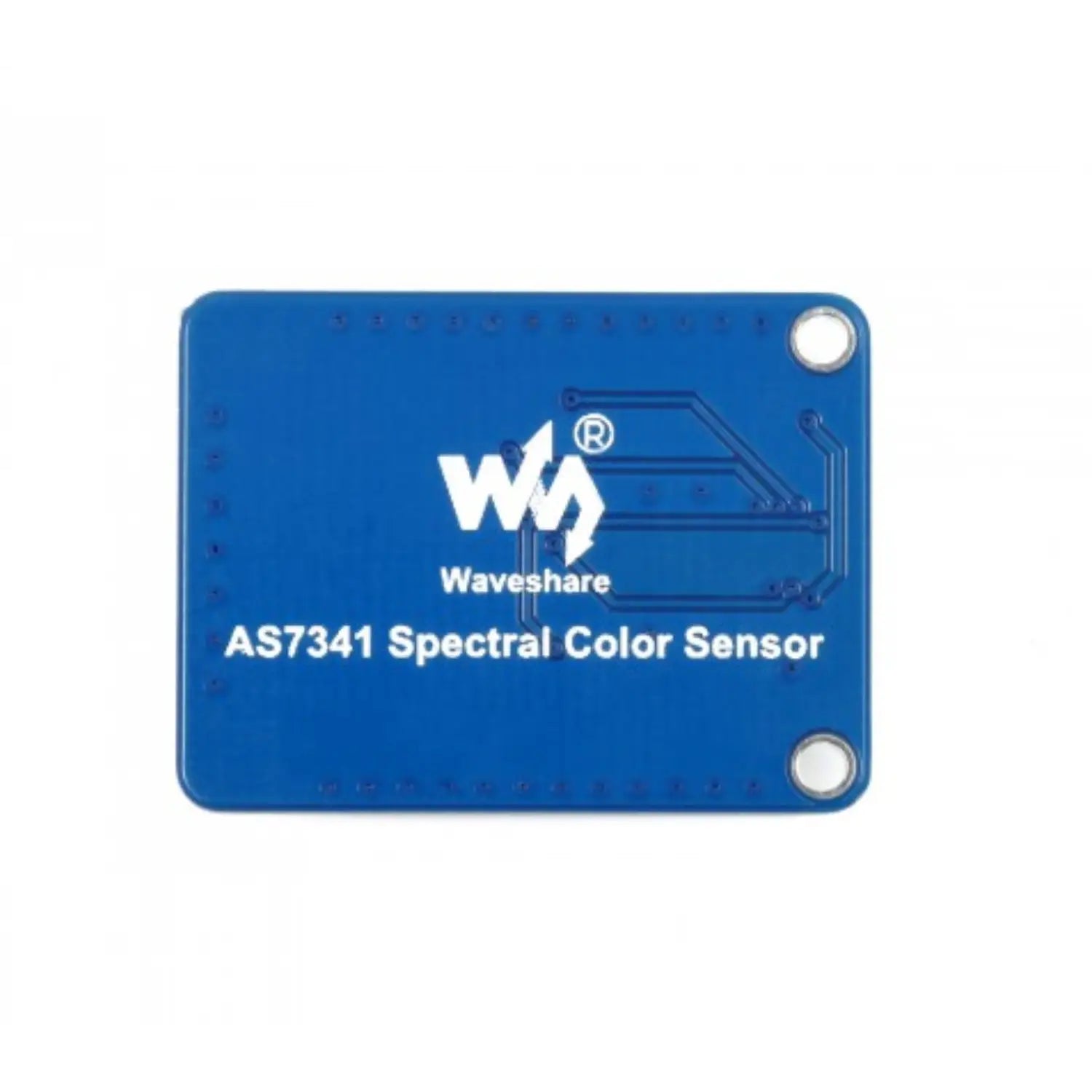

Waveshare AS7341 Visible Spectrum Color Sensor, Multi-Channel High Precision Spectral Analysis Module with I2C Support

Waveshare AS7341 Visible Spectrum Color Sensor, Multi-Channel High Precision Spectral Analysis Module with I2C Support

In stock

Rs. 1,774.00
Rs. 1,774.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Waveshare AS7341 Spectral Color Sensor Module is a high-precision, multi-channel visible spectrum sensor designed for advanced light and color measurement applications. Based on the powerful AS7341 chip, this module features 8 individual visible spectrum channels, 1 near-infrared (NIR) channel, and 1 clear (unfiltered) channel, making it ideal for projects that require accurate spectral analysis.

Equipped with 6 independent 16-bit ADCs, the sensor enables simultaneous, parallel data processing for faster and more efficient readings. Its I2C interface ensures easy integration with a wide range of microcontrollers and platforms, including Arduino, Raspberry Pi, STM32, and other development boards.

Whether you're building a portable spectrometer, conducting color calibration, or exploring scientific sensing, the Waveshare AS7341 offers reliable performance and rich spectral data in a compact form factor.

Specification:

  • Model Type: Spectral Sensor
  • OperatingVoltage: 3.3V to 5V
  • OperatingCurrent: 20mA to 70mA
  • Sensor: AS7341
  • LogicalVoltage: 3.3V/5V
  • Interface: I2C

Hardware connection:

Connecting with Raspberry Pi

Connecting with the Arduino board

Demonstration

Features:

  • Incorporates AS7341 chip, which integrates 8x visible spectrum channels, 1x near infrared channel, and 1x no filter channel
  • Embedded 6x independent 16-bit ADC, allowing for effective processing of data in parallel
  • A dedicated channel to detect ambient light flicker at a specific frequency
  • 2x high brightness LEDs, can be used as fill light in a dim environment
  • Interrupt pin to output the inner ADC real-time operating status
  • Features spectrum interrupt detection, with programmable high/low thresholds
  • Provides a general-purpose input/output GPIO pin
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

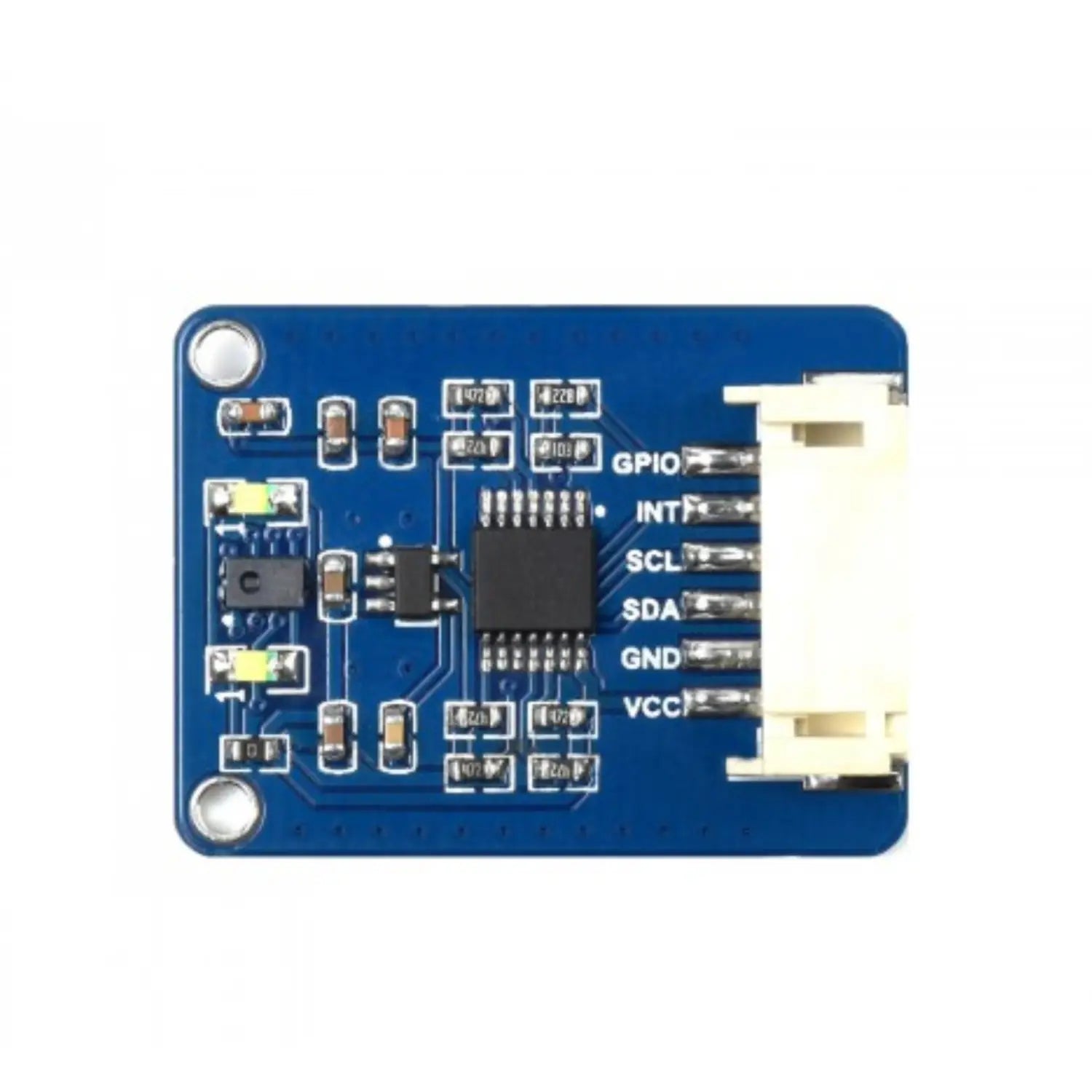

Pin Description:

  • VCC: 3.3V/5V power input
  • GND: GND
  • SDA: connects to the MCU I2C data pin
  • SCL: connects to the MCU I2C clock pin
  • INT: interrupt output
  • GPIO: general purpose input/output

Useful Link:

Waveshare AS7341 Visible Spectrum Color Sensor

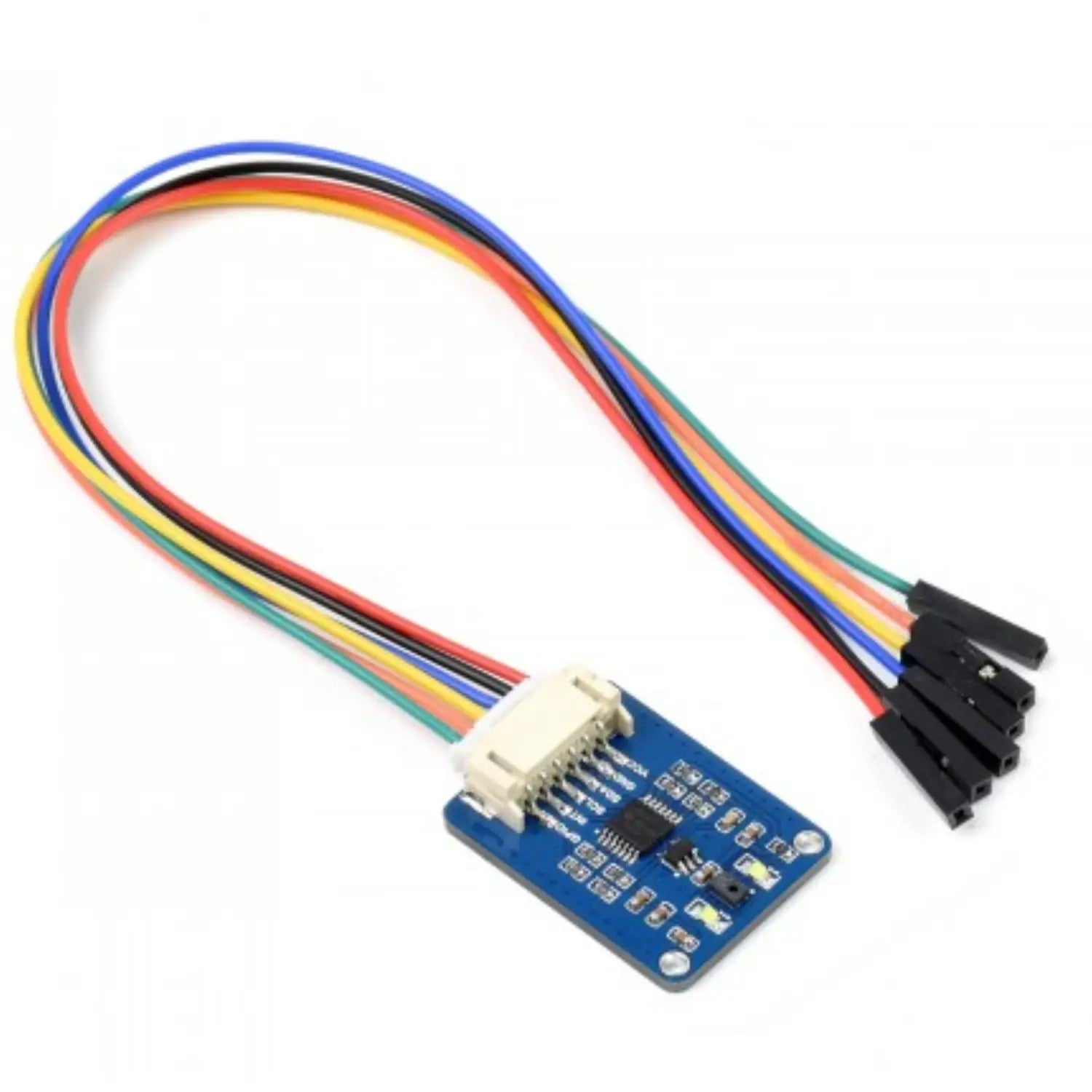

Package Includes:

  • 1 x AS7341 Spectral Color Sensor
  • 1 x PH2.0 6PIN wire 20cm
