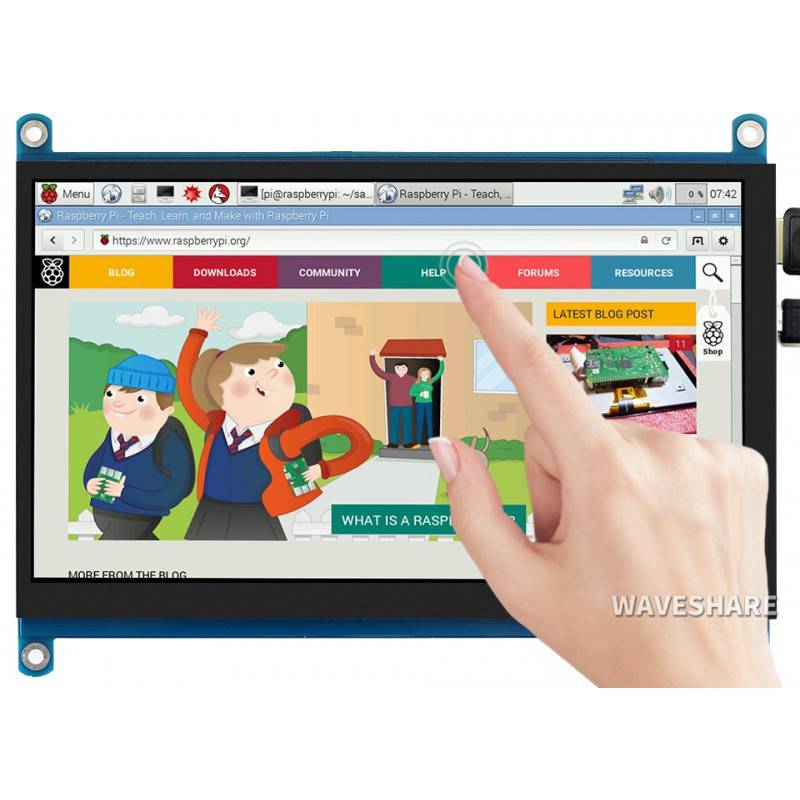

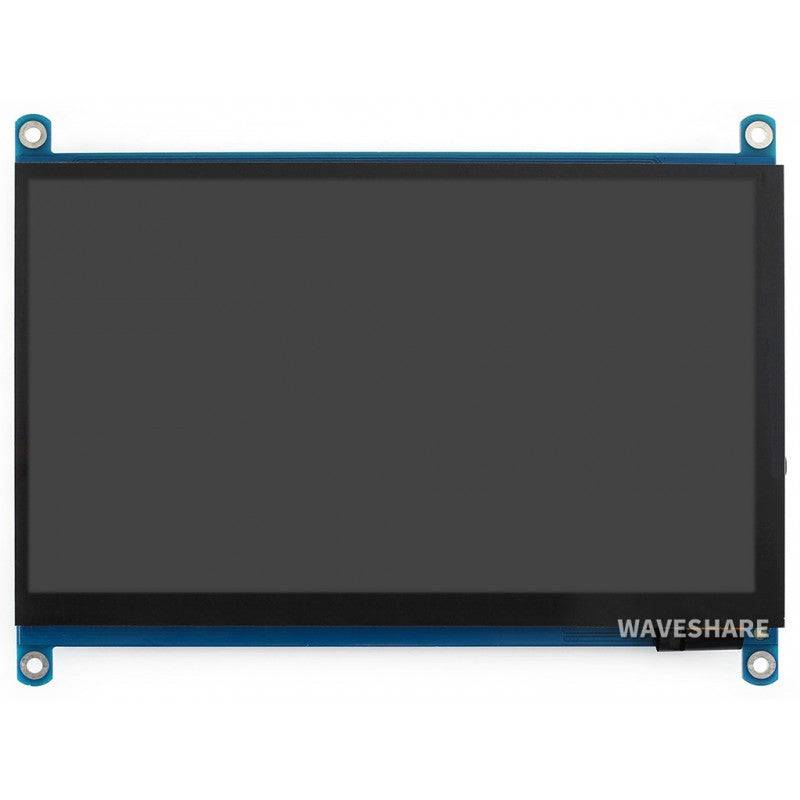

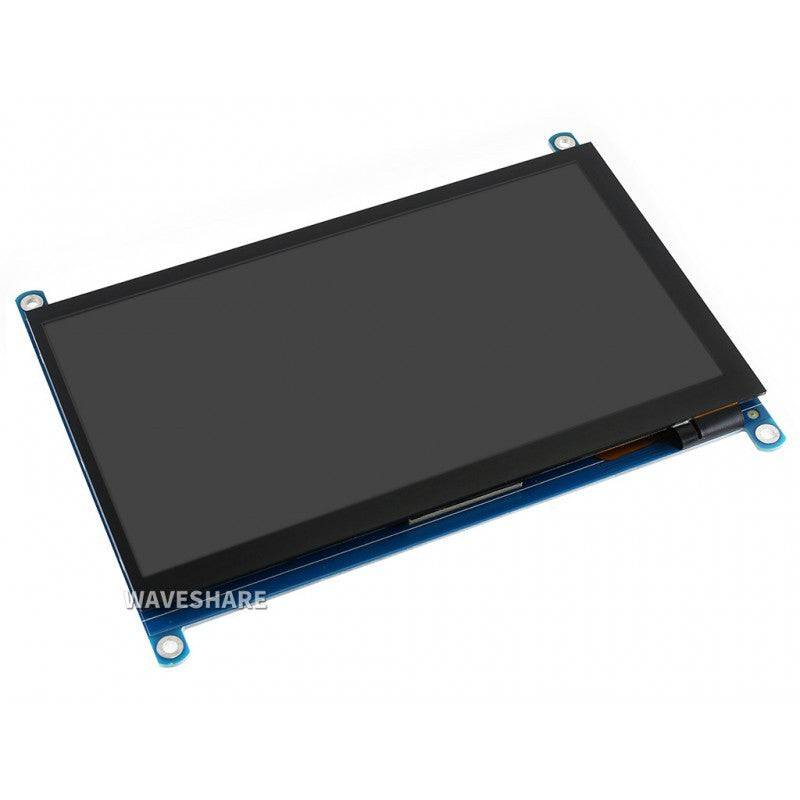

Waveshare 7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Systems Support - RS728

Waveshare 7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Systems Support - RS728

SKU:RS728

Regular price Rs. 3,770.00
Regular price Sale price Rs. 3,770.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • 7inch IPS screen, 1024 x 600 hardware resolution, configurable by software (up to 1920 x 1080).
  • Toughened glass capacitive touch panel, 6H hardness (case version only).

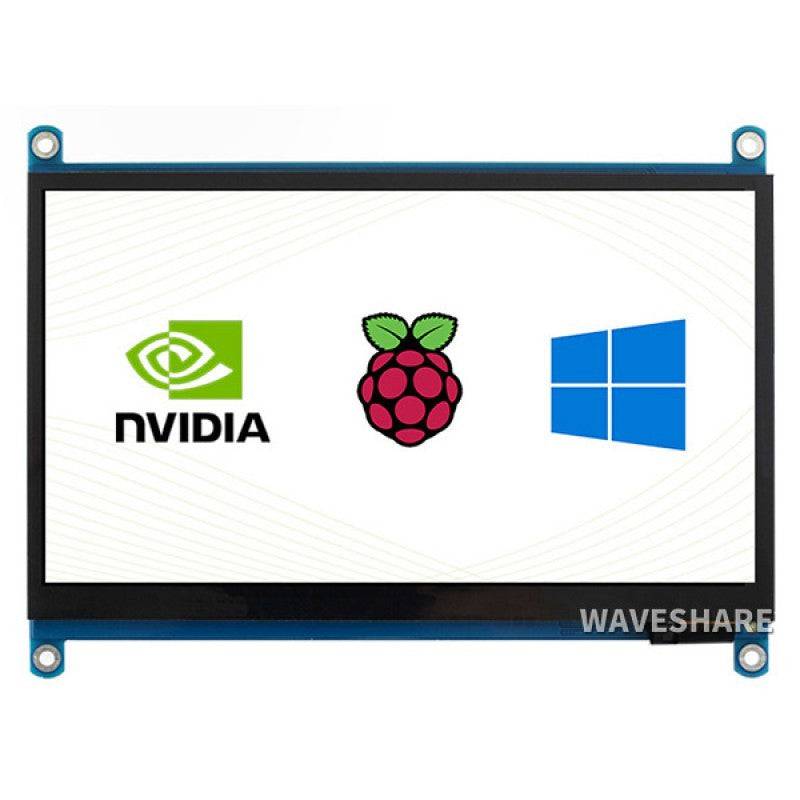

  • When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie.
  • Use with Windows PC, support Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch.
  • Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • It has a 3.5mm audio jack and supports HDMI audio output.
  • Supports VGA input (specific cable is required and should be purchase separately).
  • High-quality PC case, optional tilt angle: 30°/50°(case version only).

Description :

1024 × 600, 7-inch Capacitive Touch Screen LCD, HDMI interface, supports various systems. Toughened glass capacitive touch panel, 6H hardness (only the Case version has hardness glass). It supports Raspberry Pi and can also be used as a computer monitor.

Features

  • 7inch IPS screen, 1024 x 600 hardware resolution, configurable by software (up to 1920 x 1080).
  • Toughened glass capacitive touch panel, 6H hardness (case version only).
  • When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie.
  • Use with Windows PC, support Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch.
  • Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • It has a 3.5mm audio jack and supports HDMI audio output.
  • Supports VGA input (specific cable is required and should be purchase separately).
  • High-quality PC case, optional tilt angle: 30°/50°(case version only).

Keys Introduction

Note: This introduction is based on the 7inch HDMI LCD (H) (with case)

  • Power: Open or Close LCD display
  • Menu: Open OSD menu (It can also work as "OK button" after entering the menu )
  • Up/Left: Direction button
  • Down/Right: Direction button
  • Exit: it can also work as Return after entering the menu

You can use the "Power" button to close the LCD display for reducing consumption if it will be idle for a long time.

Open the OSD menu by pressing the "Menu" button, then use the "OK button" and "Direction button" to change the configuration, and finally, use the "Return button" to exit.

Package Included :

  • 7inch HDMI LCD (H) x1
  • HDMI cable x1
  • HDMI to Micro HDMI Adapter x1
  • USB type A plug to micro B plug cable x1
  • RPi screws pack (4pcs) x 1
  • Quick start sheet x1
