Description:

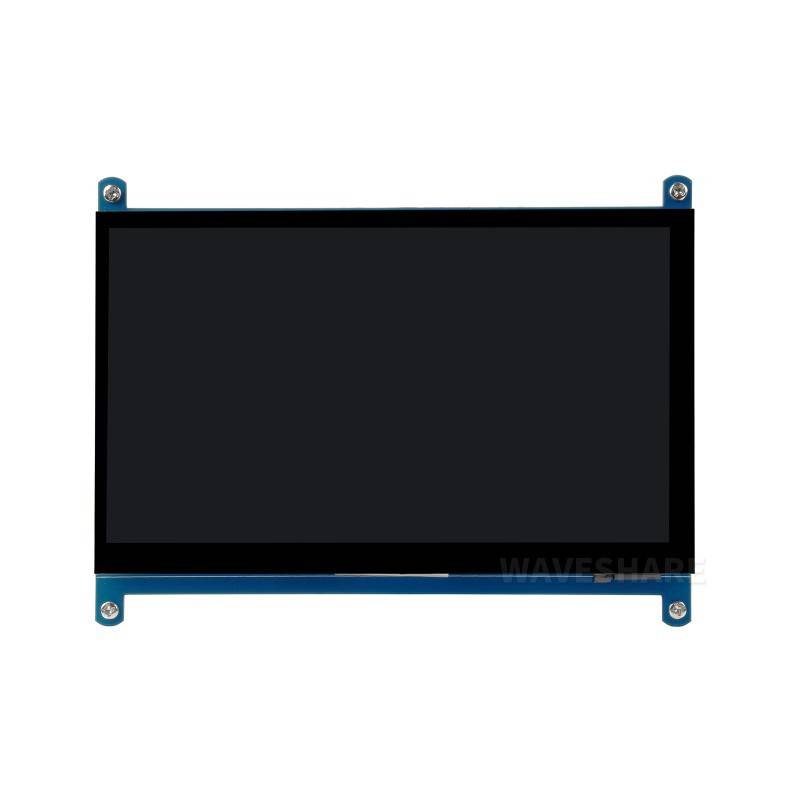

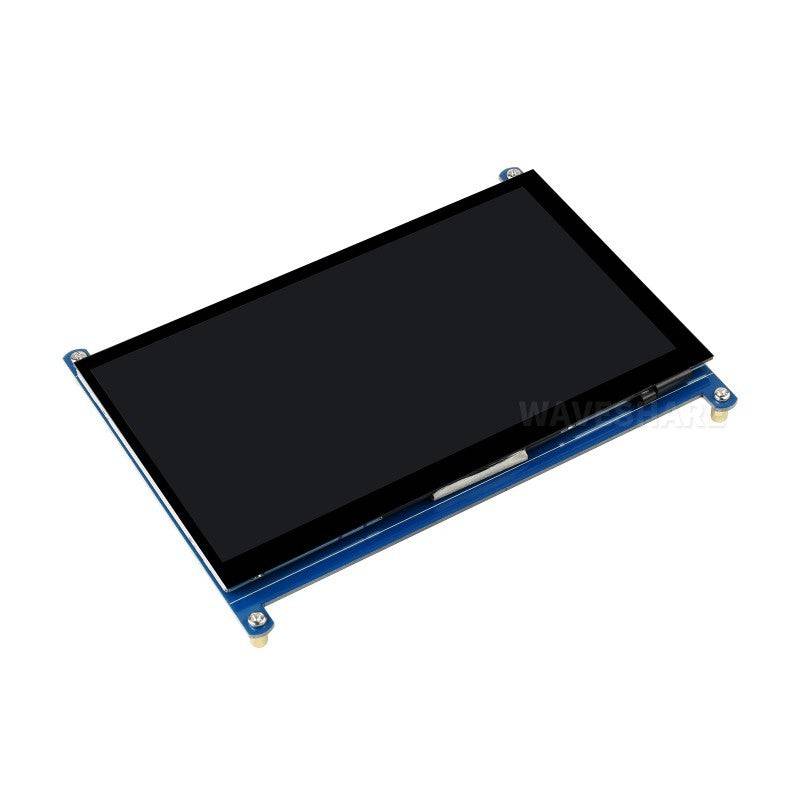

7-inch HDMI display, with a resolution of 1024 × 600 and a capacitive touch panel, which supports Raspberry Pi and can also be used as a computer monitor.
Features:
- 7-inch IPS screen with a hardware resolution of 1024 × 600.

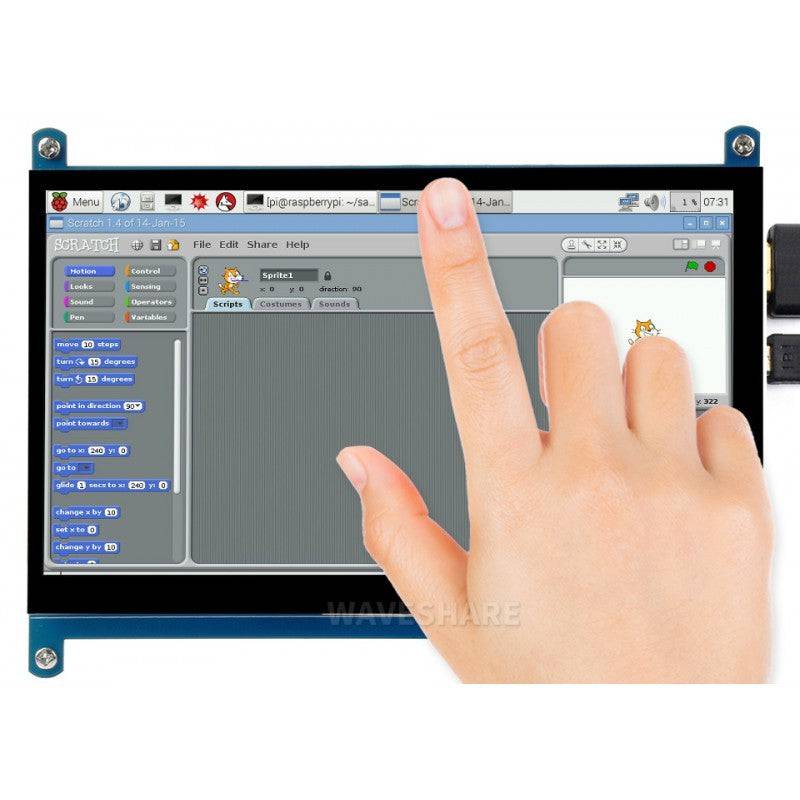

- 5-point capacitive touch control.

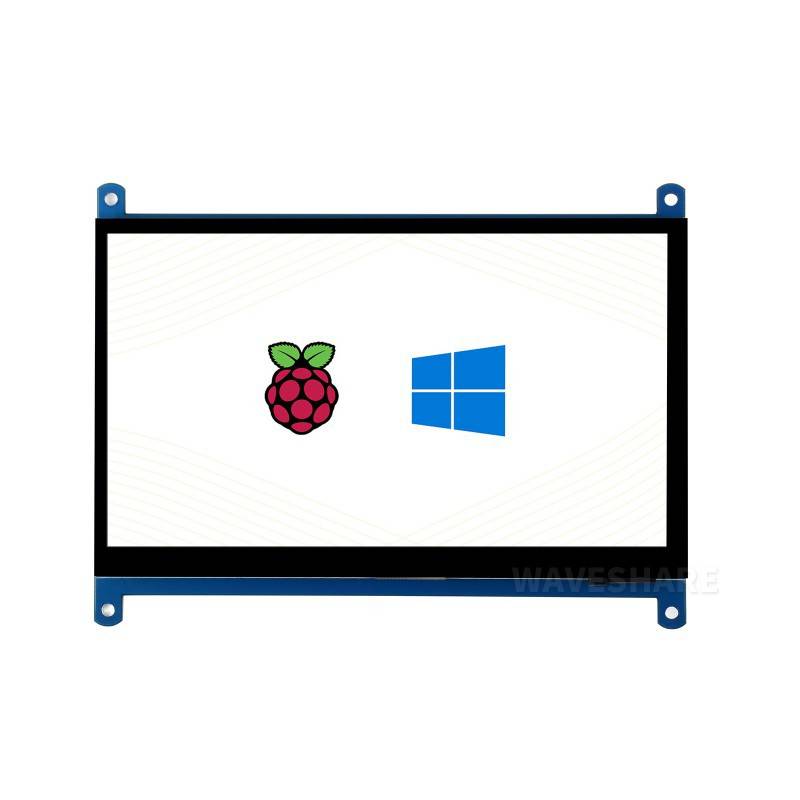

- When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie
- Use as a computer monitor, it supports Windows 11 / 10 / 8.1 / 8 / 7, five-point touch, no need to install any drivers.
- Support backlight control, more power saving.
About the version:

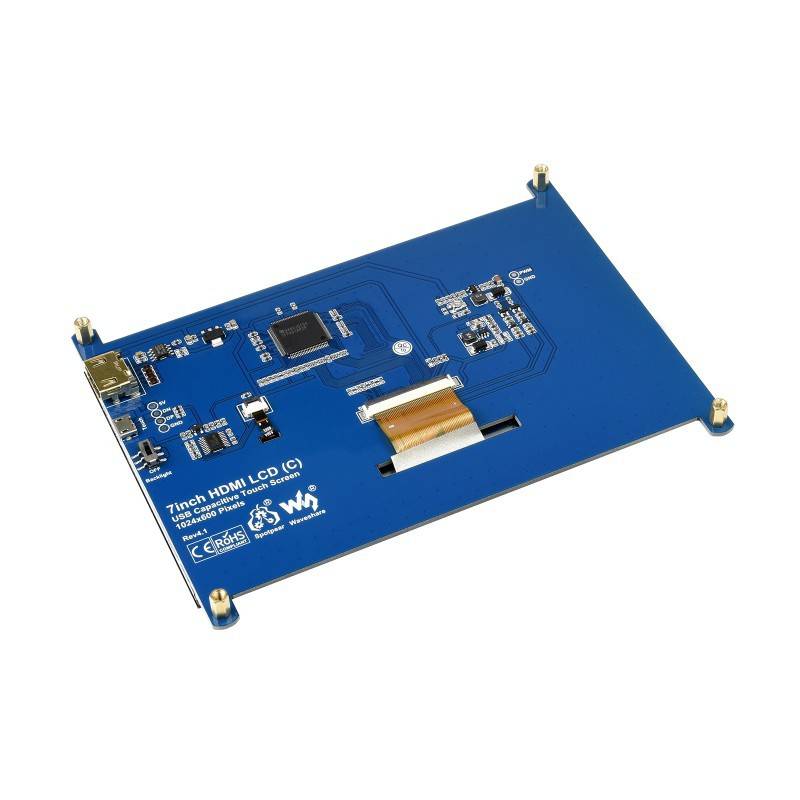

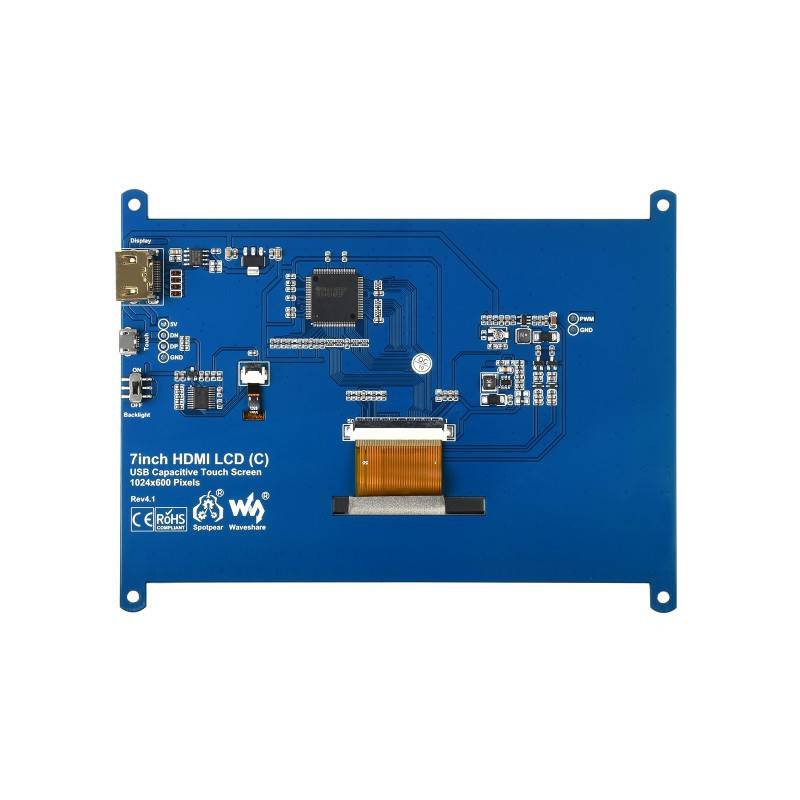

Rev4.1 version
Update the USB touch protocol to improve compatibility.
Brightness is adjustable by the USB interface.
Modify the drive circuit to enhance the anti-interference ability.
Change the touch panel color to black.
Rev3.1 version
The Rev3.1 version mainly changes the touch chip of the Rev2.2 version from GT811 to GT911. The touch effect is better, and the anti-interference ability is enhanced at the same time.
This version is fully compatible with Rev2.1 and Rev2.2, and users can replace it with confidence.
Rev2.2 version
Rev2.2 version mainly adds a VCOM adjustable potentiometer and related circuits of electromagnetic compatibility based on Rev2.1.
This version is fully compatible with the Rev2.1 version, and users can replace it with confidence.
Rev2.1 version:
Upgrade to an IPS screen, with a larger viewing angle and a clearer display effect, I believe you will like it.
Using standard HID protocol, you can transplant your own system conveniently.
Using Raspberry Pi, it supports Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT, single touch, no need to install any drivers.
Using as a computer monitor, it supports Windows 10 / 8.1 / 8 / 7, five-point touch, and no need to install any drivers.
Rev1.1 version:
Using private HID protocol, it is difficult to transplant to your system
Using Raspberry Pi, you need to install a driver when the display connects to Raspbian or Ubuntu systems. and it doesn't support Kali, Retropie, and Windows 10 IoT.
Package Included :
- 7inch HDMI LCD (C) x 1
- HDMI cable x 1
- HDMI to Micro HDMI Adapter x 1
- USB type A plug to micro B plug cable x 1
- RPi screws pack (4pcs) x 1
- Quick start sheet x1
