Description:
Waveshare 7-inch Resistive Touchscreen LCD. Featuring a 1024x600 resolution and toughened glass for durability, this display offers an SPI interface for the panel and HDMI connectivity for video. Easily connect to Raspberry Pi, BeagleBone Black, or your desktop computer.
Specifications:
- Pixel Resolution: 1024 x 600
- Display Size: 18 cm (7 inch)
- HDMI Port: Yes
- Panel Type: IPS
- Touch Type: Resistive
- Touch Port: SPI
- Toughend Glass Panel: Yes
- View Angle: 170°
Features:
- IPS screen, 1024 x 600 hardware resolution.
- Toughened glass resistive touch panel.

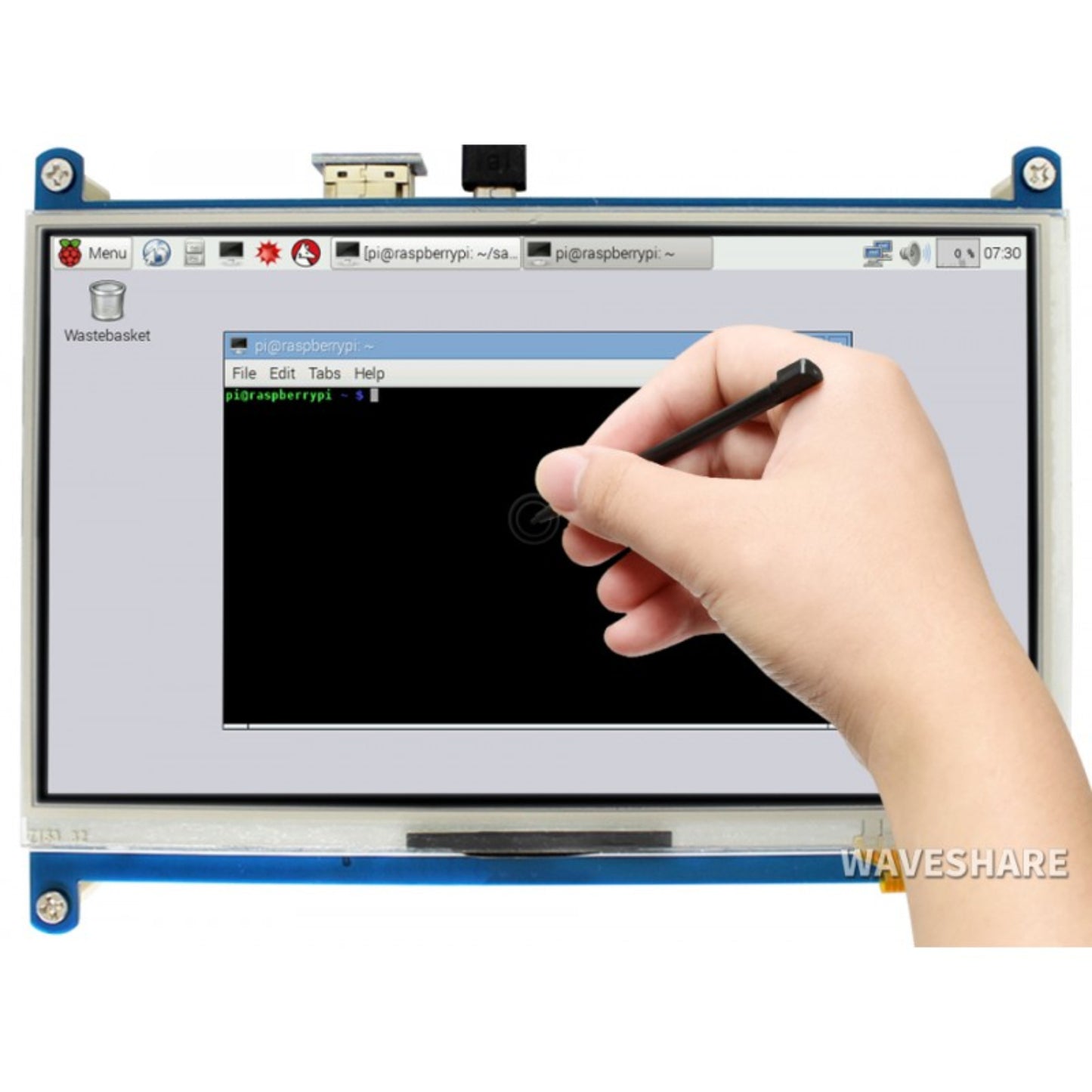

- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers.
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10, IoT, driver free.
- When working as a computer monitor, supports Windows 10/8.1/8/7, ten-point touch, and driver-free.
- HDMI interface for displaying, USB interface for touch control.
- Supports 5-level backlight adjustment.
Application:
- Raspberry Pi 4
- Raspberry Pi 3B+
- Raspberry Pi Zero W
- Mini PC
Useful Link:
Waveshare 7inch Resistive Touch Screen LCD
Package Included:
-
1 x 7inch Resistive Touch Screen
-
1 x HDMI connector
-
1 x HDMI to micro HDMI connector
-
1 x Touch pen
-
4 x RPi screws pack
- 1 x Quick start sheet
