Description:

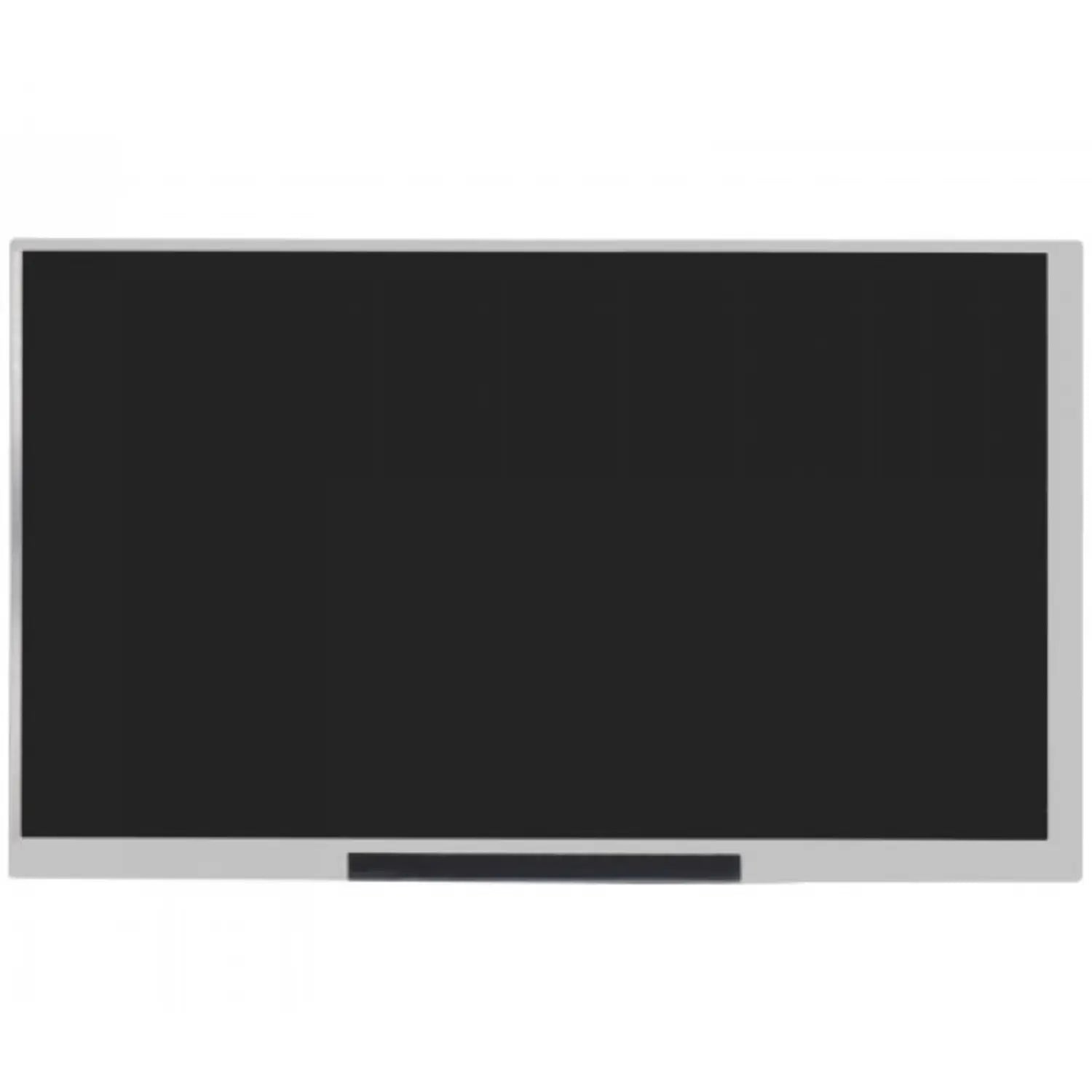

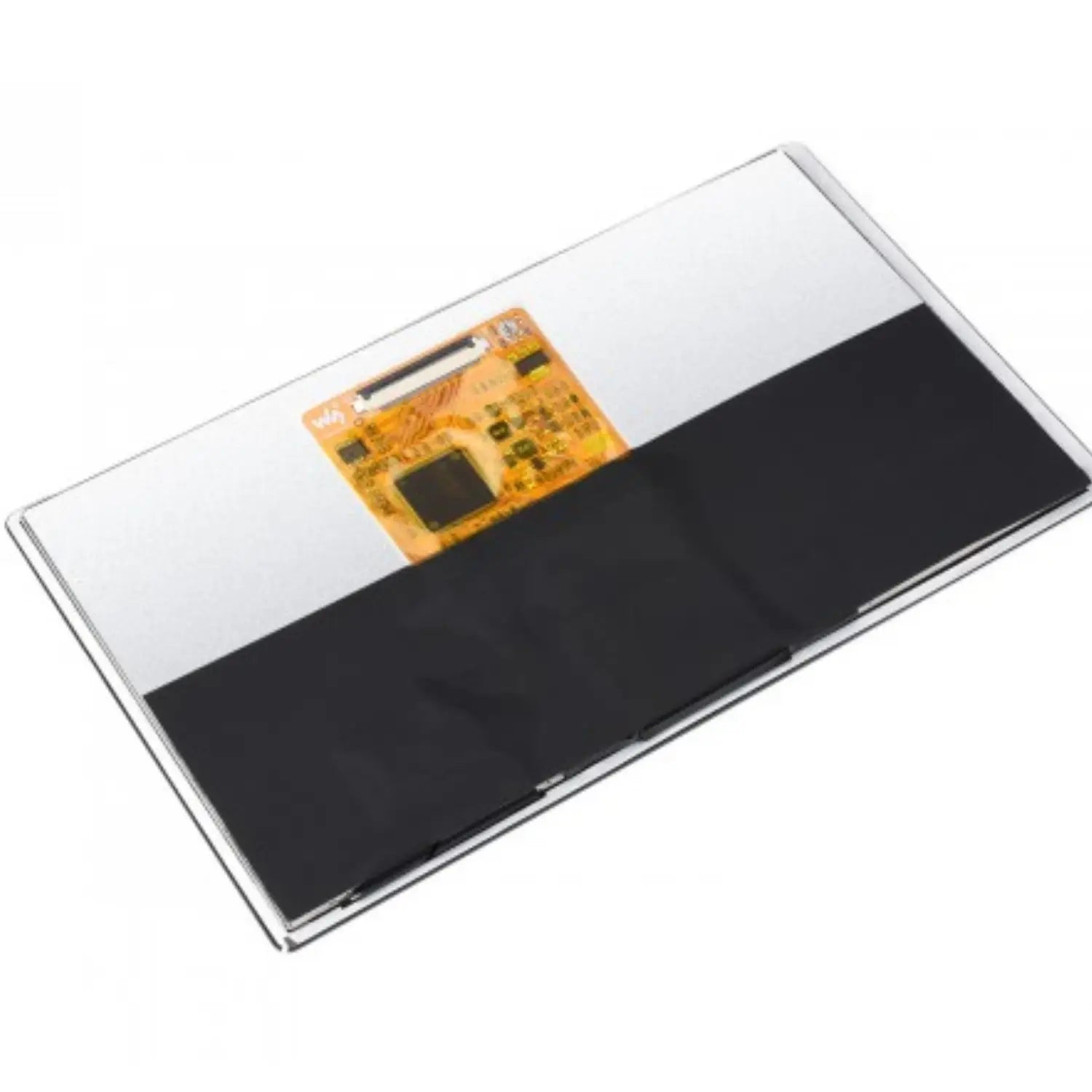

The 70H-1024600 Series 7-inch IPS/QLED Integrated Display from Waveshare is engineered for users seeking an ultra-thin, lightweight HDMI solution. Featuring a high-resolution 1024×600 panel, this display is ideal for embedded applications where compact form factor and clarity are essential. Unlike traditional HDMI displays, it combines power, touch, display, and control signals into a single 40-pin multifunctional header, minimizing wiring and reducing costs. With FPC cable support, it enables easy integration and secondary development for custom projects, making it perfect for modern IoT and embedded systems.
Specification:
- Display Size: 7 inch
- Display area: 154.2144 mm(W) x 85.92mm(H)
- Pixel Pitch: 0.1506 (H) x 0.1432 mm(V)
- LED Brightness: 350 MCD
- Color Depth: 16.7M
- Refresh Rate: 60Hz
Features:
- Support Windows / Linux / Android Main Board, Which Has HDMI Signal And USB Touch Signal
- Provide Secondary Development Resources To Facilitate Integrated Design
- Boost Simple Development For Embedding Engineering Applications Quickly
Product Interface:

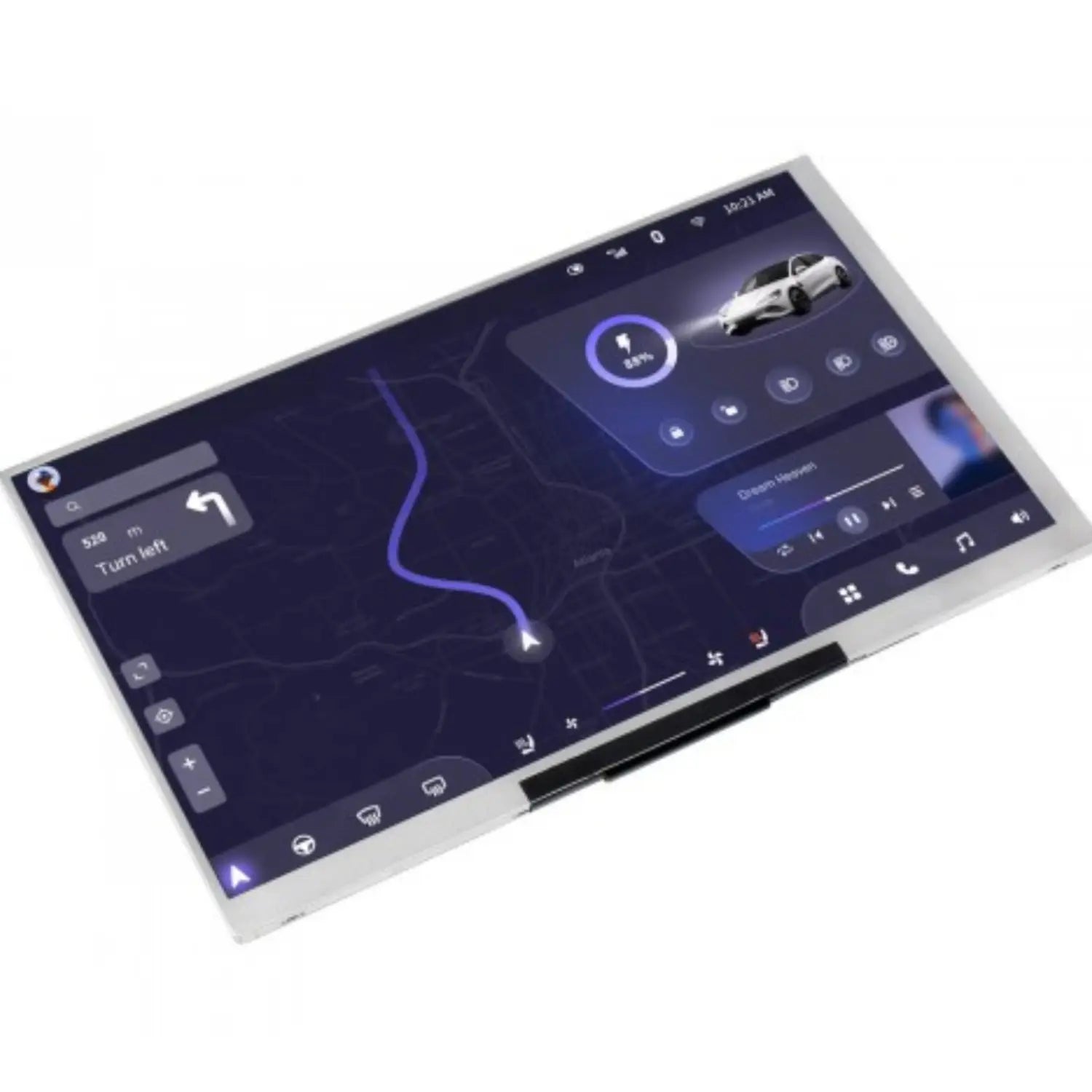

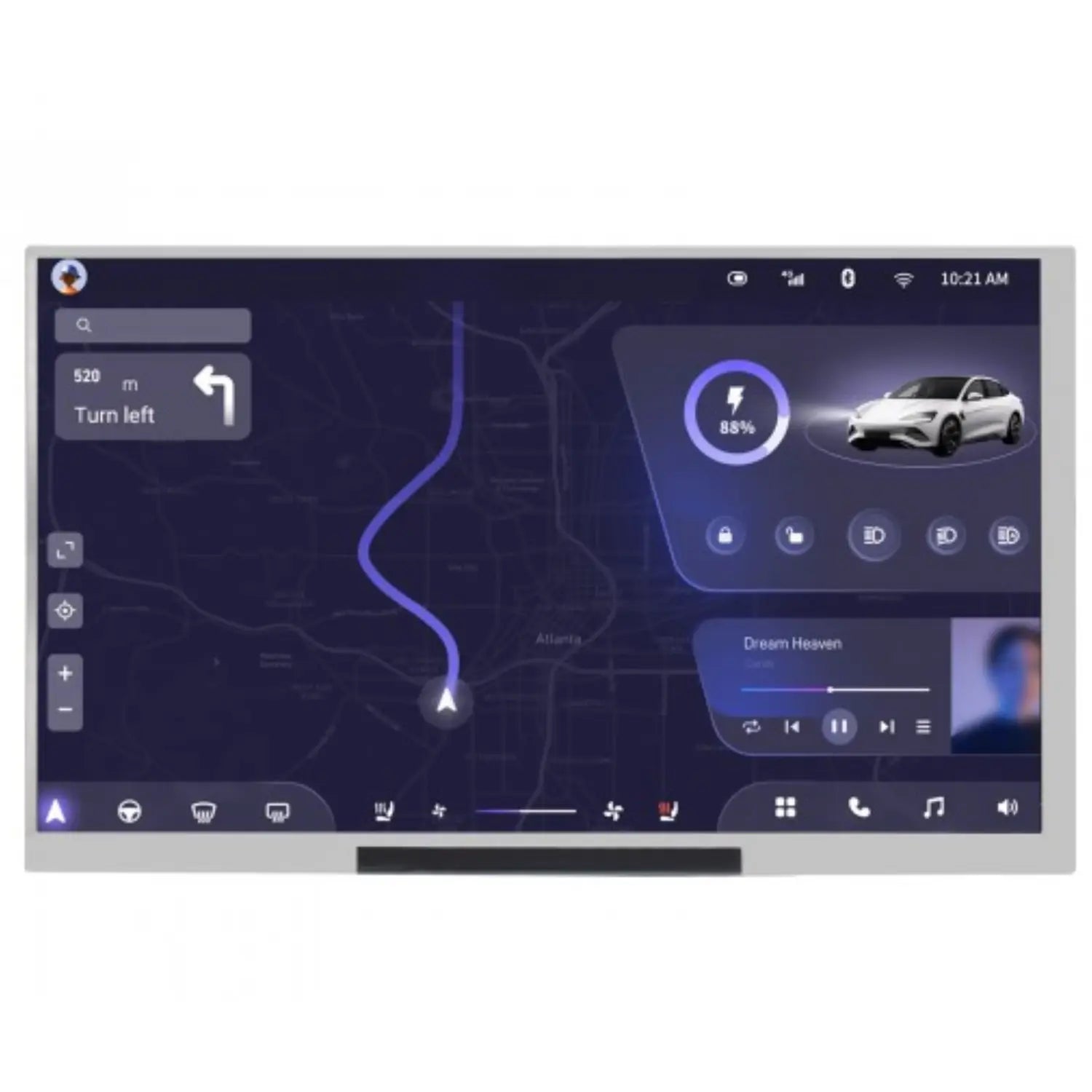

Application Scenarios:
Useful Link:
Waveshare 7-Inch IPS/QLED Integrated Display
Package Included:

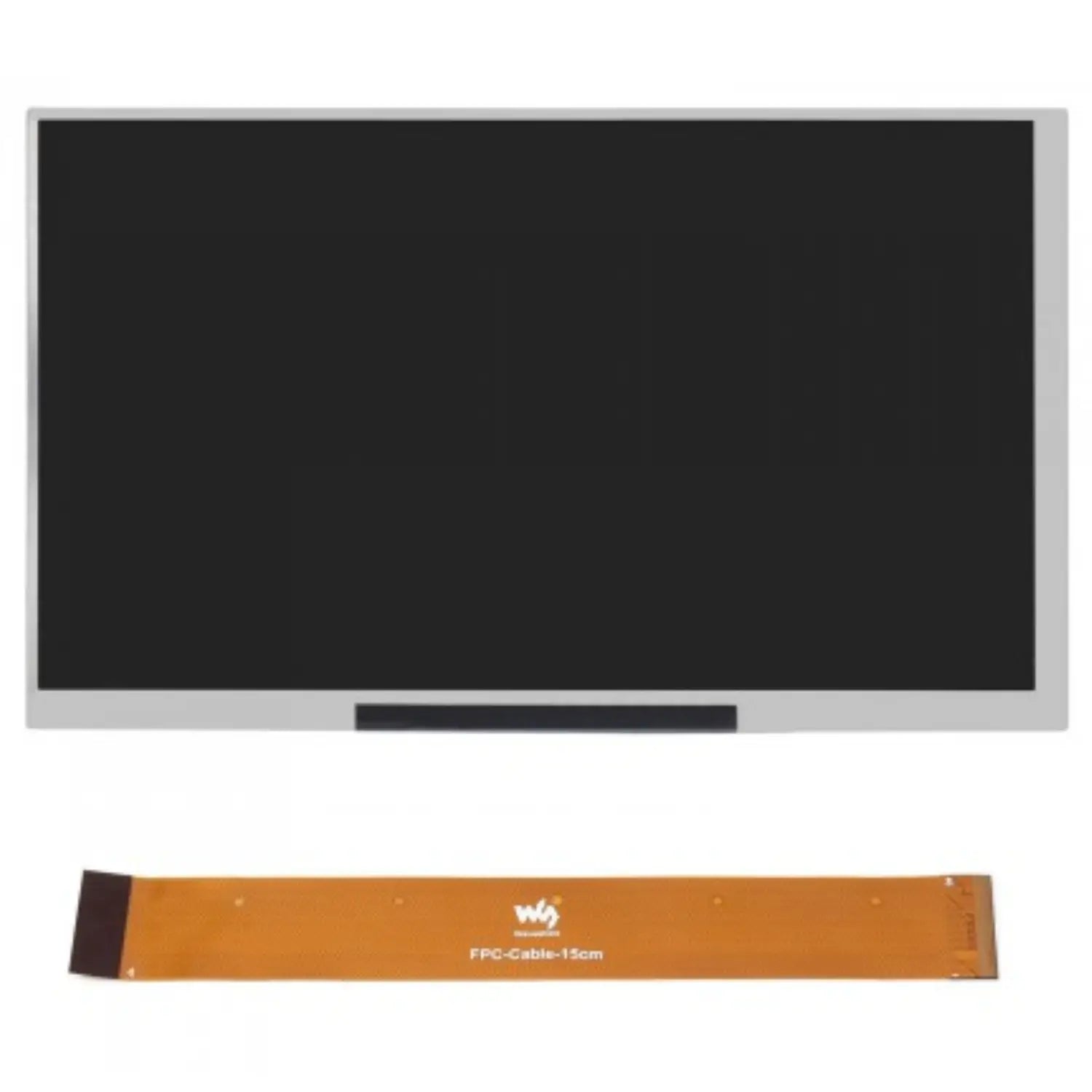

- 1 x IPS/QLED Display
- 1 x FPC cable (~ 15cm)
- 1 x Development Accessories
