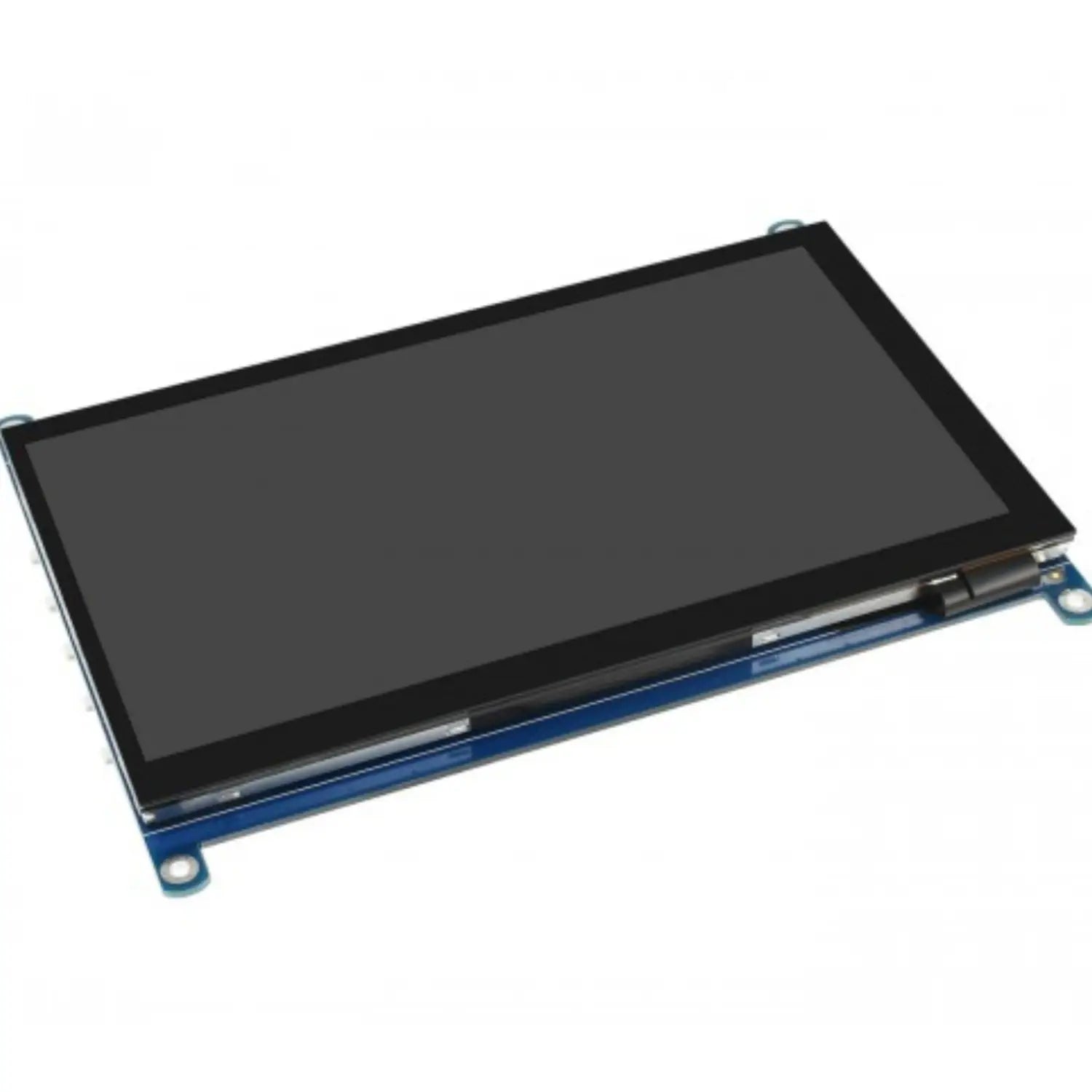

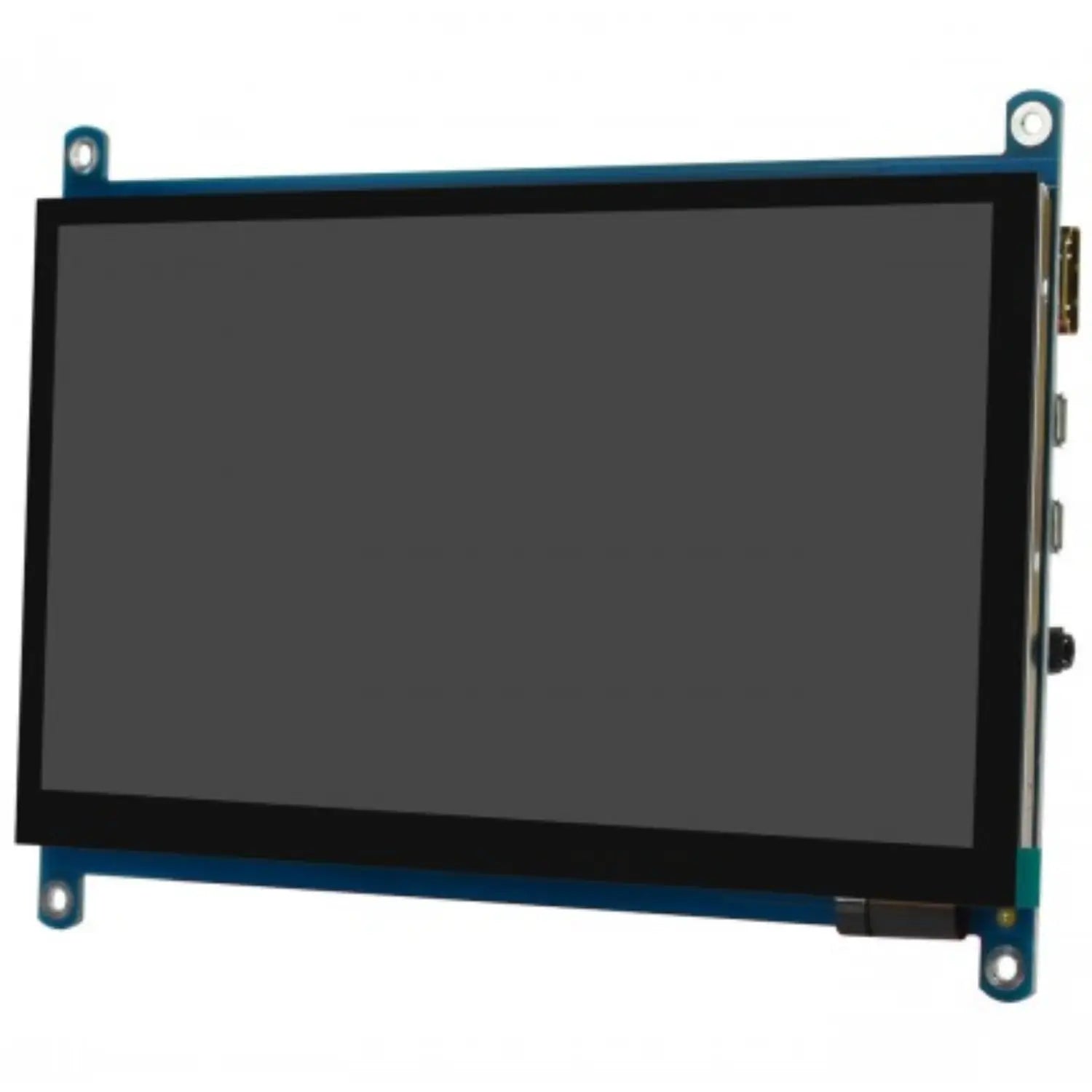

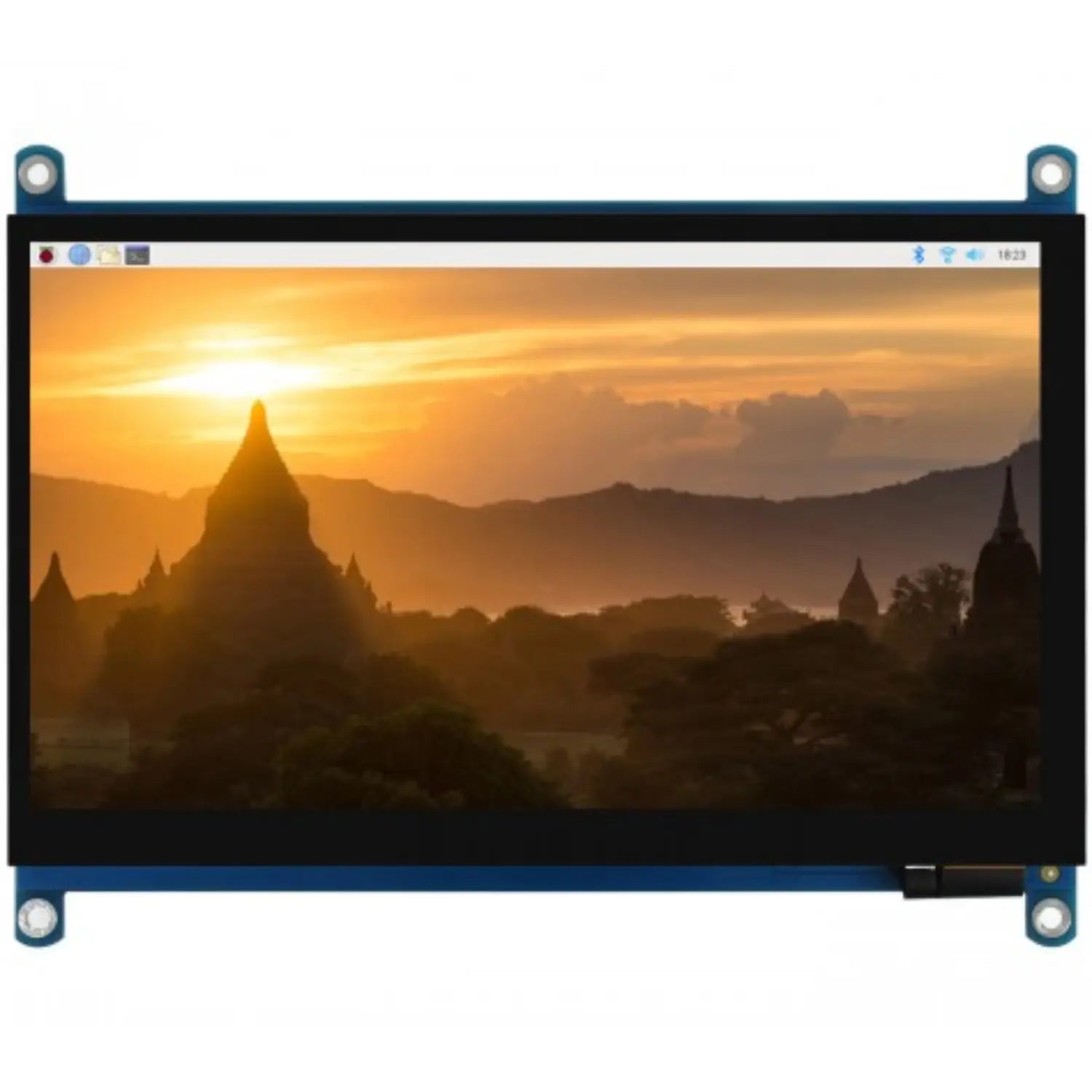

Waveshare 7-inch Capacitive Touch Display QLED 1024x600 Display High Resolution Quantum Dot Technology & G+G Toughened Glass & Multi-System Support

Description:

Experience vibrant visuals and responsive touch with the Waveshare 7-inch 1024x600 Capacitive Touch QLED Display. This premium display features Quantum Dot technology for stunning color reproduction and a G+G toughened glass panel for enhanced durability and a smooth touch experience.

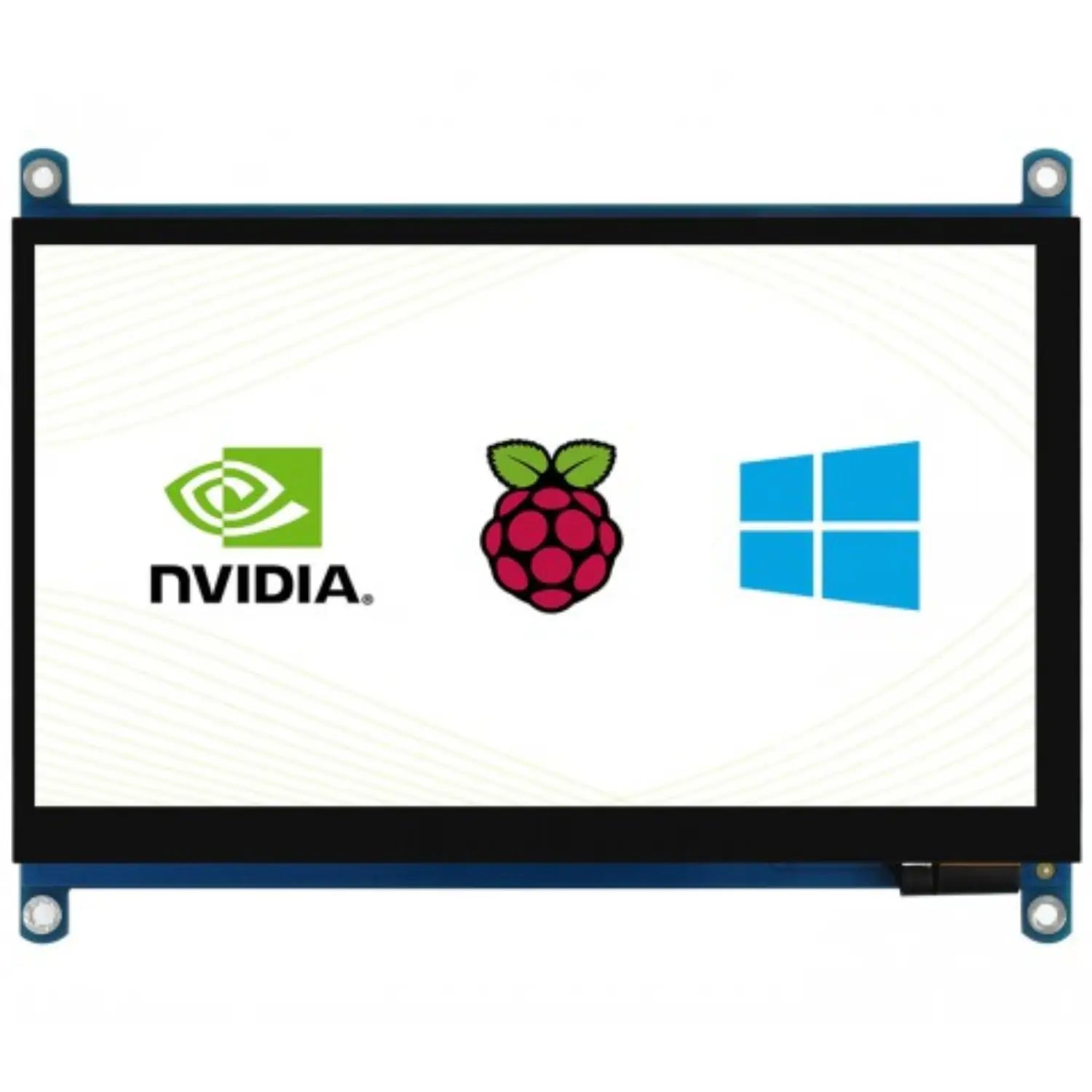

Designed for versatility, this QLED display offers broad system support, making it an ideal choice for various applications. It's perfectly compatible with Raspberry Pi and can also function seamlessly as a reliable computer monitor.

Specification:

• Model Type: QLED Display Module
• Display Size: 7 Inch
• Display Resolution: 1024 x 600
• Touch Type: Capacitive
• Touch Points: 10
• Backlight mode: QLED Quantum Dot
• View Angle: 70°
• Display Layout Size: 150x100x15mm

Features:

• Raspbian compatible, 10 touchpoints, no drivers
• Ubuntu / Kali / WIN10 IoT compatible, single-point touch, no drivers
• Backfoot compatible, no drivers. Compatible with all versions of Raspberry Pi
• Supports Ubuntu, single-point touch, no drivers
• Compatible with Windows 10 / 8.1 / 8/7, 10 touchpoints, no drivers

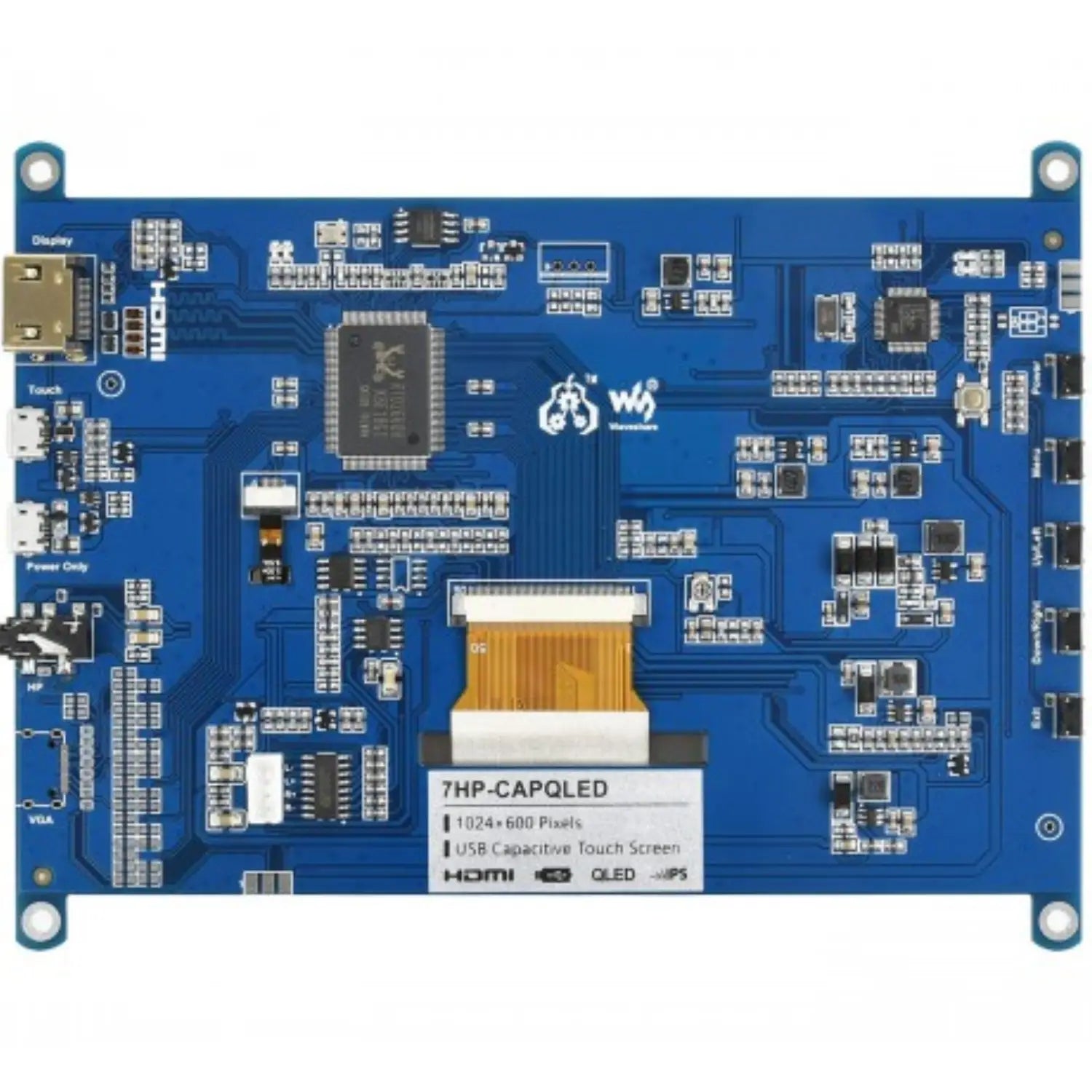

Pin Description:

1. LCD FFC cable anti-interference design, more stable for industrial applications
2. VCOM voltage adjustment for optimizing display effect
3. USB protocol translator, converting the touch signal into a standard multi-point touch protocol to achieve smooth multi-point touch control
4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure caused by low USB voltage
5. Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as the power supply. The two power inputs are totally isolated to prevent any breakdown
6. Two audio outputs for earphones and speaker, each track of the speaker supports a 2.6W PA circuit
7. OSD menu config buttons for adjusting backlight (via software) and display color
8. DC-DC LCD driver circuit, low heating on long-term operation

Connection Examples:

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero W

Working with AI Computer Jetson Nano

Working with a mini PC

Useful Link:

Waveshare 7-inch 1024x600 Capacitive Touch QLED Display

Package Included:

• 1 x 7HP-CAPQLED
• 1 x HDMI cable
• 1 x HDMI to Micro HDMI Adapter
• 1 x USB type A plug to micro B plug cable
• 1 x RPi screws pack (4pcs)
