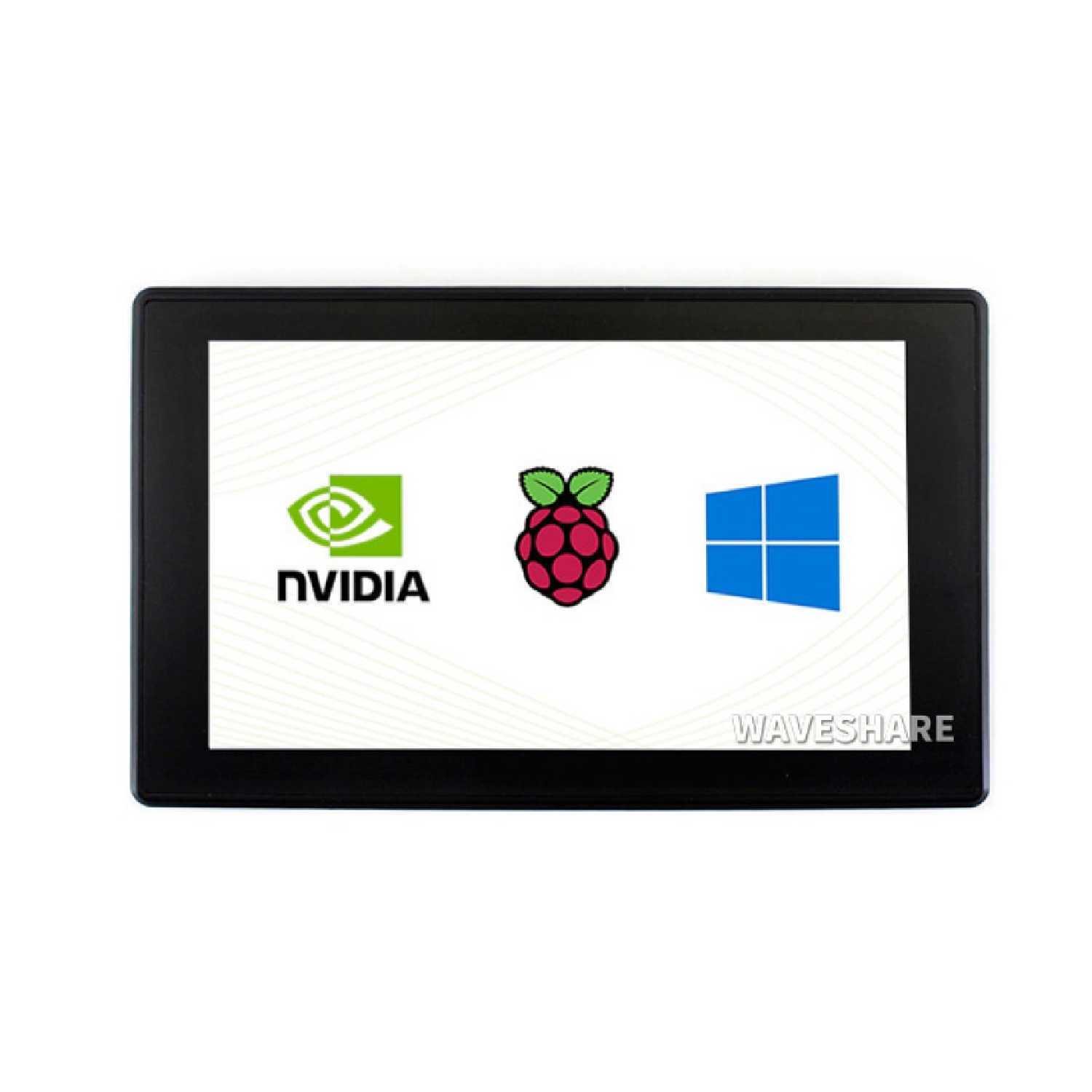

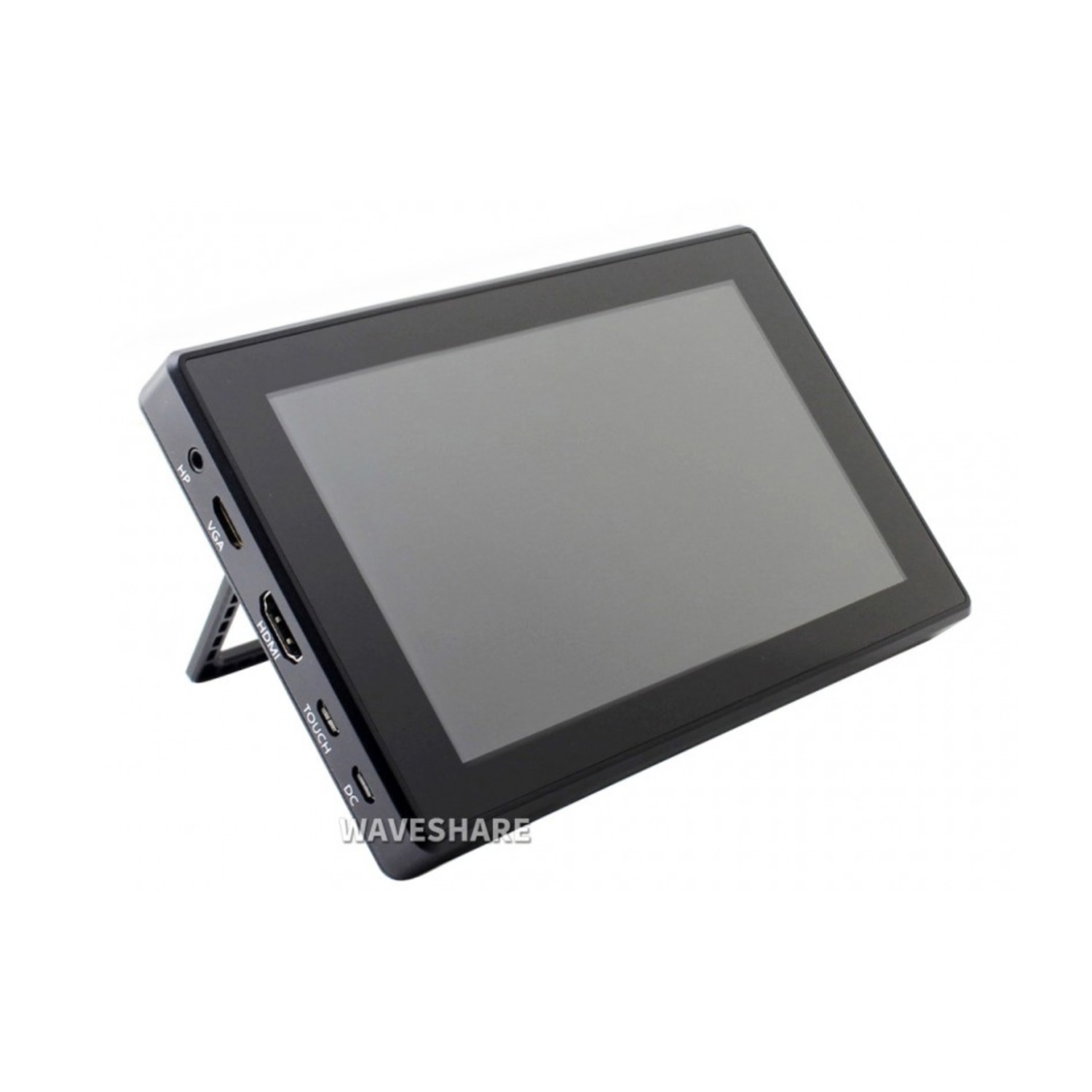

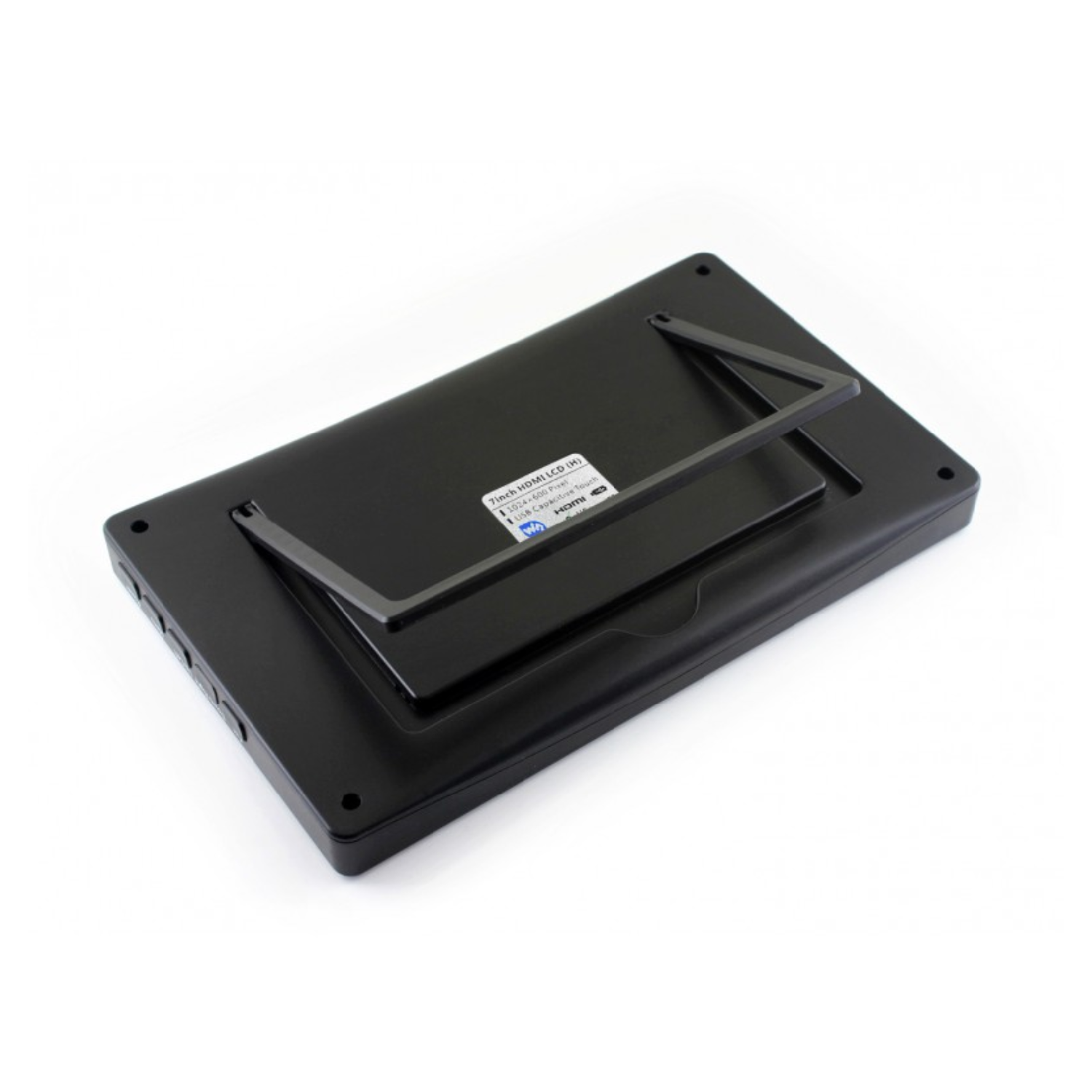

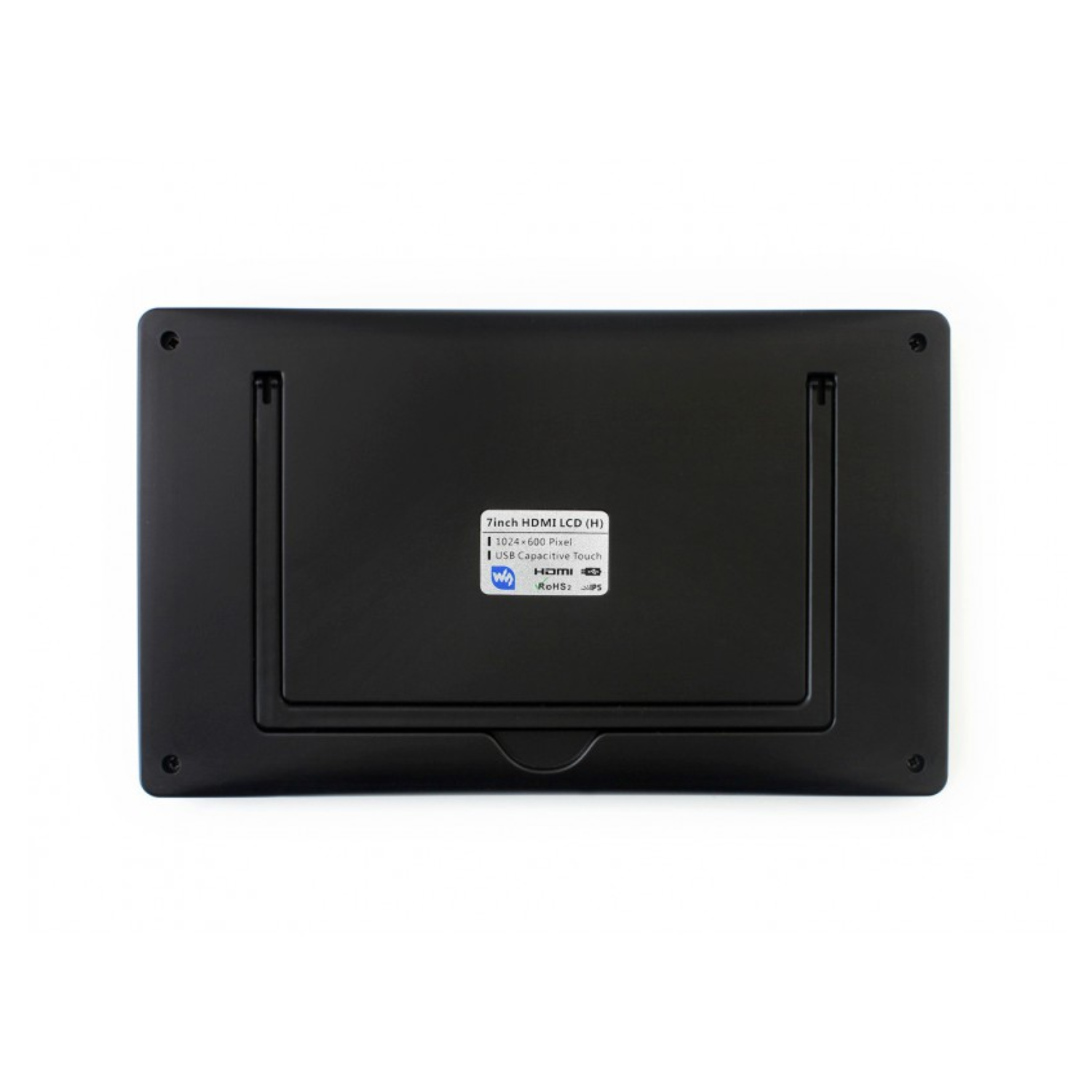

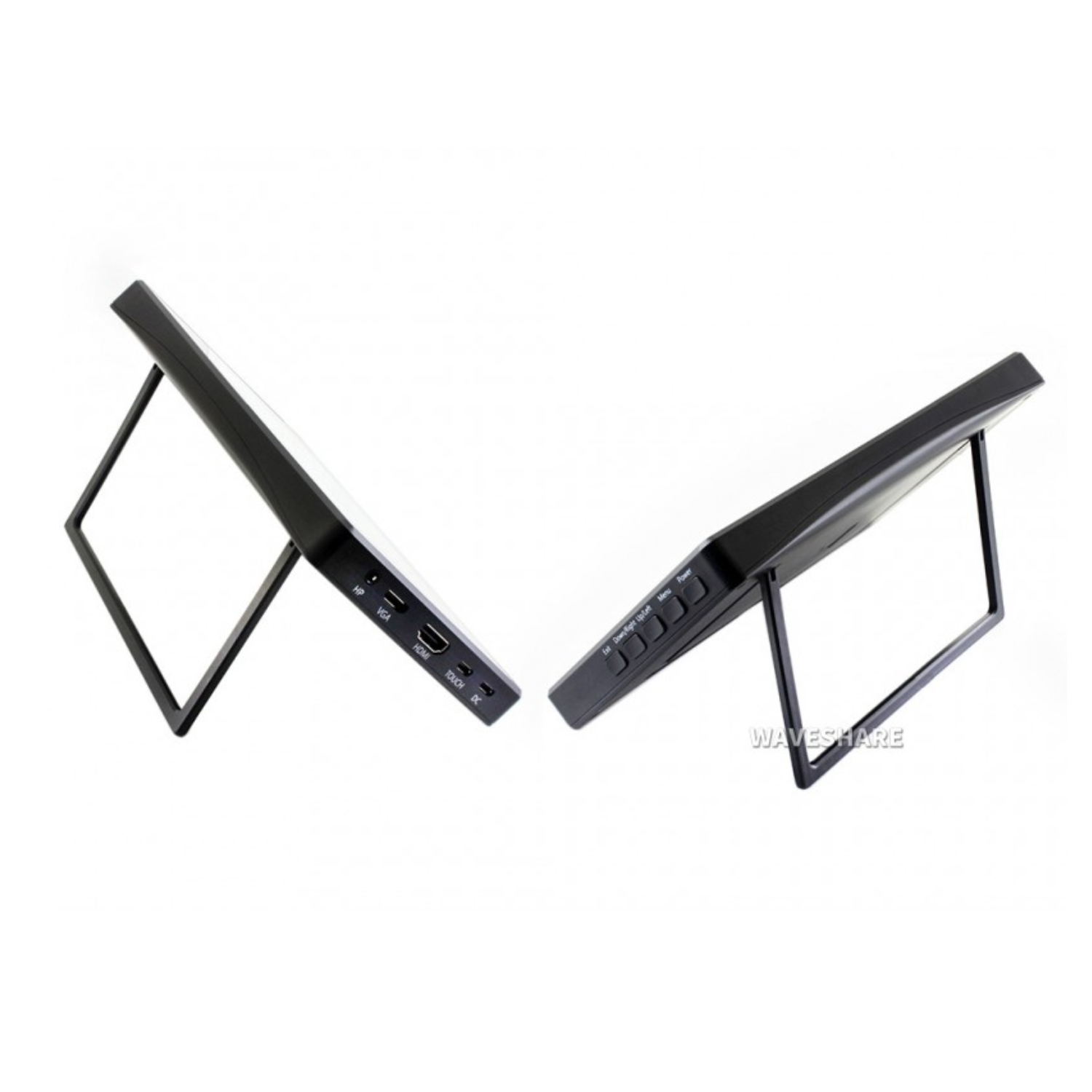

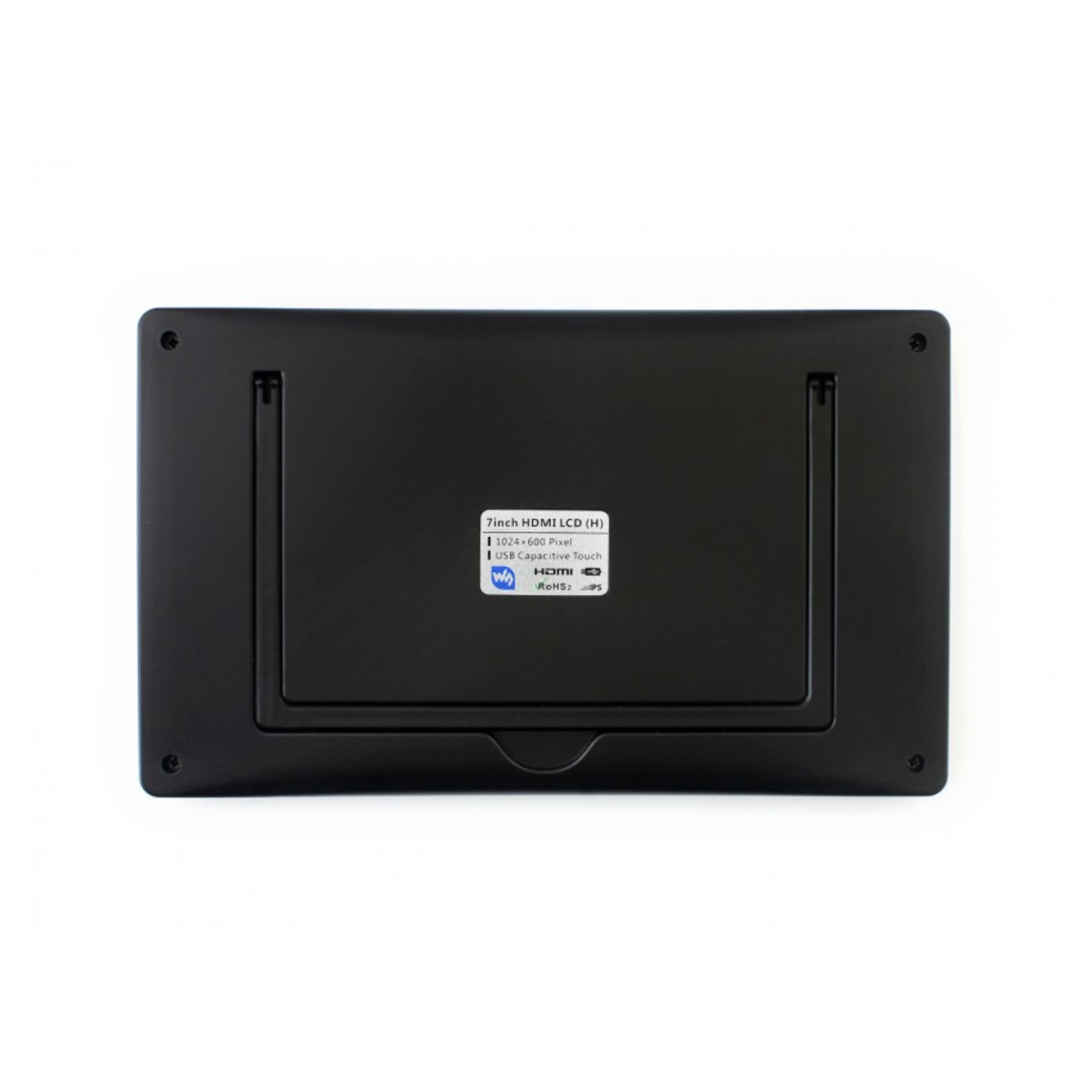

Waveshare 7" Capacitive Touch Screen LCD (H) With Case 1024×600 IPS HDMI Display Raspberry Pi & PC - RS8304

Waveshare 7" Capacitive Touch Screen LCD (H) With Case 1024×600 IPS HDMI Display Raspberry Pi & PC - RS8304

RS8304

Low stock: 5 left

Rs. 6,200.00
Rs. 6,200.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

1024 × 600, 7-inch Capacitive Touch Screen LCD, HDMI interface, supports various systems. Toughened glass capacitive touch panel, 6H hardness (only the Case version has hardness glass). It supports Raspberry Pi and can also be used as a computer monitor.

Specifications:

  • Model Type: HDMI LCD Display
  • Touch Type: Capacitive
  • Display Size: 7 inch
  • Resolution: 1024 × 600 Pixels
  • HDMI Port: Yes
  • Panel Type: IPS
  • View angle: 170º
  • Touch Port: USB
  • Toughened Glass Panel: Yes
  • Touch Points: 5

Features:

  • 7-Inch IPS Display: 1024 × 600 resolution with software support up to 1920 × 1080.
  • Capacitive Touch Screen Toughened glass panel with durable 6H surface hardness.
  • Raspberry Pi Compatible: Supports Raspberry Pi OS, Ubuntu, Kali Linux, and RetroPie.
  • Windows Multi-Touch Support Compatible with Windows 11/10/8.1/8/7 with 5-point touch control.
  • HDMI & VGA Connectivity HDMI display input with optional VGA support via a separate cable.
  • Built-In Audio Support Features a 3.5mm audio jack and HDMI audio output.
  • OSD Control Menu Easily adjust brightness, contrast, and power settings.
  • Premium Protective Case High-quality enclosure with adjustable 30° and 50° viewing angles.
  • Wide Device Compatibility Works with Raspberry Pi, PCs, mini PCs, gaming consoles, and embedded systems.
  • Wide Viewing IPS Panel Delivers vibrant colors and clear visuals from multiple angles.

Pin Description:

.

Useful Link:

Package Included:

  • 1 x 7-inch HDMI LCD (H) (with case)
  • 1 x HDMI cable
  • 1 x HDMI to Micro HDMI Adapter
  • 1 x USB type A plug to micro B plug cable
