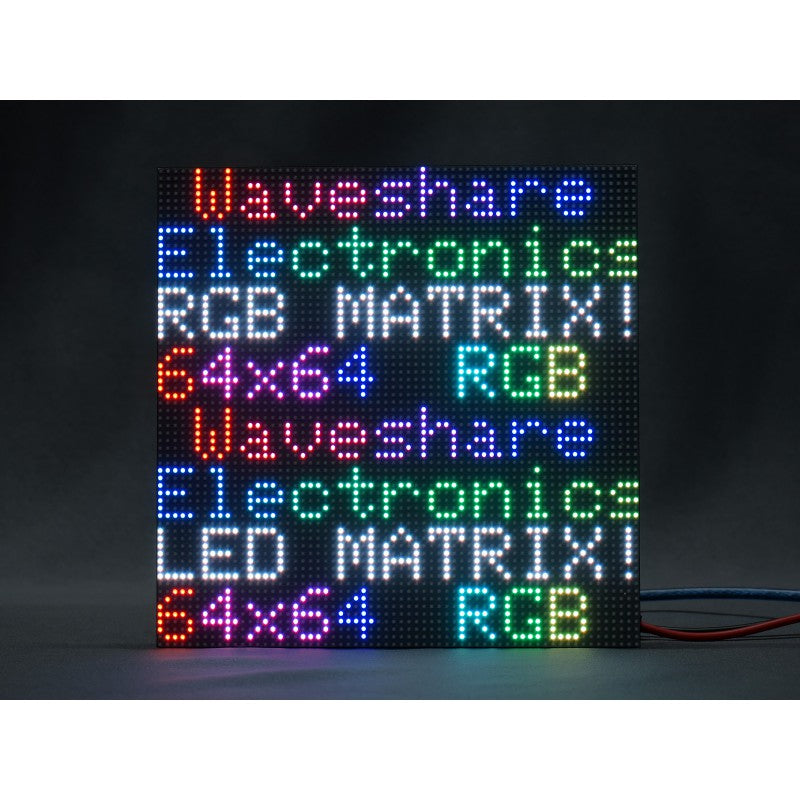

Description:
This product is a 64 × 64 full-color LED matrix panel with 4096 RGB LEDs onboard and 3mm pitch, which supports Raspberry Pi and Arduino, etc. It provides supporting open-source demos and tutorials, suitable for makers or electronics Enthusiasts to start learning, or DIY secondary development into other desktop or wall-mounted display applications.
Specifications:
Dimensions | 192mm × 192mm |
---|---|
Pixels | 64×64=4096 DOTS |
Pitch | 3mm |
Pixel form | 1R1G1B |
Viewing angle | ≥160° |
Control type | synchronization |
Driving | 1/32 scan |
Header | HUB75 |
Power supply | 5V / 4A (VH4 header input) |
Power | ≤20W |

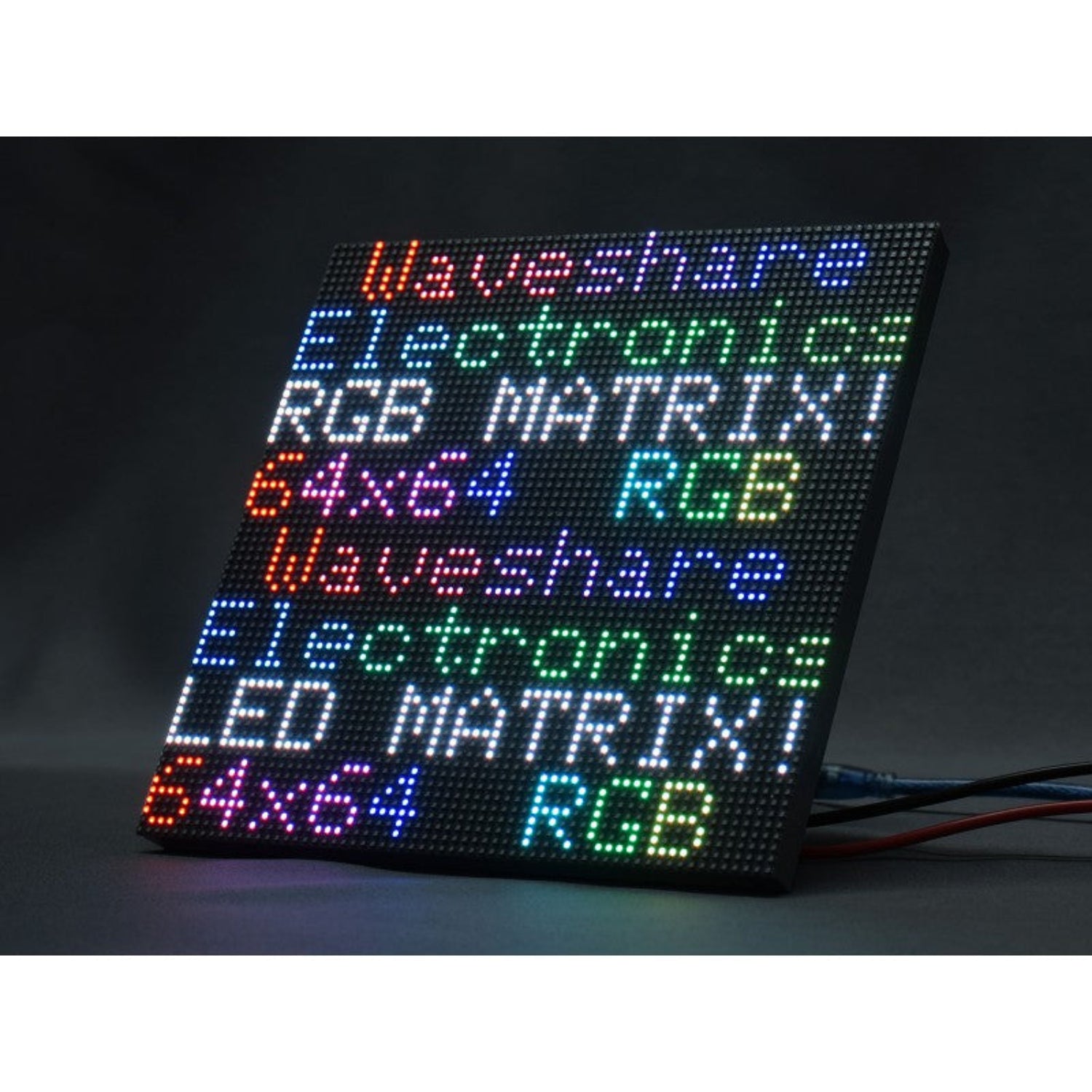

Features:
- 4096 individual RGB LEDs, full-color display, adjustable brightness
- 64×64 pixels, 3mm pitch, allows displaying text, colorful images, or animation
- 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 headers, one for controller data input, one for output, and chain support
- Provides open-source development resources and tutorials for use with Raspberry Pi, Arduino, and so on

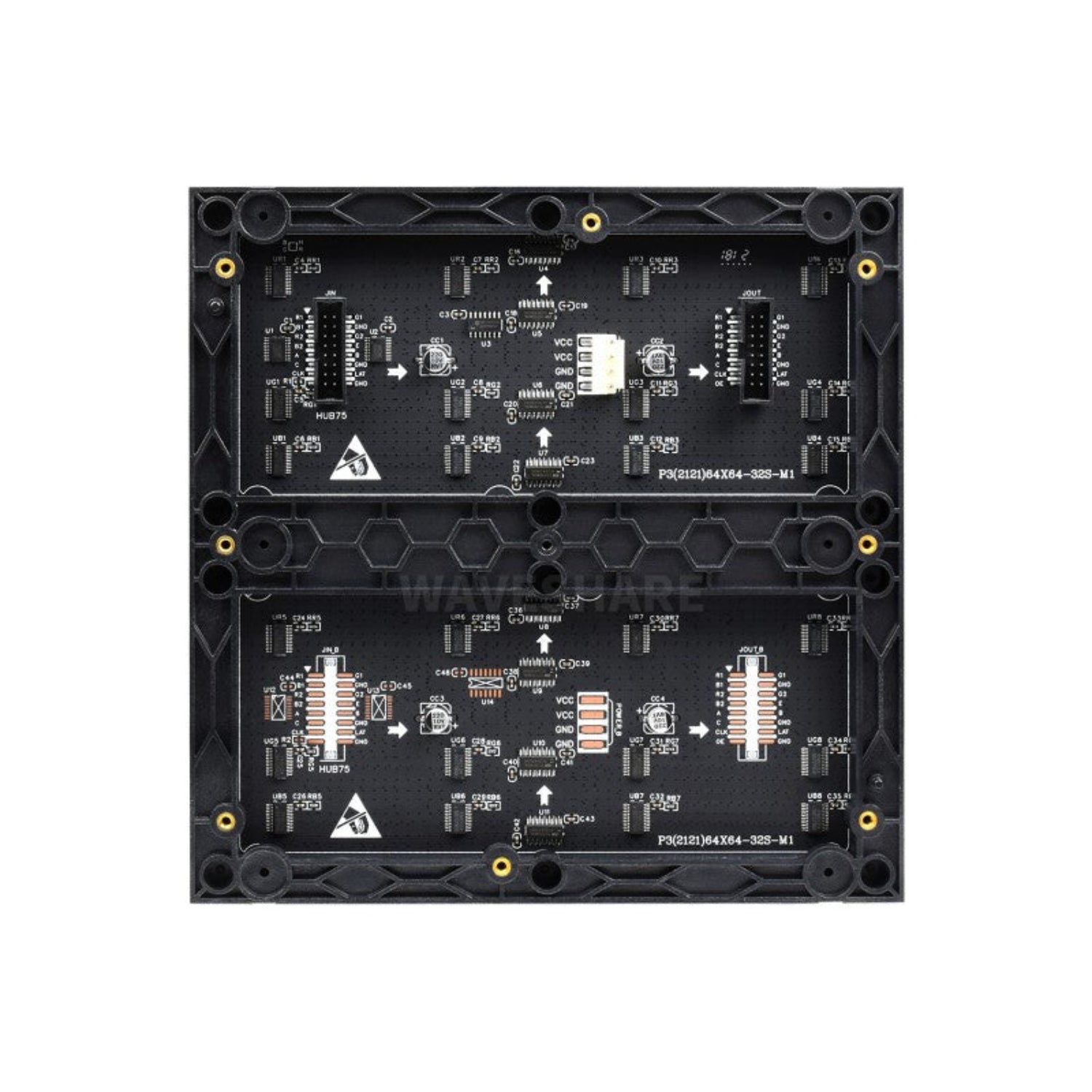

Product Interface:
Pin | Description | Pin | Description |
---|---|---|---|
+5V | 5V power input | GND | Ground |
R1 | R higher bit data | R2 | R lower bit data |
G1 | G higher bit data | G2 | G lower bit data |
B1 | B higher bit data | B2 | B lower bit data |
A | A line selection | B | B line selection |
C | C line selection | D | D-line selection |
E | E-line selection | CLK | clock input |
LAT/STB | latch pin | OE | output enable |
Useful Link:
Waveshare 64x64 RGB Full-Color LED Matrix Panel
Package Included:

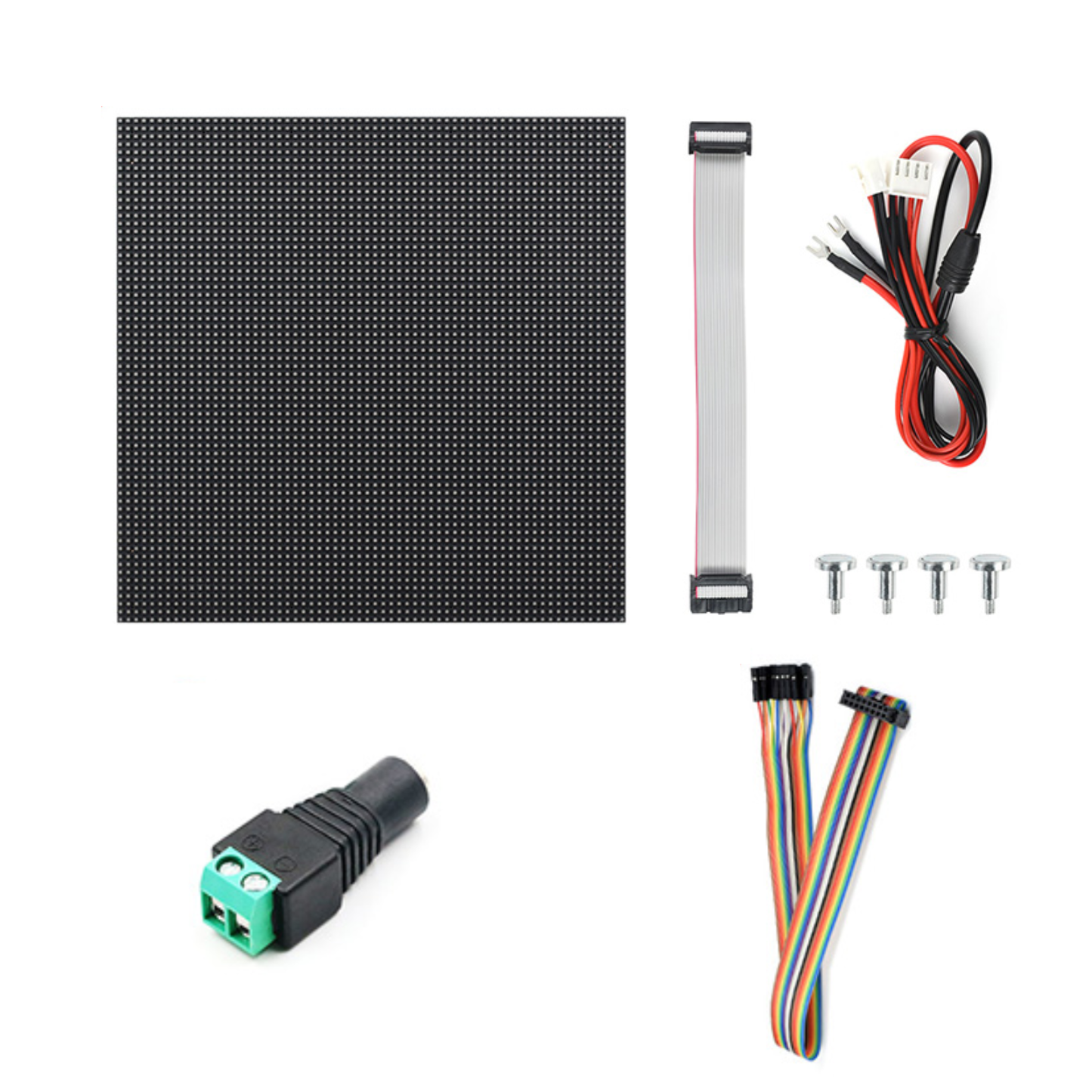

- 1 x Waveshare 64x64 RGB Full-Color LED Matrix Panel
- 1 x Power supply terminal adapter
- 1 x 16P wire
