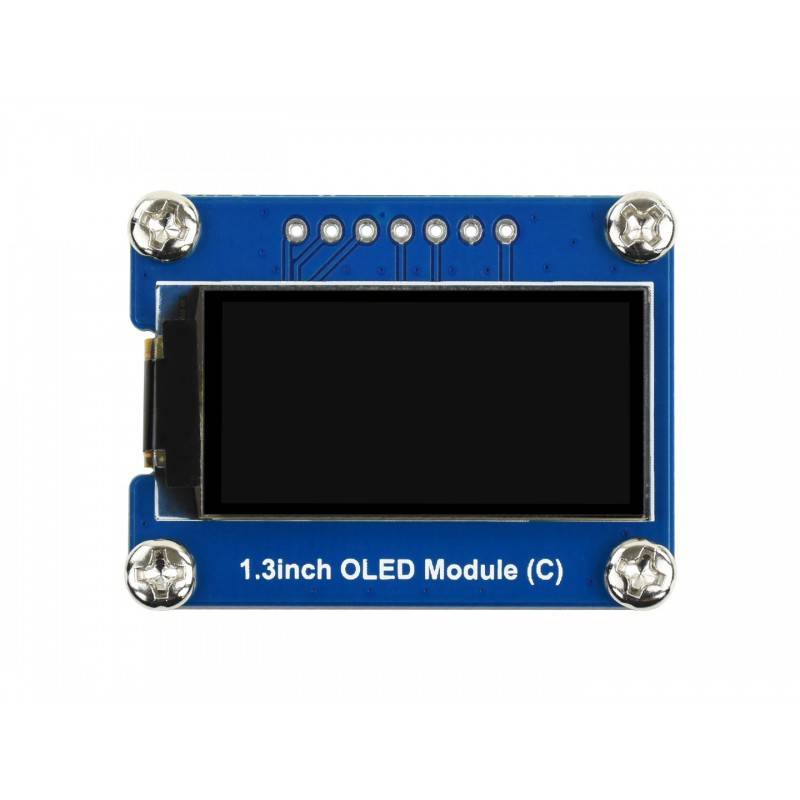

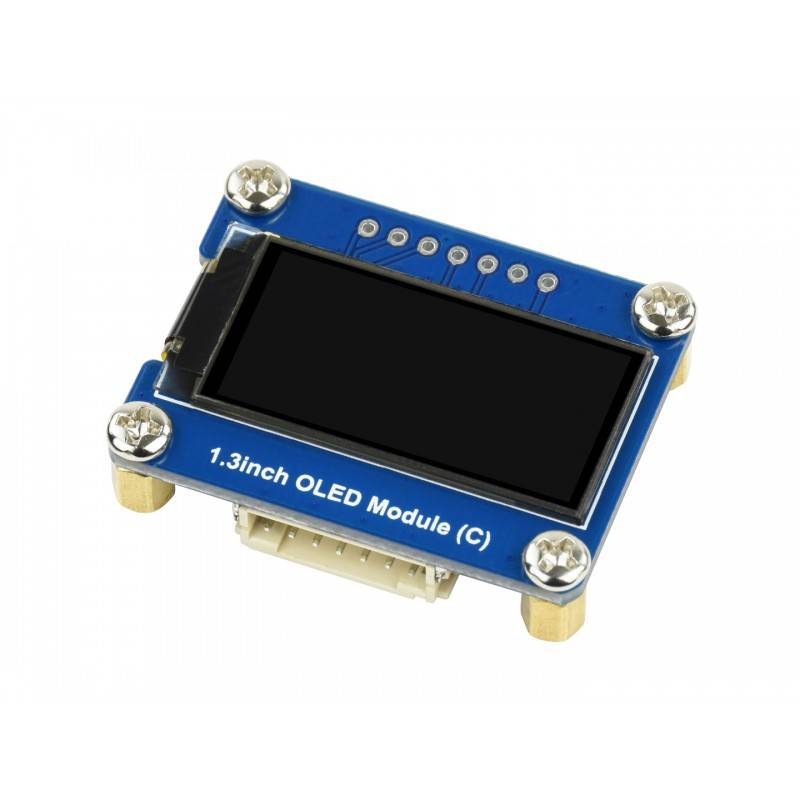

Waveshare 64×128, General 1.3inch OLED Display Module - RS1679
Waveshare 64×128, General 1.3inch OLED Display Module - RS1679
SKU:RS1679
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
The REES52 Promise
The REES52 Promise
We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.
Dead on arrival or defective? We replace it.
If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.
Refunds, with real timelines.
- Approved refunds go back to your original payment method within 6-7 working days.
- Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
- Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.
Wrong item or not as described?
Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.
About lead times on some products.
A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.
Talk to a human.
Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.
- Working Voltage：3.3V
- Communication Interface:/IIC
- Controller：SH1107
- Resolution：64 × 128
- Display Area：14.7 × 29.42 (mm)
- Pixel size：0.15 × 0.15 (mm)
- Dimension: 30 × 39.5 (mm)
- Color: Black/White

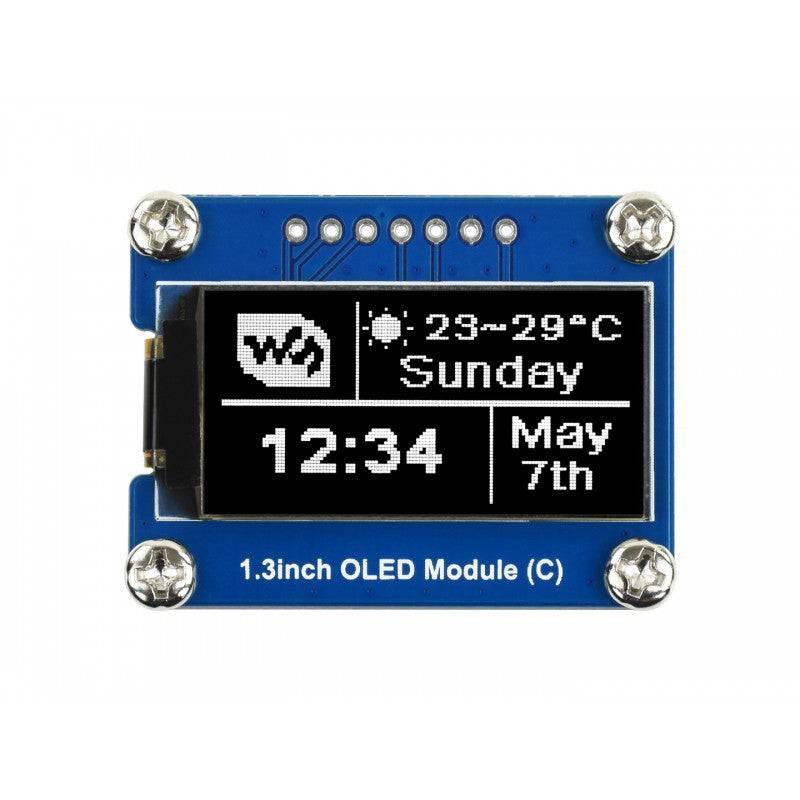

Overview
1.3inch LCD HAT, SPI/I2C interfaces
Specification
- Working Voltage：3.3V
- Communication Interface:/IIC
- Controller：SH1107
- Resolution：64 × 128
- Display Area：14.7 × 29.42 (mm)
- Pixel size：0.15 × 0.15 (mm)
- Dimension: 30 × 39.5 (mm)
- Color: Black/White
Pins
| PIN | Description |
| VCC | Power input(3.3V) |
| GND | Ground |
| DIN | MOSI pin of SPI (Data input) |
| CLK | SCLK pin of SPI (Clock input) |
| CS | Chip selection, low active |
| DC | Data/Command, Low for command and High for data |
| RST | Reset, Low active |
Hardware Configuration
.png)

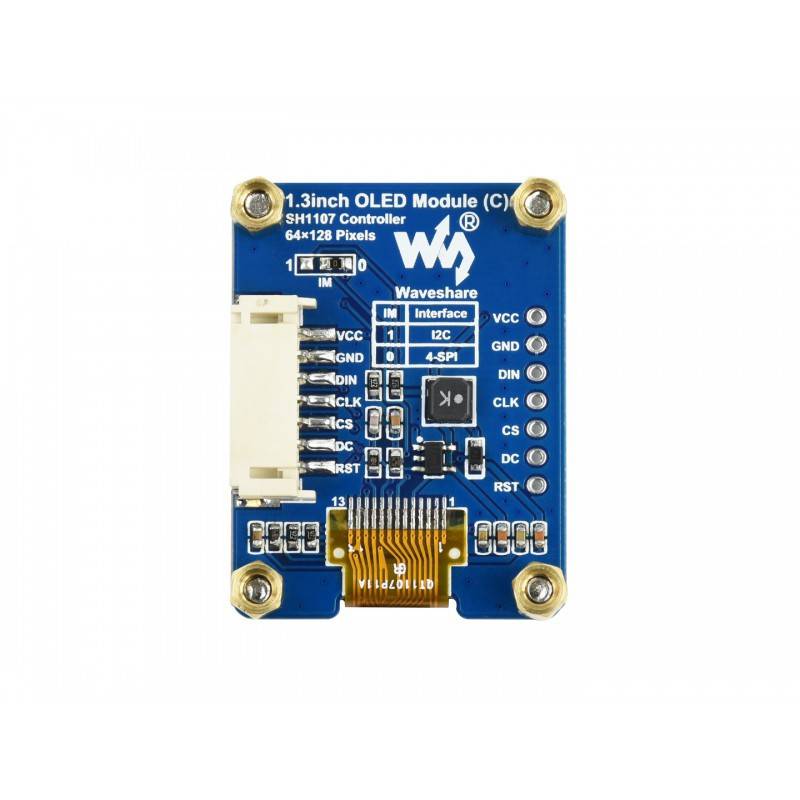

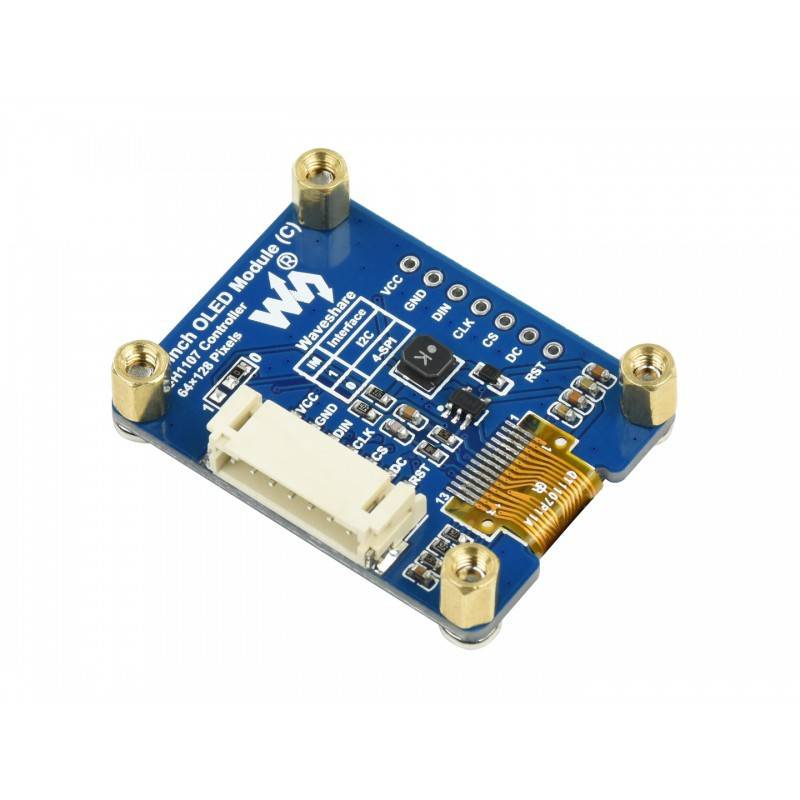

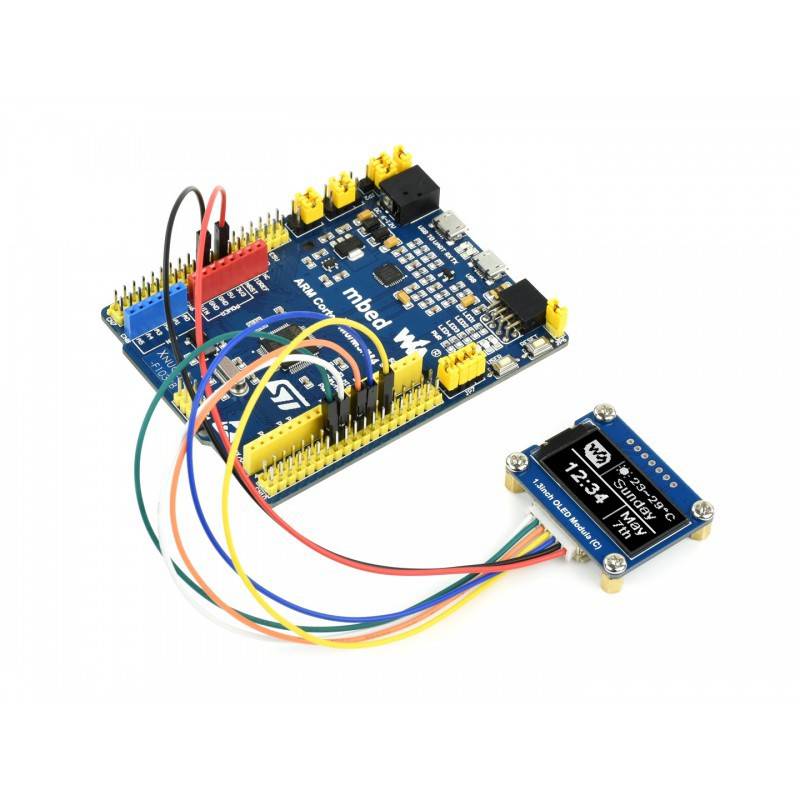

The OLED module provides two drive interfaces: 4-wire SPI and I2C. There is a resistor that can be soldered on the back of the module, and the corresponding communication mode can be selected through the selection of the resistor, as shown in the figure:
The module uses 4-wire SPI communication mode by default, that is, IM is connected to 0 by default (1 and 0 do not represent the level, just the welding method of connecting or connecting the resistance, the specific hardware link is shown in the following table):
Note: The above picture is the welding on the hardware, the following table is the actual hardware connection
| Communication Method | IM |
| 4-wire SPI | 0 |
| I2C | 1 |
The specific hardware configuration is as follows:
- Using 4-wire SPI:
That is, the factory program setting: IM is connected to 0 and connected to the ground;
- Using I2C:
IM is connected to 1 to VCC (3.3V);
When using I2C: The high and low state of DC can control the address of the slave device. If it receives a low level, then the 7-bit address of I2C is: 0x3C;
PS: The program defaults to SPI mode. If you need to switch the mode, please modify DEV_Config.h. For details, please refer to the program description - bottom hardware interface - interface selection
OLED and its controller
This OLED integrates the SH1107 controller which has 128x128 bits SRAM, supports 128x128 resolution. The controller features SPI/IIC/ 6800/8080 interface and 256 brightness levels. The resolution of this 1.3inch OLED is only 64x128, only half of the SRAM is used.
This OLED use four-line SPI and I2C interface for communicating, which supports higher compatibility and speed.
Package Included :
1 X 1.3inch OLED Display Module
