Description:

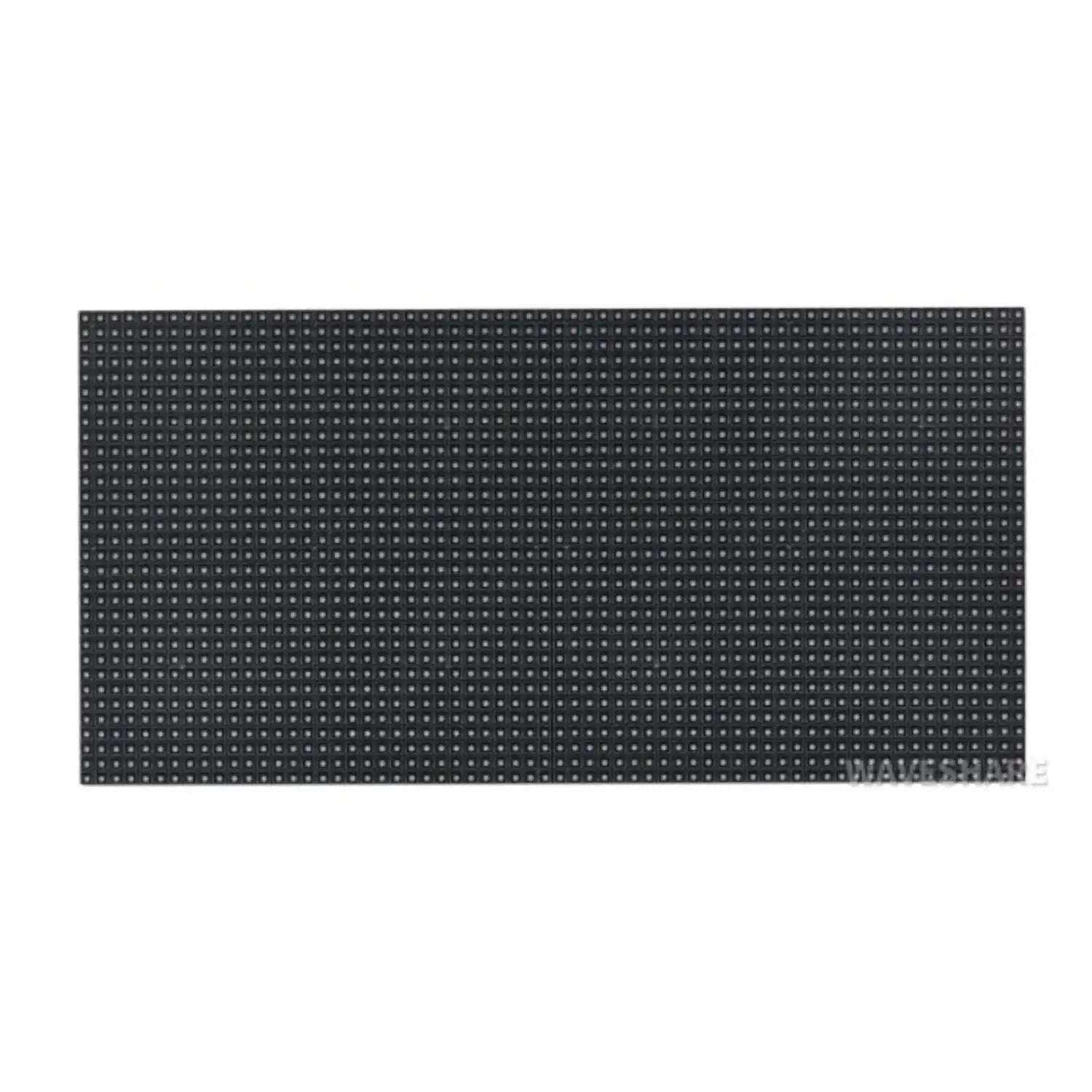

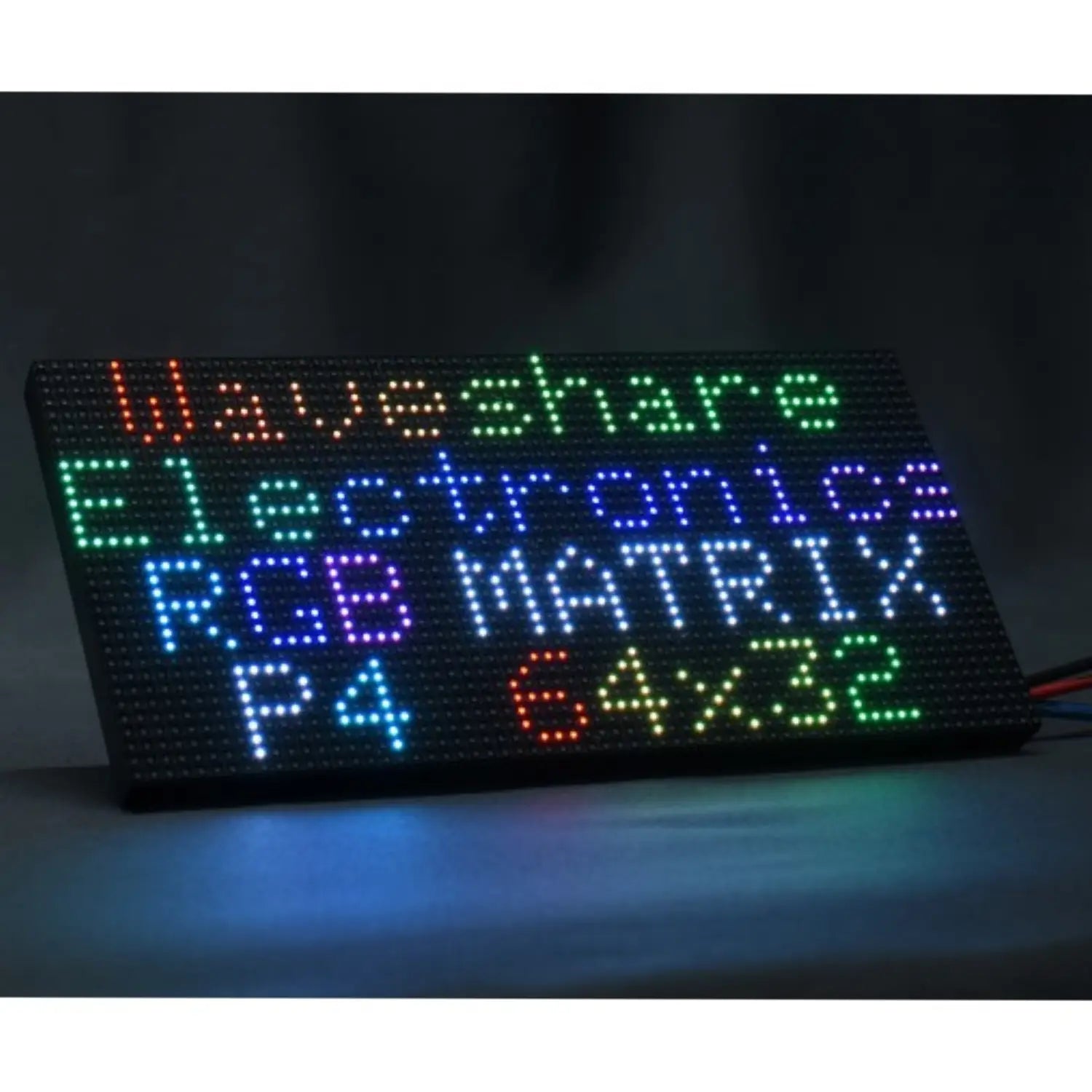

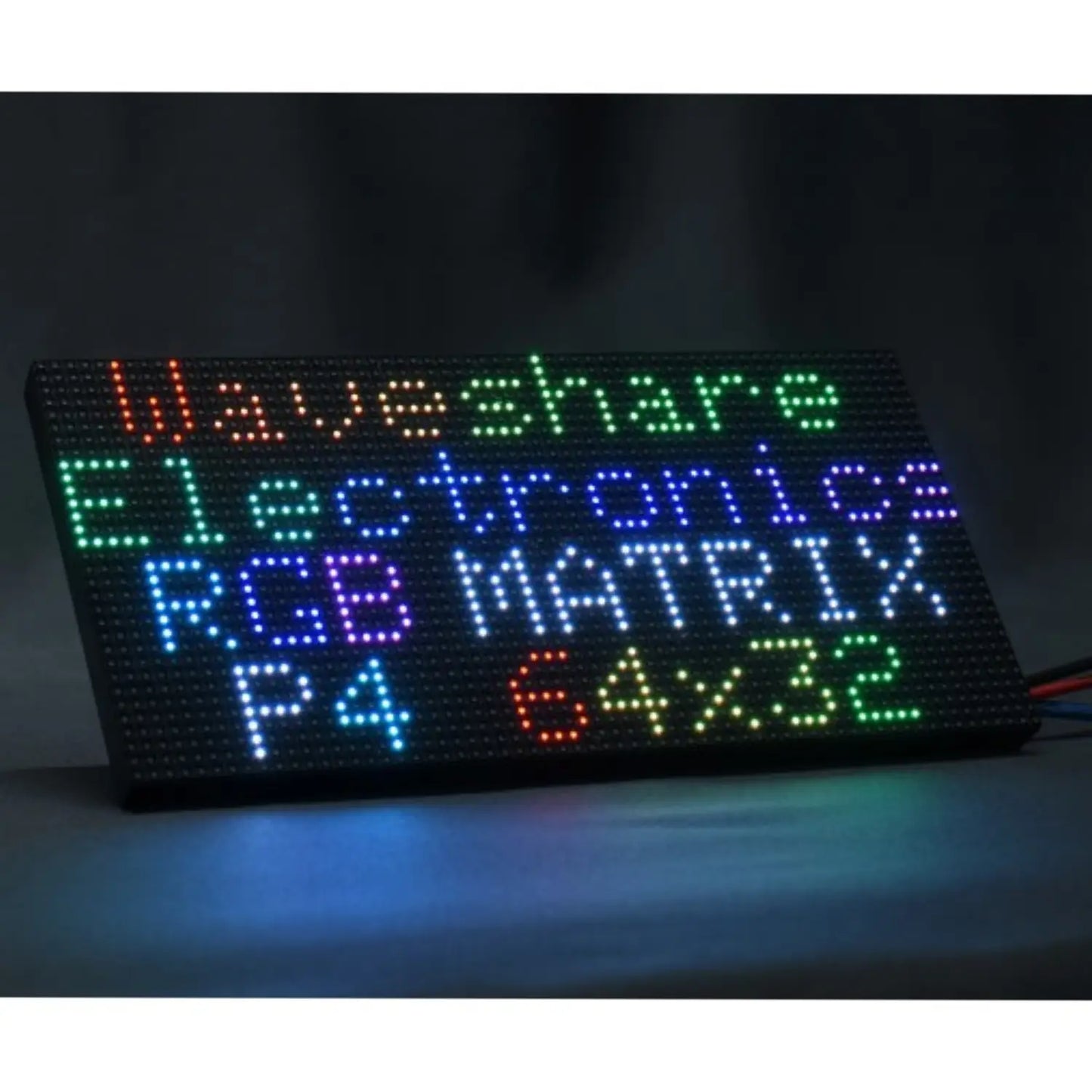

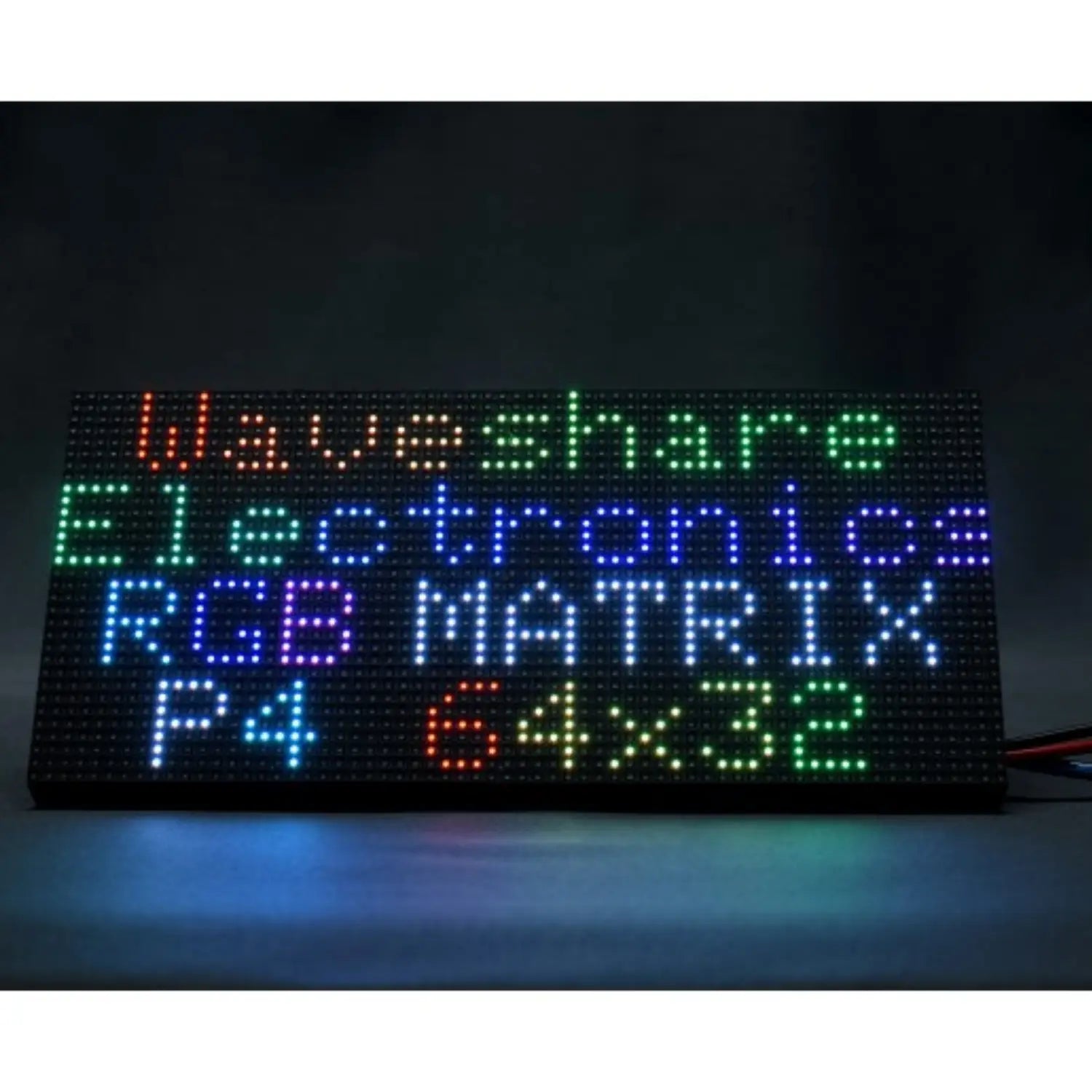

The Waveshare RGB Full-Color LED Matrix Panel is a high-quality 64×32 pixel display with a 4mm pitch, designed for vivid visual output and versatile applications. With adjustable brightness and full RGB color capabilities, this panel is ideal for both industrial displays, digital signage, DIY projects, and human–machine interface systems.
Built around a 2D LED matrix architecture, the panel features rows and columns of diodes configured for efficient scanning and pixel control. Each LED is precisely positioned at the intersection of the row and column lines, enabling crisp, full-color visuals with smooth transitions and animations.
Whether you're creating a scrolling text display, an eye-catching LED art installation, or an interactive system, this panel offers the durability, clarity, and flexibility needed for creative and technical implementations alike.
Specification:
- Dimensions: 256mm × 128mm
- Pixels: 64×32=2048 DOTS
- Pitch: 4mm
- Pixel form: 1R1G1B
- Viewing angle: ≥160°
- Control type: synchronization
- Driving: 1/16 scan
- Header: HUB75
- Power supply: 5V / 4A (VH4 header input)
- Power: ≤20W
Features:
- 2048 individual RGB LEDs, full-color display, adjustable brightness
- 64×32 pixels, 4mm pitch, allows displaying text, colorful images, or animation
- 256×128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

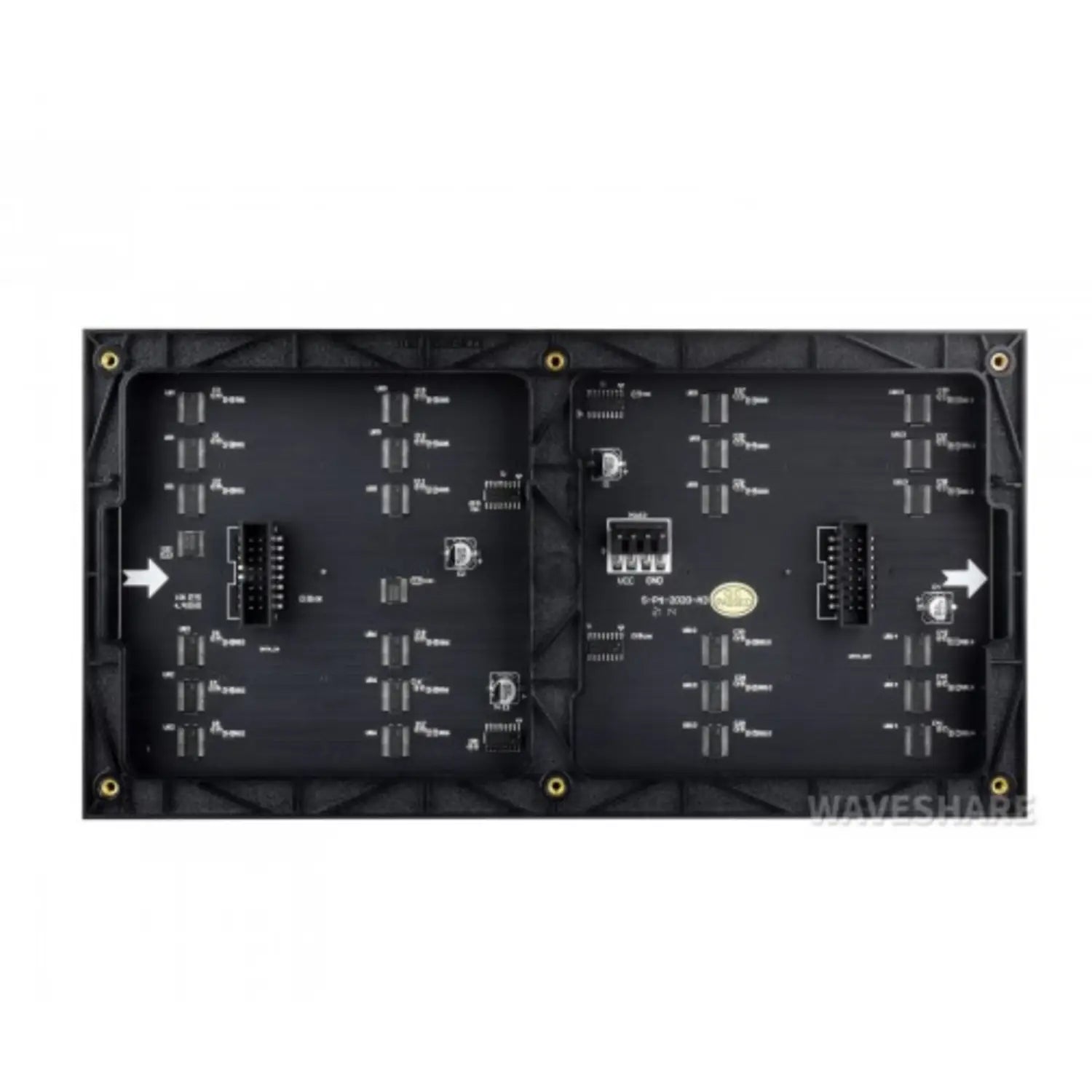

- Onboard two HUB75 headers, one for controller data input, one for output, and chain support
- Provides open-source development resources and tutorials for use with Raspberry Pi, Arduino, and so on
Pin Description:
Pin | Description | Pin | Description |
---|---|---|---|
VCC | 5V power input | GND | Ground |
R1 | R higher bit data | R2 | R lower bit data |
G1 | G higher bit data | G2 | G lower bit data |
B1 | B higher bit data | B2 | B lower bit data |
A | A line selection | B | B line selection |
C | C line selection | D | D-line selection |
E | E-line selection | CLK | clock input |
LAT/STB | latch pin | OE | output enable |
Useful Link:
Waveshare 64×32 RGB LED Matrix Panel
Package Included:
- 1 x RGB-Matrix-P4-64x32 LED matrix and accessories
- 1 x Power supply terminal adapter
- 1 x 16P wire ~30cm
