Description:

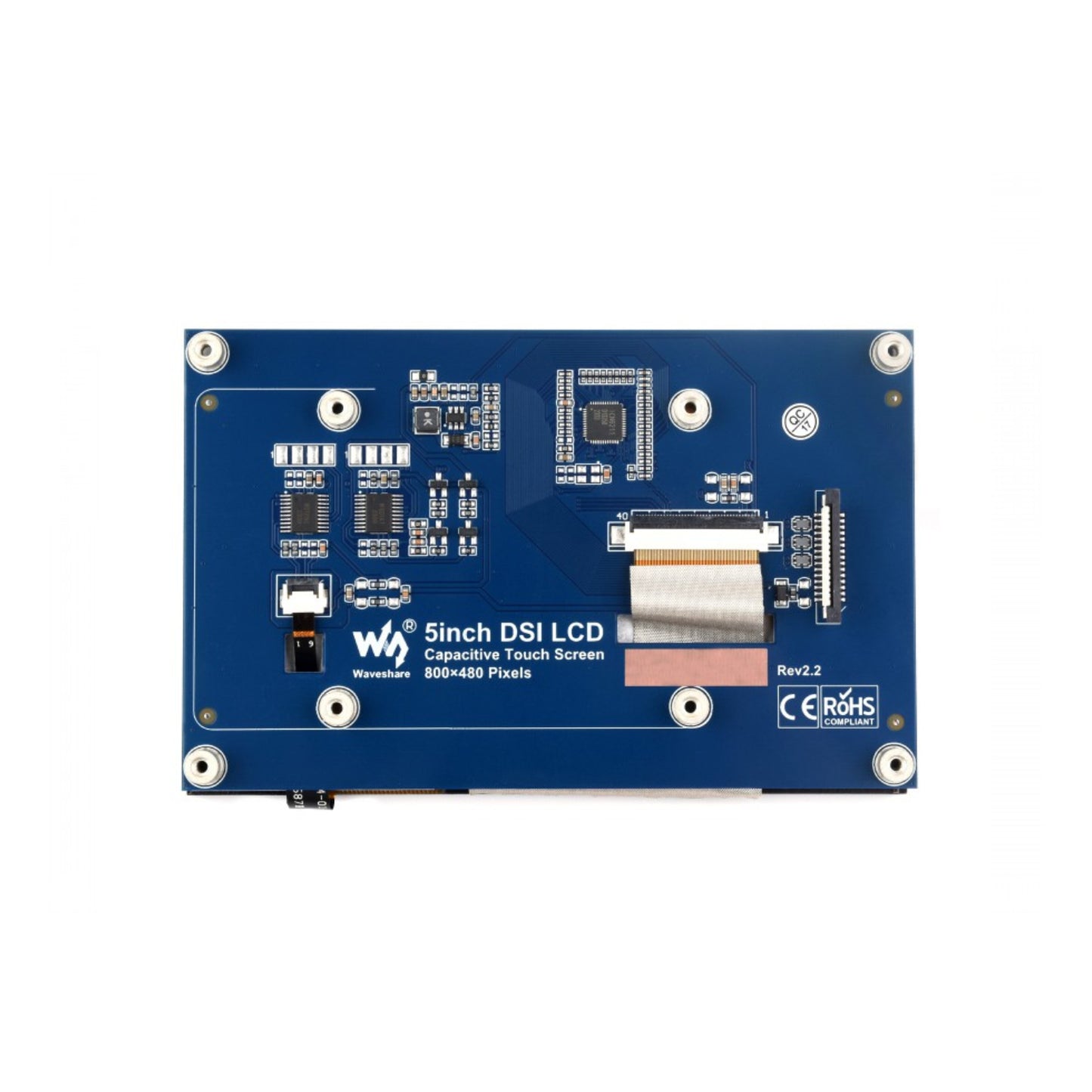

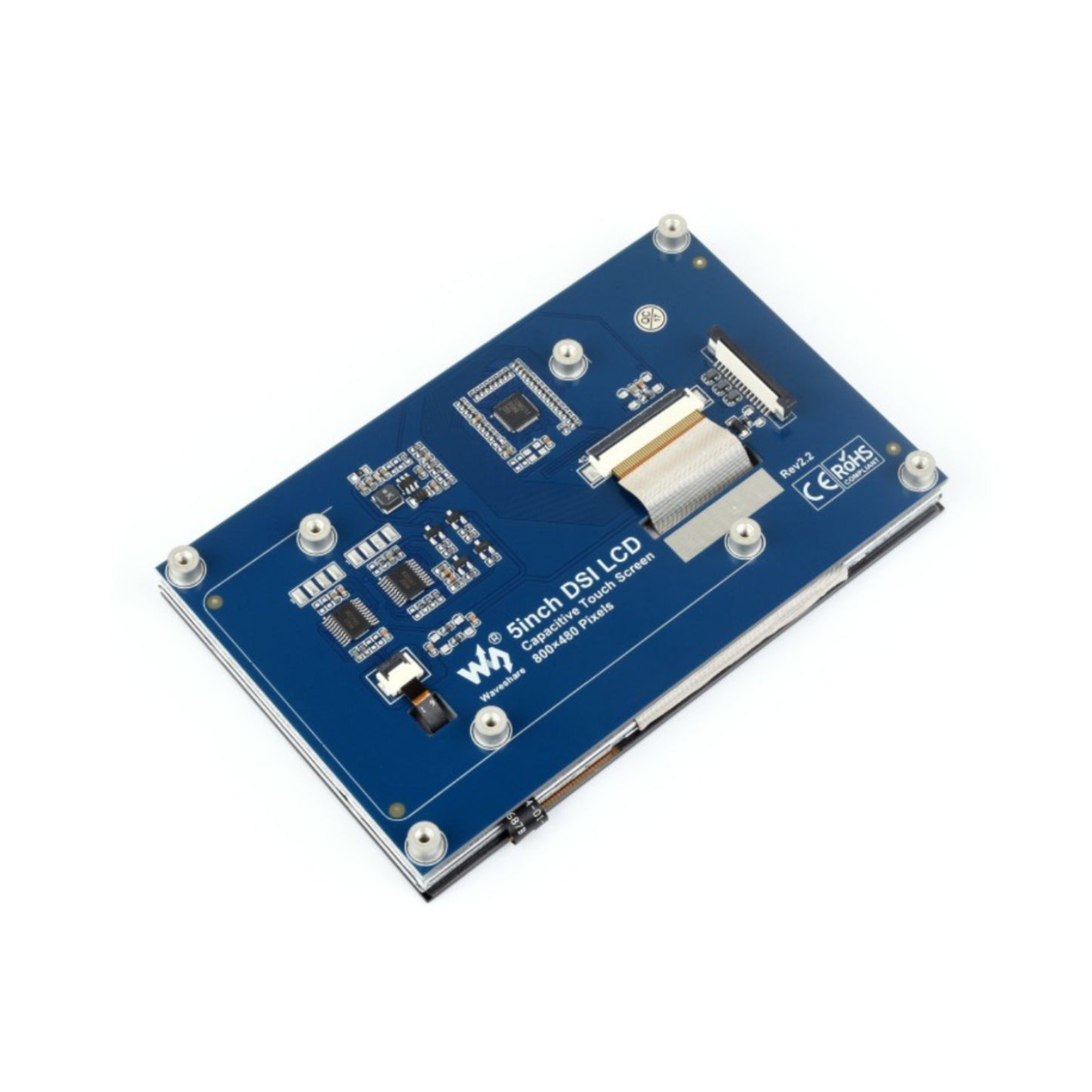

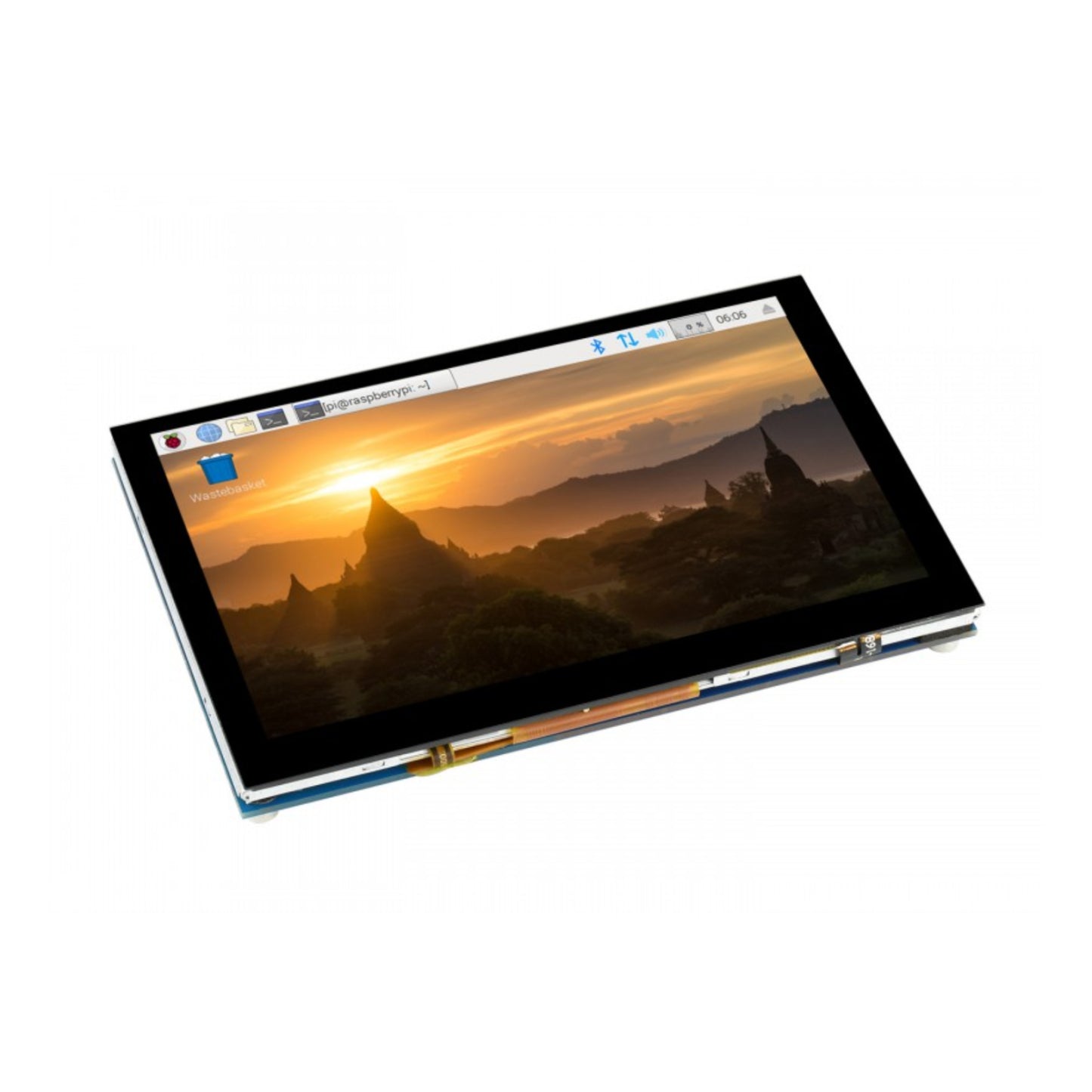

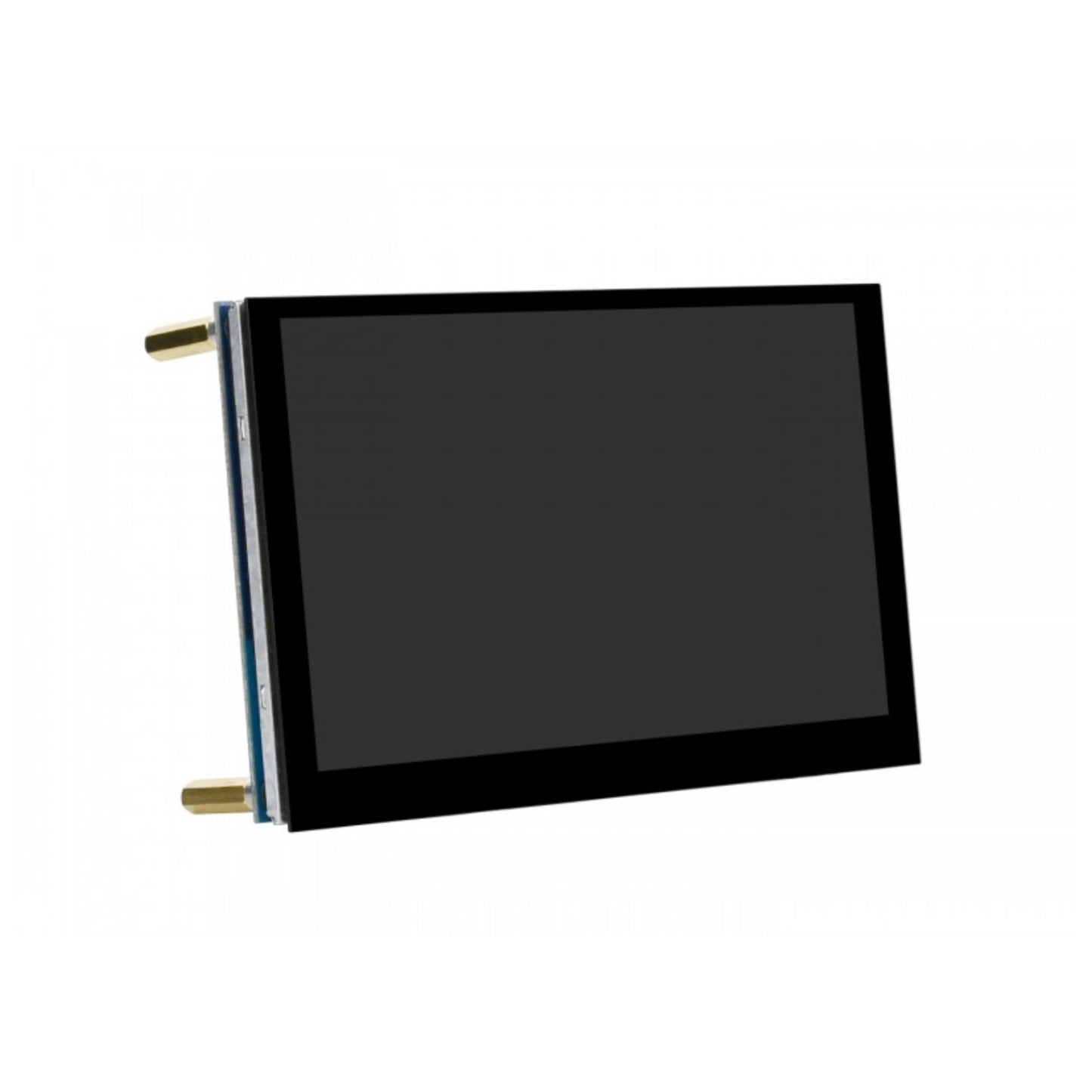

This is a 5-inch DSI Display with an 800 x 480 resolution and a 108×64.8mm display area. The product supports the Raspberry Pi DSI display interface, comes with a capacitive touch panel on its screen, and supports 5 touch points. The special hole design on the back of the screen makes it convenient to directly install the Raspberry Pi into the product.
There is no need to provide external power for the touchscreen as the Raspberry Pi power supply has been adopted. In addition, the 5-inch DSI Display supports hardware backlight adjustment. The function can be realized by turning the potentiometer on the back of the display.
Specifications:
- Display Size (Inch): 5
- Touchscreen (Y/N): Yes
- Resolution: 800×480
- Max Current (A): 320mA
- Operating Temperature (°C): -20℃~70℃
- Screen off Current: 100mA
- Colour:16 Mega True Color, RGB888
- Interface: DSI
- Operating Voltage (V): 3.3V (Supplied by Raspberry Pi display interface)
- Mounting Hole Diameter (mm): M2.5
- Refresh Frequency: 60Hz
- Viewing Angle:60°/70°/70°/70°
- Mounting hole position: 58mm x 49mm/ 2.28" x 1.93", Inside Mounting
Features:
- 5-inch 800×480 Capacitive Touch Display, hardware resolution is 800 x 480. The capacitive touch panel supports a 5-point touch.
- Toughened glass capacitive touch panel, hardness up to 6H.
- 5inch DSI Display supports Pi5/4B/CM4/3B+/3A+/3B/CM3/CM3+/2B/B+/A+.
- Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate.

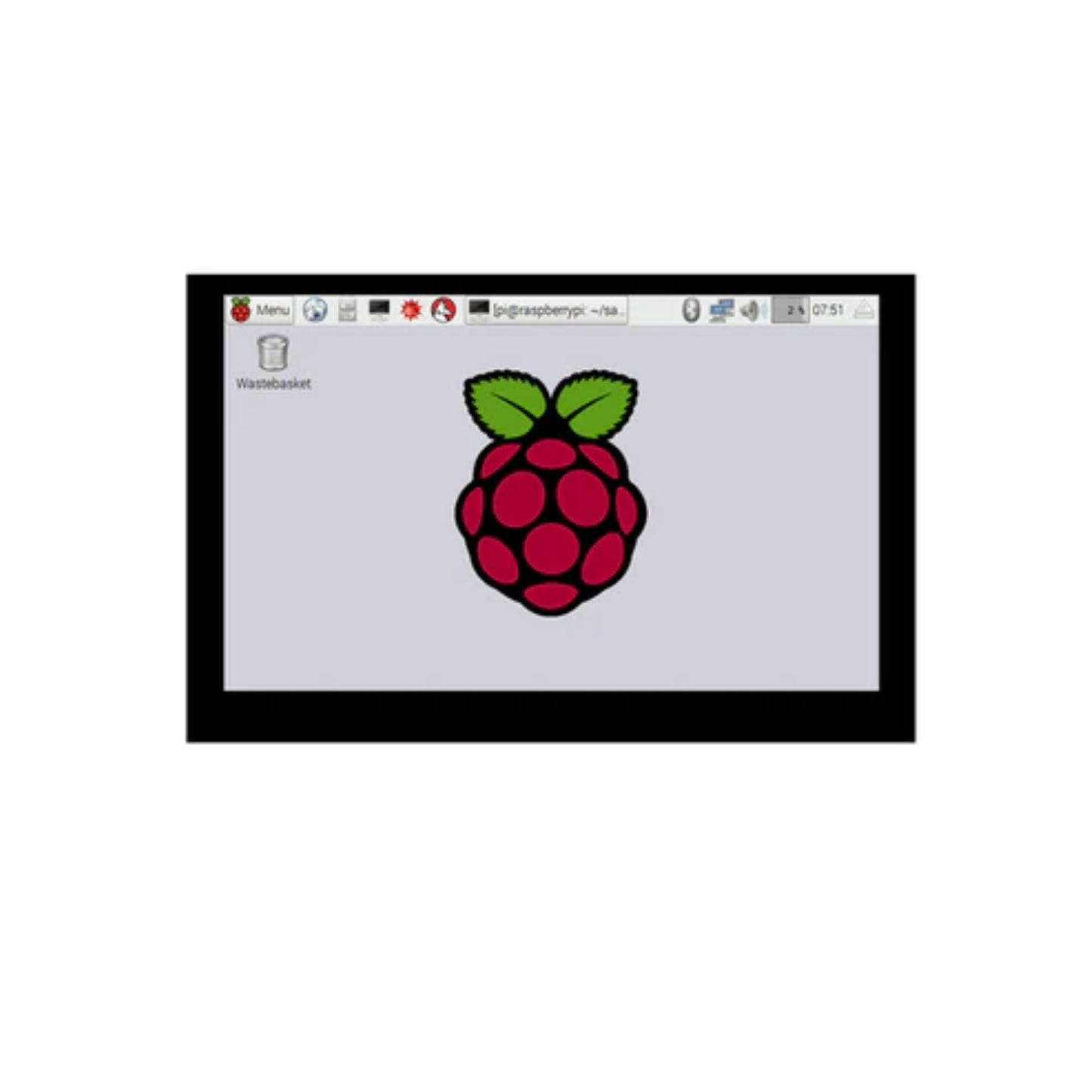

- When working with Raspberry Pi, support Raspberry Pi OS / Ubuntu / Kali and Retropie, driver-free.
- When working with VisionFive, support Debian, single-point control, and driver-free.
- When working with Tinker Board 2, support Linux/Android, five-point control, and driver-free.
- When working with Core3566, support Debian/Ubuntu, five-point control, and driver-free.
- Device & System Supports.
- 5-inch DSI Display supports brightness adjustable through software control.

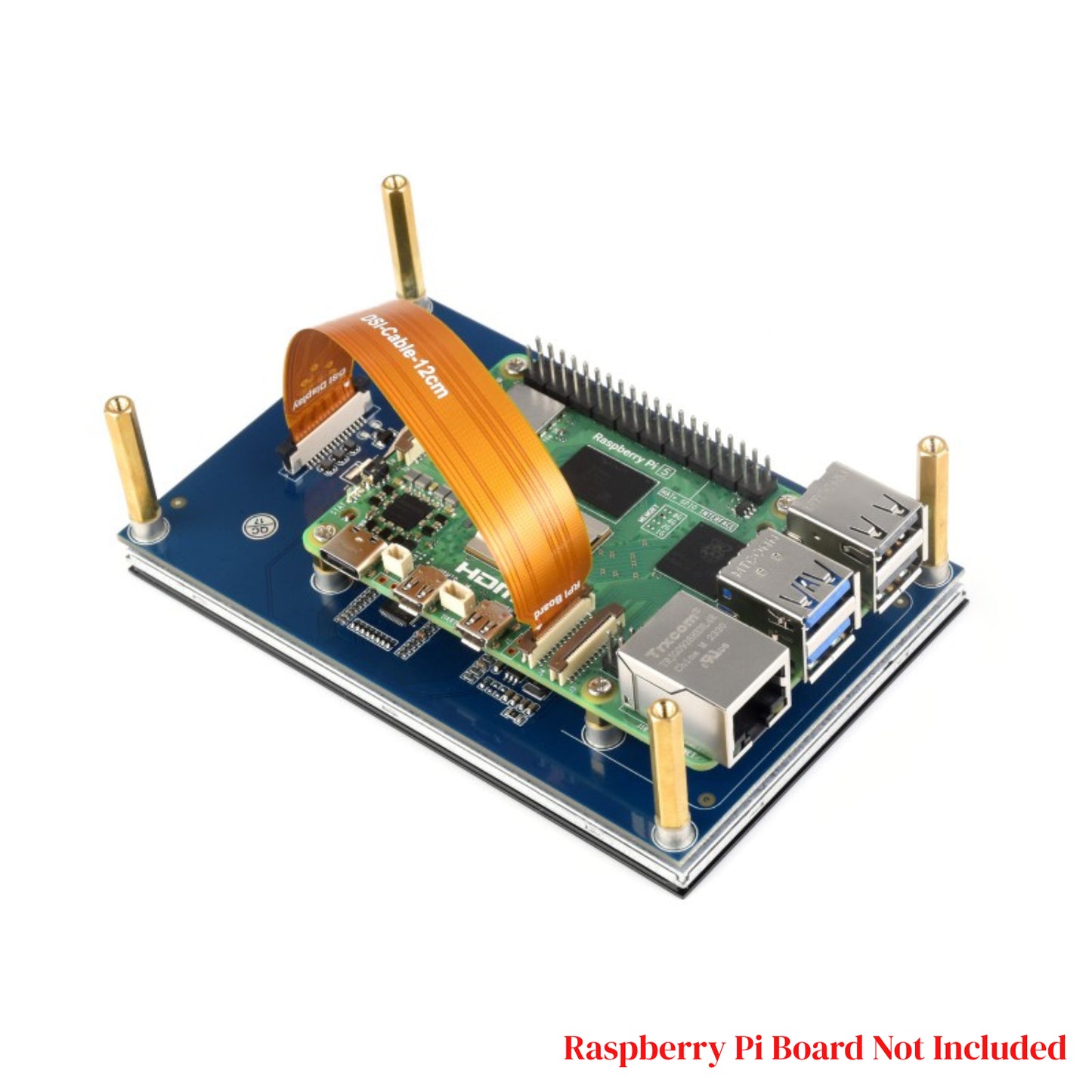

Connection Examples:
Useful Link:

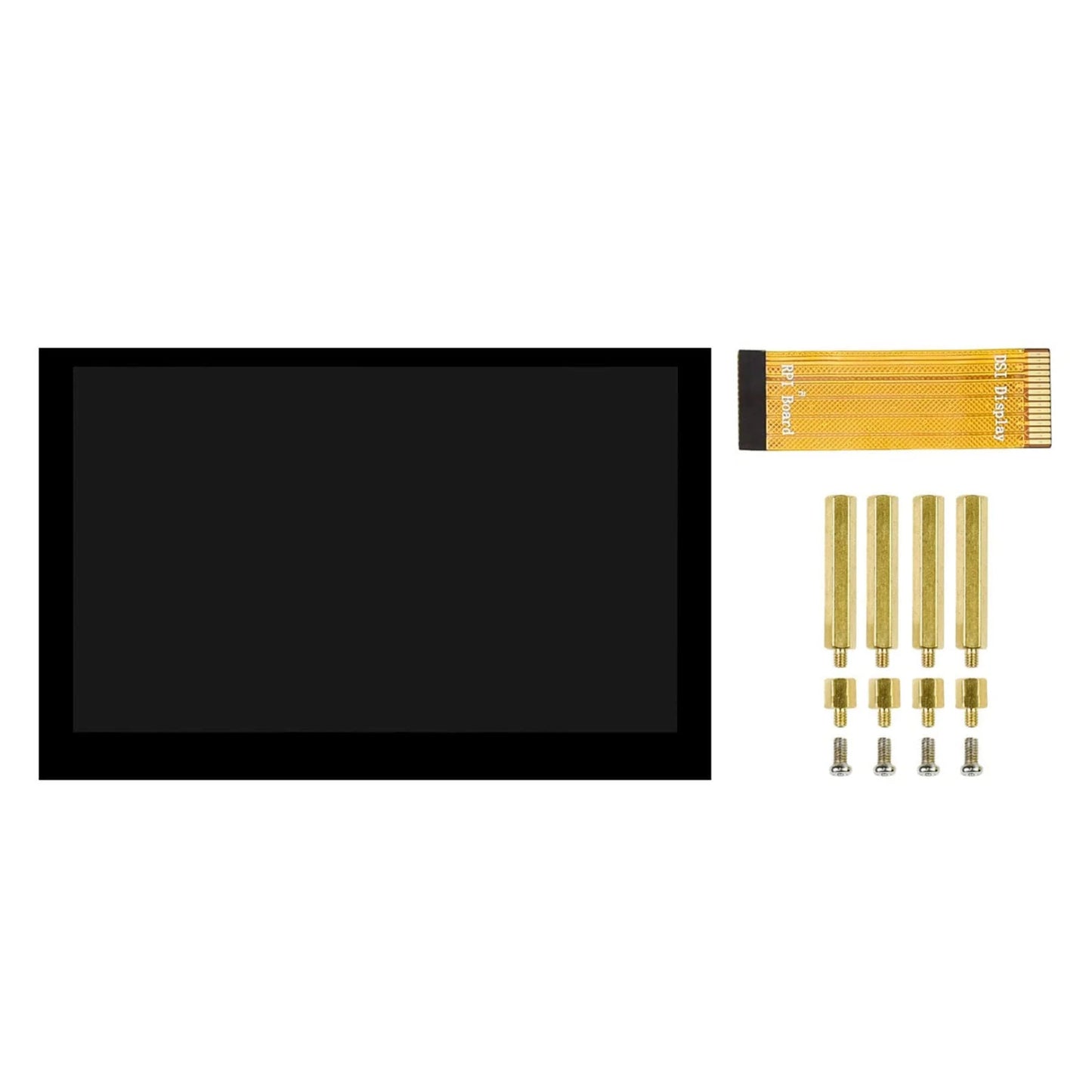

Package Included:
1 x Waveshare 5inch 800×480 Capacitive Touch Display for Raspberry Pi with DSI Interface
1 x FPC 15PIN 1.0 pitch 50mm (opposite sides)
1 x Screws Pack
