Description:

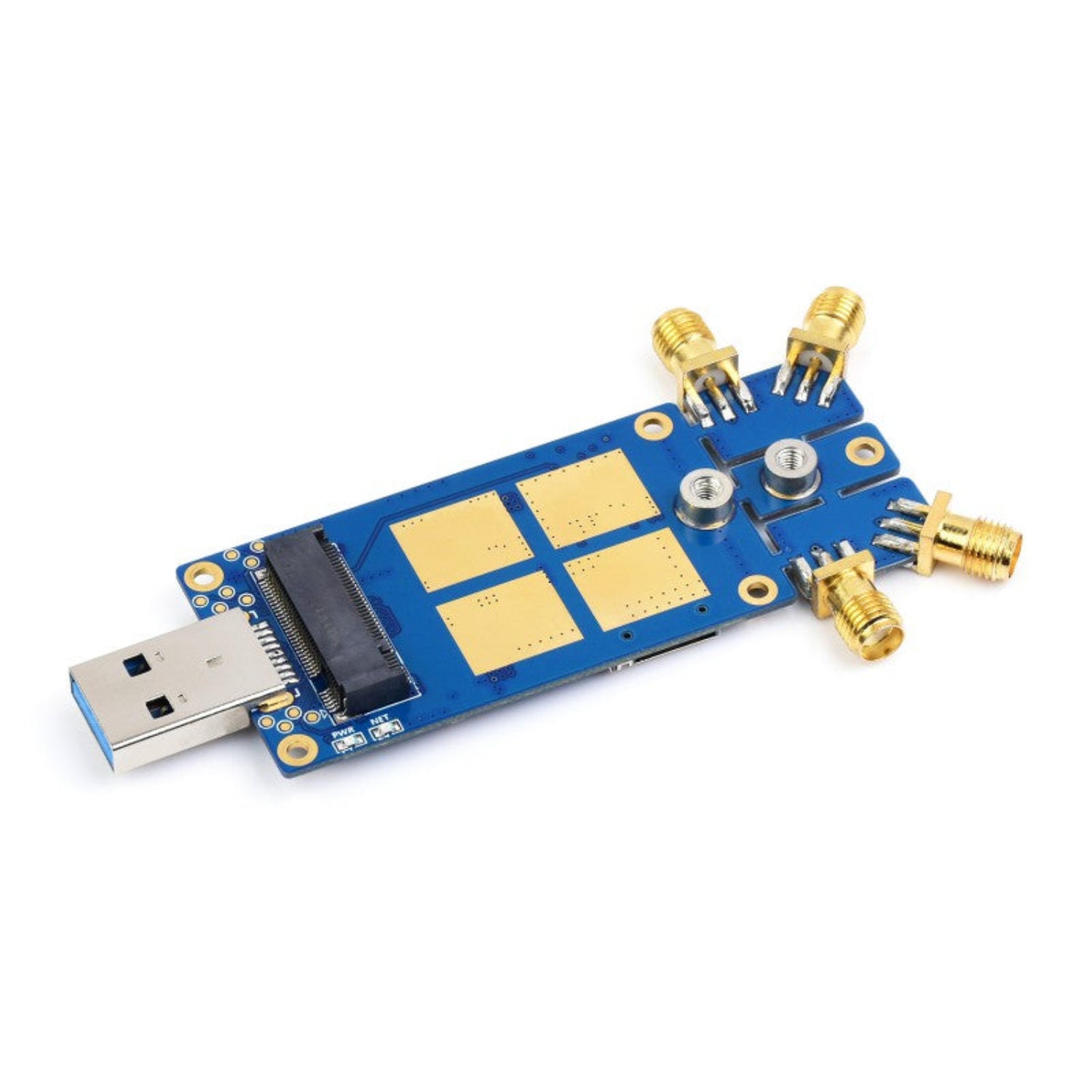

This versatile carrier board provides a straightforward and efficient way to integrate 5G modules into your projects. It features an M.2 (NGFF) Key B interface compatible with a broad range of 5G modules from SIMCom, Quectel, and Fibocom, supporting both 3042 and 3052 form factors like the SIM82XX and RM50XQ series. High-speed 5G connectivity is enabled through a USB 3.1 Type A port for easy connection to PCs, Raspberry Pis, and Jetson Nanos.
The board is equipped with 4x SMA antenna connectors for simple antenna installation and an onboard NANO SIM card slot. User-friendly power and network indicators are included, along with multiple reserved pads for advanced status monitoring and testing. Built with a durable PCB ENIG finish and featuring practical mounting slots and positioning holes, integration is made simple.
The included customized aluminum alloy heatsink not only effectively dissipates heat for optimal module performance but also provides a protective and aesthetically pleasing enclosure.
Features:
- Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom, Quectel, and Fibocom 5G modules
- Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
- USB 3.1 Type A port for connecting to a PC, Raspberry Pi, or Jetson Nano host board to enable a high-speed 5G network
- 4x SMA antenna connectors, easy to install the antenna
- Onboard SIM card slot for NANO SIM card
- Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
- PCB ENIG process, reserved multi-slots, and positioning holes for integration
- Comes with a customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective, and durable
Note:
The 5G module is NOT included in the USB TO M.2 B KEY kit and needs to be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.
Useful Link:
Waveshare 5G USB 3.1 Dongle Module
Package Included:
USB TO M.2 B KEY
- 1 x USB TO M.2 B KEY
- 1 x Aluminum Alloy case (top and bottom)
- 4 x Antenna
- 4 x IPEX adapter cable
- 1 x USB 3.0 female to dual USB male extension cable
- 4 x SMA Protective Cap
- 1 x Thermal tape
- 1 x Screws pack
RM520N-GL 5G DONGLE
- 1 x USB TO M.2 B KEY
- 1 x RM520N-GL
- 1 x Aluminum Alloy case (top and bottom)
- 4 x Antenna
- 4 x IPEX adapter cable
- 1 x USB 3.0 female to dual USB male extension cable
- 4 x SMA Protective Cap
- 1 x Thermal tape
- 1 x Screws pack
RM530N-GL 5G DONGLE
- 1 x USB TO M.2 B KEY
- 1 x RM530N-GL
- 1 x Aluminum Alloy case (top and bottom)
- 4 x Antenna
- 4 x IPEX adapter cable
- 1 x USB 3.0 female to dual USB male extension cable
- 4 x SMA Protective Cap
- 1 x Thermal tape
- 1 x Screws pack
