- Dimension: 114.9mm x 85.79mm
- Outline dimensions(raw panel): 125.4 x 99.5mm x 0.91mm
- Outline dimensions(driver board): 128mm x 101.5mm
- Display Size: 5.65inch
- Operating voltage: 3.3V/5V
- Interface: SPI
- Dot pitch: 0.1915 x 0.1915
- Display color: ACeP 7-Color
- Resolution: 600 x 448 pixels
- Display color: Black/White/Green/Blue/Red/Yellow/Orange
- Full refresh time: 33s
- Refresh power: 26.4mW (typ.)
- Standby current: <0.01uA (almost none)
Description :

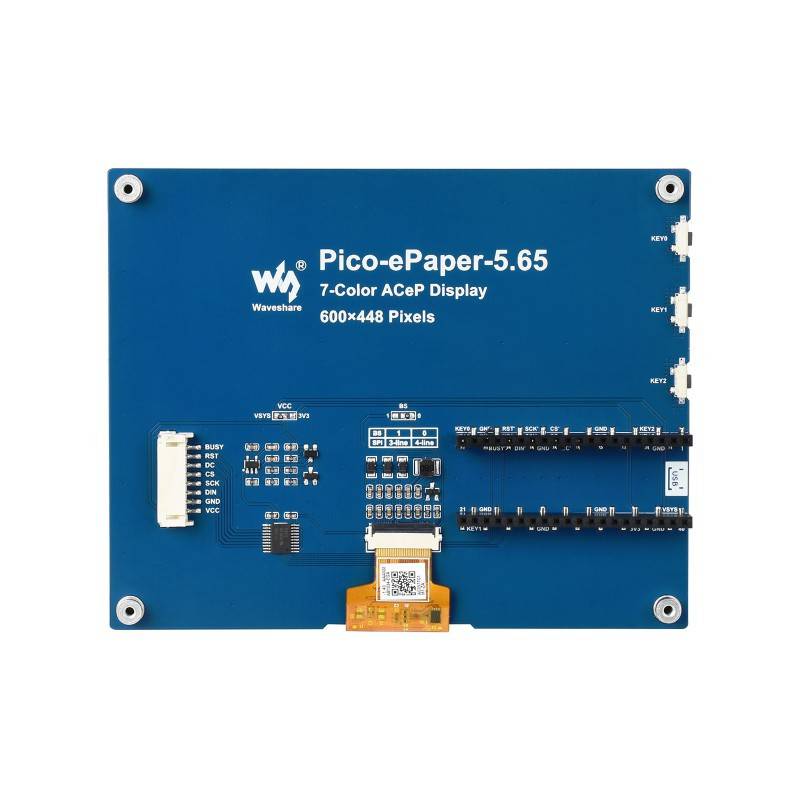

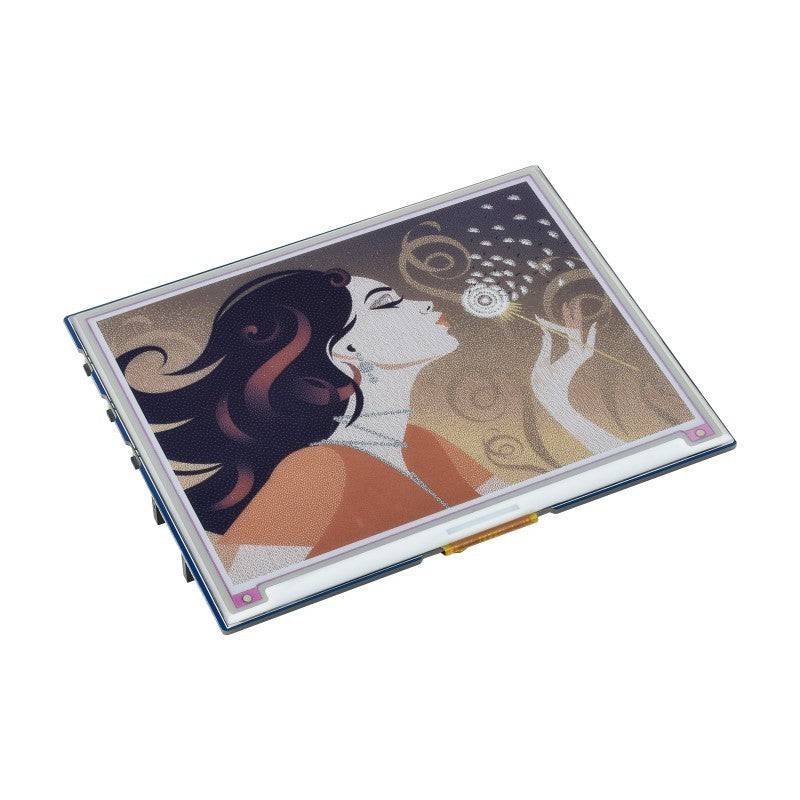

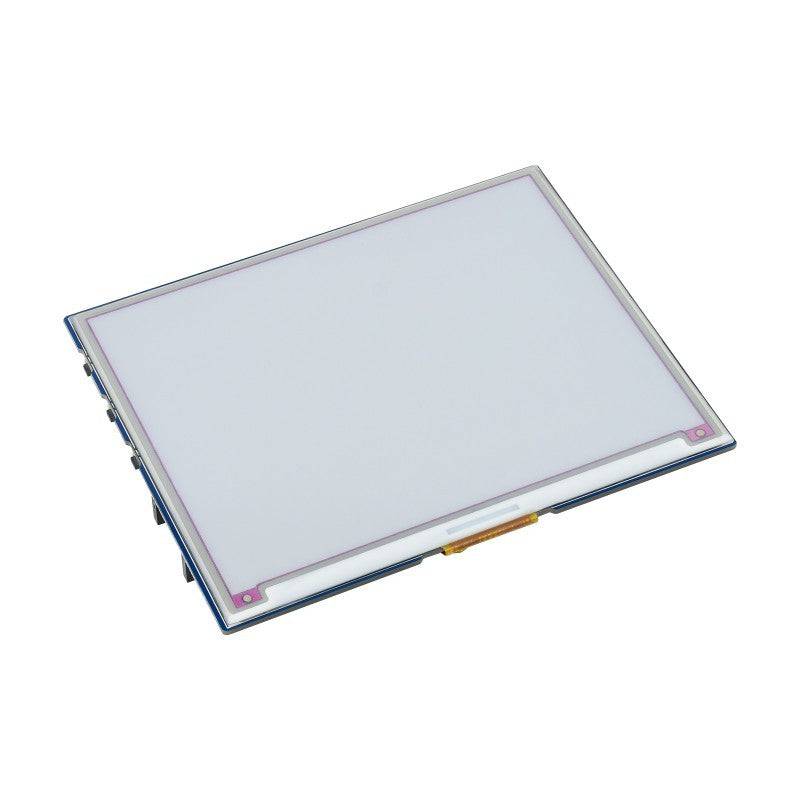

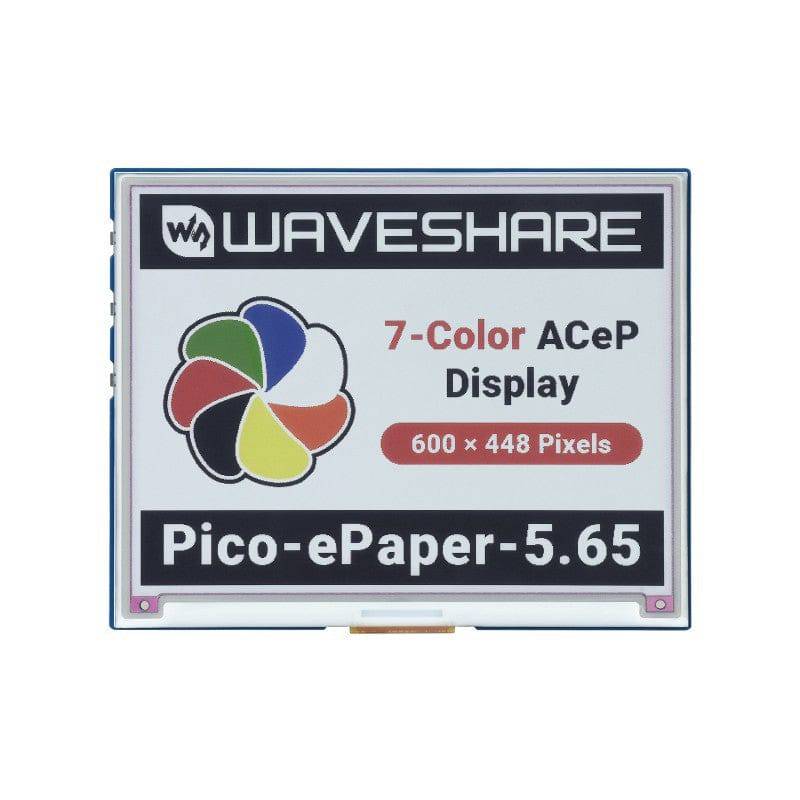

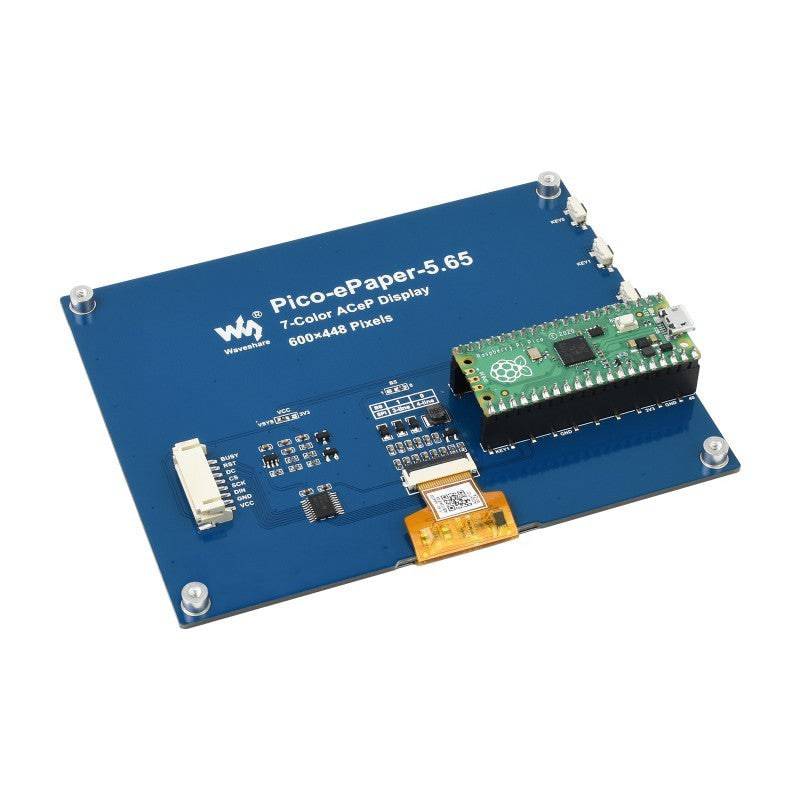

This 5.65inch colorful e-Paper display module is designed for Raspberry Pi Pico, 600 x 448 Pixels, and supports ACeP 7-Color.
Specifications
- Dimension: 114.9mm x 85.79mm
- Outline dimensions(raw panel): 125.4 x 99.5mm x 0.91mm
- Outline dimensions(driver board): 128mm x 101.5mm
- Display Size: 5.65inch
- Operating voltage: 3.3V/5V
- Interface: SPI
- Dot pitch: 0.1915 x 0.1915
- Display color: ACeP 7-Color
- Resolution: 600 x 448 pixels
- Display color: Black/White/Green/Blue/Red/Yellow/Orange
- Full refresh time: 33s
- Refresh power: 26.4mW (typ.)
- Standby current: <0.01uA (almost none)
【Note】: Refresh time: The refresh time is the experimental test data, the actual refresh time will have errors, and the actual effect shall prevail. There will be a flickering effect during the global refresh process, this is a normal phenomenon.
Power consumption: The power consumption data is the experimental test data. The actual power consumption will have a certain error due to the existence of the driver board and the actual use situation. The actual effect shall prevail.
Package Included :
- Pico-ePaper-5.65 x1
- PH2.0 8PIN wire 20cm x1
- Standoff pack x1
