Description:
4inch Resistive Touch Screen LCD, HDMI interface, IPS Screen, Designed for Raspberry Pi. 4inch Resistive Touch Screen has 800x480 high hardware resolution, Resistive touch control, IPS technology, high quality and perfect displaying from a very wide viewing angle.
Specifications:
- Touch Type: Resistive
- LCD Type: TFT
- LCD Interface: SPI
- Colour: 64K 65536 colours
Features
- 4inch IPS screen, with a hardware resolution of 480 × 800.
- Resistive touch control.

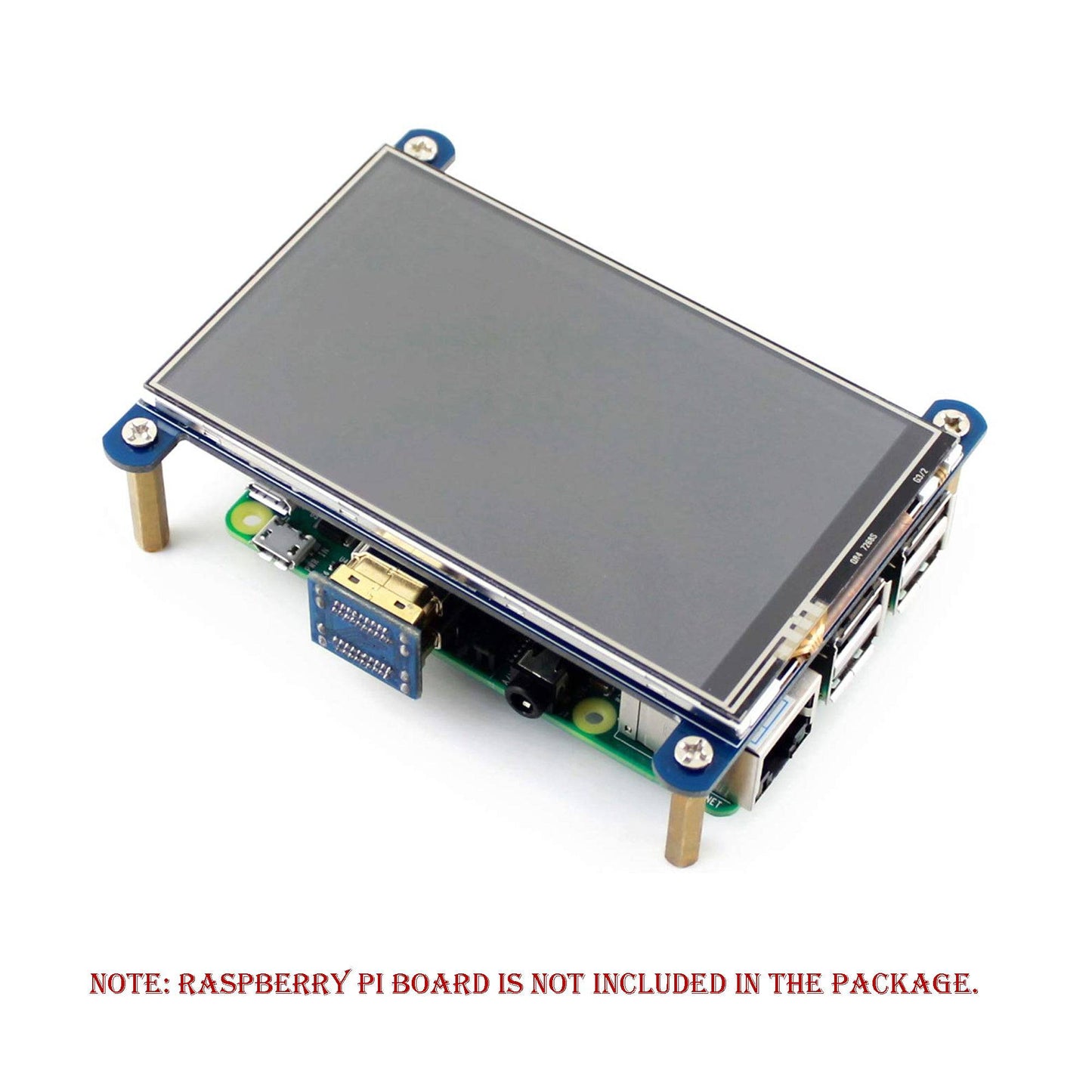

- Compatible with and can be directly connected to any version of Raspberry Pi. (If you are using a Raspberry Pi Zero / Zero 2 W, an additional HDMI cable is required.)
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems.
- Also works as a computer monitor, in this case, the touch panel is unavailable and an HDMI cable is required.
- HDMI interface for displaying, no I/Os is required. (however, the touch panel still needs I/Os.)
- OSD menu supports brightness/contrast ratio adjustable manually.
Useful Link:
Waveshare 4inch Resistive Touch Screen LCD

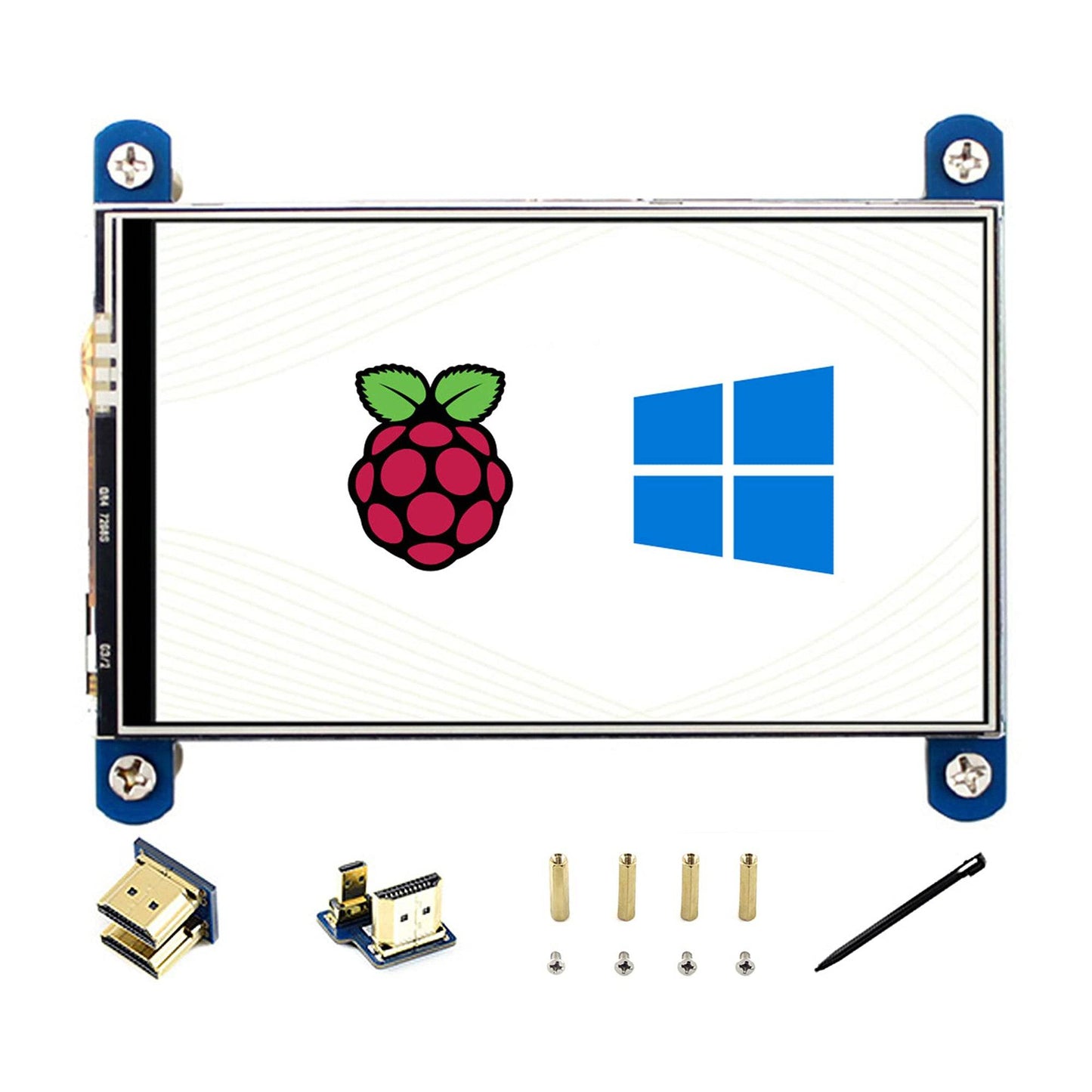

Package Included:
- 1 x 4inch Resistive Touch Screen LCD
- 1 x HDMI to micro HDMI connector
- 1 x HDMI Connector
- 1 x Stylus
- 1 x RPi Screws Pack (4pcs)
- 1 x Quick Start Sheet
