Description:
The Waveshare Industrial USB to 4-Channel RS485 Converter is a high-performance communication interface designed for reliable and robust industrial data transmission. Featuring four independent RS-485 channels, this converter supports simultaneous multi-device communication across various systems.
Built with multiple protection circuits—including ESD, surge, and over-voltage protection—it ensures stable operation in harsh environments. The durable aluminum alloy casing enhances heat dissipation and provides long-term durability, while wall-mount and DIN rail-mount support offer flexible installation options. Compatible with major operating systems, it’s ideal for industrial automation, data acquisition, and control systems.
Specification:
| PRODUCT TYPE | Industrial Grade USB to RS-485 converter | |
|---|---|---|
| Host port | USB | |
| Device port | RS485 | |
| Baudrate | 1200bps ~ 460800bps | |
| USB | Operating voltage | 5V |
| Connector | USB-B | |
| Protection | 500mA resettable fuse, ESD protection | |
| Transmission distance | About 5m | |
| RS485 | Connector | Screw terminal |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection | |
| Transmission distance | Maximum communication distance is about 1200m (at a low rate, with 120R resistor turned on) | |
| Transmission mode | Point-to-multipoint (up to 32 nodes). It is recommended to use repeaters for 16 nodes or more. | |
| Operating environment | Temperature | -40 ~ 85℃ |
| Humidity | 5%RH ~ 95%RH | |
| Operating system | Win7/8/8.1/10/11, Mac, Linux, Android | |
Features:
- Extending USB to 4CH RS485 allows concurrent and independent communication for each channel
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof anti-electrostatic
- Onboard resettable fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock-proof performance

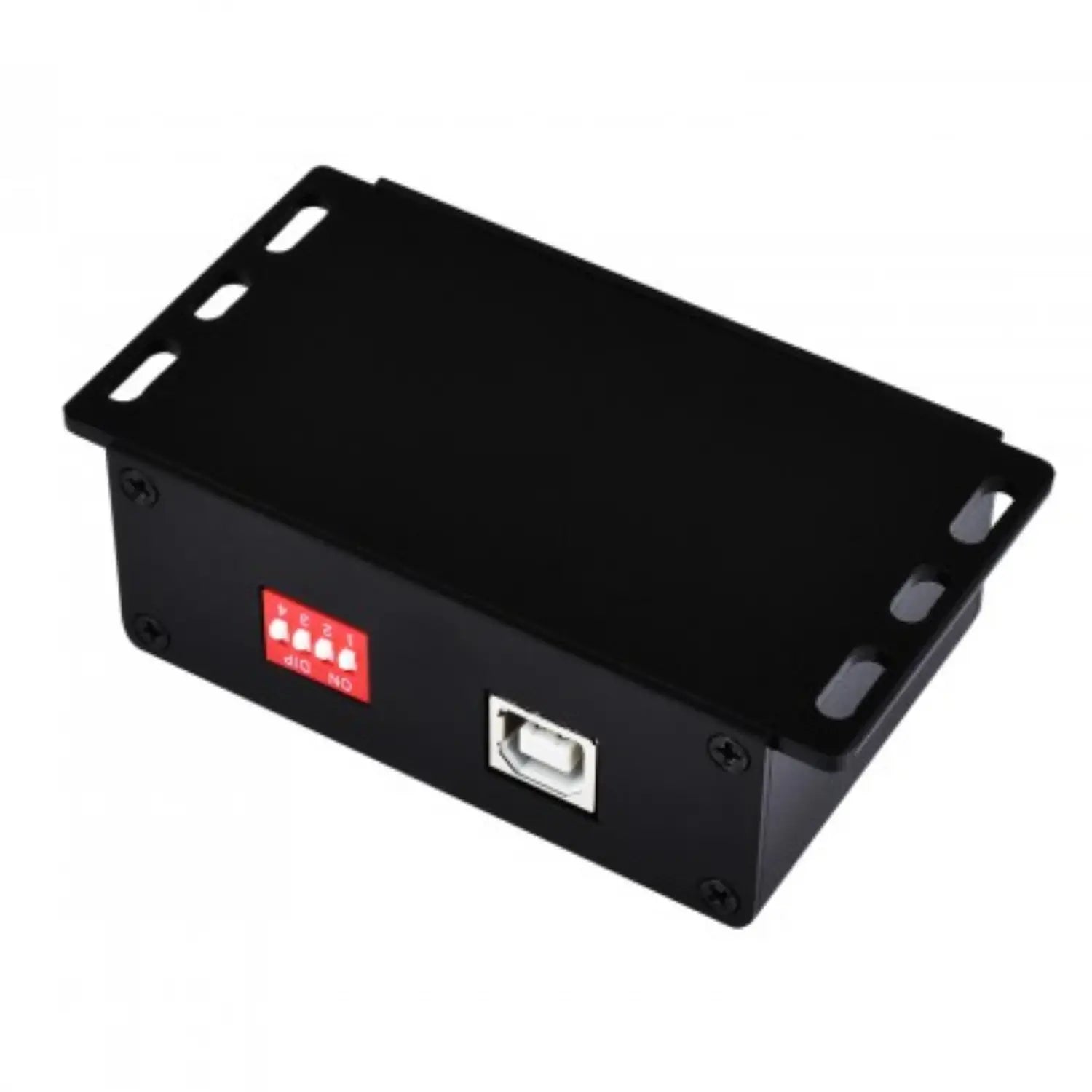

- Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch
- Aluminum alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
Product Interface:

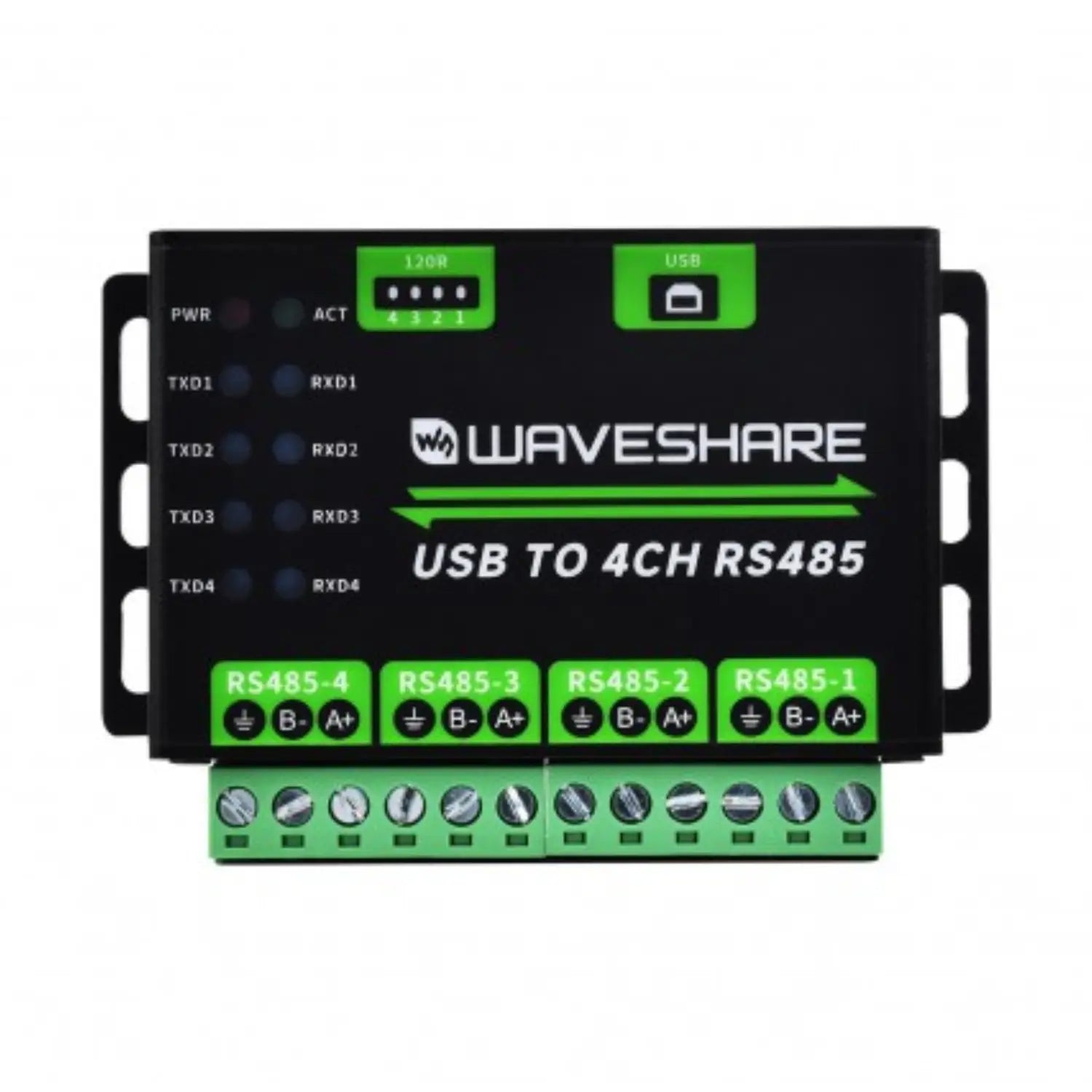

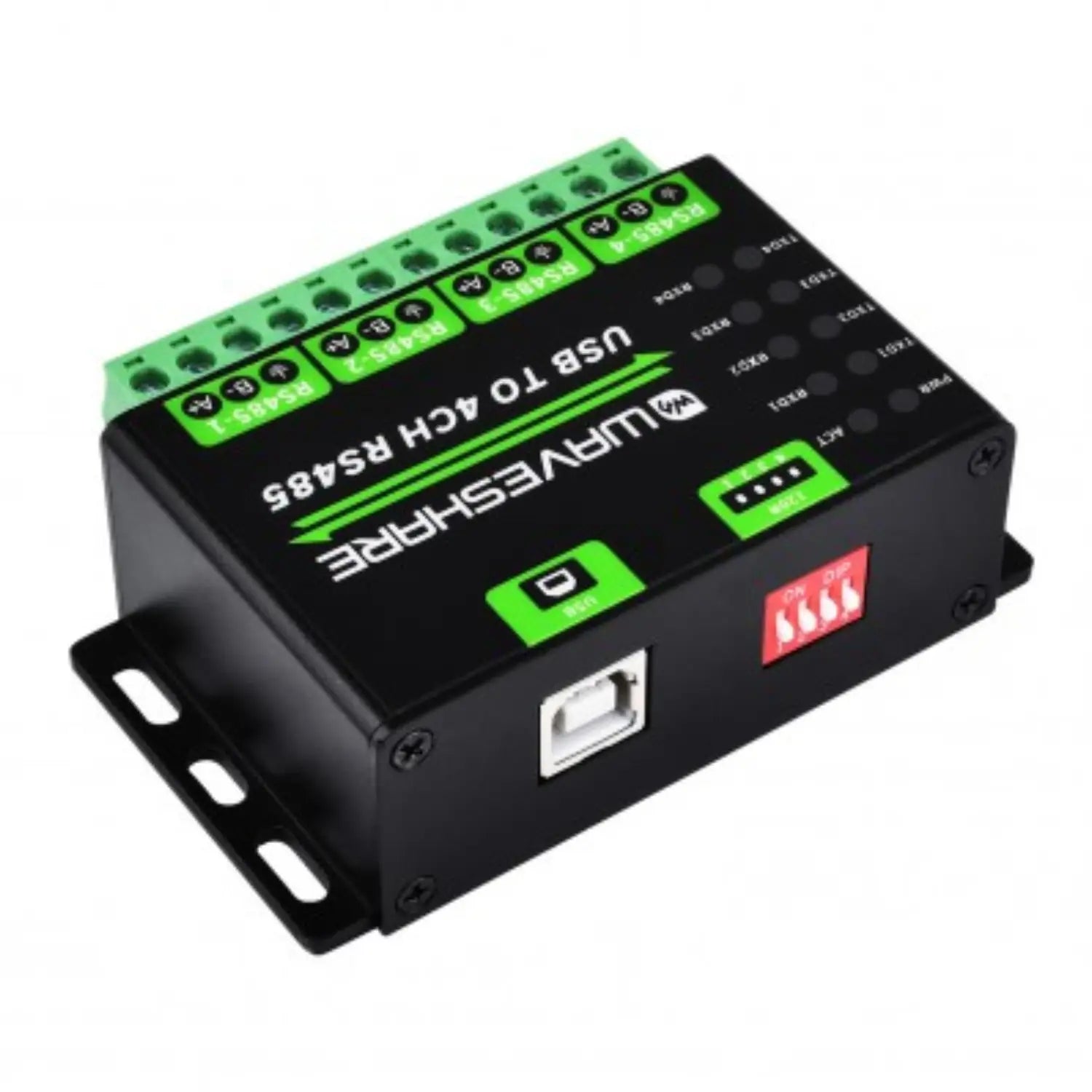

| Indicator Introduction | |
|---|---|
| PWR | power indicator, lights up while the USB is connected and voltage is detected |
| ACT | The status indicator lights up green while the driver is detected. |
| RXD(1~4) | Blue RXD indicators light up when the device ports send data back (corresponding to 4 channels respectively) |
| TXD(1~4) | Blue TXD indicators light up when the USB port is sending data (corresponding to 4 channels respectively) |

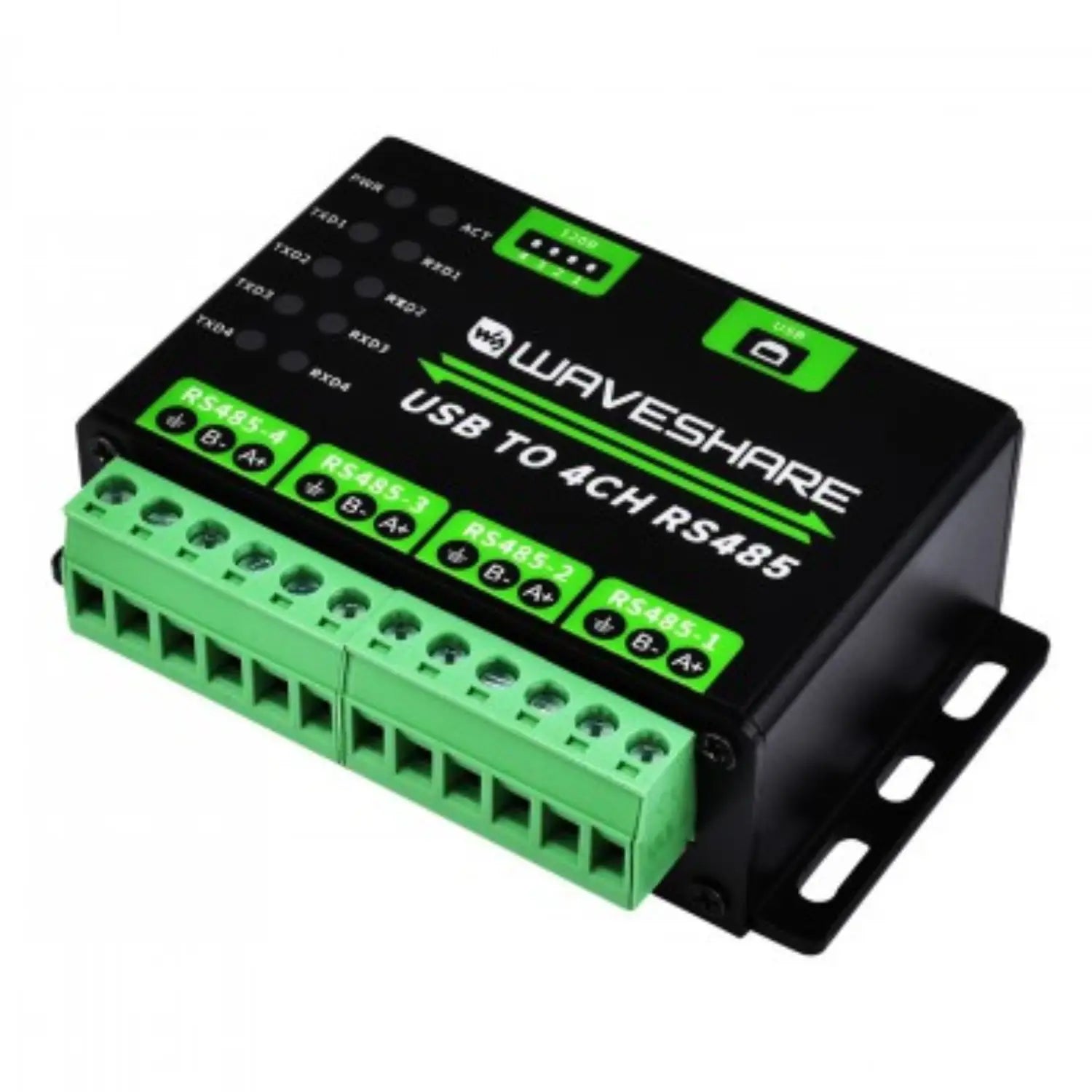

Pin Description:
- PE: Signal ground
- A(1~4): A(1~4) differential signal A+
- B(1~4): B(1~4) differential signal B-
Useful Link:
Waveshare 4Ch Industrial USB TO RS485 Converter
Package Includes:
- 1 x USB TO 4CH RS485
- 1 x USB type A to type B cable ~1.2m
