Description :

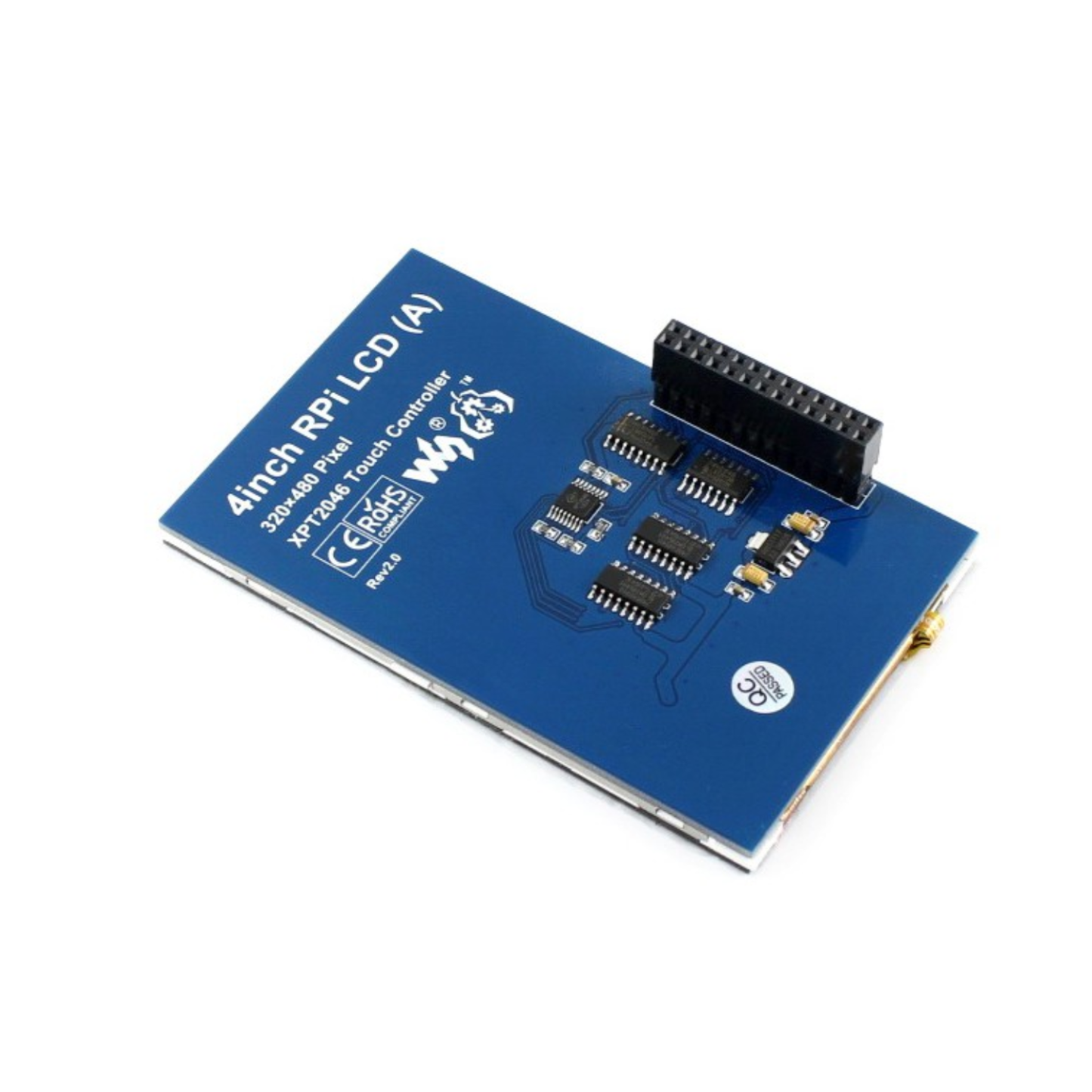

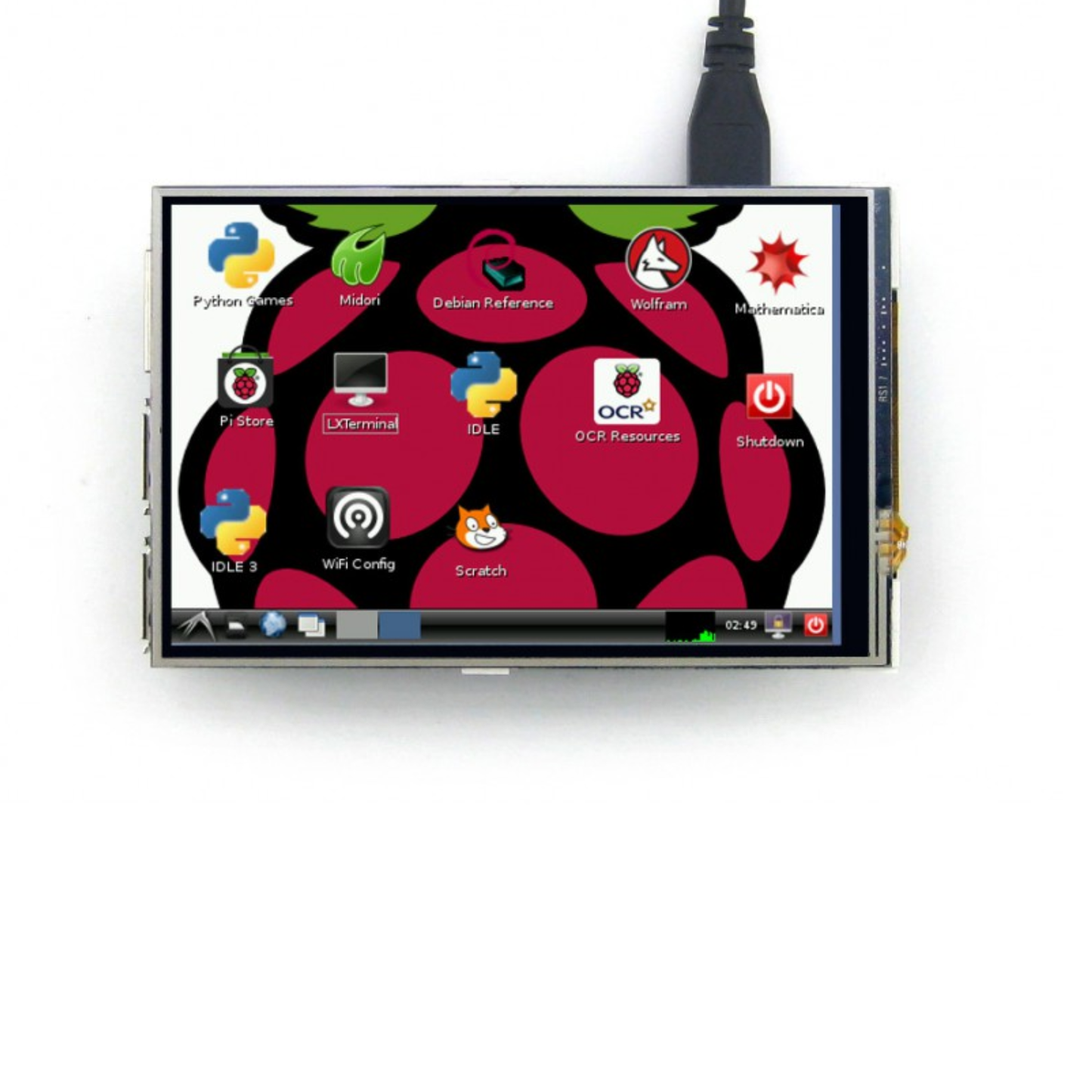

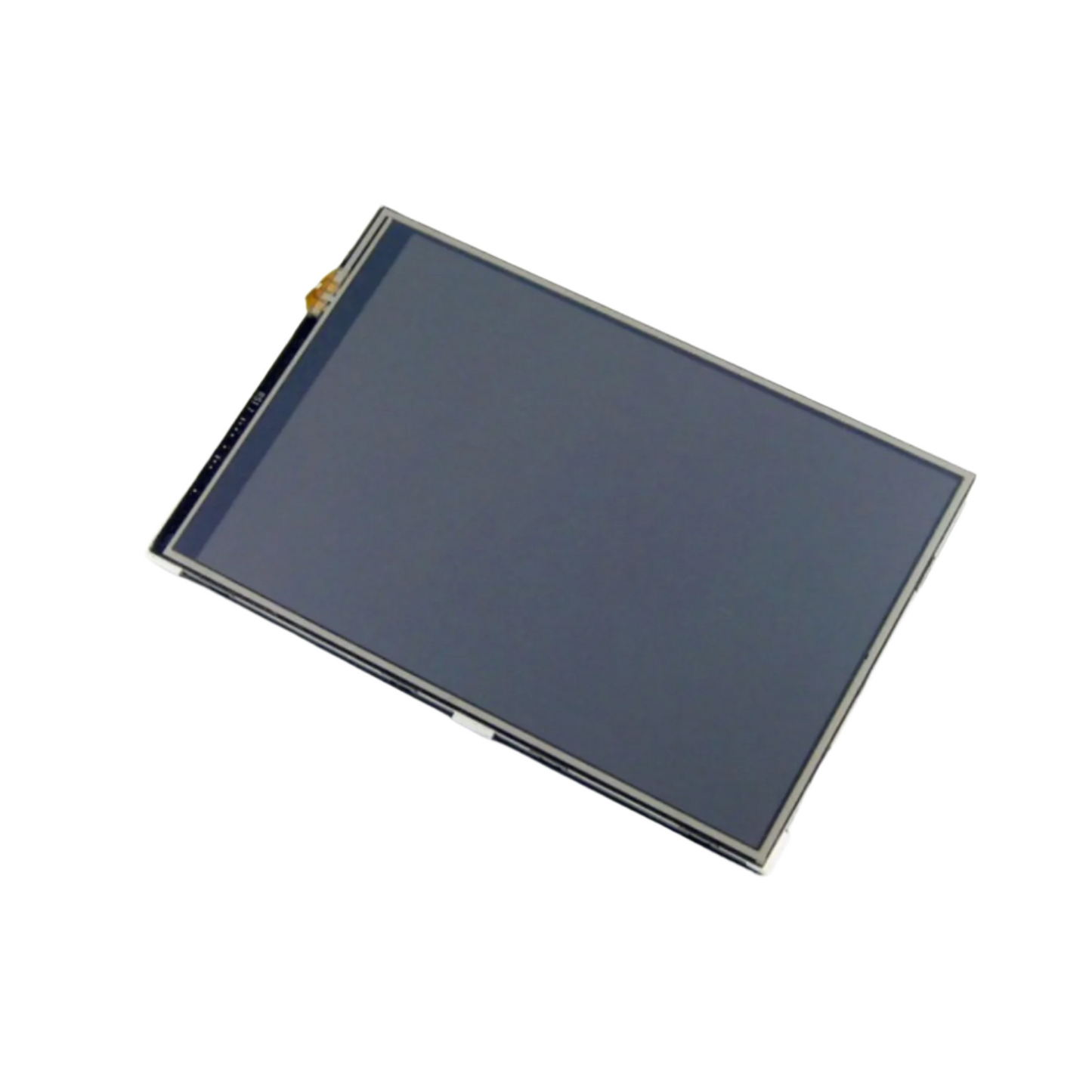

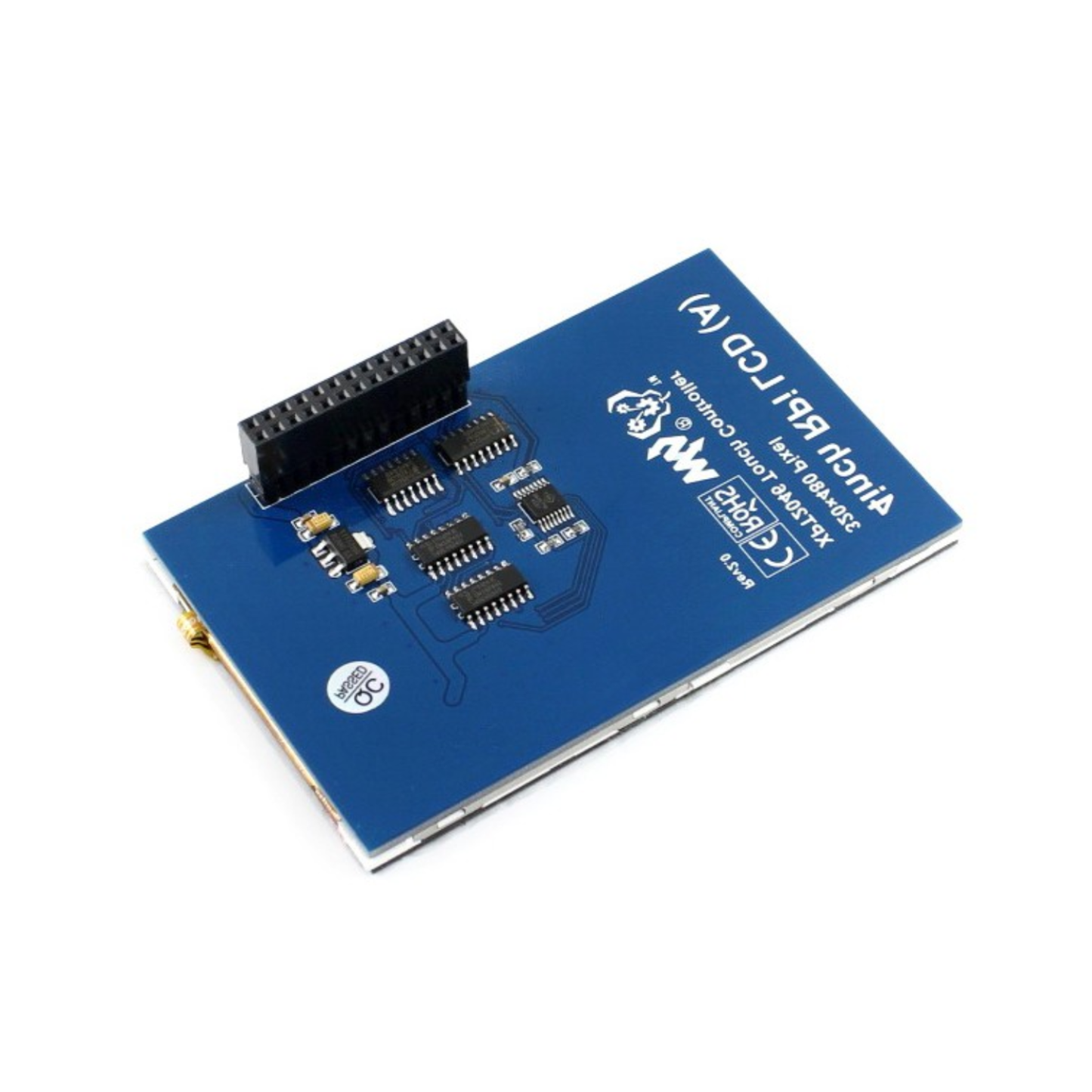

this 4-inch Waveshare resistive touch screen TFT LCD. Featuring a 480x320 resolution, SPI interface, and compatibility with all Raspberry Pi revisions, it's a plug-and-play solution supporting Raspbian, Ubuntu, and Kali.Dual-display setup and software resolution configuration are also possible via the FBCP driver.
Specifications:
- LCD Type: TFT
- LCD Interface: SPI
- Touch Screen Type: Resistive
- Touch Screen Controller: XPT2046
- Colors: 65536
- Backlight: LED
- Resolution: 320*480 (Pixel)
- Aspect Ratio: 8:5
Features:
- 480320 hardware resolution
- Resistive touch control
- Supports any revision of Raspberry Pi (directly-pluggable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Combined with the Raspberry Pi, allows you to:
- Take photos by touching (up to 17 camera modes)
- Use software keyboard (system interaction without keyboard/mouse)
Package Includes:
- 1 x 4inch RPi LCD (A)
- 1 x Touch pen
- 1 x RPi screws pack (2pcs)
- 1 x Quick start sheet
